XINJIA Electronic Voice Watch User Manual

పరిచయం

This manual provides comprehensive instructions for the XINJIA XJ-768 Electronic Voice Watch, designed for individuals with visual impairments, middle-aged, and elderly users. It features English voice prompts, an alarm clock, and a large digital display for ease of use. Please read this manual thoroughly to understand the watch's functions and ensure proper operation.

మూర్తి 1: ముందు view of the XINJIA XJ-768 Electronic Voice Watch.

ఉత్పత్తి లక్షణాలు

• సమయ ప్రదర్శన: Clearly displays the current time and allows for easy time setting.
• అలారం ఫంక్షన్: Provides customizable alarm settings with the option to change the alarm tone.
• Timekeeping Function: Features a 'TALKING' button to broadcast the current time and an automatic hourly timekeeping function that can be toggled on or off.
• తాత్కాలికంగా ఆపివేయి ఫంక్షన్: Allows for a temporary pause of the alarm, with the alarm sounding again after 5 minutes.
• మెరుగైన వినియోగం: Designed with a larger font display, increased volume, and simplified operation for improved accessibility.

సెటప్

Initial Battery Installation

The XINJIA XJ-768 watch comes with one LR44 battery included. Before initial use, ensure the battery is properly seated. If the display is blurred or the watch is unresponsive, the battery may need to be replaced. Refer to the 'Battery Replacement' section for detailed instructions.

ఆపరేటింగ్ సూచనలు

The watch features four primary buttons for operation: B1 (MODE), B2 (MINUTE), B3 (HOUR), మరియు B4 (TALKING). These buttons are located on the sides of the watch case.

మూర్తి 2: వైపు view illustrating the watch buttons.

1. సమయాన్ని నిర్ణయించడం

1. సాధారణ సమయ ప్రదర్శన మోడ్ నుండి, నొక్కండి B1 (MODE) button once. The time digits will begin flashing.
2. నొక్కండి B2 (MINUTE) నిమిషాలు సర్దుబాటు బటన్.
3. నొక్కండి B3 (HOUR) గంటలను సర్దుబాటు చేయడానికి బటన్.
4. సరైన సమయాన్ని సెట్ చేసిన తర్వాత, నొక్కండి B1 (MODE) again to exit time setting mode.

2. అలారం సమయాన్ని సెట్ చేయడం

1. సాధారణ సమయ ప్రదర్శన మోడ్ నుండి, నొక్కండి B1 (MODE) button twice. The display will show the 'AL' symbol, and the alarm time digits will flash.
2. నొక్కండి B2 (MINUTE) button to set the desired alarm minutes.
3. నొక్కండి B3 (HOUR) button to set the desired alarm hours.
4. Once the alarm time is set, press B1 (MODE) అలారం సెట్టింగ్ మోడ్ నుండి నిష్క్రమించడానికి మళ్ళీ.

3. Selecting Alarm Tone and Turning Alarm On/Off

1. సాధారణ సమయ ప్రదర్శన మోడ్ నుండి, నొక్కండి B3 (HOUR) బటన్.
2. Each press will cycle through alarm tone options and toggle the alarm function on or off.
3. When the alarm is set to ON, the alarm will sound at the set time, and the LCD will display the alarm time. After the alarm plays, the normal time will be displayed.
4. When the alarm is set to OFF, the alarm symbol will disappear, and the watch will broadcast a 'DI' sound to confirm.

4. Turning Hourly Timekeeping On/Off

1. సాధారణ సమయ ప్రదర్శన మోడ్ నుండి, నొక్కండి B2 (MINUTE) బటన్.
2. Each press will toggle the hourly timekeeping function on or off.
3. When activated, a specific symbol will appear on the dial, and the watch will automatically announce the hour.
4. When turned off, the symbol will disappear.

5. స్నూజ్ ఫంక్షన్‌ని ఉపయోగించడం

1. అలారం వినిపించినప్పుడు, నొక్కండి B4 (TALKING) బటన్.
2. This will stop the current alarm and activate the snooze function.
3. The alarm will sound again automatically after 5 minutes.

6. Broadcasting the Current Time

• సాధారణ సమయ ప్రదర్శన మోడ్ నుండి, నొక్కండి B4 (TALKING) ఒకసారి బటన్.
• The watch will audibly announce the current time.

నిర్వహణ

బ్యాటరీ భర్తీ

The watch uses one LR44 battery. You will know it's time to replace the battery if you observe any of the following:

• The display font becomes blurred or disappears.
• The sound volume becomes significantly lower.
• The watch functions abnormally or inconsistently.

To replace the battery, carefully open the back casing of the watch. Replace the old LR44 battery with a new one, ensuring correct polarity. Close the back casinగ్రా సురక్షితంగా.

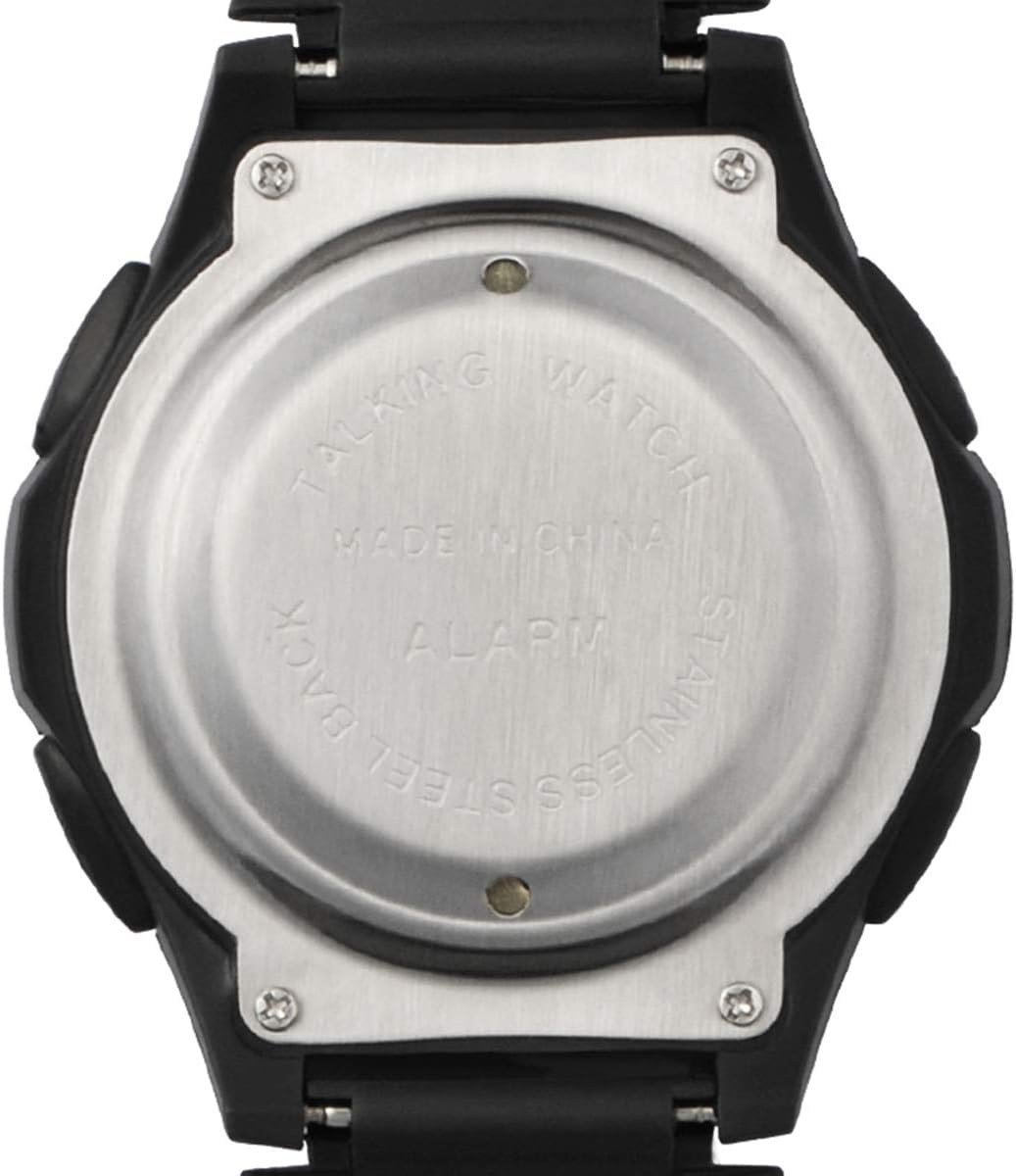

మూర్తి 3: వెనుకకు view of the watch, showing the battery compartment access.

ట్రబుల్షూటింగ్

If you experience issues with your XINJIA XJ-768 watch, consider the following common solutions:

• డిస్ప్లే లేదు లేదా మందమైన డిస్ప్లే: Check the battery. It may be depleted or improperly installed. Replace with a new LR44 battery if necessary.
• ధ్వని లేదు లేదా తక్కువ ధ్వని: This is often an indication of a low battery. Replace the battery.
• Incorrect Time/Alarm: Ensure you have followed the time and alarm setting instructions precisely. Repeat the setting process if needed.
• బటన్‌లు స్పందించలేదు: A low battery can affect button responsiveness. Try replacing the battery. If the issue persists, ensure no debris is obstructing the buttons.

For persistent issues not resolved by these steps, please refer to the Warranty and Support section.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

For information regarding warranty coverage or technical support for your XINJIA XJ-768 Electronic Voice Watch, please contact the seller or manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: Wuhan Prisco
