Geevon 210015 Drip Irrigation Kits User Manual

1. ఉత్పత్తి ముగిసిందిview

The Geevon 210015 Drip Irrigation Kit is an automatic watering system designed for potted plants. It offers both manual and automatic irrigation modes, allowing for precise control over watering duration and frequency. This system is ideal for maintaining plant hydration, especially when you are away.

చిత్రం 1: పైగాview of the Geevon 210015 Drip Irrigation System. The display shows '08 HRS' for the next watering cycle. Settings for watering duration (6 seconds to 30 minutes), watering frequency (1 hour to 7 days), and delay time (0 to 24 hours) are highlighted. The system can operate in manual or automatic modes.

2. ఉత్పత్తి భాగాలు

The Geevon 210015 Drip Irrigation Kit includes the following components:

చిత్రం 2: వివరంగా view of all components included in the kit. This includes the main control unit with LCD display, USB port, hook, inlet/outlet, 'OK', '-', '+' buttons, and battery compartment. Accessories shown are Tubing End Caps (x3), Straight Barb Fittings (x10), T Barb Fittings (x10), Cross Barb Fittings (x3), Micro Drip Emitters (x10), Filter (x1), USB Cable (x1), and 1/4" Tubing (32.8 inches).

• ప్రధాన నియంత్రణ యూనిట్: Features an LCD Display, USB Port, Hook, Water Inlet, Water Outlet, 'OK' Button, '-' Button, and '+' Button.
• బ్యాటరీ కంపార్ట్మెంట్: Requires 4*AA batteries (not included).
• Tubing End Caps: 3 ముక్కలు.
• Straight Barb Fittings: 10 ముక్కలు.
• T Barb Fittings: 10 pieces, for two-way watering.
• Cross Barb Fittings: 3 ముక్కలు.
• Micro Drip Emitters: 10 ముక్కలు.
• ఫిల్టర్: 1 ముక్క.
• USB కేబుల్: 1 piece, for charging.
• 1/4" Tubing: 32.8 inches (approximately 83 cm).

3. సెటప్ సూచనలు

Follow these steps to set up your Geevon 210015 Drip Irrigation Kit:

చిత్రం 3: Step-by-step installation guide. It illustrates cutting tubing, connecting pipes to the unit, attaching T-joints, inserting drippers into tubing, placing drippers in soil, and testing the system.

1. ట్యూబింగ్ సిద్ధం చేయండి: Measure and cut the 1/4" tubing to the desired lengths for each plant. Ensure sufficient length to reach from the main unit to each plant and back to the water source.
2. పైపులను కనెక్ట్ చేయండి: Connect the cut tubing to the water inlet and outlet ports on the main control unit. The inlet tube should lead to your water reservoir, and the outlet tubes will lead to your plants.
3. Install T-Joints (Optional): If watering multiple plants from a single line, use the T-joint fittings to create branches for two-way watering.
4. Attach Drippers: Insert the micro drip emitters into the ends of the tubing that will go into the plant pots.
5. Position Drippers: Carefully insert the drippers into the soil of each potted plant. Ensure they are securely placed to deliver water effectively.
6. పవర్ ఆన్ మరియు టెస్ట్: Insert 4*AA batteries into the battery compartment or connect the USB cable for power. Press the 'OK' button to test the system and begin initial setup.

పరికరాన్ని శక్తివంతం చేస్తోంది

The system can be powered by 4*AA batteries (not included) or via USB charging. For continuous operation, especially during extended periods, USB power is recommended.

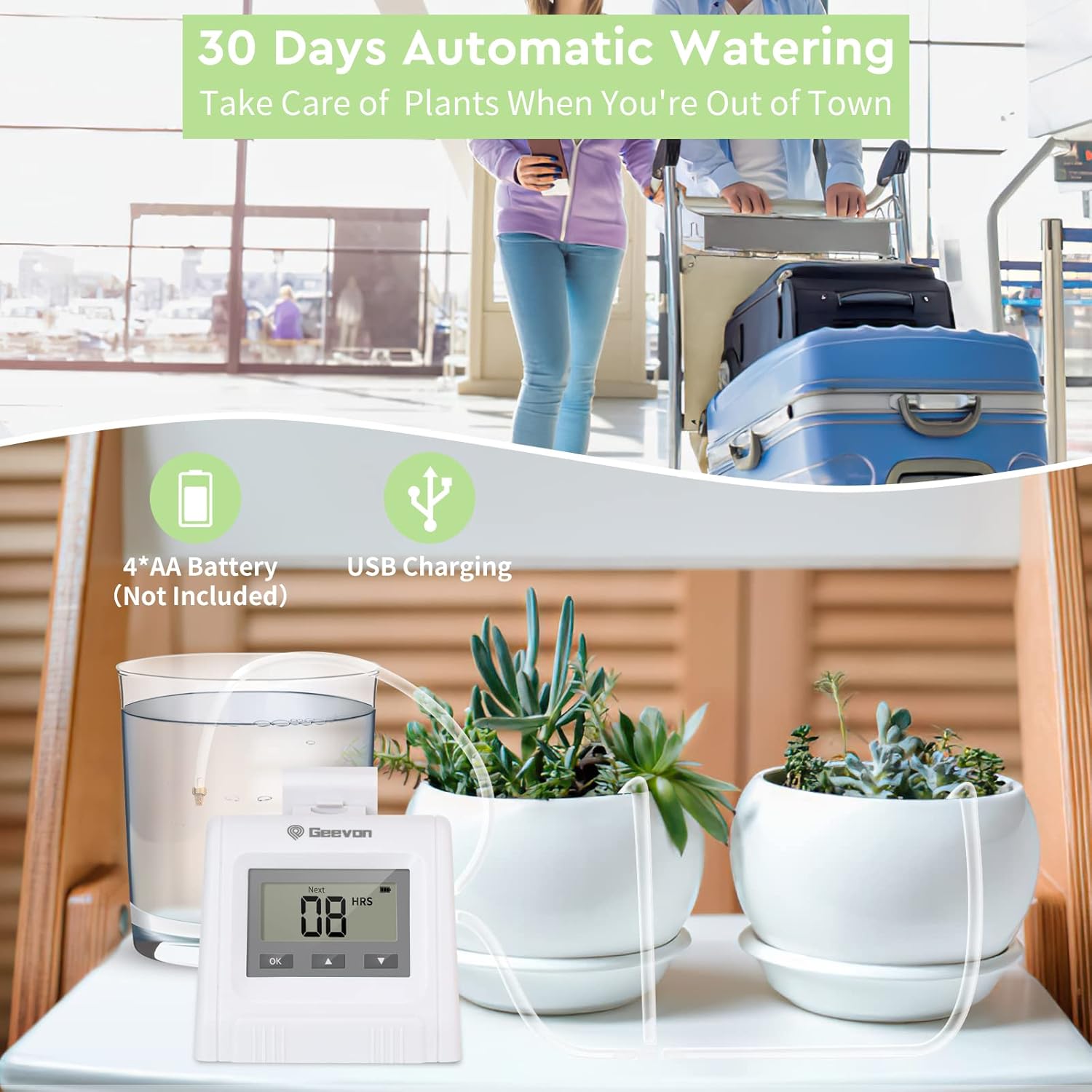

చిత్రం 4: The Geevon 210015 system highlighting its power options: 4*AA battery compartment (batteries not included) and a USB charging port. This enables up to 30 days of automatic watering.

4. ఆపరేటింగ్ సూచనలు

The Geevon 210015 offers both manual and automatic watering modes.

మాన్యువల్ మోడ్

To initiate instant drip irrigation, press the 'OK' button. This mode is useful for immediate watering needs or for testing the system.

ఆటోమేటిక్ మోడ్

For scheduled watering, use the '+', '-', and 'OK' buttons to set the desired parameters:

• నీరు పెట్టే వ్యవధి: Set how long the system will water during each cycle. Adjustable from 6 seconds to 30 minutes.
• నీరు త్రాగుట ఫ్రీక్వెన్సీ: Set how often the system will water. Adjustable from 1 hour to 7 days.
• ఆలస్యం సమయం: Set a delay before the first automatic watering cycle begins. Adjustable from 0 to 24 hours.

Use the '+' and '-' buttons to adjust values and the 'OK' button to confirm selections and move to the next setting. Once all settings are confirmed, the system will begin its automatic watering schedule.

చిత్రం 5: ఒక మాజీample setup demonstrating the Geevon 210015 system watering 10 potted plants. The main unit draws water from a reservoir and distributes it through tubing to each plant.

వినియోగ దృశ్యాలు

The Geevon 210015 Drip Irrigation Kit is versatile and can be used in various environments:

• ఇండోర్: Ideal for houseplants and small indoor gardens.
• బాల్కనీ: Suitable for balcony planters and container gardens.
• గ్రీన్‌హౌస్: Provides consistent watering for plants in a controlled greenhouse environment.
• తోట: Can be adapted for small garden beds or specific plant groupings.

చిత్రం 6: Examples of the Geevon 210015 system in use across different locations: an indoor plant shelf, a balcony with flower boxes, a greenhouse with various plants, and an outdoor garden bed.

5. నిర్వహణ

Regular maintenance ensures optimal performance and longevity of your irrigation system:

• క్లీన్ ఫిల్టర్: Periodically check and clean the filter to prevent blockages and ensure consistent water flow.
• ట్యూబింగ్‌ను తనిఖీ చేయండి: Regularly inspect all tubing for kinks, blockages, or damage. Ensure all connections are secure.
• Check Drippers: Verify that all micro drip emitters are free from debris and are delivering water evenly to each plant.
• బ్యాటరీ భర్తీ: If using batteries, replace them when the low battery indicator appears on the LCD display to avoid interruption of watering cycles.
• నీటి రిజర్వాయర్: Ensure the water reservoir always contains sufficient water, especially during extended automatic watering periods.

6. ట్రబుల్షూటింగ్

If you encounter issues with your Geevon 210015 system, refer to the following common problems and solutions:

• నీటి ప్రవాహం లేదు:
  • నీటి రిజర్వాయర్ ఖాళీగా ఉందో లేదో తనిఖీ చేయండి.
  • ఫిల్టర్ శుభ్రంగా ఉందని మరియు అడ్డుపడకుండా చూసుకోండి.
  • Verify that all tubing connections are secure and free of kinks.
  • Check if the pump is operating (listen for a faint hum).
• Uneven Watering:
  • Inspect drippers for blockages or debris.
  • Ensure all tubing is properly installed and not pinched.
  • Confirm that the water source is elevated enough for proper gravity feed if applicable, or that the pump is functioning correctly.
• System Not Turning On/Display Off:
  • బ్యాటరీలు సరిగ్గా ఇన్‌స్టాల్ చేయబడ్డాయో లేదో మరియు తగినంత ఛార్జ్ ఉందో లేదో తనిఖీ చేయండి. అవసరమైతే మార్చండి.
  • USB పవర్ ఉపయోగిస్తుంటే, కేబుల్ సురక్షితంగా కనెక్ట్ చేయబడిందని మరియు పవర్ సోర్స్ యాక్టివ్‌గా ఉందని నిర్ధారించుకోండి.
• తప్పు నీరు త్రాగుట షెడ్యూల్:
  • Re-enter the automatic watering settings (duration, frequency, delay) to ensure they are correctly programmed.

7. స్పెసిఫికేషన్లు

చిత్రం 7: Physical dimensions of the Geevon 210015 main control unit. The unit measures 8.2 cm (3.22 in) in width, 7 cm (2.75 in) in depth, and 7.5 cm (2.95 in) in height.

8. వారంటీ మరియు మద్దతు

Information regarding product warranty and customer support is not available in the provided product details. Please refer to the product packaging or contact the retailer for specific warranty terms and support options.
