HASWING Cayman B 50700 Electric Trolling Motor User Manual

1. పరిచయం

This manual provides essential information for the safe and effective use of your HASWING Cayman B 50700 Electric Trolling Motor. Please read these instructions thoroughly before installation, operation, or maintenance to ensure proper function and longevity of the product. Retain this manual for future reference.

2. భద్రతా సమాచారం

హెచ్చరిక: ఈ భద్రతా సూచనలను పాటించడంలో విఫలమైతే విద్యుత్ షాక్, అగ్ని ప్రమాదం, తీవ్రమైన గాయం లేదా ఆస్తి నష్టం సంభవించవచ్చు.

• Always disconnect the motor from the battery before performing any maintenance, cleaning, or propeller work.
• షార్ట్ సర్క్యూట్‌లను నివారించడానికి అన్ని విద్యుత్ కనెక్షన్‌లు సురక్షితంగా మరియు సరిగ్గా ఇన్సులేట్ చేయబడిందని నిర్ధారించుకోండి.
• Do not operate the motor if the propeller is obstructed or if the motor unit is damaged.
• Keep hands, feet, and clothing clear of the propeller at all times, especially during operation.
• Use only a 12V deep cycle marine battery with the recommended capacity (105AH minimum).
• Avoid submerging the motor head or control unit in water.
• Mount the motor securely to the boat's bow according to the installation instructions.
• Do not use this motor in areas where swimming is permitted or where people may be in the water near the propeller.

3. ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని అంశాలు మీ ఉత్పత్తి ప్యాకేజింగ్‌లో ఉన్నాయని నిర్ధారించుకోండి:

• HASWING Cayman B Trolling Motor Unit (12V 55LB 48 Inch Shaft)
• వైర్లెస్ రిమోట్ కంట్రోల్
• Propeller (3-blade, 9.3 inch diameter)
• Propeller Nut and Pin
• మౌంటు హార్డ్‌వేర్ (బోల్ట్లు, వాషర్లు, నట్స్)
• సూచనల మాన్యువల్ (ఈ పత్రం)

4. ఉత్పత్తి ముగిసిందిview మరియు భాగాలు

The HASWING Cayman B 50700 is a bow-mount electric trolling motor designed for both saltwater and freshwater use. It features variable speed control and wireless remote operation.

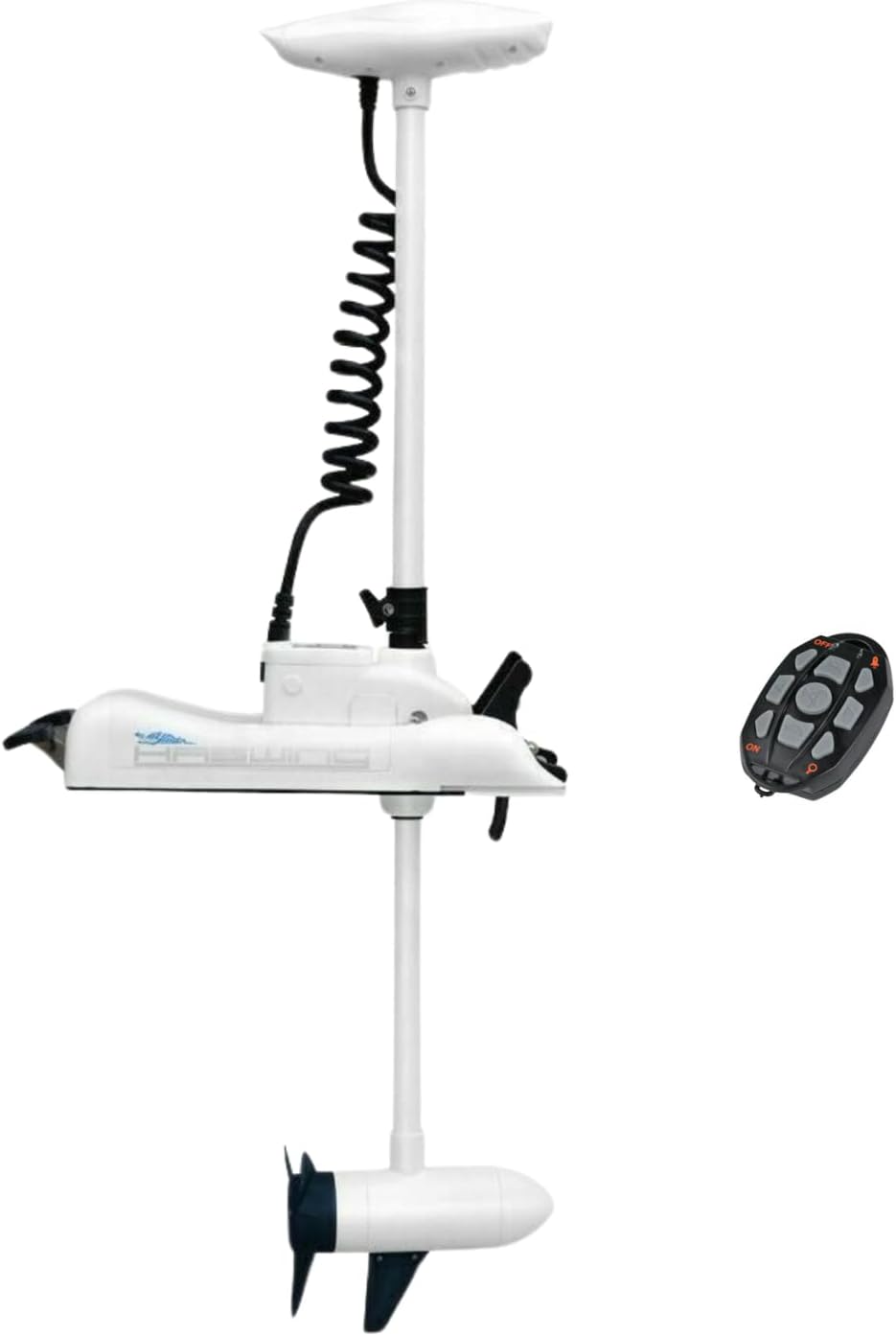

Figure 4.1: HASWING Cayman B 50700 Trolling Motor and Wireless Remote Control.

4.1 కీలక భాగాలు

• మోటార్ హెడ్: Contains the control electronics and power reader.
• షాఫ్ట్: 48-inch cast aluminum alloy shaft connecting the motor head to the lower unit.
• Depth Collar: Adjustable collar on the shaft to set the motor's depth.
• దిగువ యూనిట్: Houses the electric motor and propeller.
• ప్రొపెల్లర్: 3-blade design for efficient thrust.
• Bow Mount: Mechanism for attaching the motor to the boat's bow.
• Stow/Deploy Pedal: Lever for raising and lowering the motor.
• వైర్‌లెస్ రిమోట్ కంట్రోల్: For wireless operation of speed and steering.

Figure 4.2: Detailed diagram illustrating the components and key specifications of the Cayman B 50700 trolling motor.

4.2 Power Reader Display

The motor head features an LED power reader display to indicate the battery's charge status. This allows for convenient monitoring of battery life during use.

Figure 4.3: LED Power Reader Display indicating battery charge levels.

5. సెటప్ మరియు ఇన్‌స్టాలేషన్

5.1 ట్రోలింగ్ మోటార్‌ను అమర్చడం

1. స్థానం: Place the trolling motor on the bow of your boat. Ensure the mounting bracket is positioned to allow the motor to deploy and stow without obstruction. The motor should be centered or slightly offset to one side, depending on your boat's design.
2. మార్కింగ్ రంధ్రాలు: Once the desired position is determined, mark the drilling locations for the mounting bolts through the base of the mounting bracket.
3. డ్రిల్లింగ్: Drill appropriate size holes for the mounting bolts. Use caution to avoid damaging any internal boat structures.
4. Securing the Mount: Attach the mounting bracket to the boat using the provided bolts, washers, and nuts. Ensure all fasteners are tightened securely. Consider using a backing plate for added stability if your boat's deck material is thin.

Figure 5.1: Bow mount bracket for securing the trolling motor to the boat.

5.2 బ్యాటరీ కనెక్షన్

Connect the trolling motor's power cables directly to a 12V deep cycle marine battery. Observe correct polarity: red cable to the positive (+) terminal and black cable to the negative (-) terminal. Ensure connections are tight and corrosion-free. It is recommended to install an appropriate circuit breaker (not included) in the positive line near the battery for protection.

5.3 ప్రొపెల్లర్ ఇన్‌స్టాలేషన్

1. Align the propeller with the shaft pin.
2. Slide the propeller onto the shaft, ensuring the pin engages the propeller slot.
3. Thread the propeller nut onto the shaft and tighten it firmly by hand. Do not overtighten.

Figure 5.2: The 3-blade propeller, ready for installation.

6. ఆపరేటింగ్ సూచనలు

6.1 మోటారును అమర్చడం మరియు నిల్వ చేయడం

To deploy the motor, press the stow/deploy pedal and gently lower the motor into the water until the propeller is at the desired depth. Use the depth collar to adjust the shaft depth. To stow, press the pedal and lift the motor out of the water, securing it in the stowed position.

Figure 6.1: Adjustable depth collar on the motor shaft.

6.2 Wireless Remote Control Functions

The wireless remote control allows for convenient operation from anywhere on the boat. Ensure the remote is paired with the motor before use (refer to the pairing instructions in the full manual, if provided separately).

Figure 6.2: Wireless Remote Control layout and functions.

• పవర్ ఆన్/ఆఫ్: Activates or deactivates the motor.
• Speed Up / Speed Down: Adjusts the motor's thrust incrementally.
• Full Speed (F.Speed): Engages maximum thrust.
• Turn Left / Turn Right: Controls the 360-degree electric steering.
• రీబూట్ కీ (రీసెట్): Used for resetting the remote connection or motor.
• సూచిక కాంతి: Provides feedback on remote status.

6.3 స్పీడ్ కంట్రోల్

The motor features variable speed control. Use the 'Speed Up' and 'Speed Down' buttons on the remote to precisely adjust your desired speed. The motor is designed for smooth, stepless speed adjustments.

6.4 స్టీరింగ్

The motor offers 360-degree electric steering. Use the 'Turn Left' and 'Turn Right' buttons on the remote to navigate. The motor will respond quickly to steering commands.

7. నిర్వహణ

Regular maintenance ensures optimal performance and extends the life of your trolling motor.

7.1 ప్రతి ఉపయోగం తర్వాత

• Rinse the motor unit, especially the lower unit and propeller, with fresh water to remove salt, dirt, and debris.
• ఏదైనా ఫిషింగ్ లైన్, కలుపు మొక్కలు లేదా నష్టం కోసం ప్రొపెల్లర్‌ను తనిఖీ చేయండి. ఏవైనా అడ్డంకులను తొలగించండి.
• Check all electrical connections for tightness and corrosion. Clean if necessary.

7.2 ఆవర్తన నిర్వహణ

• ప్రొపెల్లర్ తనిఖీ: Regularly check the propeller for nicks, cracks, or bends. A damaged propeller can reduce efficiency and cause vibration. Replace if necessary.
• షాఫ్ట్ మరియు మౌంట్: Inspect the shaft for any signs of bending or damage. Ensure the bow mount remains securely fastened to the boat.
• బ్యాటరీ సంరక్షణ: బ్యాటరీ తయారీదారు సూచనల ప్రకారం మీ డీప్ సైకిల్ బ్యాటరీని ఛార్జ్ చేసి నిర్వహించండి.
• నిల్వ: When not in use, store the trolling motor in a dry, protected area. If storing for extended periods, disconnect the battery.

8. ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with your trolling motor.

9. స్పెసిఫికేషన్లు

Technical details for the HASWING Cayman B 50700 Electric Trolling Motor.

10. వారంటీ మరియు మద్దతు

For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact HASWING customer service directly. Keep your proof of purchase for warranty claims.
