పరిచయం
The Steca Solarix PLI is a comprehensive hybrid inverter solution designed for photovoltaic island systems. It integrates an MPPT solar charge controller, a 230V pure sine wave inverter, and an integrated battery charger into a single unit. This device enables the creation of an independent 230V power grid using a solar generator and battery bank. It also supports recharging batteries via generator or grid connection.
The Solarix PLI functions as a grid-guided UPS hybrid inverter with zero export capability and blackout protection. In grid-connected operation, solar power helps reduce electricity costs. In the event of a power outage, the battery seamlessly takes over power supply within 10 milliseconds, ensuring continuous operation of essential loads.
భద్రతా సూచనలు
దయచేసి ఇన్స్టాలేషన్ మరియు ఆపరేషన్ ముందు అన్ని భద్రతా సూచనలను జాగ్రత్తగా చదవండి. ఈ సూచనలను పాటించడంలో విఫలమైతే విద్యుత్ షాక్, అగ్ని ప్రమాదం లేదా తీవ్రమైన గాయం సంభవించవచ్చు.
- ఇన్స్టాలేషన్ తప్పనిసరిగా అర్హత కలిగిన సిబ్బందిచే నిర్వహించబడాలి.
- Ensure all power sources are disconnected before performing any wiring or maintenance.
- ఇన్వర్టర్ను వర్షం, మంచు, స్ప్రే లేదా ఏదైనా ద్రవాలకు గురిచేయవద్దు.
- Do not disassemble the unit. There are no user-serviceable parts inside. Refer all servicing to qualified service personnel.
- వేడెక్కకుండా నిరోధించడానికి ఇన్వర్టర్ చుట్టూ సరైన వెంటిలేషన్ ఉండేలా చూసుకోండి.
- Connect the inverter only to battery systems with the correct voltage (24V for this model).
- Always use appropriate overcurrent protection devices (fuses/breakers) for all circuits connected to the inverter.
- Keep children away from the inverter and its connections.
ఉత్పత్తి ముగిసిందిview
The Steca Solarix PLI unit features a robust design with a clear display and intuitive controls for monitoring and configuration.

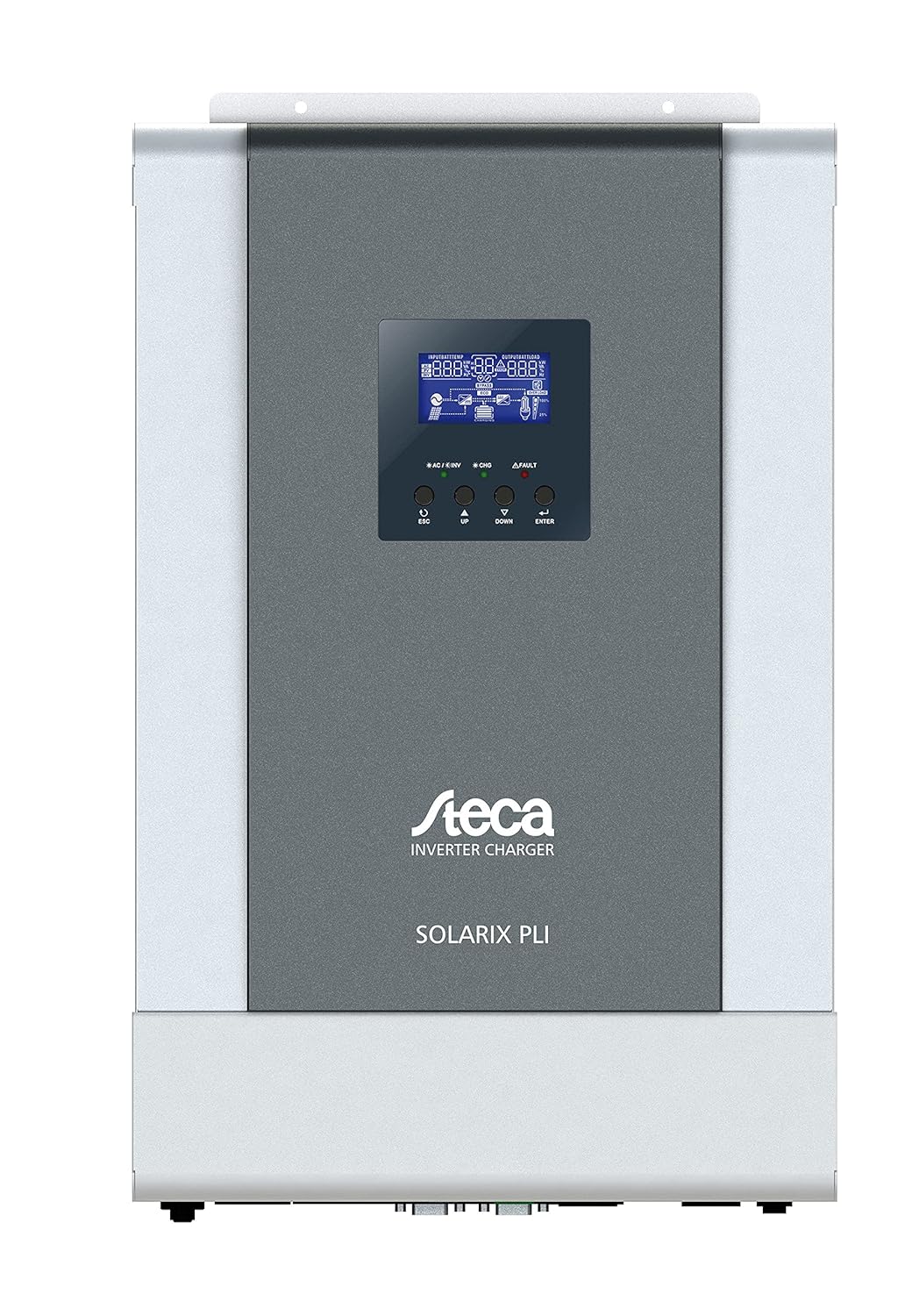

మూర్తి 1: ముందు view of the Steca Solarix PLI 2400-24V Hybrid Inverter. The central display shows operational status, while buttons below allow navigation and setting adjustments.
కీలక భాగాలు:
- LCD డిస్ప్లే: Shows real-time system data, operating status, and error codes.
- నియంత్రణ బటన్లు: Used for navigating menus and adjusting settings (ESC, UP, DOWN, ENTER).
- AC Input/Output Terminals: For connecting to the grid and supplying AC loads.
- బ్యాటరీ టెర్మినల్స్: బ్యాటరీ బ్యాంక్కు కనెక్ట్ చేయడానికి.
- PV Input Terminals: For connecting to the solar panel array.
- కమ్యూనికేషన్ పోర్ట్లు: For external monitoring and control (e.g., USB, RS232).
Figure 2: Dimensional drawing of the Steca Solarix PLI, indicating its physical size and mounting points. Dimensions are provided in millimeters.
సెటప్
Proper installation is crucial for the safe and efficient operation of your Solarix PLI inverter. Follow these general steps:
- మౌంటు: Select a suitable location for mounting the inverter. It should be indoors, dry, well-ventilated, and away from direct sunlight or heat sources. Ensure the mounting surface can support the inverter's weight (approx. 9.01 kg).
- బ్యాటరీ కనెక్షన్: Connect the battery bank to the inverter's battery terminals. Ensure correct polarity (+ to + and - to -). Use appropriately sized cables and fuses. This model is designed for 24V battery systems.
- PV అర్రే కనెక్షన్: Connect the solar panel array to the PV input terminals. Observe correct polarity and ensure the PV array voltage and current are within the inverter's specifications.
- AC Input Connection (Grid/Generator): If connecting to the utility grid or a generator, connect the AC input cable to the designated terminals. Ensure proper grounding.
- AC అవుట్పుట్ కనెక్షన్ (లోడ్లు): Connect your AC loads (appliances, circuits) to the AC output terminals of the inverter.
- ప్రారంభ పవర్-అప్: Once all connections are secure and verified, switch on the battery breaker, then the PV array breaker (if applicable), and finally the AC input breaker. The inverter display should power on.
- కాన్ఫిగరేషన్: Use the control buttons and LCD display to configure operating parameters such as battery type, charging current, output voltage, and operating modes according to your system requirements.
Refer to the detailed wiring diagrams and specific instructions in the full user manual for precise connection procedures and safety precautions.
ఆపరేటింగ్
The Steca Solarix PLI offers various operating modes to optimize energy flow. The LCD display provides real-time information on input voltagఇ, అవుట్పుట్ వాల్యూమ్tage, battery status, charging current, and load power.
ప్రదర్శన మరియు నావిగేషన్
The LCD display shows various screens cycling through system parameters. Use the UP and DOWN buttons to manually cycle through screens or adjust values in settings. The ENTER button confirms selections, and ESC returns to the previous menu or screen.
ఆపరేటింగ్ మోడ్లు
- Utility Priority (UPS Mode): The inverter primarily uses grid power to supply loads and charge batteries. Solar power is used when available to supplement or reduce grid consumption. In case of grid failure, it switches to battery power.
- సౌర ప్రాధాన్యత: Solar power is prioritized for loads and battery charging. Grid power is only used when solar power is insufficient or batteries are low.
- Battery Priority: Loads are primarily supplied by battery power. Solar charges the battery. Grid power is used as a last resort when battery voltage సెట్ థ్రెషోల్డ్ కంటే దిగువకు పడిపోతుంది.
Standby Functionality
The inverter features a standby mode to conserve energy. It typically enters standby when the load is below a certain threshold (e.g., <40W) and reactivates when the load increases (e.g., >100W). This threshold may be configurable in advanced settings.
నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your Steca Solarix PLI inverter.
- శుభ్రపరచడం: ఇన్వర్టర్ యొక్క బాహ్య భాగాన్ని పొడి, మృదువైన వస్త్రంతో కాలానుగుణంగా శుభ్రం చేయండి. ద్రవ క్లీనర్లను లేదా ద్రావకాలను ఉపయోగించవద్దు. వెంటిలేషన్ ఓపెనింగ్లు దుమ్ము మరియు శిధిలాలు లేకుండా చూసుకోండి.
- కనెక్షన్ల తనిఖీ: Annually inspect all electrical connections (battery, PV, AC input/output) for tightness and signs of corrosion. Loose connections can cause overheating and damage.
- వెంటిలేషన్: Ensure the area around the inverter remains clear to allow for proper airflow and heat dissipation.
- బ్యాటరీ ఆరోగ్యం: Monitor your battery bank's health according to the battery manufacturer's recommendations. Ensure proper charging and discharge cycles.
Always disconnect all power sources before performing any maintenance or inspection.
ట్రబుల్షూటింగ్
This section addresses common issues you might encounter with your Steca Solarix PLI inverter.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| No 230V output / Error Code 09 (Soft Start Failure) | Internal main board defect. | This often indicates a hardware failure that cannot be user-repaired. Contact Steca customer support or a qualified service technician. |
| Inverter does not activate from standby with low loads. | Load is below the inverter's standby activation threshold (e.g., <100W). | Increase the load connected to the inverter above the activation threshold. Check if the standby threshold is configurable in the settings. |
| Persistent warning tone. | Indicates a system warning (e.g., low battery, overload, high temperature). | Check the LCD display for specific error codes or warning messages. Address the underlying issue (e.g., reduce load, check ventilation, charge batteries). While the tone can be disabled, it's recommended to address the cause. |
| Display/Menu navigation buttons (UP/DOWN) seem reversed. | Minor firmware quirk or design choice. | Adapt to the button behavior. It does not affect functionality. |
| Inverter not charging batteries from PV. | Insufficient solar input, PV connection issue, or charge controller settings. | Check PV array connections and ensure sufficient sunlight. Verify PV input voltage on the display. Check charge controller settings (e.g., battery type, charging current). |
For issues not listed here or if solutions do not resolve the problem, please contact Steca customer support.
స్పెసిఫికేషన్లు
| గుణం | విలువ |
|---|---|
| బ్రాండ్ | STECA |
| మోడల్ సంఖ్య | 4250852802154 |
| వస్తువు బరువు | 9.01 కిలోలు |
| ఉత్పత్తి కొలతలు | 49.6 x 47.79 x 23 సెం.మీ (ప్యాకేజింగ్) |
| రంగు | నలుపు |
| ఉత్పత్తి మందం | 130 మిల్లీమీటర్లు |
| డ్రైవ్ రకం | Battery, Solar |
| వాల్యూమ్tage | 230 వోల్ట్ |
| వాట్tage | 5700 Watt (Max. PV Generator) |
| చేర్చబడిన భాగాలు | హైబ్రిడ్ ఇన్వర్టర్ |
| బ్యాటరీలు అవసరం | No (for inverter operation, but requires external battery bank for energy storage) |
| మొదట అందుబాటులో ఉన్న తేదీ | జూన్ 16, 2021 |
| ఫారమ్ ఫ్యాక్టర్ | ర్యాక్ |
వారంటీ మరియు మద్దతు
The Steca Solarix PLI typically comes with a manufacturer's warranty. Based on available information, the warranty period for this product is generally 2 సంవత్సరాలు కొనుగోలు తేదీ నుండి. వారంటీ క్లెయిమ్ల కోసం దయచేసి మీ కొనుగోలు రుజువును ఉంచుకోండి.
For technical support, troubleshooting beyond this manual, or warranty service, please contact Steca customer service. You may need to provide your product model number (4250852802154) and serial number (if applicable).
Note: Warranty terms may vary by region and retailer. Always refer to the official warranty documentation provided with your product for precise details.
