BUNN VPR-2GD

BUNN VPR-2GD 12-Cup Pourover Commercial Coffee Brewer Instruction Manual

1. పరిచయం

This manual provides detailed instructions for the safe and efficient operation and maintenance of your BUNN VPR-2GD 12-Cup Pourover Commercial Coffee Brewer. Please read all instructions carefully before using the appliance.

2. ముఖ్యమైన భద్రతా సూచనలు

  • అన్ని సూచనలను చదవండి.
  • వేడి ఉపరితలాలను తాకవద్దు. హ్యాండిల్స్ లేదా నాబ్‌లను ఉపయోగించండి.
  • అగ్ని, విద్యుత్ షాక్ మరియు వ్యక్తులకు గాయం కాకుండా రక్షించడానికి, త్రాడు, ప్లగ్‌లు లేదా ఉపకరణాన్ని నీటిలో లేదా ఇతర ద్రవంలో ముంచవద్దు.
  • ఏదైనా ఉపకరణాన్ని పిల్లలు లేదా సమీపంలో ఉపయోగించినప్పుడు నిశిత పర్యవేక్షణ అవసరం.
  • ఉపయోగంలో లేనప్పుడు మరియు శుభ్రపరిచే ముందు అవుట్‌లెట్ నుండి అన్‌ప్లగ్ చేయండి. విడిభాగాలను ధరించడానికి లేదా తీయడానికి ముందు మరియు ఉపకరణాన్ని శుభ్రపరిచే ముందు చల్లబరచడానికి అనుమతించండి.
  • పాడైపోయిన త్రాడు లేదా ప్లగ్‌తో లేదా ఉపకరణం పనిచేయకపోవడం లేదా ఏ పద్ధతిలో పాడైపోయిన తర్వాత ఏదైనా ఉపకరణాన్ని ఆపరేట్ చేయవద్దు. పరీక్ష, మరమ్మత్తు లేదా సర్దుబాటు కోసం పరికరాన్ని సమీప అధీకృత సేవా సదుపాయానికి తిరిగి ఇవ్వండి.
  • The SplashGuard funnel is designed to deflect hot liquids away from the user's hand, reducing the risk of burns. Always ensure it is properly in place during operation.
  • This product is built to North American Electrical Standards. Ensure your power supply matches the appliance requirements.

3. ప్యాకేజీ విషయాలు

  • BUNN VPR-2GD Commercial Coffee Brewer Unit
  • Two (2) Easy Pour Glass Decanters
  • ఇన్స్ట్రక్షన్ మాన్యువల్

4. సెటప్

4.1 అన్‌ప్యాకింగ్ మరియు ప్లేస్‌మెంట్

Carefully remove the coffee brewer from its packaging. Place the brewer on a stable, level surface. This pourover model is completely portable and does not require plumbing, only an electrical outlet.

BUNN VPR-2GD Commercial Coffee Brewer, front view with two glass decanters

మూర్తి 1: ముందు view of the BUNN VPR-2GD Commercial Coffee Brewer with two glass decanters.

4.2 ప్రారంభ శుభ్రపరచడం

Before first use, clean the decanters and the brew funnel with warm, soapy water. Rinse thoroughly. Wipe down the exterior of the brewer with a damp గుడ్డ.

4.3 పవర్ కనెక్షన్

Plug the brewer into a grounded electrical outlet. Ensure the outlet meets the North American Electrical Standards for which the product is designed.

5. ఆపరేషన్

5.1 బ్రూయింగ్ కాఫీ

  1. Place a clean, empty glass decanter on the lower warmer plate.
  2. Insert a paper filter into the brew funnel.
  3. ఫిల్టర్‌కు కావలసిన మొత్తంలో గ్రౌండ్ కాఫీని జోడించండి.
  4. Slide the brew funnel into position under the spray head.
  5. Open the lid on top of the brewer and pour cold water into the water reservoir. The brewer will immediately begin the brewing cycle.
  6. Once brewing is complete, remove the decanter. The brewer can brew up to 3.8 gallons (14.4 liters) of coffee per hour.

5.2 Using Warmers

The BUNN VPR-2GD features both upper and lower warmer plates to keep brewed coffee hot. Red switches on the front panel control these warmers:

  • Upper Warmer: Place a decanter on the upper plate and flip the 'UPPER' switch to the ON position.
  • Lower Warmer: Place a decanter on the lower plate and flip the 'LOWER' switch to the ON position.

CAUTION: Warmer plates and surrounding surfaces become hot during operation. Avoid direct contact.

6. నిర్వహణ

6.1 రోజువారీ శుభ్రపరచడం

6.2 Descaling (Periodic)

Mineral deposits can build up over time, affecting performance. Descale the brewer periodically using a commercial descaling solution or a mixture of white vinegar and water. Follow the descaling product's instructions carefully, or consult the BUNN website for specific descaling procedures for pourover brewers.

7. ట్రబుల్షూటింగ్

For issues not resolved by these steps, please contact BUNN customer support.

8. స్పెసిఫికేషన్లు

ఫీచర్వివరాలు
బ్రాండ్BUNN
మోడల్VPR-2GD
కాఫీ మేకర్ రకండ్రిప్ కాఫీ మెషిన్
ఆపరేషన్ మోడ్మాన్యువల్
మానవ ఇంటర్‌ఫేస్ ఇన్‌పుట్బటన్లు
బ్రూయింగ్ కెపాసిటీ3.8 gallons (14.4 liters) per hour
డికాంటర్ కెపాసిటీ12-cup (64-ounce) standard glass decanters
వెచ్చనిఎగువ మరియు దిగువ
నిర్మాణంStainless steel internal components, black exterior finish

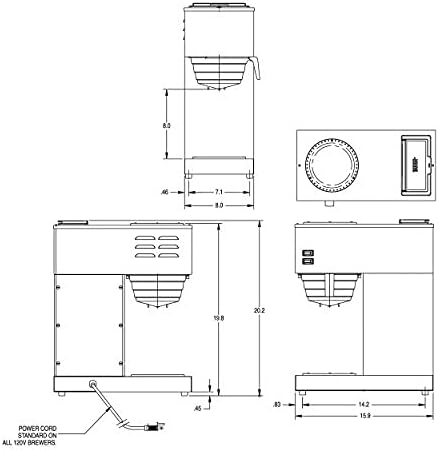

Technical drawing with dimensions of the BUNN VPR-2GD Commercial Coffee Brewer

Figure 2: Technical drawing showing dimensions of the BUNN VPR-2GD.

9. వారంటీ మరియు మద్దతు

For warranty information and customer support, please refer to the official BUNN webసైట్ లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని నేరుగా సంప్రదించండి. వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రసీదును ఉంచండి.
