Franke Joy Cocktail SemiPro Kitchen Tap Instruction Manual

1. పరిచయం

This manual provides essential information for the safe installation, operation, and maintenance of your Franke Joy Cocktail SemiPro Kitchen Tap. Please read these instructions carefully before installation and retain them for future reference. This mixer tap features a semi-professional design with a pull-down spray function, a side lever for operation, and a durable chrome-plated brass construction.

2. భద్రతా సమాచారం

• ఏదైనా సంస్థాపన లేదా నిర్వహణ పనిని ప్రారంభించే ముందు ఎల్లప్పుడూ ప్రధాన నీటి సరఫరాను ఆపివేయండి.
• లీక్‌లను నివారించడానికి అన్ని కనెక్షన్‌లు సురక్షితంగా ఉన్నాయని నిర్ధారించుకోండి.
• ఇన్‌స్టాలేషన్ ప్రక్రియలో ఏదైనా భాగం గురించి మీకు ఖచ్చితంగా తెలియకపోతే, అర్హత కలిగిన ప్లంబర్‌ను సంప్రదించండి.
• Do not use abrasive cleaners or harsh chemicals on the tap's surface, as this may damage the finish.
• చిన్న భాగాలను పిల్లలకు దూరంగా ఉంచండి.

3. ప్యాకేజీ విషయాలు

ఇన్‌స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని నిర్ధారించుకోండి:

• Franke Joy Cocktail SemiPro Kitchen Tap body
• Flexible stainless steel connection hoses
• Mounting hardware (gasket, washer, fixing nut)
• Built-in water filter (if applicable to your model variant)
• ఇన్‌స్ట్రక్షన్ మాన్యువల్ (ఈ పత్రం)

4. స్పెసిఫికేషన్లు

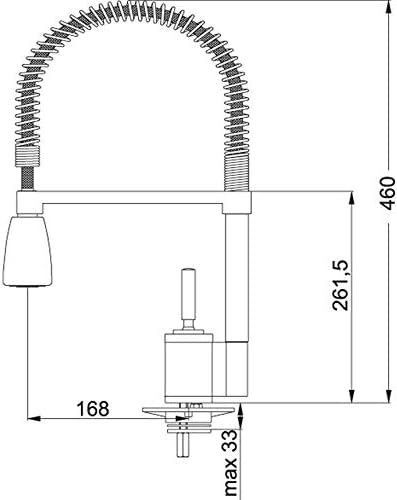

Figure 1: Technical drawing illustrating the dimensions of the Franke Joy Cocktail SemiPro Kitchen Tap, including height, reach, and mounting hole diameter.

5. సెటప్ మరియు ఇన్‌స్టాలేషన్

Professional installation is recommended. Ensure you have the necessary tools (adjustable wrench, screwdriver, sealant tape) before proceeding.

5.1 ప్రీ-ఇన్‌స్టాలేషన్

1. Turn off the main water supply to your kitchen.
2. సులభంగా యాక్సెస్ కోసం సింక్ కింద ఉన్న ప్రాంతాన్ని క్లియర్ చేయండి.
3. If replacing an old tap, remove it and clean the mounting surface.

5.2 Mounting the Tap

1. Insert the tap body into the Ø 35 mm mounting hole on your sink or countertop.
2. From underneath the sink, place the rubber gasket, then the metal washer, over the threaded shank of the tap.
3. Thread the fixing nut onto the shank and tighten it securely with an adjustable wrench until the tap is stable. Do not overtighten.

5.3 Connecting Water Lines

1. Connect the flexible stainless steel hoses from the tap to your hot and cold water supply lines. The hot water connection is typically on the left, and cold on the right.
2. Use sealant tape on the threads of the supply lines for a watertight seal.
3. Tighten connections firmly with an adjustable wrench, but avoid excessive force.

5.4 Connecting the Filter (if applicable)

If your model includes a built-in water filter, follow the specific instructions provided with the filter cartridge for connection and initial flushing.

5.5 చివరి తనిఖీలు

1. ప్రధాన నీటి సరఫరాను నెమ్మదిగా ఆన్ చేయండి.
2. Check all connections for leaks. Tighten any leaking connections immediately.
3. Open the tap lever to flush out any air or debris from the lines.

మూర్తి 2: ముందు view of the Franke Joy Cocktail SemiPro Kitchen Tap, showcasing its chrome finish, high arching spring-coil spout, and pull-down sprayer.

6. ఆపరేటింగ్ సూచనలు

The Franke Joy Cocktail SemiPro Kitchen Tap is designed for intuitive use.

6.1 నీటి ప్రవాహం మరియు ఉష్ణోగ్రత నియంత్రణ

• Side Lever: The single side lever controls both water flow and temperature.
• ప్రవాహం: నీటి ప్రవాహాన్ని పెంచడానికి లివర్‌ను పైకి ఎత్తండి. ప్రవాహాన్ని తగ్గించడానికి దానిని క్రిందికి నెట్టి కుళాయిని ఆపివేయండి.
• ఉష్ణోగ్రత: Move the lever to the left for hot water and to the right for cold water. Adjust the position between left and right to achieve the desired temperature.

6.2 Using the Pull-Down Sprayer

• Engaging the Sprayer: Gently pull the sprayer head downwards from its housing at the end of the spring-coil spout.
• స్ప్రే మోడ్‌లు: The sprayer head typically features a button or switch to toggle between different spray patterns (e.g., aerated stream and powerful spray). Press this button to select your preferred mode.
• Retracting the Sprayer: Once finished, guide the sprayer head back into its housing. The spring-coil design assists in smooth retraction.

మూర్తి 3: క్లోజ్-అప్ view of the Franke Joy Cocktail SemiPro Kitchen Tap's pull-down sprayer, extended from its housing, demonstrating its flexibility.

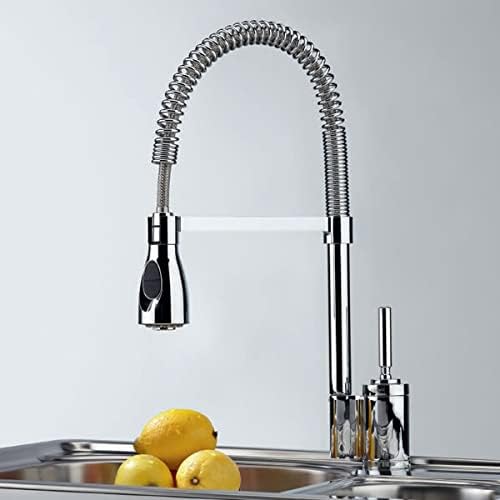

Figure 4: The Franke Joy Cocktail SemiPro Kitchen Tap installed in a kitchen sink setting, highlighting its contemporary design and functionality.

7. నిర్వహణ మరియు శుభ్రపరచడం

Regular cleaning and maintenance will ensure the longevity and optimal performance of your tap.

7.1 Cleaning the Tap Surface

• Clean the chrome finish regularly with a soft cloth and mild soap and water.
• Rinse thoroughly with clean water and dry immediately with a soft, dry cloth to prevent water spots.
• Do not use abrasive sponges, scouring pads, or chemical cleaners containing acids, ammonia, or bleach, as these can damage the chrome plating.

7.2 Cleaning the Sprayer Head

• Over time, mineral deposits can build up in the sprayer nozzles, affecting water flow.
• Gently rub the rubber nozzles with your finger or a soft brush to dislodge any deposits.
• For stubborn buildup, unscrew the sprayer head (if detachable) and soak it in a solution of equal parts white vinegar and water for 30 minutes, then rinse thoroughly.

7.3 Filter Replacement (if applicable)

If your tap includes a built-in water filter, refer to the filter's specific instructions for recommended replacement intervals and procedures. Typically, filters need to be replaced every 6-12 months depending on water quality and usage.

8. ట్రబుల్షూటింగ్

మీరు ఎదుర్కొనే సాధారణ సమస్యలకు పరిష్కారాలు ఇక్కడ ఉన్నాయి:

ఈ పరిష్కారాలు సమస్యను పరిష్కరించకపోతే, దయచేసి ఫ్రాంక్ కస్టమర్ సపోర్ట్‌ను సంప్రదించండి.

9. వారంటీ సమాచారం

Your Franke Joy Cocktail SemiPro Kitchen Tap is covered by a manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region. Please retain your proof of purchase for warranty claims. For detailed warranty information, refer to the warranty card included with your product or visit the official Franke webసైట్.

10. మద్దతు

For further assistance, technical support, or to order replacement parts, please contact Franke customer service through their official website or the contact information provided in your product packaging. When contacting support, please have your product model (Joy Cocktail SemiPro) and ASIN (B0993WPDYT) ready.

ఫ్రాంకే అఫీషియల్ Webసైట్: www.franke.com
