పరిచయం
The HASWING Cayman Bow Mount Trolling Motor is engineered for serious fishermen seeking versatility and precise control. This motor offers advanced features including GPS anchor control, wireless remote operation, and compatibility with the Helmsman App for enhanced navigation. Designed for both saltwater and freshwater environments, it provides quiet and efficient propulsion for your fishing adventures.
Figure 1: The HASWING Cayman GPS Electric Trolling Motor, shown with its wireless remote control and a tablet displaying the Helmsman app interface.
కీ ఫీచర్లు
- నిశ్శబ్ద విద్యుత్ మోటారు: Designed for silent operation, ensuring fish are not disturbed. Features variable speed functions for precise adjustments.
- Smart Navigation System: Utilizes advanced GPS technology for automated navigation and control.
- Helmsman App Compatibility: Download the free Helmsman App (iOS and Android) for real-time map display, cruise control, and advanced navigation features.
- వైర్లెస్ రిమోట్ కంట్రోల్: A handheld wireless remote is included for controlling all motor functions from anywhere on the boat. It can be charged via a USB charger (500AH).
- Anchor Control: The high-sensitivity GPS allows the motor to lock onto and hold your desired fishing spot, automatically adjusting for wind, waves, or current if the boat drifts more than 6 feet.
- రూట్ నిర్వహణ: Create, modify, save, and record unique fishing spots and routes directly from your smart device using the Helmsman App. Auto-navigation keeps the boat on course.
- అత్యవసర రక్షణ: Features a safety buckle on the charging cable that immediately stops the motor when unplugged, preventing damage in emergencies.
- మన్నికైన నిర్మాణం: Built with stainless steel components and encapsulated electronics, suitable for both salt and freshwater use.
- Quick Release Bracket: Option to use a quick release plate for easy removal when not in use.
ఉత్పత్తి భాగాలు
Familiarize yourself with the main components of your HASWING Cayman GPS Trolling Motor.
మూర్తి 2: వివరంగా view of the trolling motor's key components, including the bow-mount, adjustable depth collar, motor stabilizer, motor lift-handle, stow/deploy pedal, side door, power reader, and pairing-setup point.
చిత్రం 3: పైగాview of the trolling motor system, highlighting the included wireless remote controller, the new HELMSMAN system (app), the quick retract bracket, the optional wireless foot remote controller, the anti-impact propeller, and the durable motor housing.
సెటప్ మరియు ఇన్స్టాలేషన్
1. మోటారును అమర్చడం
The HASWING Cayman is a bow-mount trolling motor. Ensure your boat's bow has a suitable flat surface for installation. Use the supplied stainless steel nuts and bolts for secure attachment. For convenience, consider installing the optional quick release plate (footprint 120mm x 200mm) to easily remove the motor when not in use.
- Position the motor on the bow, ensuring the shaft can deploy freely without obstruction.
- Mark the drilling points for the mounting bolts.
- Drill appropriate holes and secure the motor base using the provided hardware. Ensure all bolts are tightened securely.
2. ఎలక్ట్రికల్ కనెక్షన్
This motor operates on a 12V power supply. Connect the motor's power cables directly to a compatible 12V deep cycle marine battery. Ensure correct polarity (red to positive, black to negative) and secure all connections to prevent corrosion and ensure optimal performance.
- Connect the positive (+) cable from the motor to the positive terminal of your 12V battery.
- Connect the negative (-) cable from the motor to the negative terminal of your 12V battery.
- Verify all connections are tight and insulated.
- The motor features an LED battery meter to monitor battery status.
3. Initial Remote Pairing
The wireless remote control comes pre-paired in most cases. If re-pairing is necessary, refer to the "Pairing-setup" point on the motor base (Figure 2) and follow the instructions provided in the full manual for your specific model.
Figure 4: A person demonstrating the deployment of the HASWING trolling motor from the bow of a boat, highlighting the ease of setup.
ఆపరేటింగ్ సూచనలు
1. వైర్లెస్ రిమోట్ కంట్రోల్
The included handheld remote allows full control of the motor. It can be charged via a USB charger (500AH). Even if your smartphone runs out of power, the remote remains functional for basic controls.
- పవర్ ఆన్/ఆఫ్: పవర్ బటన్ను నొక్కి పట్టుకోండి.
- స్టీరింగ్: Use the directional buttons to turn the motor left or right.
- వేగ నియంత్రణ: Adjust speed using the +/- buttons. The variable speed function allows for precise adjustments.
- Anchor Mode: Press the anchor icon button to activate GPS anchor control.
- క్రూయిజ్ కంట్రోల్: Activate cruise control to maintain a constant speed.
2. Helmsman App (Smart Navigation System)
Download the free Helmsman App from the App Store (iOS) or Google Play Store (Android) for advanced navigation features.
Figure 5: The Smart Navigation System offers key functionalities including recording routes, GPS navigation, anchor mode, and cruise control.

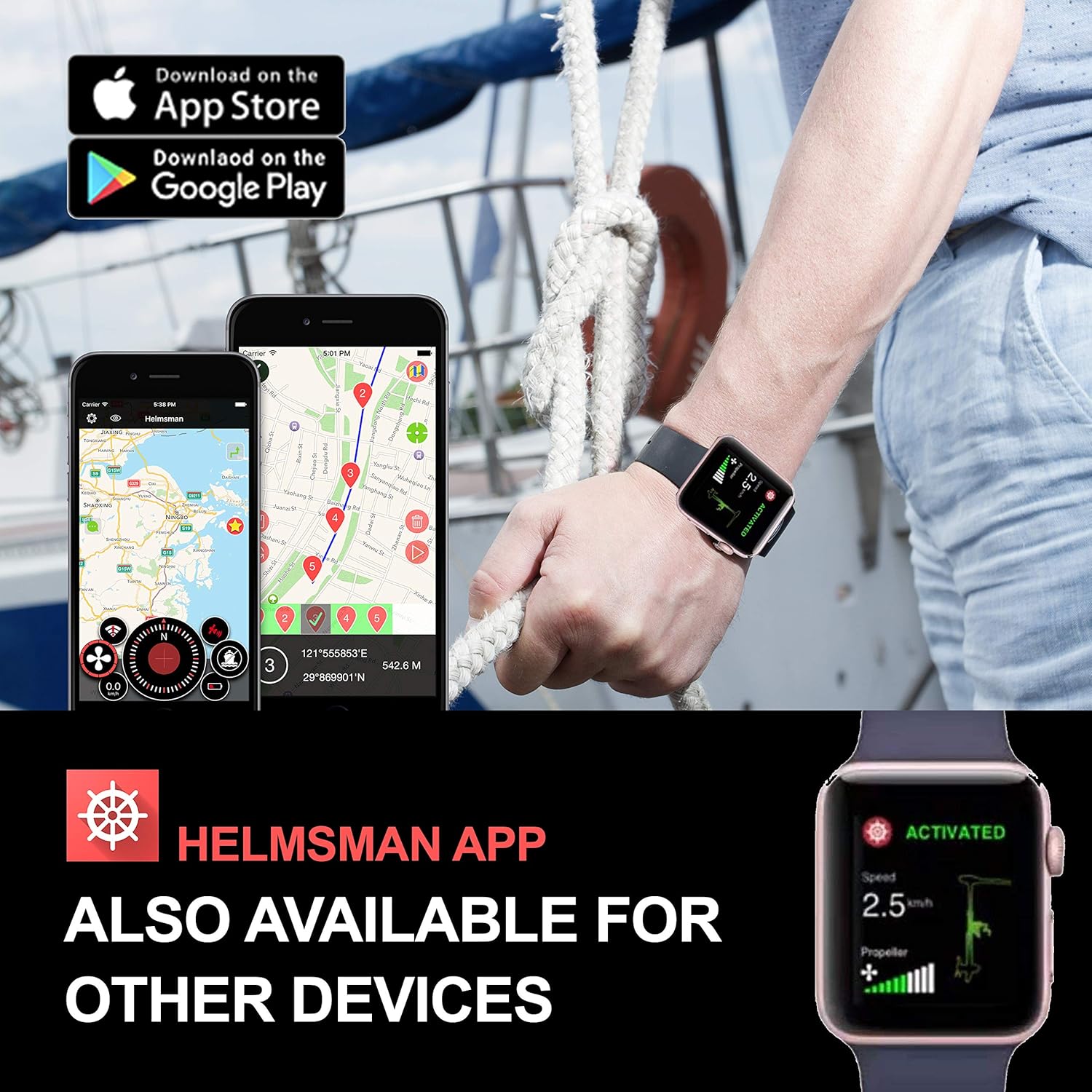

Figure 6: The Helmsman App interface displayed on a smartphone and a smartwatch, showing map, navigation, and motor control options.
- GPS Anchor Control: Tap the anchor icon in the app. The motor will use its high-sensitivity GPS to maintain your boat's position, automatically correcting for drift within a 6-foot radius.
- Route Recording & Management: Use the app's interface to create, modify, and save fishing spots and routes. The motor can then follow these pre-defined routes automatically.
- Auto-Navigation: Set the motor to follow shorelines or other structures at a constant speed, allowing you to focus on fishing.
- Full Motor Pilot Control: Regulate speed, propulsion, and steering directly from the app.
3. Emergency Stop Feature
For immediate motor shutdown in an emergency, simply unplug the safety buckle located on the motor's charging cable. This will instantly stop the trolling motor to prevent damage or accidents.
నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your HASWING trolling motor, especially given its suitability for both saltwater and freshwater environments.
- ప్రతి ఉపయోగం తర్వాత:
- Rinse the motor thoroughly with fresh water, especially after saltwater use, to remove salt residue and prevent corrosion.
- Wipe down all external surfaces with a clean cloth.
- ప్రొపెల్లర్ తనిఖీ:
- Regularly check the propeller for fishing line, weeds, or other debris that may be wrapped around the shaft. Remove any obstructions immediately.
- Inspect the propeller blades for chips, cracks, or damage. Replace if necessary.
- విద్యుత్ కనెక్షన్లు:
- Periodically check all electrical connections (battery terminals, motor connections) for tightness and signs of corrosion. Clean terminals with a wire brush if corrosion is present and apply a marine-grade dielectric grease.
- నిల్వ:
- When storing the motor, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight.
- If using the quick release bracket, remove the motor for storage to protect it.
ట్రబుల్షూటింగ్
This section provides solutions to common issues you might encounter with your HASWING Cayman GPS Trolling Motor.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Motor does not turn on or operate. | Low battery charge; Loose or corroded electrical connections; Safety buckle disengaged. | Check battery charge and recharge if necessary. Inspect and tighten all electrical connections. Ensure the safety buckle is fully engaged. |
| మోటారు అడపాదడపా లేదా తక్కువ శక్తితో నడుస్తుంది. | Low battery; Propeller fouled with debris; Damaged propeller; Overheating. | Check battery charge. Clear any debris from the propeller. Inspect propeller for damage and replace if needed. Allow motor to cool down if it feels hot. |
| GPS Anchor Control is inaccurate or not holding position. | Weak GPS signal; Obstructions to GPS signal; Strong currents/wind exceeding motor's capability. | Ensure clear line of sight to the sky. Move to an area with better GPS reception. In extreme conditions, manual control may be required. |
| Wireless remote not responding. | Remote battery low; Remote out of range; Interference; Remote needs re-pairing. | Recharge the remote control. Move closer to the motor. Avoid areas with strong electromagnetic interference. Follow re-pairing instructions in the full manual. |
If you encounter issues not listed here or require further assistance, please contact HASWING customer support.
స్పెసిఫికేషన్లు
| గుణం | వివరాలు |
|---|---|
| బ్రాండ్ | HASWING (Manufacturer) / PARKHO (Seller Brand) |
| మోడల్ సంఖ్య | CAYMAN_GPS_50736-137B_R-Q |
| UPC | 808229500475 |
| ఇంజిన్ రకం | విద్యుత్ |
| వాల్యూమ్tage | 12 వోల్ట్లు |
| షాఫ్ట్ పొడవు | 54 అంగుళాలు |
| థ్రస్ట్ | 55 పౌండ్లు |
| మౌంటు రకం | బో మౌంట్ |
| మెటీరియల్ | Stainless Steel (components), Aluminum (exterior) |
| సిఫార్సు ఉపయోగం | ఉప్పునీరు మరియు మంచినీరు |
| నియంత్రణ | Wireless Remote Control, Helmsman App (GPS, Anchor, Cruise Control) |
వారంటీ మరియు మద్దతు
For information regarding product warranty, returns, or technical support, please refer to the documentation included with your purchase or contact the seller, HASWINGOUTDOOR, directly through the Amazon platform. You may also visit the official HASWING website for additional resources and contact details.
విక్రేత: HASWINGOUTDOOR
