Cooler Master MM730 Wire Gaming Mouse

పరిచయం

The Cooler Master MM730 Wire Gaming Mouse is engineered for responsiveness and comfort. It features a lightweight design, an adjustable 16,000 DPI optical sensor, optical micro switches for durability, an Ultraweave cable, and PTFE feet for smooth gliding. This manual provides essential information for setting up, operating, customizing, and maintaining your MM730 mouse.

పెట్టెలో ఏముంది

• Cooler Master MM730 Wire Gaming Mouse with integrated Ultraweave Cable
• Extra PTFE Mouse Feet
• వినియోగదారు మాన్యువల్

ఉత్పత్తి ముగిసిందిview

The MM730 mouse combines a classic ergonomic shape with advanced gaming-grade hardware. Its design focuses on reducing weight without compromising structural integrity, providing a comfortable and responsive experience.

చిత్రం: వైపు view of the Cooler Master MM730 mouse, emphasizing its lightweight design at 48g without external holes.

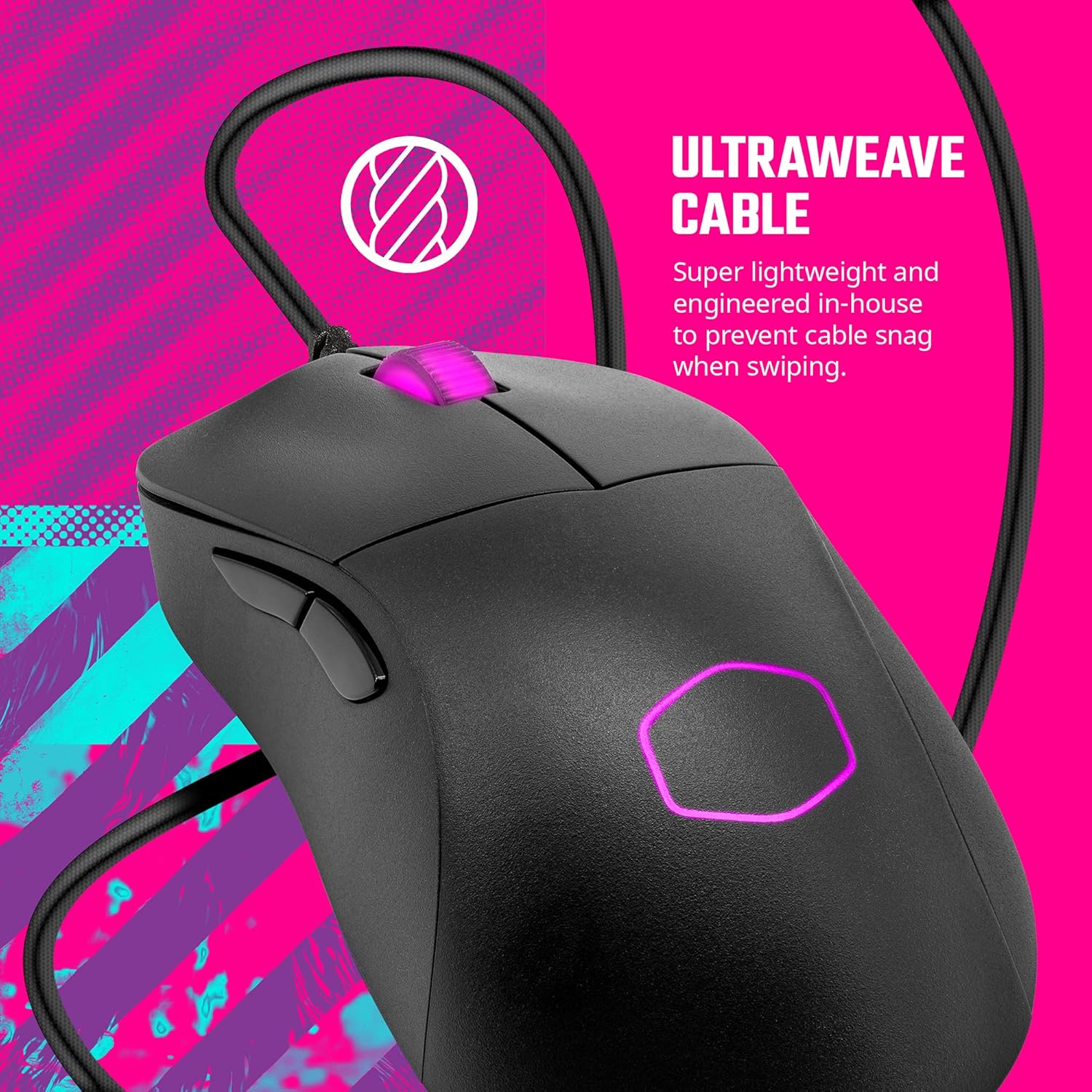

చిత్రం: టాప్ view of the Cooler Master MM730 mouse, highlighting the flexible Ultraweave Cable designed to prevent snagging.

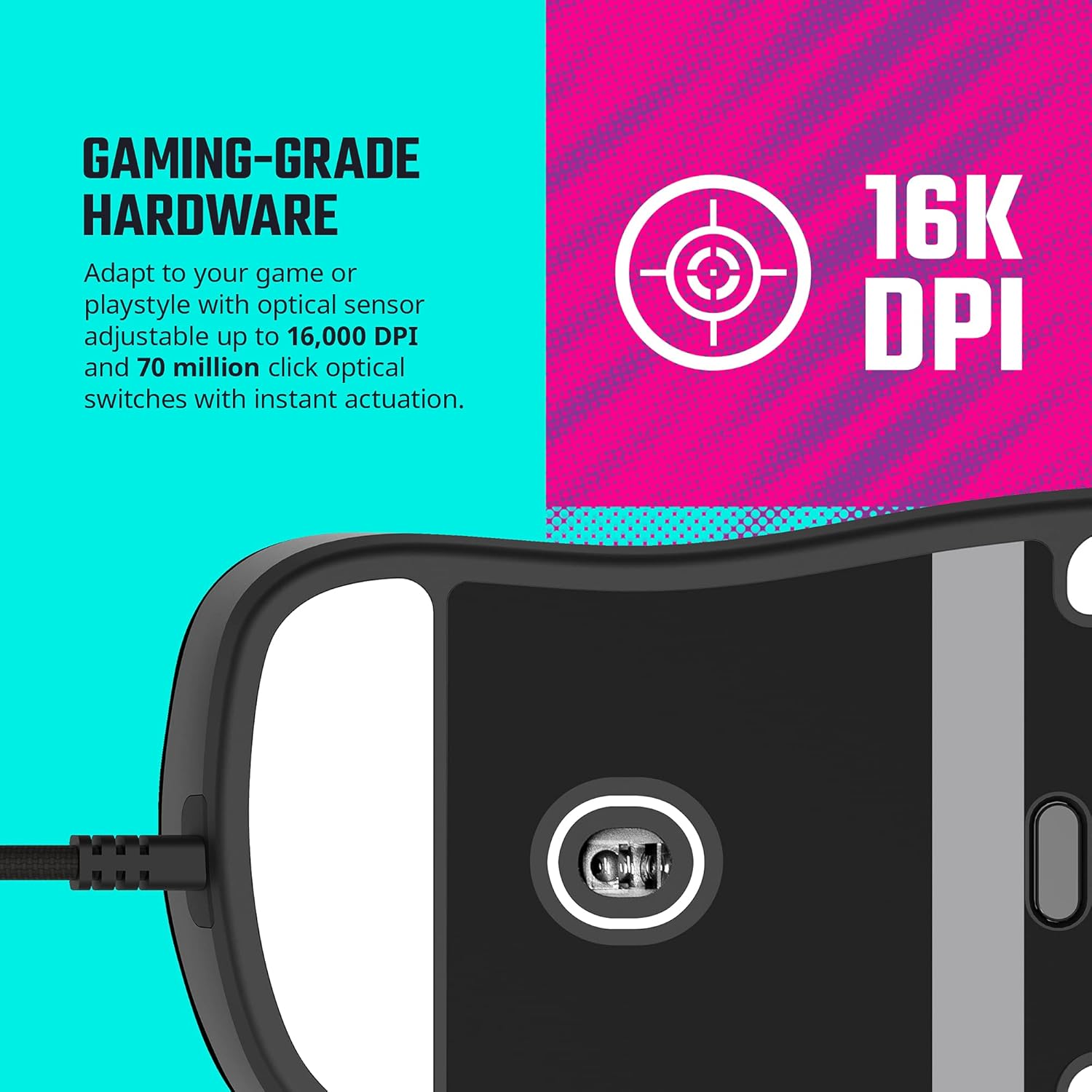

చిత్రం: దిగువన view of the Cooler Master MM730 mouse, displaying the 16,000 DPI optical sensor and the smooth PTFE feet.

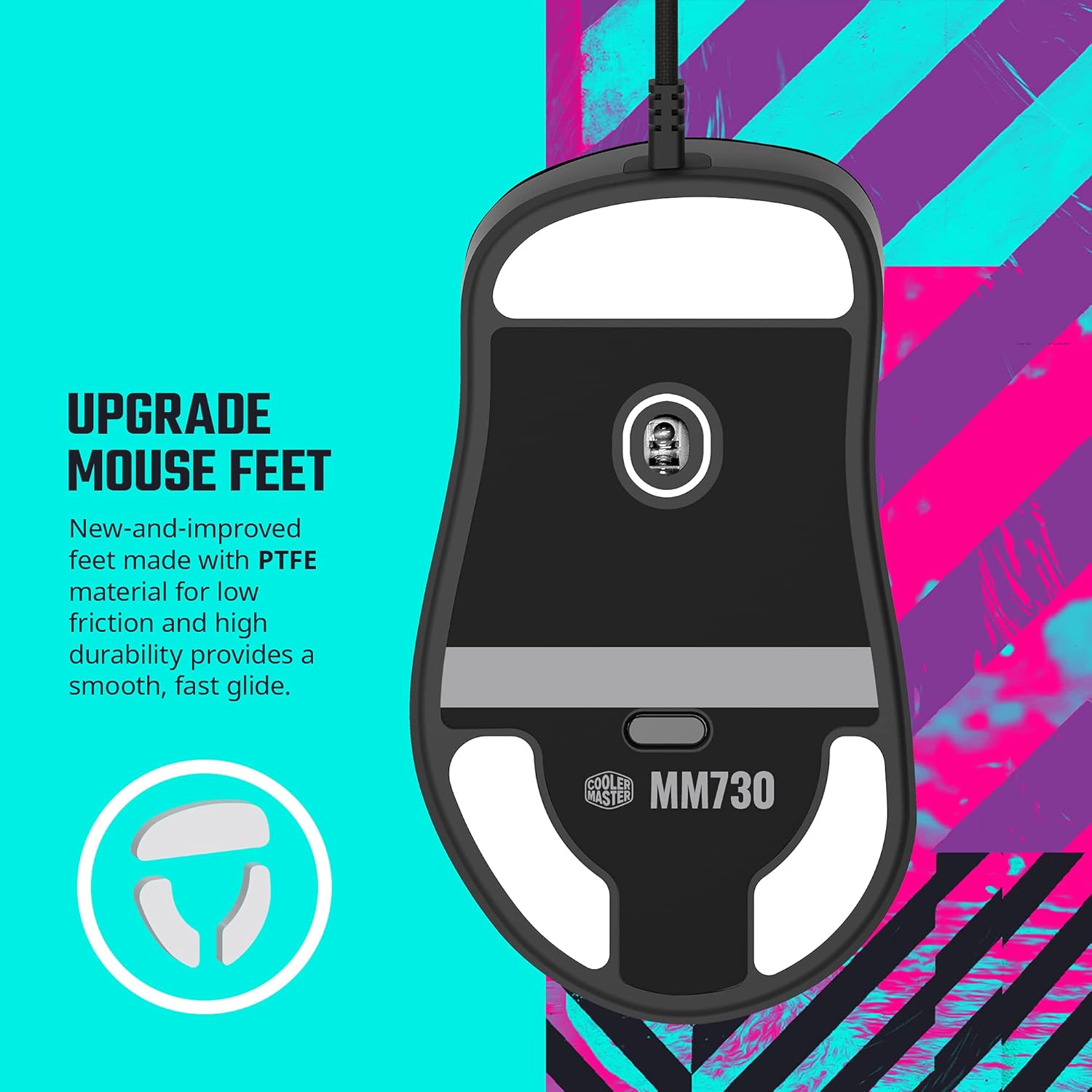

చిత్రం: Close-up of the Cooler Master MM730 mouse's PTFE feet, which provide low friction and high durability for a smooth glide.

చిత్రం: Diagram illustrating the optical encoder used in the MM730's scroll wheel, which offers greater durability, accuracy, and responsiveness compared to mechanical encoders.

సెటప్

1. మౌస్‌ని కనెక్ట్ చేయండి: Plug the USB-A connector of the Ultraweave cable into an available USB port on your computer.
2. డ్రైవర్ ఇన్‌స్టాలేషన్: Your operating system (Windows 8+ or macOS) should automatically detect and install the necessary drivers.
3. సాఫ్ట్‌వేర్ ఇన్‌స్టాలేషన్: For full customization, download and install the Cooler Master MasterPlus+ software from the official Cooler Master webసైట్.

Customization with MasterPlus+ Software

The MasterPlus+ software allows you to personalize your MM730 mouse settings to match your preferences and gaming style. The software provides various tabs for detailed configuration.

• బటన్‌ల ట్యాబ్: Remap mouse buttons, assign keyboard functions, multimedia controls, macros, profiles, and DPI cycle options.
• Performance Tab: Adjust mouse sensitivity, set multiple DPI levels (up to 16,000 DPI), configure USB polling rate, angle tunability, lift-off distance, and double-click speed.
• Lighting Tab: Customize RGB lighting effects (Static, Breathing, Color Cycle, Electric Slide, Trigger Click, Custom, Off), adjust brightness, and set effect speed.
• Macros Tab: Create, record, import, and export custom macros for complex command sequences.
• ప్రోfiles Tab: Save and manage up to five different profiles, allowing you to quickly switch between settings for different games or applications.

ఆపరేటింగ్ సూచనలు

Once connected and configured, the MM730 mouse operates like a standard wired mouse. Use the customizable buttons for your assigned functions. Adjust DPI on-the-fly using the dedicated DPI cycle button (if assigned) to match your task or game requirements. The RGB lighting will reflect your chosen settings.

నిర్వహణ

• శుభ్రపరచడం: మౌస్ ఉపరితలాన్ని శుభ్రం చేయడానికి మృదువైన, పొడి వస్త్రాన్ని ఉపయోగించండి. మొండి ధూళి కోసం, కొద్దిగా damp ఎలుకలోకి తేమ రాకుండా చూసుకోవడానికి వస్త్రాన్ని ఉపయోగించవచ్చు.
• PTFE అడుగులు: The included extra PTFE feet can be used to replace worn-out feet for optimal glide performance. Ensure the mouse surface is clean before applying new feet.

ట్రబుల్షూటింగ్

• మౌస్ స్పందించడం లేదు: Ensure the USB cable is securely connected to your computer. Try a different USB port.
• Motion Lag/Inaccuracy: Ensure your MasterPlus+ software is updated to the latest firmware version. Some users reported motion lag issues resolved with firmware updates.
• అనుకూల సెట్టింగ్‌లు వర్తించవు: Verify that the MasterPlus+ software is running and that your desired profile చురుకుగా ఉంది.

స్పెసిఫికేషన్లు

వారంటీ & మద్దతు

For warranty information and technical support, please refer to the official Cooler Master webసైట్ లేదా వారి కస్టమర్ సర్వీస్‌ను సంప్రదించండి. వారంటీ క్లెయిమ్‌ల కోసం మీ కొనుగోలు రసీదును ఉంచండి.
