LaCie 2big Dock 36TB External HDD User Manual

1. పరిచయం

The LaCie 2big Dock is a high-capacity desktop RAID storage solution designed for professional workflows. This device offers substantial storage and high-speed data transfer capabilities, making it suitable for various computing environments including PC, iPad with USB-C, and Mac systems. It features compatibility with Thunderbolt 4, Thunderbolt 3, USB4, USB 3.2, and USB 3.0 interfaces, and includes dual Thunderbolt ports for daisy-chaining multiple devices. The 2big Dock is equipped with hot-swappable IronWolf Pro enterprise-class drives, ensuring reliability and sustained performance.

చిత్రం 1.1: ముందు view of the LaCie 2big Dock, showcasing its design and central blue indicator light.

2. ప్యాకేజీ విషయాలు

ఉత్పత్తి ప్యాకేజింగ్‌లో అన్ని అంశాలు ఉన్నాయని నిర్ధారించుకోండి:

• LaCie 2big Dock Thunderbolt 3 36TB unit
• పిడుగు 3 కేబుల్
• USB 3.1 (USB-C to USB-A) cable
• బాహ్య విద్యుత్ సరఫరా
• త్వరిత ప్రారంభ గైడ్

Image 2.1: The LaCie 2big Dock packaging, indicating the included components.

3. ఉత్పత్తి ముగిసిందిview

The LaCie 2big Dock is designed with multiple connectivity options and features to streamline creative workflows.

3.1 ఫ్రంట్ ప్యానెల్ ఫీచర్లు

• స్థితి LED: Indicates power status and drive activity.
• డ్రైవ్ బేలు: Two hot-swappable bays for IronWolf Pro enterprise-class drives.
• Front-facing Ports: Includes a USB 3.2 Type-A hub port, CFexpress Type B, CFast 2.0, and SD card slots for convenient access.

Image 3.1: The LaCie 2big Dock integrated into a desktop setup, highlighting its front-facing ports and connectivity.

3.2 వెనుక ప్యానెల్ ఫీచర్లు

• Dual Thunderbolt Ports: Two Thunderbolt 3 ports (USB-C compatible) for host connection and daisy-chaining up to five additional Thunderbolt devices.
• డిస్ప్లేపోర్ట్ 1.8: డిస్‌ప్లేను కనెక్ట్ చేయడానికి.
• పవర్ ఇన్‌పుట్: Connection for the external power supply.
• కెన్సింగ్టన్ లాక్ స్లాట్: భౌతిక భద్రత కోసం.

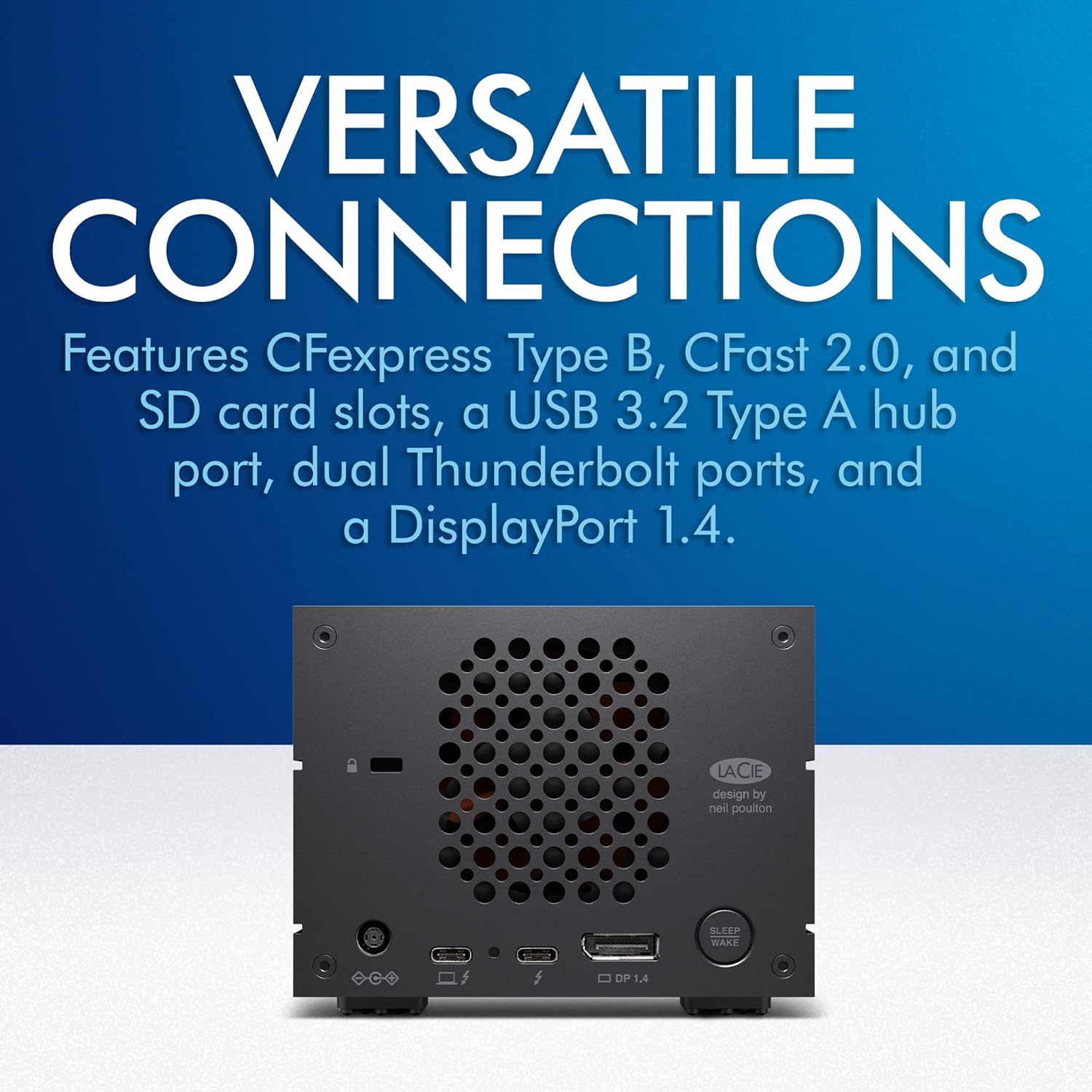

Image 3.2: Rear panel of the LaCie 2big Dock, detailing the Thunderbolt ports, DisplayPort, and other connections.

4. సెటప్

4.1 భౌతిక కనెక్షన్

1. Connect the power supply to the LaCie 2big Dock and then to a power outlet.
2. Connect the Thunderbolt 3 cable from your computer to one of the Thunderbolt ports on the LaCie 2big Dock. Alternatively, use the USB 3.1 cable for USB-A connections.
3. The device will power on automatically. The front LED will illuminate.

4.2 Software Installation and RAID Configuration

Upon initial connection, your operating system may prompt you to install necessary drivers or software. It is recommended to install the LaCie Toolkit software to manage the device, including RAID configuration.

• RAID 0 (స్ట్రిపింగ్): Optimizes for maximum speed and capacity. Data is spread across both drives, offering faster read/write performance. If one drive fails, all data is lost.
• RAID 1 (మిర్రరింగ్): Optimizes for data redundancy. Data is duplicated on both drives. If one drive fails, data remains accessible on the other. Capacity is halved.

Use the LaCie Toolkit's step-by-step wizard to configure your preferred RAID level. This process will erase all data on the drives, so ensure no critical data is present before proceeding.

5. Operating the LaCie 2big Dock

5.1 డేటా బదిలీ

Once connected and configured, the LaCie 2big Dock will appear as an external drive on your computer. You can drag and drop files, or use your preferred software for data transfer. The device supports speeds up to 550MB/s, ideal for large file transfers and demanding applications.

Image 5.1: The LaCie 2big Dock, emphasizing its high-speed data transfer capabilities.

5.2 Daisy Chaining

The dual Thunderbolt ports allow you to daisy chain up to five additional Thunderbolt devices, such as monitors, other storage devices, or peripherals. Connect the first device to your computer, and then connect subsequent devices to the available Thunderbolt ports on the previous device in the chain.

5.3 హాట్-స్వాపింగ్ డ్రైవ్‌లు

The LaCie 2big Dock supports hot-swapping of its IronWolf Pro enterprise-class drives. This means you can replace a faulty drive (especially in a RAID 1 configuration) without powering down the unit. Refer to the LaCie Toolkit for proper hot-swap procedures to ensure data integrity.

Image 5.2: The LaCie 2big Dock with its IronWolf Pro enterprise-class drives, highlighting their hot-swappable nature.

6. నిర్వహణ

6.1 Drive Health Monitoring

Regularly monitor the health of your IronWolf Pro drives using the LaCie Toolkit software. This software provides diagnostic tools and alerts for potential drive issues, allowing for proactive maintenance.

6.2 కూలింగ్ ఫ్యాన్

The LaCie 2big Dock features a temperature-controlled cooling fan. The fan will activate as needed to maintain optimal operating temperatures. Ensure the rear ventilation area is not obstructed to allow for proper airflow.

6.3 ఫర్మ్‌వేర్ నవీకరణలు

Periodically check the LaCie support website or the LaCie Toolkit for available firmware updates. Keeping your device's firmware up-to-date ensures optimal performance, compatibility, and security.

7. ట్రబుల్షూటింగ్

• పరికరం గుర్తించబడలేదు: Ensure all cables are securely connected and the power adapter is plugged in. Try connecting to a different port on your computer or using a different cable. Restart your computer.
• నెమ్మదిగా పనితీరు: Verify that you are using a Thunderbolt or USB 3.2/USB4 compatible port on your computer. Check the RAID configuration; RAID 1 offers redundancy but lower speed than RAID 0. Ensure no background processes are heavily utilizing the drive.
• డ్రైవ్ యాదృచ్ఛికంగా డిస్‌కనెక్ట్ అవుతుంది: Check power connections. Ensure the device is placed in a well-ventilated area to prevent overheating. Update drivers and firmware.
• LED సూచిక ప్రవర్తన: Refer to the LaCie Toolkit or online support for specific LED patterns and their meanings.

For further assistance, consult the LaCie support webసైట్ లేదా కస్టమర్ సేవను సంప్రదించండి.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

The LaCie 2big Dock includes a limited warranty protection plan. Additionally, it comes with రెస్క్యూ డేటా రికవరీ సేవలు for a specified period, providing peace of mind in case of unexpected data loss.

Image 9.1: LaCie Rescue Data Recovery Services logo, indicating included data recovery support.

For detailed warranty information, to register your product, or to access support resources, please visit the official LaCie support webసైట్.

ఆన్‌లైన్ మద్దతు: www.lacie.com/support
