HyperMotion Mini Children's Wooden Balance Bike User Manual

1. పరిచయం

Thank you for choosing the HyperMotion Mini Children's Wooden Balance Bike. This 2-in-1 bicycle is designed to grow with your child, easily converting between a three-wheeled tricycle and a two-wheeled balance bike. This manual provides essential information for safe assembly, operation, maintenance, and troubleshooting to ensure a positive experience for your child.

2. భద్రతా సమాచారం

• వయస్సు సిఫార్సు: This product is recommended for children aged 2 years and older.
• గరిష్ట బరువు: The maximum user weight for this bike is 30 kg. Do not exceed this limit.
• పెద్దల పర్యవేక్షణ: Always ensure children are supervised by an adult while using the balance bike.
• రక్షణ పరికరాలు: Always ensure the child wears appropriate safety gear, including a helmet, knee pads, and elbow pads.
• సురక్షితమైన వాతావరణం: Use the bike in a safe, open area free from traffic, obstacles, and hazards. Avoid steep slopes or uneven terrain.
• మెటీరియల్ భద్రత: The bike is made from durable wood plywood and features EVA foam wheels. These materials are chosen for safety and durability.

3. ఉత్పత్తి ముగిసిందిview

The HyperMotion Mini Balance Bike is a versatile and lightweight solution for young children learning to ride. It features a unique 2-in-1 design, allowing it to function as a stable tricycle or a traditional balance bike. Its ergonomic design and durable materials ensure comfort and longevity.

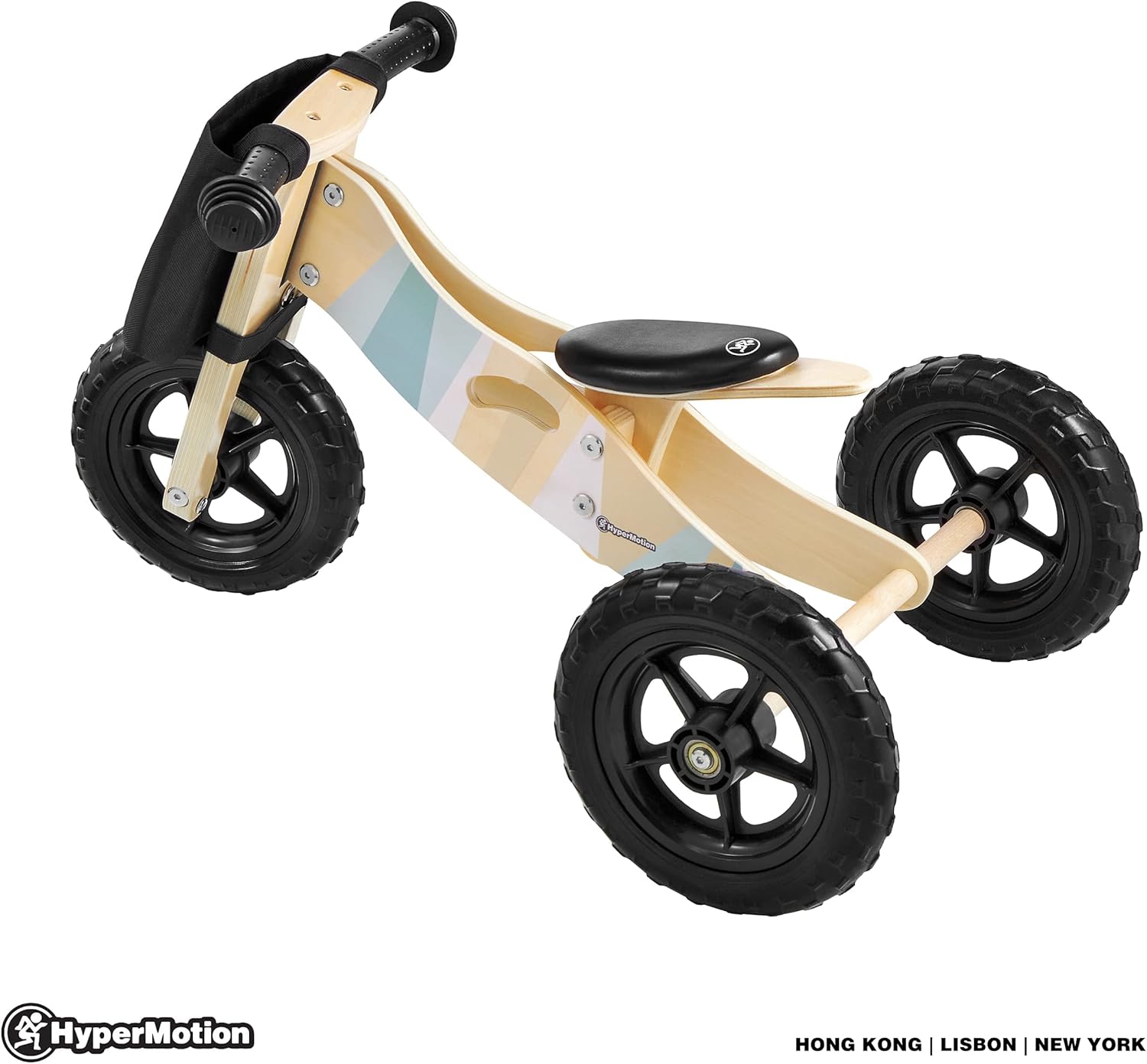

Figure 3.1: HyperMotion Mini Children's Wooden Balance Bike (Tricycle Mode)

ముఖ్య లక్షణాలు:

• 2-ఇన్-1 డిజైన్: Easily converts from a three-wheeled tricycle to a two-wheeled balance bike.
• తేలికపాటి: Weighs only 1.9 kg in tricycle version, making it easy for children to handle.
• EVA ఫోమ్ వీల్స్: Puncture-proof and safe for indoor use, leaving no marks on floor surfaces.
• ఎర్గోనామిక్ హ్యాండిల్స్: Rubber handles with wide and soft edges for comfortable grip.
• Adjustable Saddle: Saddle height can be adjusted from 26 cm to 30 cm to grow with your child.
• మన్నికైన నిర్మాణం: Made from lightweight and durable 20 mm and 9 mm thick wood plywood.

4. అసెంబ్లీ మరియు సెటప్

The HyperMotion Mini Balance Bike comes largely pre-assembled for your convenience. Minor assembly is required to convert between modes and adjust the saddle height.

4.1. Initial Assembly / Mode Conversion

The bike can be configured as a three-wheeled tricycle or a two-wheeled balance bike. Refer to the visual guide below for the conversion process. The package includes instructions with diagrams for easy setup.

Figure 4.1: Assembly and Conversion Steps

To convert from tricycle to balance bike, or vice versa, you will typically need to reconfigure the rear wheel assembly. Ensure all bolts and fasteners are securely tightened after any conversion.

4.2. Saddle Height Adjustment

The saddle height is adjustable to accommodate your child's growth. The saddle can be set between a minimum of 26 cm and a maximum of 30 cm from the ground. To adjust, locate the saddle adjustment mechanism (usually a bolt or quick-release lever) and set it to the appropriate height for your child, ensuring their feet can comfortably touch the ground while seated.

Figure 4.2: Tricycle Configuration

Figure 4.3: Balance Bike Configuration

5. ఆపరేషన్

The HyperMotion Mini Balance Bike is designed to help children develop motor coordination and prepare for riding a traditional bicycle.

5.1. ఎలా రైడ్ చేయాలి

The child sits on the saddle as they would on a regular bike. Instead of using pedals, they push off the ground with their feet to propel themselves forward. This method allows them to focus on balancing and steering, building confidence and essential skills.

5.2. Benefits of a Balance Bike

• మోటార్ సమన్వయం: Enhances balance, steering, and overall motor skills.
• Prepares for Cycling: Teaches children how to control a vehicle and steer, making the transition to a pedal bike much easier.
• ఇండోర్ ఉపయోగం: The EVA foam wheels are designed to be puncture-proof and will not leave marks on indoor floor surfaces, making it suitable for use inside the home.

6. నిర్వహణ

Regular maintenance will extend the life of your HyperMotion Mini Balance Bike and ensure continued safe operation.

• శుభ్రపరచడం: Wipe down the wooden frame and wheels with a damp cloth. Avoid using harsh chemicals or abrasive cleaners. Dry thoroughly after cleaning.
• Inspecting Fasteners: Periodically check all bolts, screws, and connections to ensure they are tight and secure. Tighten any loose fasteners immediately.
• చక్రాల తనిఖీ: Check the EVA foam wheels for any signs of wear or damage. While puncture-proof, excessive wear can affect performance.
• నిల్వ: Store the bike in a dry place, away from direct sunlight and extreme temperatures, to prevent damage to the wood and other components.
• Handlebar and Saddle: Ensure the handlebars are secure and the saddle remains at the desired height.

7. ట్రబుల్షూటింగ్

This section addresses common issues you might encounter with your HyperMotion Mini Balance Bike.

7.1. వదులుగా ఉండే భాగాలు

If you notice any wobbling or loose parts (e.g., handlebars, wheels, saddle), immediately stop use. Inspect all bolts and screws and tighten them using appropriate tools. Refer to the assembly diagrams if unsure.

7.2. Squeaking or Unusual Noises

Check the wheel axles and any moving parts for debris or friction. A small amount of lubricant (e.g., silicone spray) can be applied to non-wood moving parts if necessary, but avoid getting it on the wheels or saddle.

7.3. Difficulty Steering

Ensure the handlebars are securely fastened and aligned correctly. Check for any obstructions around the steering mechanism.

If you encounter an issue not listed here or require further assistance, please contact HyperMotion customer support.

8. స్పెసిఫికేషన్లు

Detailed specifications for the HyperMotion Mini Children's Wooden Balance Bike:

చిత్రం 8.1: ఉత్పత్తి కొలతలు

9. వారంటీ మరియు మద్దతు

Specific warranty terms and direct support contact information are not provided within the product details. For any warranty claims, technical support, or inquiries regarding your HyperMotion Mini Children's Wooden Balance Bike, please refer to the purchase documentation or contact the retailer or manufacturer directly through their official channels.

వారంటీ ప్రయోజనాల కోసం మీ కొనుగోలు రుజువును ఎల్లప్పుడూ ఉంచుకోండి.
