Vaporesso Gen 160 E-Cigarette Set User Manual

పరిచయం

This manual provides detailed instructions for the safe and effective use of your Vaporesso Gen 160 E-Cigarette Set. The set includes the Gen 160 Mod and the GTX Pod 26 Clearomizer. Please read this manual thoroughly before operating the device to ensure proper function and longevity. This product is designed for adult use only and contains no nicotine.

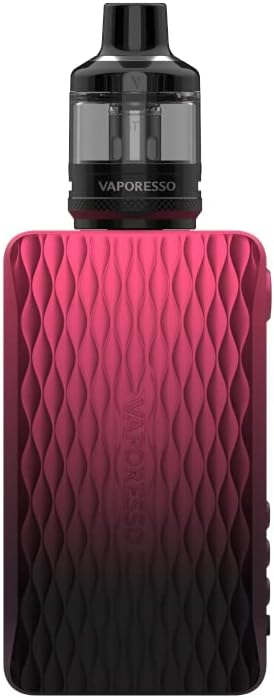

Image: The Vaporesso Gen 160 E-Cigarette Set, featuring the pink and black textured mod with the black GTX Pod 26 Clearomizer attached at the top.

ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని అంశాలు మీ ప్యాకేజీలో ఉన్నాయని దయచేసి ధృవీకరించండి:

• 1x Vaporesso Gen 160 Mod
• 1x Vaporesso GTX Pod 26 Clearomizer (5 ml capacity)
• 1x GTX Mesh Coil 0.15 Ohm (pre-installed or separate)
• 1x GTX Mesh Coil 0.3 Ohm
• 1x USB-C ఛార్జింగ్ కేబుల్
• 1x యూజర్ మాన్యువల్ (ఈ పత్రం)

గమనిక: Two 18650 battery cells are required for operation and are కాదు included in the package. These must be purchased separately.

సెటప్ గైడ్

1. బ్యాటరీ ఇన్‌స్టాలేషన్

1. Open the battery compartment cover located at the bottom or side of the Gen 160 Mod.
2. Insert two 18650 battery cells according to the polarity indicators (+ and -) inside the compartment. Incorrect installation can damage the device.
3. బ్యాటరీ కంపార్ట్‌మెంట్ కవర్‌ను సురక్షితంగా మూసివేయండి.

2. Coil Installation (if not pre-installed)

1. Remove the GTX Pod 26 Clearomizer from the Gen 160 Mod.
2. Flip the pod upside down. The coil is press-fitted into the base.
3. Align the new GTX Mesh Coil with the slot in the pod and firmly push it into place until it is seated securely.
4. Ensure the coil is fully inserted to prevent leaks.

3. ట్యాంక్ నింపడం

1. Locate the top-filling port on the GTX Pod 26 Clearomizer. This is usually under a silicone plug.
2. సిలికాన్ ప్లగ్ తెరవండి.
3. Carefully fill the tank with your desired e-liquid through the filling port. Do not overfill.
4. Close the silicone plug firmly to prevent leaks.
5. ముఖ్యమైన: After filling a new coil for the first time, let the pod stand for at least 5-10 minutes to allow the coil to become fully saturated with e-liquid. This prevents dry hits and extends coil life.

ఆపరేటింగ్ సూచనలు

1. పవర్ ఆన్/ఆఫ్

• To turn the device on or off, press the fire button (main button) 5 times rapidly within 2 seconds. The OLED display will indicate the power status.

2. Adjusting Wattage

• The Gen 160 Mod operates in Variable Wattage (VW) mode by default, with an output range of 5 to 160 Watts.
• Use the '+' and '-' adjustment buttons (usually located below the display) to increase or decrease the wattage.
• Refer to the recommended wattage range for your installed coil:
  • GTX Mesh Coil 0.15 Ohm: 60 - 75 Watts
  • GTX Mesh Coil 0.3 Ohm: 32 - 45 Watts

3. Screen Information (0.91" OLED Display)

The OLED display provides essential information about your device's status:

• వాట్tage: ప్రస్తుత విద్యుత్ ఉత్పత్తి.
• బ్యాటరీ స్థాయి: Indication of remaining battery charge.
• కాయిల్ రెసిస్టెన్స్: The detected resistance of the installed coil (in Ohms).
• Puff Counter: Tracks the number of puffs taken.
• Vaping Time: Duration of the last puff.

4. Vaping

• Press and hold the fire button while inhaling from the mouthpiece. Release the button when you finish inhaling.
• The device features an AXON Chip for stable performance and various safety protections.

5. Locking/Unlocking Buttons

• To lock or unlock the adjustment buttons (prevent accidental wattage changes), press the fire button 3 times rapidly. The fire button will remain active.

నిర్వహణ

1. శుభ్రపరచడం

• Regularly clean the connection points between the mod and the pod with a dry cloth or cotton swab to ensure good conductivity.
• Wipe down the exterior of the device with a soft, damp వస్త్రం. కఠినమైన రసాయనాలు లేదా రాపిడి క్లీనర్లను ఉపయోగించవద్దు.
• The Gen 160 Mod is water and dust protected according to IPX5 standard, but it is not fully waterproof. Avoid submerging the device in water.

2. Coil Replacement

• Coils are consumable parts and need to be replaced periodically, typically every 1-2 weeks depending on usage and e-liquid.
• Signs that a coil needs replacement include a burnt taste, reduced vapor production, or diminished flavor.
• Follow the "Coil Installation" steps in the Setup Guide to replace the coil.

3. ఛార్జింగ్

• Connect the supplied USB-C cable to the charging port on the Gen 160 Mod and plug the other end into a suitable USB power source (e.g., computer USB port, wall adapter).
• The device supports DC 5V/2A fast charging.
• The OLED display will show the charging status. Disconnect the charger once the batteries are fully charged.
• For optimal battery life and safety, it is recommended to charge 18650 batteries using an external dedicated battery charger.

ట్రబుల్షూటింగ్

స్పెసిఫికేషన్లు

• మోడల్: Vaporesso Gen 160 E-Cigarette Set
• Mod Dimensions (with Pod): 135.95 x 52.70 x 27.54 మిమీ
• అవుట్పుట్ వాట్tage: 5 - 160 వాట్స్
• ప్రదర్శన: 0.91" OLED స్క్రీన్
• చిప్‌సెట్: AXON Chip
• బ్యాటరీ అనుకూలత: 2x 18650 (చేర్చబడలేదు)
• ఛార్జింగ్: USB-C, DC 5V/2A
• నీరు & ధూళి రక్షణ: IPX5 Standard
• ట్యాంక్ సామర్థ్యం: 5 ml (GTX Pod 26 Clearomizer)
• Filling System: Top-Filling
• గాలి ప్రవాహం: Bottom-Airflow
• కాయిల్ అనుకూలత: Vaporesso GTX Coils
• Recommended Coils (Included):
  • GTX Mesh 0.15 Ohm (60-75W) - For Direct-to-Lung (DL) vaping
  • GTX Mesh 0.3 Ohm (32-45W) - For Direct-to-Lung (DL) vaping
• థ్రెడ్ రకం: 510 (for pod connection)

భద్రతా సమాచారం

• పరికరాన్ని పిల్లలు మరియు పెంపుడు జంతువులకు దూరంగా ఉంచండి.
• Do not use damaged batteries or chargers.
• Do not expose the device to extreme temperatures, direct sunlight, or water (beyond IPX5 rating).
• పరికరాన్ని విడదీయవద్దు లేదా సవరించవద్దు.
• Use only genuine Vaporesso coils and accessories.
• This product is intended for use with e-liquids that do not contain nicotine.

వారంటీ మరియు మద్దతు

Vaporesso products typically come with a limited warranty. Please refer to the warranty card included in your original packaging or visit the official Vaporesso webవివరణాత్మక వారంటీ నిబంధనలు మరియు షరతుల కోసం సైట్.

For technical support, troubleshooting assistance, or inquiries about your Vaporesso Gen 160 E-Cigarette Set, please contact Vaporesso customer service or the retailer from whom you purchased the product.

తయారీదారు: వాపోరెసో
