Ideal Standard T385701

ఆదర్శవంతమైన స్టాండర్డ్ స్ట్రాడా II సాఫ్ట్ క్లోజ్ స్లిమ్ టాయిలెట్ సీట్ మరియు కవర్ T385701 యూజర్ మాన్యువల్

మోడల్: T385701

పరిచయం

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of your Ideal Standard Strada II Soft Close Slim Toilet Seat and Cover, model T385701. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product. This toilet seat is designed exclusively for use with Ideal Standard Strada II toilet bowls.

ప్యాకేజీ విషయాలు

సెటప్ మరియు ఇన్‌స్టాలేషన్

Before beginning installation, ensure you have all components and necessary tools. Tools typically required include a screwdriver (flathead or Phillips, depending on hardware) and possibly an adjustable wrench.

  1. తయారీ: If replacing an old toilet seat, remove it by unscrewing the nuts from the bolts located underneath the toilet bowl rim. Clean the toilet bowl's mounting area thoroughly.
  2. Positioning the Hinges: Place the new mounting hardware (bolts and washers) through the holes on the toilet bowl rim.
  3. Attaching the Seat: Align the toilet seat's hinges with the bolts. Secure the seat by tightening the nuts from underneath the toilet bowl. Ensure the seat is centered and stable before fully tightening. Do not overtighten, as this may damage the ceramic or the seat.
  4. పరీక్ష: Gently lower the seat and cover to ensure the soft-close mechanism functions correctly and the seat is securely attached without wobbling.

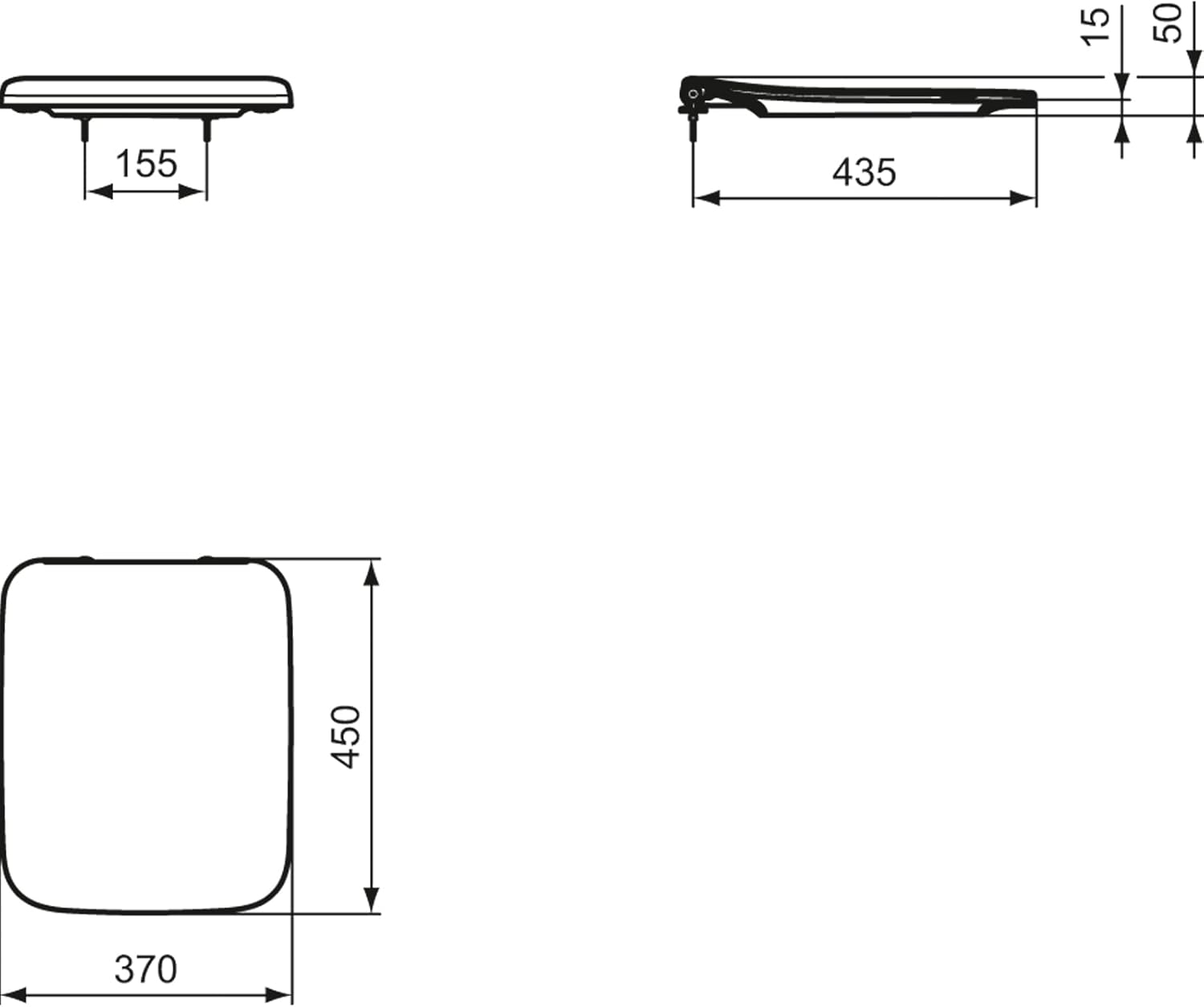

Diagram showing dimensions of the Ideal Standard Strada II toilet seat

Image: Technical diagram illustrating the dimensions of the toilet seat, including length, width, and hinge spacing. This diagram is crucial for verifying compatibility and proper installation.

Ideal Standard Strada II toilet seat with soft close mechanism in action on a toilet bowl

Image: The Ideal Standard Strada II toilet seat shown installed on a toilet bowl, demonstrating the soft-close feature as the seat and cover gently descend.

ఆపరేటింగ్ సూచనలు

Your Ideal Standard Strada II toilet seat features a soft-close mechanism designed for quiet and controlled closing, preventing slamming and reducing wear.

Ideal Standard Strada II toilet seat demonstrating the soft close action with multiple transparent layers

Image: A visual representation of the soft-close mechanism in action, showing the toilet seat and cover in various stages of gentle descent.

నిర్వహణ మరియు శుభ్రపరచడం

Proper care will ensure the longevity and appearance of your toilet seat.

ట్రబుల్షూటింగ్

సమస్యసాధ్యమైన కారణంపరిష్కారం
Seat is loose or wobbles.Mounting nuts are not sufficiently tightened.Tighten the mounting nuts underneath the toilet bowl. Ensure not to overtighten.
Soft-close mechanism not working or seat slams.Mechanism is damaged or obstructed.Ensure no foreign objects are obstructing the hinges. Do not force the seat down. If the issue persists, contact customer support.
Seat does not align correctly with the bowl.Incorrect installation or hinge adjustment.Loosen the mounting nuts slightly, adjust the seat position, then retighten.

స్పెసిఫికేషన్లు

వారంటీ సమాచారం

This Ideal Standard Strada II Soft Close Slim Toilet Seat and Cover (T385701) is covered by a 5 సంవత్సరాల వారంటీ. This warranty covers manufacturing defects under normal use and service. For specific terms and conditions, or to make a warranty claim, please refer to the official Ideal Standard warranty documentation or contact their customer support.

మద్దతు మరియు సంప్రదించండి

Should you require further assistance, have questions regarding installation, or need to report a product issue, please contact Ideal Standard customer support. Visit the official Ideal Standard webసంప్రదింపు వివరాలు మరియు అదనపు వనరుల కోసం సైట్.

Webసైట్: www.idealstandard.com (దయచేసి మీ ప్రాంతీయ చిరునామా కోసం తనిఖీ చేయండి) webసైట్)
