1. పరిచయం
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Ideal Standard Ceratherm T25 Shower System, model BC748XG. Please read this manual thoroughly before installation and use to ensure proper function and safety. Retain this manual for future reference.
The Ceratherm T25 Shower System is designed for wall-mounted, surface installation, offering a thermostatic mixing experience with advanced safety and water-saving features.
భద్రతా సమాచారం
- ఇన్స్టాలేషన్ సమయంలో అన్ని స్థానిక ప్లంబింగ్ మరియు భవన కోడ్లను పాటించారని నిర్ధారించుకోండి.
- ఇన్స్టాలేషన్ను అర్హత కలిగిన ప్రొఫెషనల్ నిర్వహించాలి.
- ఏదైనా సంస్థాపన లేదా నిర్వహణ ప్రారంభించే ముందు ప్రధాన నీటి సరఫరాను ఆపివేయండి.
- Do not use abrasive cleaners or solvents on the product's surface.
2. ఉత్పత్తి ముగిసిందిview
The Ideal Standard Ceratherm T25 Shower System (BC748XG) in Silk Black is a complete shower solution featuring a thermostatic mixer, overhead shower, and hand shower. Key features include:
- Thermostatic Temperature Control: Maintains a constant water temperature, even with fluctuating water pressure.
- Cool Body Function: The tap body remains cool to the touch, preventing accidental burns.
- Integrated Hot Water Temperature Limiter: A child lock and temperature lock at 40 degrees Celsius enhance safety.
- Durable Ceramic Cartridge: Tested for over 500,000 cycles for extended product life.
- ECO ఫంక్షన్: Water-saving position for reduced consumption without compromising comfort.
- Anti-Limescale Function: Designed to minimize limescale buildup.
- EasyClean: Facilitates simple cleaning and maintenance.
3. ప్యాకేజీ విషయాలు
ఇన్స్టాలేషన్తో కొనసాగే ముందు అన్ని భాగాలు ఉన్నాయని మరియు దెబ్బతినకుండా ఉన్నాయని ధృవీకరించండి:
- Ceratherm T25 Surface-Mounted Shower System (Thermostatic Mixer, Shower Rail, Overhead Shower, Hand Shower)
- Shower Hose (1750 mm)
- S-కనెక్టర్లు
- Mounting Material (fixings)
- 2 Round Metal Rosettes (70 mm diameter)
4. సెటప్ మరియు ఇన్స్టాలేషన్
The Ceratherm T25 Shower System is designed for wall-mounted, surface installation. Professional installation is recommended to ensure correct functionality and adherence to safety standards.
ఇన్స్టాలేషన్ దశలు (జనరల్ ఓవర్view):
- ఇన్స్టాలేషన్ ప్రాంతాన్ని సిద్ధం చేయండి: Ensure the wall surface is clean, stable, and capable of supporting the shower system. Turn off the main water supply.
- Mount S-connectors: Install the S-connectors to the water supply lines, ensuring they are level and at the correct distance for the mixer.
- Attach Mixer: Secure the thermostatic mixer to the S-connectors. Use the provided rosettes to cover the connections.
- Install Shower Rail: Mount the shower rail to the wall, ensuring it is plumb and securely fastened.
- Connect Overhead Shower: Attach the overhead shower to the top of the shower rail.
- Connect Hand Shower: Connect the shower hose to the mixer and the hand shower. Place the hand shower in its fixed holder on the rail.
- పరీక్షా వ్యవస్థ: Slowly turn on the main water supply and check for leaks. Test both the overhead and hand showers for proper water flow and temperature control.
5. ఆపరేటింగ్ సూచనలు
The Ceratherm T25 Shower System features two handles for precise control over water temperature and flow.
ఉష్ణోగ్రత నియంత్రణ
The left handle (when facing the mixer) controls the water temperature. It is thermostatic, meaning it will maintain your desired temperature consistently.
- సర్దుబాటు ఉష్ణోగ్రత: Rotate the handle to increase or decrease the water temperature. Markings (red for hot, blue for cold) indicate the direction of adjustment.
- 40°C Temperature Lock: For safety, there is a temperature lock at 40 degrees Celsius. To exceed this temperature, press the safety button on the handle while rotating it further.
Flow Control and Diverter
The right handle controls the water flow and acts as a switch unit to divert water between the overhead shower and the hand shower.
- ఆన్/ఆఫ్ చేయడం: నీటి ప్రవాహాన్ని ఆన్ లేదా ఆఫ్ చేయడానికి హ్యాండిల్ను తిప్పండి.
- Switching Between Showers: The handle also functions as a diverter. Rotate or pull/push the handle (depending on design) to switch water flow between the overhead shower and the hand shower.
- ECO ఫంక్షన్: The mixer includes a water-saving position (ECO). This position reduces water flow, and you can override it by applying more force to the handle if full flow is desired.
షవర్ విధులు
- ఓవర్ హెడ్ షవర్: Features a single rain jet type. The shower head is swivelling for adjustable angle.
- హ్యాండ్ షవర్: A stick-style hand shower with a flow rate of 8 liters/min at 3 bar. It is held in a fixed shower holder.
6. నిర్వహణ
క్రమం తప్పకుండా శుభ్రపరచడం మరియు నిర్వహణ మీ షవర్ సిస్టమ్ యొక్క దీర్ఘాయువు మరియు సరైన పనితీరును నిర్ధారిస్తుంది.
- ఉపరితలాన్ని శుభ్రపరచడం: Use a soft cloth and mild soap or a non-abrasive cleaner specifically designed for bathroom fixtures. Avoid harsh chemicals, abrasive sponges, or scouring agents, as these can damage the Silk Black finish.
- Anti-Limescale Function / EasyClean: The shower system is equipped with an anti-limescale function and EasyClean features. Regularly wipe the nozzles of the overhead and hand showers to remove any mineral deposits. For stubborn limescale, use a diluted solution of vinegar or a specialized limescale remover, following the product instructions carefully.
- కనెక్షన్లను తనిఖీ చేస్తోంది: Periodically inspect all connections for any signs of leaks. Tighten connections if necessary, but do not overtighten.
7. ట్రబుల్షూటింగ్
If you encounter issues with your shower system, refer to the following general troubleshooting advice. For complex problems, contact a qualified plumber or Ideal Standard customer support.
- తక్కువ నీటి ప్రవాహం: Check if the main water supply is fully open. Inspect shower heads and hand shower nozzles for limescale buildup and clean them. Ensure the ECO function is not engaged if full flow is desired.
- అస్థిరమైన నీటి ఉష్ణోగ్రత: Verify that the hot and cold water supplies are functioning correctly. Ensure the thermostatic mixer is properly calibrated (refer to installation instructions or a professional plumber).
- లీక్లు: Check all visible connections for tightness. If leaks persist, turn off the water supply and contact a professional.
- Difficulty Adjusting Temperature/Flow: Ensure handles are free from obstructions. If handles are stiff, professional inspection of the internal cartridge may be required.
8. స్పెసిఫికేషన్లు
| ఫీచర్ | స్పెసిఫికేషన్ |
|---|---|
| మోడల్ సంఖ్య | BC748XG |
| సిరీస్ | Ceratherm T25 |
| Color / Surface | Silk Black (Matte, Varnished) |
| మౌంటు రకం | Wall, Surface-mounted (S-connector) |

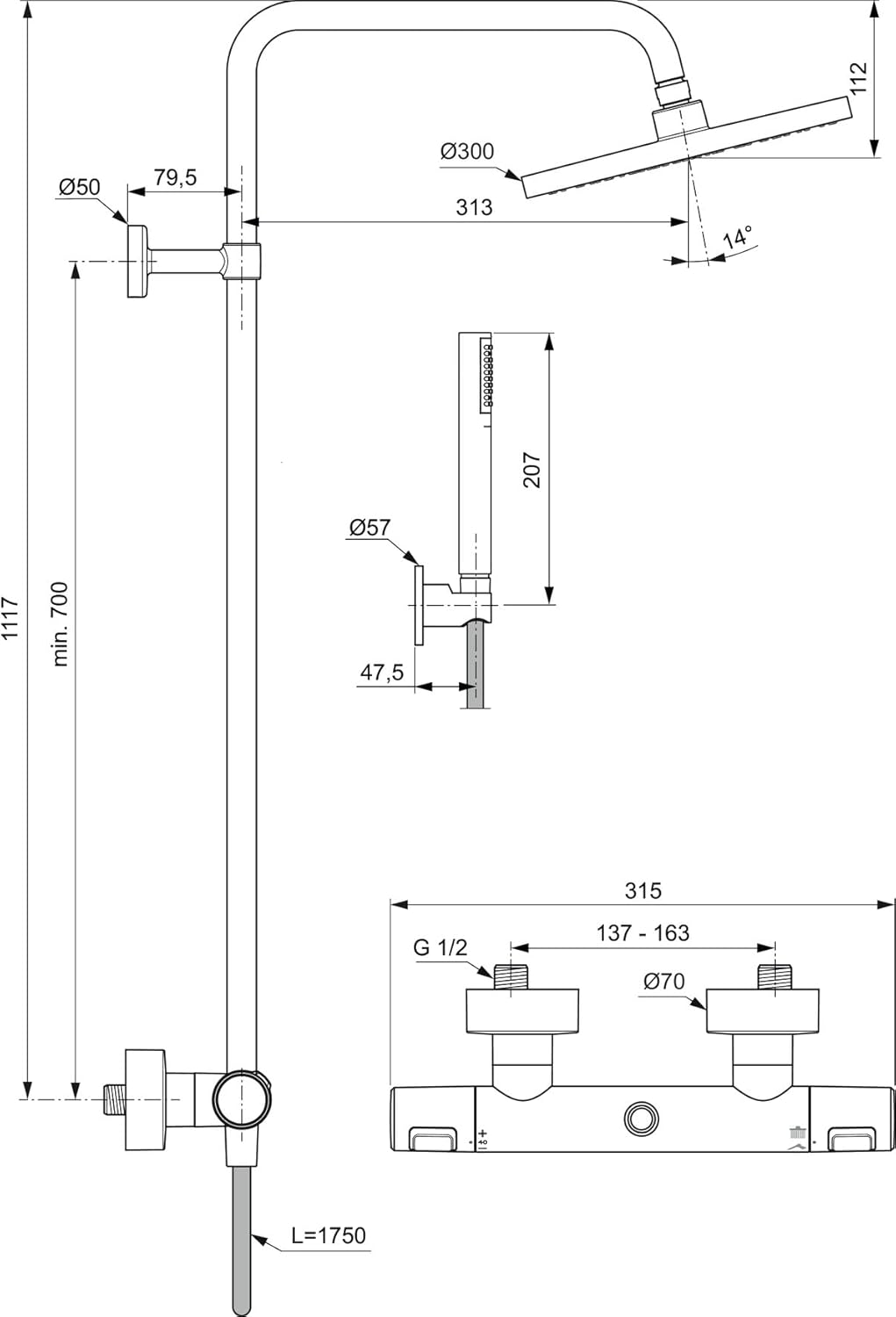

| బాహ్య కొలతలు (W x D x H) | 315 x 543 x 1117 మిమీ (12.4 x 21.38 x 43.98 అంగుళాలు) |
| ప్రొజెక్షన్ | 313 మి.మీ |
| హ్యాండిల్స్ సంఖ్య | 2 (Plastic, Ceramic) |
| గుళిక రకం | FirmaFlow ceramic cartridge (500,000 cycles) |
| Hot Water Temperature Limiter | Integrated, Temperature lock at 40°C |
| Flow Rate (3 bar) | 12 litres/min (Shower Head), 8 litres/min (Hand Shower) |
| Shower Head Jet Type | Rain (1 function), Swivelling |
| Hand Shower Type | కర్ర |
| షవర్ గొట్టం పొడవు | 1750 mm (Idealflex type) |
| Connection Dimensions (Shower Hose) | 1/2 అంగుళం |
| బరువు | 3.600 కిలోలు (7.92 పౌండ్లు) |
| ప్రత్యేక లక్షణాలు | Cool Body, DVGW Intrinsically Safe, Fat reservoir (food safe), Noise behaviour DIN 4109: Group 1, Water-saving position (ECO), Anti-limescale function, Pressure regulating, Anti-scald protection, Water-carrying shower rail |
9. వారంటీ మరియు మద్దతు
For warranty information, please refer to the documentation provided at the time of purchase or visit the official Ideal Standard website. In case of technical issues, missing parts, or questions not covered in this manual, please contact Ideal Standard customer support or your authorized dealer.
Please have your model number (BC748XG) and purchase details ready when contacting support.
