1. పరిచయం
Thank you for choosing the Mesqool CR1009Pro DAB/FM Portable Emergency Radio. This device is designed to provide reliable communication and essential features in various situations, from daily use to outdoor adventures and emergencies. It combines DAB+ and FM radio reception with multiple power sources, including a hand crank, solar panel, and a 5000mAh internal battery, which also functions as a power bank. Additional features include an LED flashlight, a reading lamp, and an SOS alarm.
Please read this manual thoroughly before operating the device to ensure proper use and to maximize its lifespan.
2. భద్రతా సమాచారం
- Do not expose the device to extreme temperatures, direct sunlight for prolonged periods (beyond charging), or high humidity.
- The device has an IPX4 water resistance rating, meaning it is protected against splashing water from any direction. Do not immerse the device in water.
- బలమైన అయస్కాంత క్షేత్రాల నుండి పరికరాన్ని దూరంగా ఉంచండి.
- పరికరాన్ని విడదీయడానికి లేదా సవరించడానికి ప్రయత్నించవద్దు. ఇది వారంటీని రద్దు చేస్తుంది మరియు నష్టం లేదా గాయానికి కారణం కావచ్చు.
- Use only specified charging cables and power adapters.
- పిల్లలకు దూరంగా ఉంచండి.
3. ఉత్పత్తి ముగిసిందిview
Familiarize yourself with the components and controls of your Mesqool CR1009Pro radio.

మూర్తి 3.1: ముందు view of the radio with display and controls.
నియంత్రణలు మరియు పోర్ట్లు:
- పవర్ బటన్: రేడియోను ఆన్/ఆఫ్ చేస్తుంది.
- మోడ్ బటన్: DAB, FM మరియు ఇతర మోడ్ల మధ్య మారుతుంది.
- స్కాన్ బటన్: Initiates automatic station scanning.
- ఎంటర్ బటన్: ఎంపికలను నిర్ధారిస్తుంది.
- మెనూ బటన్: Accesses settings menu.
- సమాచార బటన్: Displays station information (RDS/DAB data).
- PRESET/RECALL/STORE Buttons: Manages preset radio stations.
- వాల్యూమ్ బటన్లు (+/-): ఆడియో వాల్యూమ్ను సర్దుబాటు చేస్తుంది.
- Tune Buttons (Up/Down): Manually tunes frequencies or navigates menus.
- టెలిస్కోపిక్ యాంటెన్నా: మెరుగైన రేడియో రిసెప్షన్ కోసం.
- LED ఫ్లాష్లైట్: పక్కన ఉంది.
- చదువుతున్న ఎల్amp: ఫోల్డబుల్ ఎల్amp located on top.
- SOS Alarm Button: Activates emergency alarm.
- హ్యాండ్ క్రాంక్: మాన్యువల్ విద్యుత్ ఉత్పత్తి కోసం.
- సోలార్ ప్యానెల్: సౌర ఛార్జింగ్ కోసం.
- మైక్రో USB ఇన్పుట్: అంతర్గత బ్యాటరీని ఛార్జ్ చేయడానికి.
- USB అవుట్పుట్: బాహ్య పరికరాలను ఛార్జ్ చేయడానికి (పవర్ బ్యాంక్ ఫంక్షన్).
- 3.5mm హెడ్ఫోన్ జాక్: ప్రైవేట్ వినడం కోసం.
- AAA బ్యాటరీ కంపార్ట్మెంట్: For optional AAA battery power.
4. సెటప్
4.1 ప్రారంభ ఛార్జింగ్
Before first use, fully charge the internal 5000mAh battery using the provided Micro USB cable and a 5V/2A power adapter (not included). The battery indicator on the display will show charging status.
4.2 Inserting AAA Batteries (Optional)
For an additional power source, open the battery compartment and insert 3 AAA batteries (not included), ensuring correct polarity. The radio can automatically switch to AAA battery power if the internal Li-ion battery is low.
4.3 యాంటెన్నా పొడిగింపు
సరైన రేడియో రిసెప్షన్ కోసం, టెలిస్కోపిక్ యాంటెన్నాను పూర్తిగా విస్తరించండి.
5. ఆపరేటింగ్ సూచనలు
5.1 పవర్ ఆన్/ఆఫ్
నొక్కండి శక్తి రేడియోను ఆన్ లేదా ఆఫ్ చేయడానికి బటన్.
5.2 Radio Operation (DAB/FM)

మూర్తి 5.1: ప్రైవేట్ శ్రవణ కోసం హెడ్ఫోన్ జాక్.
- మోడ్ని ఎంచుకోండి: నొక్కండి మోడ్ button to switch between DAB and FM radio modes.
- ఆటోమేటిక్ స్కాన్: DAB లేదా FM మోడ్లో, నొక్కండి స్కాన్ button to automatically search for available stations. The radio will store them.
- మాన్యువల్ ట్యూనింగ్: ఉపయోగించండి TUNE Up/Down ఫ్రీక్వెన్సీని మాన్యువల్గా సర్దుబాటు చేయడానికి బటన్లు.
- ప్రీసెట్లను సేవ్ చేస్తోంది: After finding a station, press the PRESET/STORE button, select a preset number using the TUNE Up/Down బటన్లు, మరియు నొక్కండి నమోదు చేయండి to save. The radio supports up to 30 preset stations.
- ప్రీసెట్లను గుర్తుచేసుకుంటున్నారు: నొక్కండి PRESET/RECALL బటన్ మరియు ఉపయోగించండి TUNE Up/Down buttons to select a saved station.
- DRC Function (DAB): In DAB mode, access the menu to adjust the Dynamic Range Control (DRC) compression rate, which helps balance volume levels.
- RDS Function (FM): In FM mode, the RDS (Radio Data System) function displays station information on the screen, such as program name or song title.
- హెడ్ఫోన్ వాడకం: ప్రైవేట్ లిజనింగ్ కోసం 3.5mm హెడ్ఫోన్లను హెడ్ఫోన్ జాక్లోకి ప్లగ్ చేయండి.
5.3 రేడియో ఛార్జింగ్

మూర్తి 5.2: Hand crank charging.

మూర్తి 5.3: Five ways to charge the radio.
- USB ఛార్జింగ్: Connect the Micro USB cable to the radio's input port and a power source.
- సోలార్ ఛార్జింగ్: Place the radio with the solar panel facing direct sunlight. This method is primarily for maintaining charge or slow charging.
- హ్యాండ్ క్రాంక్ ఛార్జింగ్: Rotate the hand crank clockwise or counter-clockwise at a steady pace for manual power generation. A few minutes of cranking can provide power for basic functions.
- AAA బ్యాటరీలు: If inserted, the radio can draw power from AAA batteries when the internal rechargeable battery is low.
5.4 పవర్ బ్యాంక్గా ఉపయోగించడం

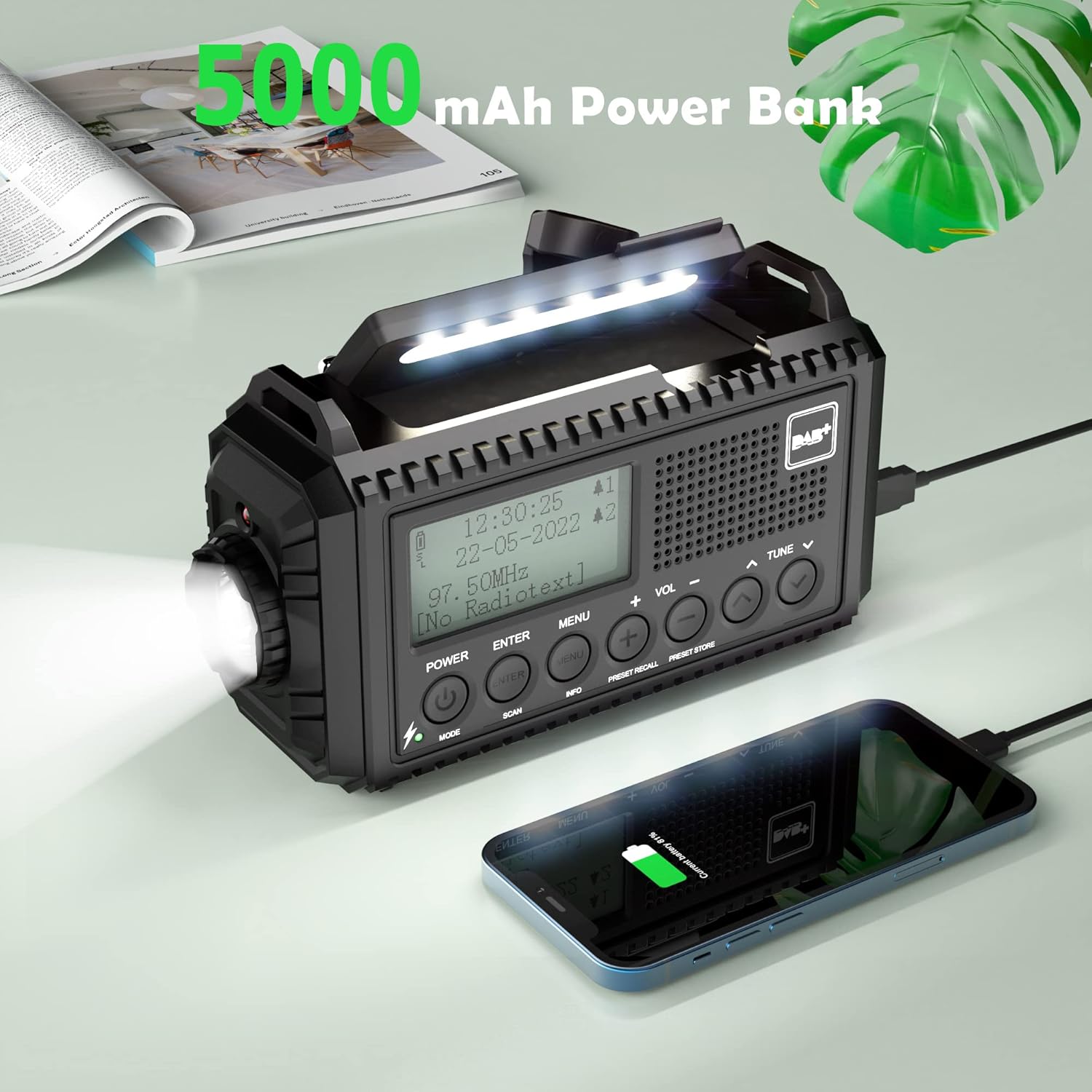

మూర్తి 5.4: Charging a smartphone using the radio's power bank function.
Connect your smartphone or other USB-powered device to the radio's USB output port using a compatible charging cable. The radio's internal 5000mAh battery will begin charging the external device.
5.5 Lighting Functions

మూర్తి 5.5: Reading with the integrated lamp.

మూర్తి 5.6: Using the flashlight for navigation.
- ఫ్లాష్లైట్: Press the dedicated flashlight button (usually on the side) to turn it on. Press again to cycle through brightness levels (High/Normal) or turn off.
- చదువుతున్న ఎల్amp: Fold out the reading lamp from the top of the radio. Press its button to turn it on and cycle through brightness levels (High/Normal) or turn off.
5.6 SOS అలారం
అత్యవసర పరిస్థితిలో, నొక్కి పట్టుకోండి SOS button. The radio will emit a loud siren sound and flash a red light to attract attention. Press the SOS button again to deactivate it.
5.7 Alarm Clock and Sleep Timer
- ద్వంద్వ అలారం గడియారం: Access the menu to set up to two independent alarms. You can configure alarm duration (e.g., 15, 30, 45, 60, 90, 120 minutes) and volume.
- స్లీప్ టైమర్: Access the menu to set a sleep timer (e.g., 15, 30, 45, 60, 90 minutes). The radio will automatically turn off after the set time.
5.8 Language and Backlight Settings
- భాష: Navigate to the system settings in the menu to select your preferred language (English, Portuguese, French, Italian, German).
- బ్యాక్లైట్: Adjust the display backlight brightness (High, Medium, Low) and duration (10s, 20s, 30s, 45s, 60s, 90s, 120s, 180s) via the menu settings.
6. నిర్వహణ

మూర్తి 6.1: బహిరంగ ఉపయోగం కోసం IPX4 నీటి నిరోధకత.
- శుభ్రపరచడం: రేడియోను మెత్తగా తుడవండి, డిamp గుడ్డ. రాపిడి క్లీనర్లు లేదా ద్రావకాలు ఉపయోగించవద్దు.
- బ్యాటరీ సంరక్షణ: For optimal battery life, fully charge the internal battery at least once every three months if not in regular use.
- నిల్వ: ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా చల్లని, పొడి ప్రదేశంలో రేడియోను నిల్వ చేయండి.
- నీటి నిరోధకత: While IPX4 rated, avoid prolonged exposure to heavy rain or submersion in water. Ensure all port covers are securely closed.
7. ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| రేడియో ఆన్ అవ్వదు. | Low battery or no power source. | Charge the internal battery via USB, solar, or hand crank. Check if AAA batteries are inserted correctly and have charge. |
| పేలవమైన రేడియో రిసెప్షన్. | యాంటెన్నా విస్తరించబడలేదు, సిగ్నల్ బలహీనంగా ఉంది లేదా జోక్యం లేదు. | Fully extend the telescopic antenna. Try repositioning the radio. Perform an automatic scan for stations. |
| బాహ్య పరికరాలను ఛార్జ్ చేయలేరు. | Radio's internal battery is low or cable is incompatible. | Ensure the radio's internal battery is sufficiently charged. Use a compatible USB charging cable for your device. |
| SOS alarm activates accidentally. | SOS button is highly sensitive. | Be mindful of the SOS button's location when handling the radio. Avoid placing objects that might press it. |
| Lights (flashlight/reading lamp) do not work. | Low battery or light function not activated. | Charge the radio. Ensure you are pressing the correct button for the desired light function. |
8. స్పెసిఫికేషన్లు
- బ్రాండ్: మెస్కూల్
- మోడల్: CR1009Pro DAB
- రంగు: నలుపు
- కనెక్టివిటీ: USB
- ప్రత్యేక లక్షణాలు: SOS Alarm, Built-in Clock, Portable, Rechargeable, LED Flashlight, Reading Lamp
- మెటీరియల్: ప్లాస్టిక్
- USB పోర్ట్లు: 1 (అవుట్పుట్)
- అనుకూల పరికరాలు: Headphones, Smartphone
- కొలతలు: 17.2L x 9.4W x 6.3H సెం.మీ
- ట్యూనింగ్ టెక్నాలజీ: DAB+
- శక్తి మూలం: Solar panel, Hand crank, Micro USB input, Internal 5000mAh rechargeable battery, 3 AAA batteries (not included)
- మద్దతు ఉన్న రేడియో బ్యాండ్లు: FM, DAB+
- నీటి నిరోధకత: IPX4
9. వారంటీ మరియు మద్దతు
For warranty information or technical support, please refer to the warranty card included with your product or contact Mesqool customer service directly. You can often find support contact details on the official Mesqool webసైట్ లేదా మీ రిటైలర్ ద్వారా.
Manufacturer: Mesqool E-commerce Co.Ltd
