1. పరిచయం
This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Geberit iCon Rimfree Wall-Hung Toilet with Seat. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Retain this manual for future reference.
Figure 1: Geberit iCon Rimfree Wall-Hung Toilet with Seat. This image displays the complete toilet unit, including the wall-hung ceramic bowl and the closed Duroplast toilet seat, presented in a glossy white finish.
2. ఉత్పత్తి లక్షణాలు
The Geberit iCon Rimfree Wall-Hung Toilet is designed for modern bathrooms, offering both aesthetic appeal and functional benefits. Key features include:
- Rimfree Design: The toilet bowl features a rimless design, which eliminates hidden areas where dirt and germs can accumulate, making cleaning significantly easier and more hygienic.
- Closed Form: The ceramic body has a sleek, closed form, contributing to a contemporary look and simplifying exterior cleaning.
- Wall-Hung Installation: Designed for wall mounting, which saves floor space and facilitates easier floor cleaning in the bathroom.
- Hidden Fixation: The mounting hardware is concealed, providing a clean and seamless appearance.
- Duroplast Toilet Seat: Includes a high-quality Duroplast toilet seat (Model 501.660.01.1) with an overlapping cover.
- EasyMount Hinges: The toilet seat is equipped with EasyMount hinges for straightforward installation and removal, aiding in thorough cleaning.
- Optimized Flush Volume: Compatible with flush volumes of 6, 5, or 4 liters, and features a 4.5-liter flush coil, meeting EN 997 standards for efficient water usage.
- అనుకూలత: Specifically designed for use with concealed cisterns and flush valves.
3. భద్రతా సమాచారం
Please observe the following safety guidelines during installation and use:
- Installation should be performed by a qualified professional to ensure correct and secure mounting.
- Ensure all water connections are properly sealed to prevent leaks.
- Do not overtighten fasteners, as this may damage the ceramic or mounting hardware.
- Verify that the wall structure is adequate to support the weight of the toilet and user.
- ఉక్కిరిబిక్కిరి అయ్యే ప్రమాదాలను నివారించడానికి చిన్న భాగాలను పిల్లలకు దూరంగా ఉంచండి.
- ఇన్స్టాలేషన్ సమయంలో తగిన వ్యక్తిగత రక్షణ పరికరాలను (PPE) ఉపయోగించండి.
4. ప్యాకేజీ విషయాలు
ఇన్స్టాలేషన్ ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని మరియు దెబ్బతినకుండా ఉన్నాయని ధృవీకరించండి:
- Geberit iCon Rimfree Wall-Hung Toilet Bowl (Model 501.664.00.8)
- Geberit Duroplast Toilet Seat with EasyMount Hinges (Model 501.660.01.1)
- Mounting Hardware (for wall fixation type EFF3)
- ఇన్స్టాలేషన్ సూచనలు (ఈ మాన్యువల్)
5. సెటప్ మరియు ఇన్స్టాలేషన్
Installation of the Geberit iCon Wall-Hung Toilet requires careful attention to detail and adherence to local plumbing codes. It is strongly recommended that installation be carried out by a certified plumber.
5.1 ప్రీ-ఇన్స్టాలేషన్ తనిఖీలు
- Ensure the concealed cistern and wall-mounting frame are correctly installed and secured according to their respective manufacturer's instructions.
- Verify that the water supply and waste connections are accessible and correctly positioned.
- Confirm the wall structure can support the combined weight of the toilet, cistern, and user.
5.2 Mounting the Toilet Bowl
- Attach the included mounting hardware (Geberit wall fixation type EFF3) to the pre-installed wall frame's threaded rods.
- Carefully position the toilet bowl onto the threaded rods, ensuring the waste outlet aligns with the waste pipe and the water inlet aligns with the flush pipe from the cistern.
- Secure the toilet bowl using the provided nuts and washers. Tighten evenly to prevent stress on the ceramic, but do not overtighten. The hidden fixation design will conceal these connections.
- Connect the flush pipe and waste pipe, ensuring all seals are correctly seated and watertight.
5.3 Installing the Toilet Seat
- Insert the EasyMount hinge posts into the designated holes on the toilet bowl.
- Place the toilet seat onto the hinge posts and press down until it clicks securely into place.
- Test the seat for stability and proper closing mechanism.
చిత్రం 2: పై నుండి క్రిందికి view with key dimensions. This technical drawing illustrates the width (355mm) and depth (180mm) of the toilet bowl from a top perspective, along with mounting points.
మూర్తి 3: వైపు view with key dimensions. This technical drawing shows the height (330mm from mounting to top, 365mm total height) and projection (530mm) of the toilet bowl from a side perspective, including the seat height (420mm).
మూర్తి 4: ముందు view with key dimensions. This technical drawing provides the overall width (430mm) and the internal bowl width (290mm) from a front perspective.

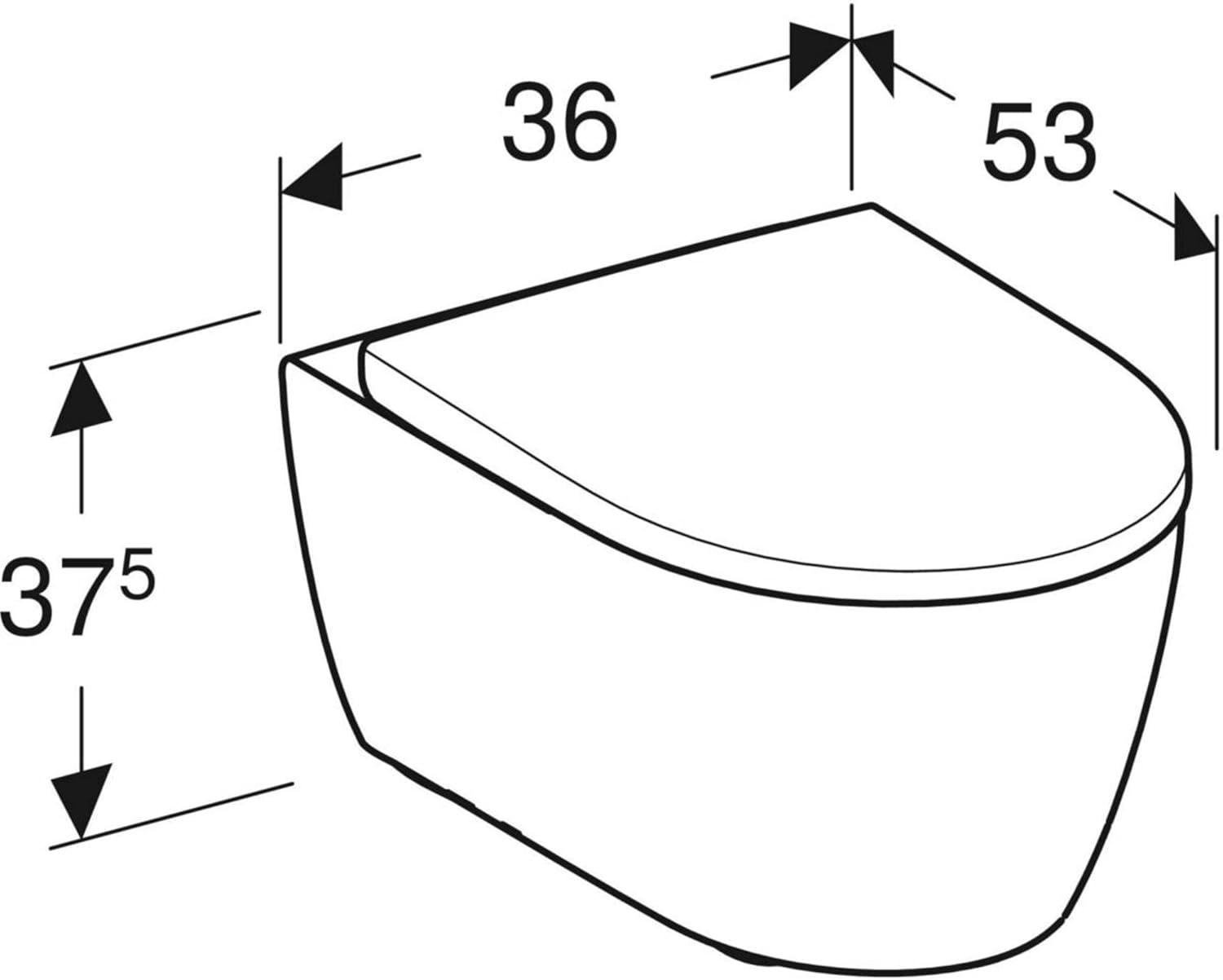

Figure 5: Angled perspective with overall dimensions. This drawing combines multiple views to show the total width (360mm), depth (530mm), and height (375mm) of the toilet unit.
6. ఆపరేటింగ్ సూచనలు
The Geberit iCon Wall-Hung Toilet operates like a standard toilet, but with enhanced hygiene due to its Rimfree design.
- ఫ్లషింగ్: Activate the flush mechanism via the flush plate connected to your concealed cistern. Depending on your cistern setup, you may have options for a full or reduced flush volume.
- టాయిలెట్ సీటు: The Duroplast toilet seat is designed for comfortable use and easy removal for cleaning.
7. నిర్వహణ మరియు శుభ్రపరచడం
Regular cleaning and proper maintenance will ensure the longevity and hygienic performance of your Geberit iCon toilet.
7.1 Cleaning the Toilet Bowl
- Due to the Rimfree design, cleaning is simplified. Use a soft brush or cloth and a mild, non-abrasive bathroom cleaner.
- Avoid harsh chemicals, abrasive pads, or cleaners containing strong acids or alkalis, as these can damage the ceramic surface.
- శుభ్రం చేసిన తర్వాత నీటితో బాగా కడగాలి.
7.2 Cleaning the Toilet Seat
- The Duroplast toilet seat can be easily removed for thorough cleaning by gently pulling it upwards from the EasyMount hinges.
- Clean the seat and hinges with a soft cloth and mild soap or a specialized toilet seat cleaner.
- Do not use abrasive cleaners, disinfectants with chlorine, or steam cleaners, as these can damage the Duroplast material and hinges.
- Ensure the seat is completely dry before reattaching it.
8. ట్రబుల్షూటింగ్
If you encounter issues with your Geberit iCon toilet, refer to the following common problems and solutions. For complex issues, contact a qualified plumber.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| బలహీనమైన ఫ్లష్ | Low water level in cistern, partially closed stopcock, obstruction in flush pipe. | Check cistern water level and adjust if necessary. Ensure stopcock is fully open. Inspect flush pipe for blockages. |
| టాయిలెట్ ఫ్లష్ చేయడం లేదు | Flush plate mechanism issue, cistern valve malfunction. | Inspect flush plate for proper engagement. Consult the cistern manual for valve troubleshooting. |
| కనెక్షన్ల నుండి నీరు లీక్ అవుతోంది | వదులైన కనెక్షన్లు, దెబ్బతిన్న సీల్స్. | Turn off water supply. Carefully check and tighten all connections. Replace damaged seals if necessary. |
| Toilet seat loose | Hinges not fully engaged or worn. | Remove and re-attach the toilet seat, ensuring hinges click into place. If wear is evident, consider replacing the seat. |
9. స్పెసిఫికేషన్లు
Detailed technical specifications for the Geberit iCon Rimfree Wall-Hung Toilet (Model 501.664.00.8):
- బ్రాండ్: గెబెరిట్
- మోడల్ సంఖ్య: 501.664.00.8
- మెటీరియల్: సిరామిక్
- రంగు: నిగనిగలాడే తెలుపు
- కొలతలు (L x W x H): 53 x 35.5 x 37.5 సెం.మీ
- బరువు: 23.44 కిలోలు
- ఇన్స్టాలేషన్ విధానం: వాల్-మౌంటెడ్
- Flush Volume Compatibility: 6 / 5 / 4 L (compliant with EN 997)
- Flush Coil: 4.5 ఎల్
- టాయిలెట్ సీటు: Duroplast, with EasyMount hinges (Model 501.660.01.1)
- స్థిరీకరణ: Hidden, compatible with Geberit wall fixation type EFF3
10. వారంటీ మరియు మద్దతు
Specific warranty information for the Geberit iCon Rimfree Wall-Hung Toilet is not provided within the product data. For details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact Geberit customer support directly.
సాంకేతిక సహాయం, విడిభాగాలు లేదా తదుపరి విచారణల కోసం, దయచేసి అధికారిక గెబెరిట్ను సందర్శించండి. webసైట్ లేదా వారి అధీకృత సేవా కేంద్రాలను సంప్రదించండి.
