పరిచయం
This manual provides essential information for the Whirlpool W11517959 10-inch Electric Range Radiant Surface Element. This genuine OEM part is designed to supply heat to the cooking area on top of your flat range. Proper installation and maintenance are crucial for the safe and efficient operation of your appliance.
ముఖ్యమైన భద్రతా సమాచారం
WARNING: Disconnect power to the appliance before servicing. Failure to do so may result in electrical shock, fire, or personal injury.
- Appliance repair should only be performed by qualified technicians.
- Replacing this part may require advanced mechanical training, specialized tools, complex testing, and appliance calibration.
- ఇన్స్టాలేషన్ సమయంలో ఎల్లప్పుడూ తగిన వ్యక్తిగత రక్షణ పరికరాలను (PPE) ధరించండి.
- Ensure all connections are secure and correctly installed before restoring power.
అనుకూలత
The W11517959 radiant surface element is compatible with various Whirlpool electric range models. Always verify compatibility with your appliance's manual or by consulting the manufacturer before purchasing మరియు ఈ భాగాన్ని ఇన్స్టాల్ చేస్తోంది.
This part replaces the following part numbers:
- WPW10169799
- W10169799
- W10350485
- W10823729
- W10275048
- W11282542
Known compatible Whirlpool models include:
- WFE515S0ES
- WFE320M0ES
- WFE320M0JS
- WFE540H0ES
- WFE510S0AS
పార్ట్ ఐడెంటిఫికేషన్
The Whirlpool W11517959 is a 10-inch radiant surface element. It consists of a coiled heating element encased in a ceramic base, designed to fit into the cooktop of compatible electric ranges. The element includes electrical terminals for connection to the range's wiring.

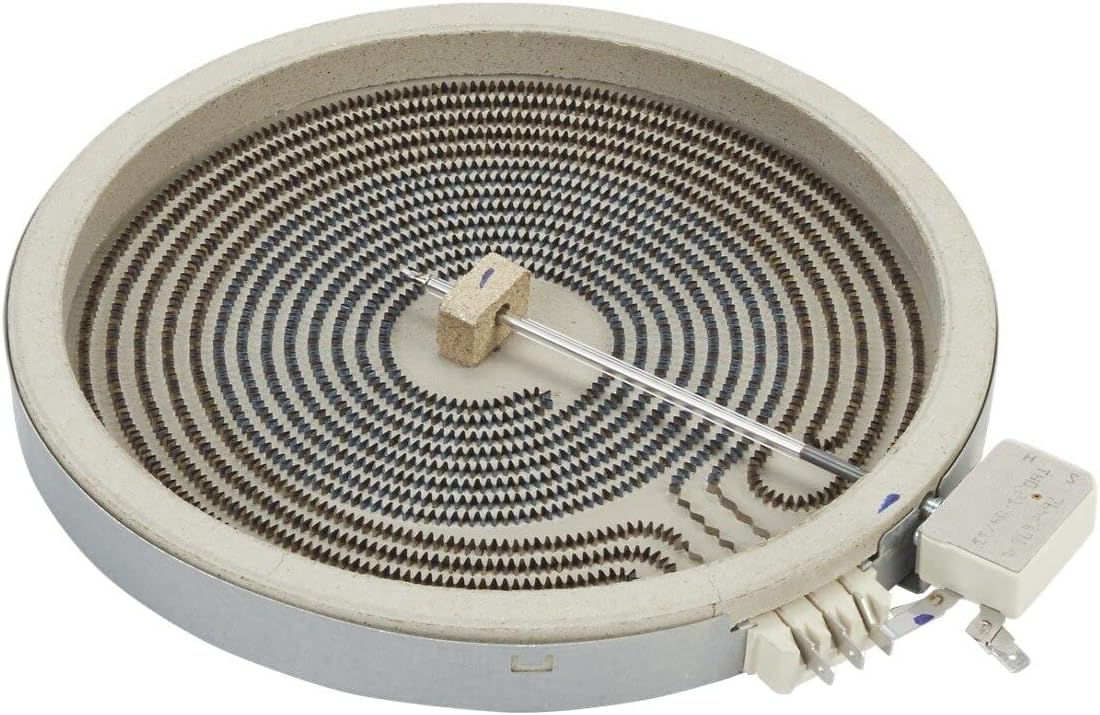

మూర్తి 1: టాప్ view of the Whirlpool W11517959 10-inch Electric Range Radiant Surface Element. This image shows the circular heating coil within its ceramic housing.

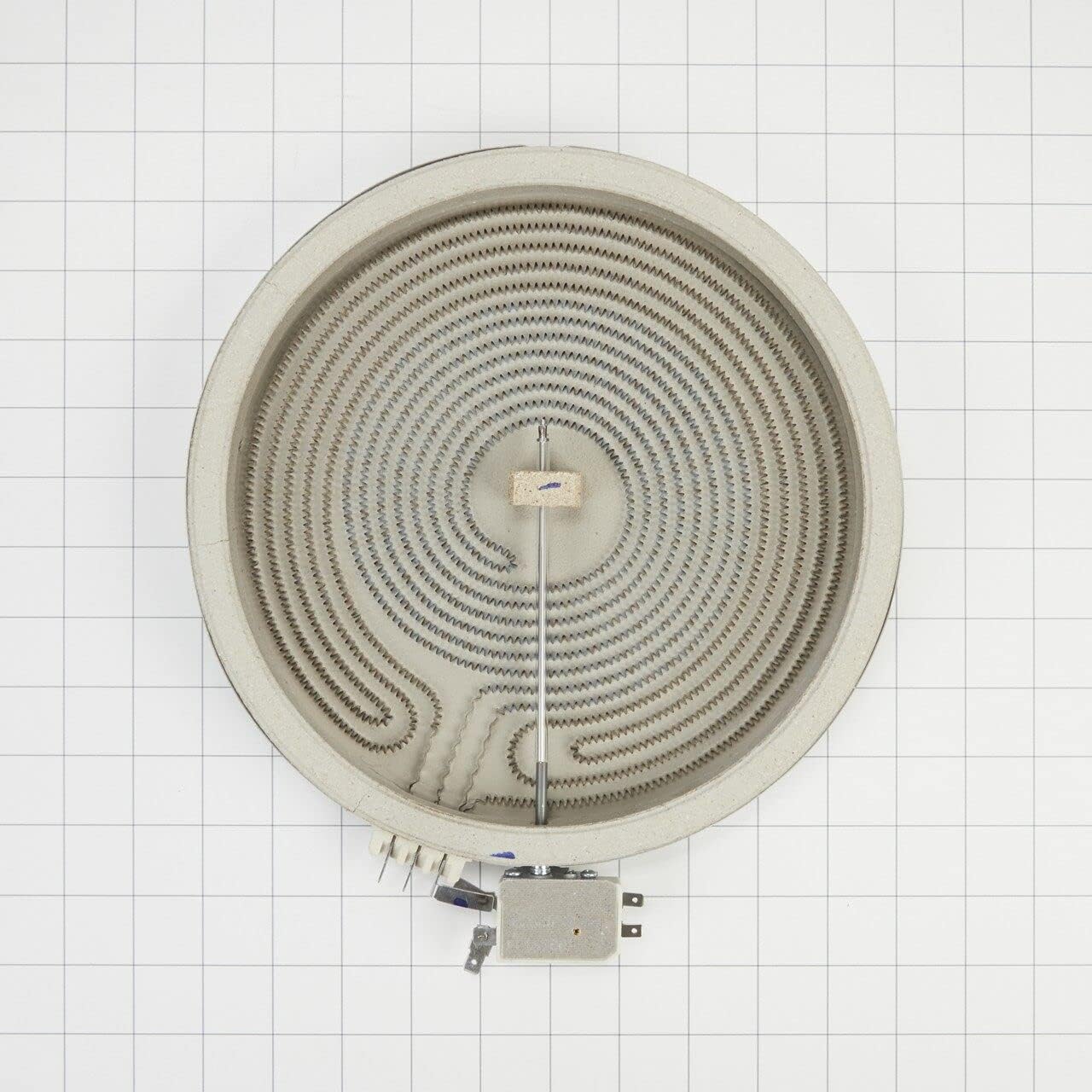

చిత్రం 2: ఓవర్ హెడ్ view of the radiant surface element, showing the full circular heating pattern and the central temperature sensor.
చిత్రం 3: దిగువ view of the radiant surface element, revealing the metal base and the electrical connection block.
మూర్తి 4: క్లోజ్-అప్ view of the electrical connection block and terminals on the radiant surface element.
మూర్తి 5: వివరంగా view of the individual electrical terminals and their configuration on the radiant surface element.
సెటప్ మరియు ఇన్స్టాలేషన్
Installation of the Whirlpool W11517959 radiant surface element requires technical expertise. It is strongly recommended to hire a qualified appliance technician for safe and correct installation. Incorrect installation can lead to appliance malfunction, damage, or safety hazards.
సాధారణ సంస్థాపనా దశలు (అర్హత కలిగిన సాంకేతిక నిపుణుల కోసం):
- మొదటి భద్రత: Ensure the electric range is completely disconnected from its power source.
- Access the Cooktop: Carefully lift or remove the cooktop surface to gain access to the heating elements from underneath.
- Identify the Faulty Element: Locate the element to be replaced. Note its position and wiring configuration.
- వైరింగ్ను డిస్కనెక్ట్ చేయండి: Disconnect the electrical wires from the terminals of the old element. Take photos or make diagrams to ensure correct re-connection.
- పాత ఎలిమెంట్ను తొలగించండి: Unfasten and remove the old radiant surface element from its mounting.
- కొత్త ఎలిమెంట్ను ఇన్స్టాల్ చేయండి: Position the new W11517959 element in place and secure it according to the appliance's design.
- వైరింగ్ కనెక్ట్ చేయండి: Reconnect the electrical wires to the new element's terminals, ensuring all connections are tight and correct based on your previous documentation.
- మళ్లీ కలపండి: Carefully reassemble the cooktop and any other components removed during the process.
- పరీక్ష: Restore power to the range and test the new element's functionality. Observe for proper heating and operation.
Video 1: This video from Whirlpool Service Parts emphasizes the importance of using genuine OEM parts for Whirlpool appliances, highlighting their quality, durability, and precise fit. It shows various parts being manufactured and installed, reinforcing the message that only genuine parts meet Whirlpool's engineering standards.
Operating the Appliance After Part Replacement
After the successful installation of the new radiant surface element, your electric range should operate as intended. Refer to your appliance's main user manual for specific operating instructions, including how to select heat settings and use the cooktop features.
- Ensure the element heats up evenly and consistently when activated.
- Monitor for any unusual odors or sounds during the first few uses, which may indicate an issue.
నిర్వహణ
To ensure the longevity and optimal performance of your electric range and its components, including the radiant surface element, follow these general maintenance guidelines:
- రెగ్యులర్ క్లీనింగ్: Keep the cooktop surface clean. Wipe spills promptly to prevent residue buildup on and around the heating elements.
- కఠినమైన క్లీనర్లను నివారించండి: Use mild cleaning agents and soft cloths to clean the cooktop. Avoid abrasive cleaners or scouring pads that can damage the surface or element.
- నష్టం కోసం తనిఖీ చేయండి: Periodically inspect the radiant surface elements for any visible signs of damage, such as cracks in the ceramic or exposed wiring. If damage is observed, discontinue use and contact a qualified technician.
- సరైన వంటసామాను: Use flat-bottomed cookware that matches the size of the heating element for efficient heat transfer and to prevent unnecessary stress on the element.
ట్రబుల్షూటింగ్
If your electric range experiences issues after the replacement of the radiant surface element, consider the following common troubleshooting points. For complex issues, always consult a qualified technician.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Element does not heat | Loose or incorrect wiring connection; faulty infinite switch; power supply issue. | Verify wiring connections. Check the infinite switch for continuity. Ensure the range has power. Consult a technician. |
| Element heats unevenly | Incorrect element installation; faulty element (rare for new part); issue with temperature sensor. | Re-check element seating. Inspect the temperature sensor. Consult a technician. |
| Element remains on after turning off | లోపభూయిష్ట అనంత స్విచ్. | Immediately disconnect power to the range. Replace the infinite switch. This requires professional service. |
స్పెసిఫికేషన్లు
- పార్ట్ నంబర్: W11517959
- తయారీదారు: వర్ల్పూల్
- రకం: Electric Range Radiant Surface Element
- పరిమాణం: 10 అంగుళాలు
- వస్తువు బరువు: సుమారు 2.18 పౌండ్లు
- ఉత్పత్తి కొలతలు: సుమారు 15 x 15 x 3 అంగుళాలు
- రంగు: White (ceramic base)
- చేర్చబడిన భాగాలు: One Whirlpool W11517959 Genuine OEM 10" Electric Range Radiant Surface Element Replacement Part
వారంటీ మరియు మద్దతు
Whirlpool offers a one-year manufacturer's warranty on this genuine OEM part. For warranty claims, technical support, or to locate authorized service technicians, please refer to the official Whirlpool website or contact Whirlpool customer service directly.
మరింత సహాయం కోసం, సందర్శించండి Whirlpool Store on Amazon or the official Whirlpool webసైట్.
