1. పరిచయం
This manual provides detailed instructions for the Arducam 16MP Autofocus Quad-Camera Kit. This kit is designed to interface four 16MP IMX519 autofocus cameras with a single MIPI CSI-2 slot on compatible single-board computers, such as Raspberry Pi and Nvidia Jetson Boards, using the Arducam Camarray HAT.
The system enables synchronized image and video capture from multiple camera modules, expanding possibilities for advanced applications like VR, AR, SLAM, 3D sensing, and image stitching.
Figure 1.1: Arducam 16MP Autofocus Quad-Camera Kit in an exampలే సెటప్.
2. ప్యాకేజీ విషయాలు
మీ ప్యాకేజీలో కింది అన్ని భాగాలు చేర్చబడ్డాయని ధృవీకరించండి:
- Four (4) Arducam 16MP IMX519 Autofocus Camera Modules
- One (1) Arducam Camarray HAT (UC-512 Rev.D2)
- One (1) Short FPC Cable (UC-440)
- Four (4) Long FPC Cables (UC-593)
- Mounting Hardware (Screws and Standoffs)

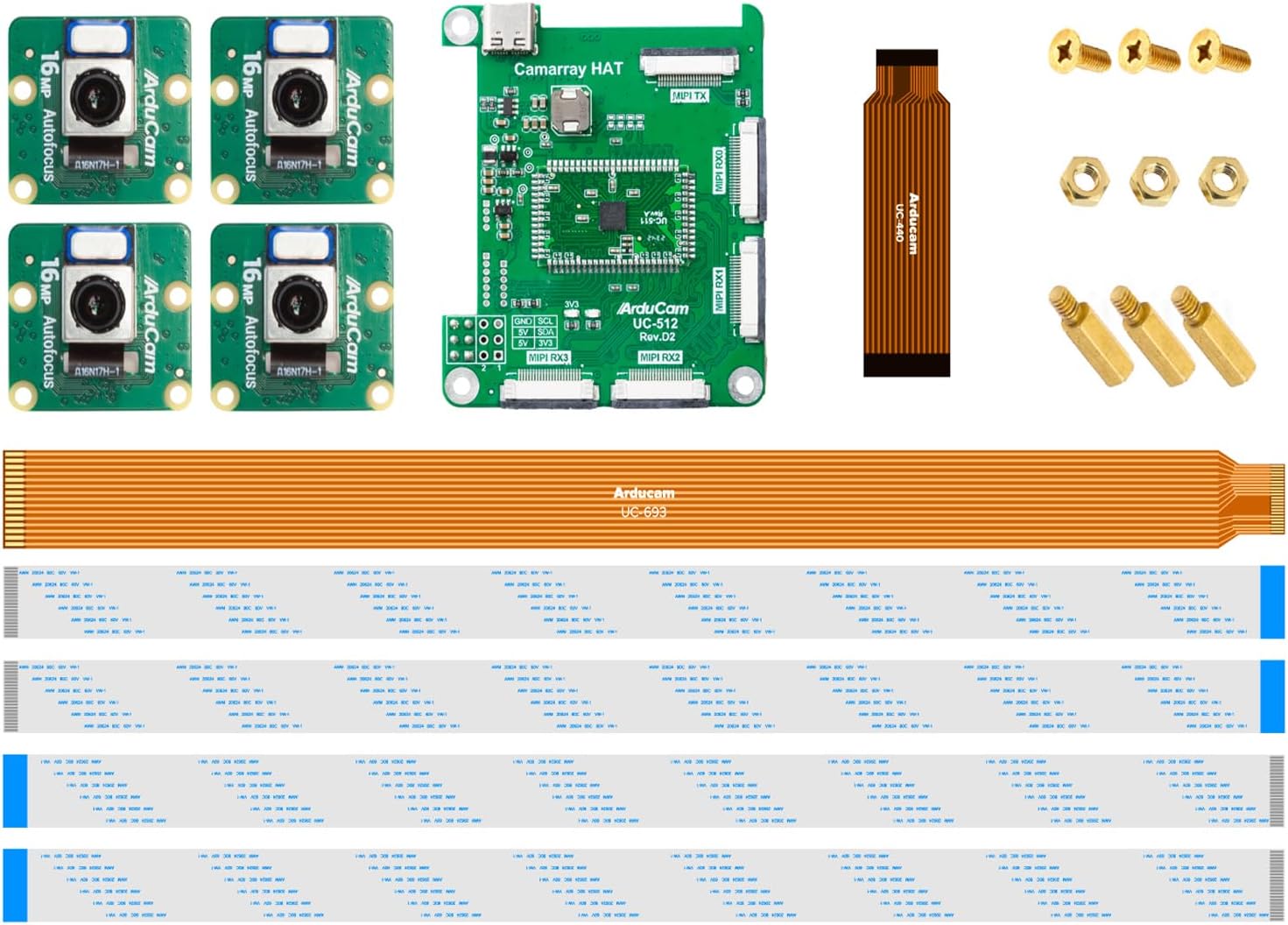

చిత్రం 2.1: పైగాview చేర్చబడిన అన్ని భాగాలలో.
3. సెటప్ సూచనలు
Follow these steps to assemble and prepare your Arducam Quad-Camera Kit for operation.
3.1 హార్డ్వేర్ అసెంబ్లీ
- Connect FPC Cables to Camera Modules: Carefully insert one end of each long FPC cable (UC-593) into the CSI connector on each of the four 16MP IMX519 camera modules. Ensure the blue tab on the FPC cable faces away from the camera lens when inserting. Secure the connection by closing the connector latch.
Figure 3.1: Proper orientation for FPC cable connection to camera module.
- Connect Camera Modules to Camarray HAT: Insert the other end of the four long FPC cables into the MIPI RX0, RX1, RX2, and RX3 slots on the Arducam Camarray HAT (UC-512 Rev.D2). Ensure the blue tab faces the same direction as the corresponding connector on the HAT. Close the latches to secure.
Figure 3.2: Connecting all four camera modules to the Camarray HAT.
- Connect Camarray HAT to Host Board: Use the short FPC cable (UC-440) to connect the MIPI TX port on the Camarray HAT to the CSI-2 camera input on your Raspberry Pi or Nvidia Jetson Board. Ensure correct orientation and secure the connection.

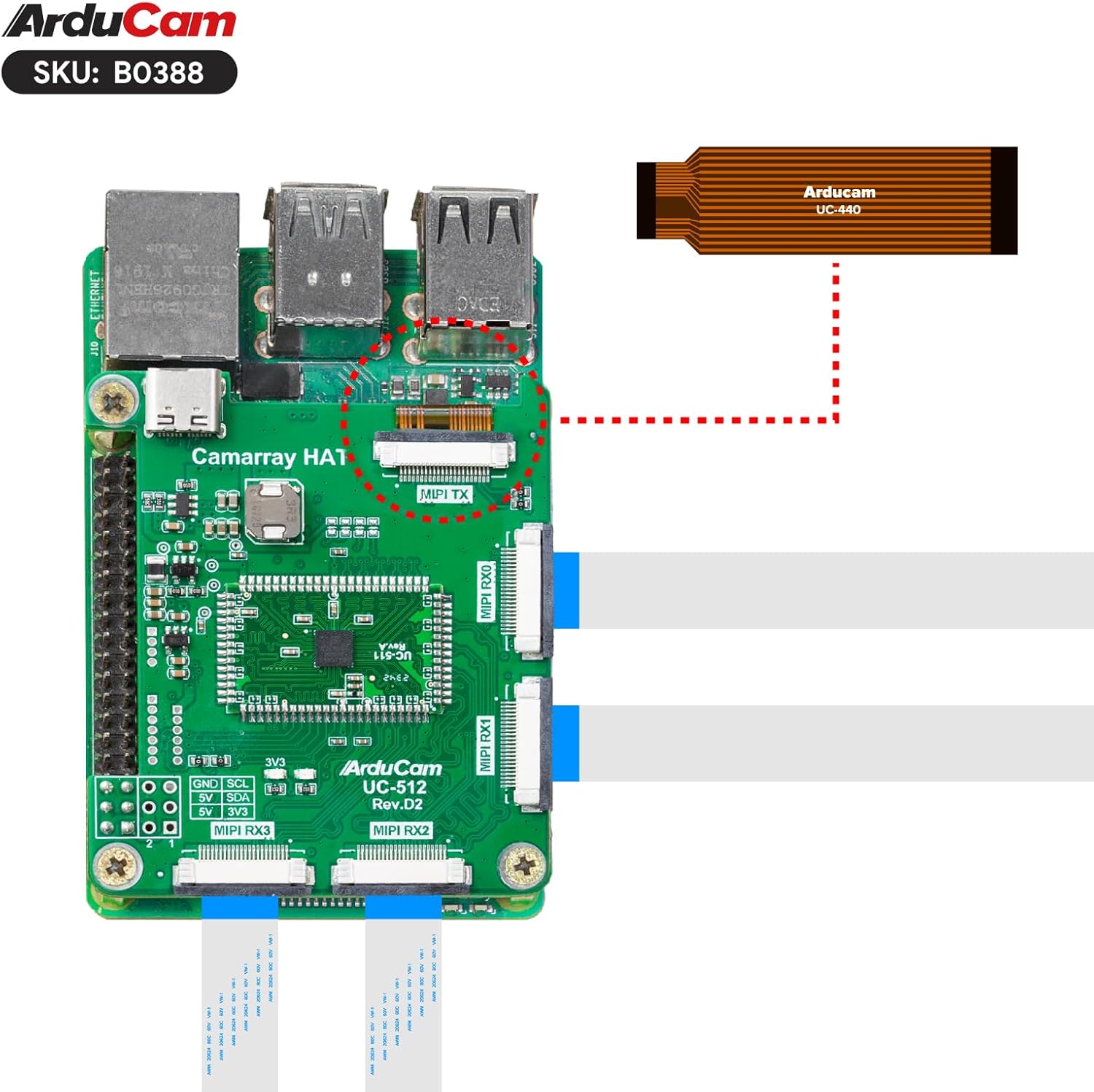

Figure 3.3: Connecting the Camarray HAT to the host board via the short FPC cable.
చిత్రం 3.4: ఉదాample connection to an Nvidia Jetson Board.
- మౌంటు హార్డ్వేర్తో సురక్షితం: Use the provided screws and standoffs to securely mount the Camarray HAT to your host board, if applicable.
3.2 సాఫ్ట్వేర్ కాన్ఫిగరేషన్
Proper software configuration is essential for the kit to function correctly. Ensure your operating system is up to date.
- రాస్ప్బెర్రీ పై: It is recommended to run the latest version of Raspberry Pi OS (Debian version 11 Bullseye, January 28th, 2022, or later releases). The kit is compatible with the latest Pi camera software (libcamera) and uses the official Pi camera tuning algorithm.
- Jetson Board: The camera is compatible with Jetson Developer Kits. Compatibility with other third-party boards is not guaranteed.
For detailed software setup guides, refer to the official Arducam documentation:
ముఖ్యమైన గమనిక:
- The four-channel camera is a customized model that requires the HAT to provide a clock. The individual camera modules cannot be removed and directly connected to a Raspberry Pi without the Camarray HAT.
- At least three of the four cameras must be connected for the system to output any images.
4. ఆపరేషన్
The Arducam Quad-Camera Kit allows for simultaneous image and video capture from all four connected cameras.
4.1 Image and Video Capture
- The system combines four camera feeds into one frame.
- Each individual camera feed has a maximum resolution of 2288(H) x 1736(V).
- The maximum output resolution for still images is 4656 x 3496.
- The maximum output resolution for video is 1920 x 1080.
- Due to the combination of four feeds, the frame rate for both video and still images will be approximately half of what a single camera would typically achieve.
4.2 Autofocus Functionality
Each 16MP IMX519 camera module features autofocus capability, allowing for clear imaging across a focus range of 10 cm to infinite. The autofocus function is managed through the software interface.
Figure 4.1: Detail of the autofocus lens.
4.3 సమకాలీకరణ
The Camarray HAT enables synchronized capture across the four camera modules. Specifically:
- Images from cameras 0 and 1 are completely synchronized.
- Images from cameras 2 and 3 are completely synchronized.
- Images from cameras 2/3 will be one frame behind the images from cameras 0/1.
4.4 అప్లికేషన్లు
The synchronized multi-camera capabilities of this kit are suitable for various advanced applications, including but not limited to:
- Virtual Reality (VR)
- ఆగ్మెంటెడ్ రియాలిటీ (AR)
- Simultaneous Localization and Mapping (SLAM)
- 3D Sensing
- చిత్రం కుట్టడం
- ఆబ్జెక్ట్ ట్రాకింగ్
చిత్రం 4.2: ఉదాample of image quality from Arducam cameras.
5. నిర్వహణ
To ensure the longevity and optimal performance of your Arducam Quad-Camera Kit, follow these maintenance guidelines:
- నిర్వహణ: Handle all components, especially the camera modules and FPC cables, with care. Avoid bending or creasing the FPC cables sharply.
- శుభ్రపరచడం: Use a soft, dry, lint-free cloth to gently clean the camera lenses and circuit boards. Avoid using liquid cleaners or abrasive materials.
- నిల్వ: Store the kit in a cool, dry environment, away from direct sunlight, extreme temperatures, and high humidity.
- రక్షణ: When not in use, consider using a protective case to prevent dust accumulation and physical damage to the camera modules and HAT.
6. ట్రబుల్షూటింగ్
This section addresses common issues you might encounter with the Arducam Quad-Camera Kit.
6.1 సాధారణ సమస్యలు మరియు పరిష్కారాలు
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| No image output or black screen. | Not enough cameras connected, incorrect FPC cable connection, or software issue. | Ensure at least three camera modules are connected to the Camarray HAT. Verify all FPC cables are correctly inserted and latches are closed. Check software configuration and ensure the correct OS version is installed. |
| Individual camera feed is black. | Faulty camera module or FPC cable, or loose connection. | Re-seat the FPC cable for the affected camera. If the issue persists, try swapping the camera module or FPC cable with a known working one to isolate the problem. The composite image will still output, with the failed camera's area appearing black. |
| Autofocus not working. | Software not detecting autofocus feature or incorrect command. | Refer to the specific software guide for your host board (Raspberry Pi or Jetson) to ensure correct autofocus commands are being used. Ensure your OS and camera software are up to date. |
| Reduced frame rate. | Normal operation for quad-camera setup. | This is expected behavior. The frame rate for video and still images will be halved compared to a single camera due to the processing of four simultaneous feeds. |
| Cameras cannot be used directly with Raspberry Pi. | Misunderstanding of product design. | The 16MP IMX519 cameras in this kit are specifically designed to share clocks with the Camarray HAT for frame-level synchronization and cannot be used as standalone camera modules directly connected to a Raspberry Pi. |
If you encounter issues not listed here, or if the suggested solutions do not resolve your problem, please refer to the official Arducam documentation or contact Arducam support for assistance.
7. సాంకేతిక లక్షణాలు
Detailed specifications for the Arducam 16MP Autofocus Quad-Camera Kit:
| ఫీచర్ | స్పెసిఫికేషన్ |
|---|---|
| సెన్సార్ | IMX519 stacked, back-illuminated sensor |
| రిజల్యూషన్ | 16 Megapixels (per camera) |
| పిక్సెల్ పరిమాణం | 1.22 µm × 1.22 µm |
| సెన్సార్ వికర్ణం | 7.103 mm (Type 1/2.534) |
| అవుట్పుట్ ఫార్మాట్ | RAW10/8, COMP8 |
| లెన్స్ రకం | ఆటో ఫోకస్ |
| Aperture (f-number) | f/1.75 |
| Effective Focal Length (EFL) | 4.28 మి.మీ |
| ఫీల్డ్ View (FoV) | 80° |
| ఫోకస్ పరిధి | 10 cm ~ infinite |
| IR కట్ ఫిల్టర్ | ఇంటిగ్రేటెడ్ |
| ట్రైపాడ్ మౌంట్ | 1/4”-20 (Note: Tripod not included) |
| అనుకూలత | Raspberry Pi (Pi 3, Pi 4), Nvidia Jetson Board (Developer Kit) |
| ఆపరేటింగ్ సిస్టమ్ | Linux (Raspberry Pi OS Debian 11 Bullseye recommended) |
| వస్తువు బరువు | Approximately 3.52 ounces (total kit) |
| ప్యాకేజీ కొలతలు | సుమారు 4.92 x 3.66 x 2.52 అంగుళాలు |
Figure 7.1: Dimensions of a single 16MP Autofocus camera module.
Figure 7.2: Layout of the Arducam Camarray HAT (UC-512 Rev.D2).
8. వారంటీ మరియు మద్దతు
Arducam is committed to providing high-quality products and customer satisfaction. While specific warranty details are not provided in this manual, Arducam offers extensive documentation and an active support team to assist users.
For technical support, product inquiries, or to access additional resources, please visit the official Arducam website or their Amazon store:
