KUMIO Ice Machine Maker Countertop User Manual

ఉత్పత్తి ముగిసిందిview

The KUMIO Ice Machine Maker Countertop is designed for efficient and convenient ice production. It features quick ice making, a compact design, and easy operation, making it suitable for various settings including home, bars, parties, and RV travel.

ముఖ్య లక్షణాలు:

• Efficient & Quiet Ice Making: Produces 9 bullet ice pieces in 6-8 minutes, up to 26.5 lbs in 24 hours, with a 1.5L water storage capacity. Features a low-noise refrigeration compressor.
• Easy to Use: Simple control panel with 2 buttons and 3 alarm indicators for operation.
• Easy to Clean: Includes a self-clean function and auto-recycles melted ice water.
• Compact & Portable: Designed for easy carrying and movement, ideal for various applications.
• Transparent Cover: Allows monitoring of ice status and production.

పెట్టెలో ఏముంది

• 1 x KUMIO Ice Maker
• 1 x ఐస్ స్కూప్
• 1 x ఐస్ బాస్కెట్
• 1 x ఉత్పత్తి మాన్యువల్

For a detailed visual guide, please refer to the included Product Manual (PDF) or the digital User Guide available online: వినియోగదారు గైడ్ (PDF)

ముఖ్యమైన భద్రతా సమాచారం

• Always place the ice maker on a stable, level surface.
• Ensure proper ventilation by leaving at least 150mm (approximately 6 inches) of space around the unit, away from heat sources.
• Do not use distilled water; mineral water is recommended for optimal performance and ice quality.
• Before first use, allow the ice maker to stand upright for at least 24 hours before plugging it in.
• పిల్లలకు దూరంగా ఉంచండి.
• శుభ్రపరిచే ముందు లేదా ఉపయోగంలో లేనప్పుడు ఉపకరణాన్ని అన్‌ప్లగ్ చేయండి.

సెటప్

అన్‌ప్యాకింగ్ మరియు ప్లేస్‌మెంట్:

Carefully remove the ice maker from its packaging. Place the unit on a flat, stable surface. Ensure there is adequate space around the unit for proper ventilation, especially near the heat exhaust cooling system on the side.

Image: The KUMIO Ice Machine Maker, showcasing దాని కాంపాక్ట్ డిజైన్ మరియు చేర్చబడిన ఉపకరణాలు.

ప్రారంభ శుభ్రపరచడం:

Before first use, it is recommended to clean the interior of the ice maker. The unit features a self-cleaning function for convenience. Refer to the 'Maintenance' section for detailed cleaning instructions.

Image: A hand pressing the 'Clean' button on the ice maker's control panel, highlighting the self-cleaning feature.

ఆపరేటింగ్ సూచనలు

1. నీటిని జోడించండి:

Open the lid and remove the ice basket. Pour clean, mineral water into the reservoir up to the 'MAX' fill line. Do not overfill. The unit has a smart infrared sensor to detect water levels.

Image: Visual steps for adding water, starting the machine, and collecting ice bullets.

2. Start Ice Making:

Close the lid and press the 'ON/OFF' button on the control panel. The 'ICE MAKING' indicator light will illuminate. The ice maker will begin producing bullet-shaped ice in approximately 6-8 minutes.

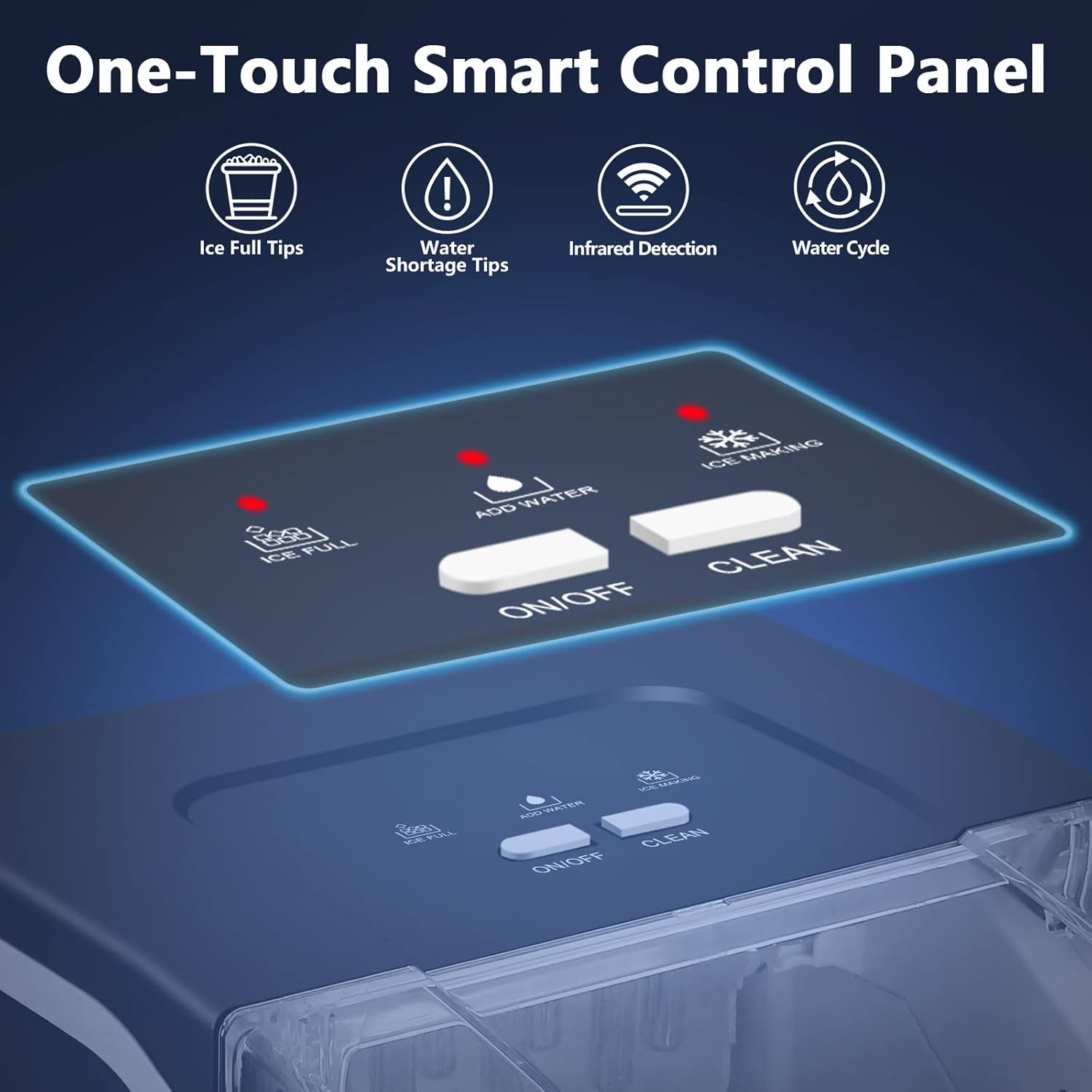

Image: The intuitive control panel with indicator lights for ice status and operation buttons.

3. Ice Full / Add Water Indicators:

The ice maker is equipped with sensors that will alert you when the ice basket is full ('ICE FULL' indicator) or when the water reservoir is low ('ADD WATER' indicator). The unit will automatically pause operation until the condition is resolved.

4. Collecting Ice:

Once the ice is made, use the provided ice scoop to transfer the ice bullets from the basket. The ice maker will continue to produce ice as long as there is water and space in the basket.

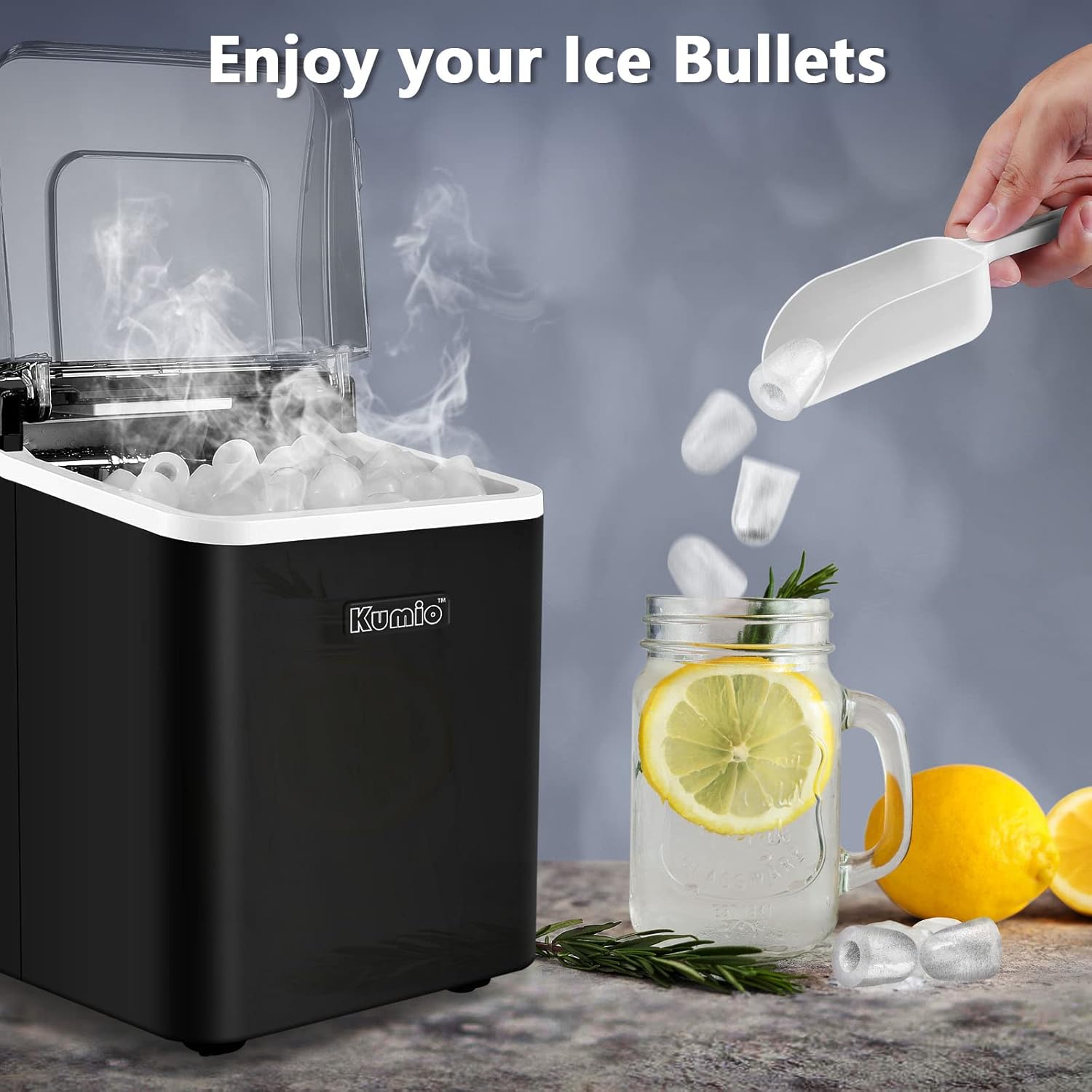

Image: A person scooping freshly made bullet ice into a glass, ready for use.

అధికారిక ఉత్పత్తి వీడియో:

Video: An official product video from Kumio Shop demonstrating the ice making process and features of the ICM-1232 model.

నిర్వహణ

స్వీయ శుభ్రపరిచే ఫంక్షన్:

The ice maker is equipped with a self-cleaning function to ensure hygiene. To activate, ensure the unit is empty of ice, add clean water to the reservoir, and press the 'CLEAN' button. The cleaning cycle typically takes about 5 minutes.

Image: A hand activating the self-cleaning function on the ice maker.

పారుదల నీరు:

After cleaning or when storing the unit, drain any remaining water from the reservoir. Locate the drain plug at the bottom of the unit, remove it, and allow the water to flow out completely. Replace the plug securely.

Image: The drain plug is located at the bottom of the unit for easy water drainage.

రెగ్యులర్ క్లీనింగ్:

For optimal performance and hygiene, regularly clean the ice maker's interior with a mild detergent and water. Rinse thoroughly. Ensure the unit is completely dry before storage or next use.

ట్రబుల్షూటింగ్

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

KUMIO provides lifetime technical support for their ice makers. If you encounter any issues or require assistance, please contact KUMIO customer service for support.

For additional information, you can refer to the official User Manual (PDF): వినియోగదారు మాన్యువల్ (PDF)
