SENIX 4QL 4-Cycle Gas Powered Tiller Cultivator (TL4QL-L1) Instruction Manual

1. పరిచయం

This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your SENIX 4QL 4-Cycle Gas Powered Tiller Cultivator. Please read this manual thoroughly before operating the equipment to ensure proper use and to prevent injury or damage.

The SENIX 4QL Tiller Cultivator is designed for preparing soil for planting, weeding, and general garden maintenance. It features a 46cc 4-cycle engine, offering a 15-inch tilling width and an 8-inch tilling depth.

2. భద్రతా సమాచారం

హెచ్చరిక: Operating gasoline engine equipment can expose you to chemicals including engine exhaust, carbon monoxide, and benzene, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

• Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, gloves, and sturdy footwear, when operating the tiller.
• Keep hands, feet, and clothing away from rotating tines.
• పని ప్రదేశం చుట్టూ ఉన్నవారు, పిల్లలు మరియు పెంపుడు జంతువులు లేకుండా చూసుకోండి.
• Never operate the tiller in an enclosed space due to the risk of carbon monoxide poisoning.
• Before performing any maintenance or clearing obstructions, always turn off the engine and ensure all moving parts have stopped.
• Handle fuel with extreme care. Store gasoline in an approved container in a well-ventilated area, away from ignition sources.

3. అసెంబ్లీ

The SENIX 4QL Tiller Cultivator requires minimal assembly. Typically, this involves attaching the handles and ensuring all components are securely fastened. Refer to the included assembly diagram for detailed steps.

• అసెంబ్లీని నిర్వహించండి: Attach the foldable handles to the main unit using the provided hardware. Ensure they are locked into the operating position before use.
• చక్రాల సర్దుబాటు: The wheels can be adjusted. Drop the wheels when not in use for storage or transport, and raise them when tilling.

Figure 3.1: Adjustable wheels for transport and tilling.

4. సెటప్

4.1 ఇంధనం

The SENIX 4QL Tiller Cultivator is equipped with a 4-cycle engine. This means there is no need to mix gas and oil. Use fresh, unleaded gasoline with an octane rating of 87 or higher. The fuel tank capacity is 0.8 liters.

• ఇంధనం నింపే ముందు ఇంజిన్ ఆఫ్ చేయబడి చల్లబడిందని నిర్ధారించుకోండి.
• Refuel in a well-ventilated outdoor area.
• Do not overfill the fuel tank. Leave space for fuel expansion.

4.2 ఇంజిన్ ఆయిల్

The tiller includes engine oil. Before first use, ensure the engine oil level is correct. The oil tank capacity is 0.1 liters. Refer to the engine manual for specific oil type and checking procedures.

Figure 4.1: Engine view with fuel and oil components.

5. ఆపరేటింగ్ సూచనలు

5.1 ఇంజిన్‌ను ప్రారంభించడం

The SENIX 4QL Tiller features an auto choke and compression release for easy starting.

1. ఇంధన ట్యాంక్ నిండి ఉందని మరియు చమురు స్థాయి సరిగ్గా ఉందని నిర్ధారించుకోండి.
2. Move the choke lever to the 'START' position (if applicable, some models have auto-choke).
3. ఇంధనం కనిపించే వరకు ప్రైమర్ బల్బును చాలాసార్లు నొక్కండి.
4. Pull the starter rope firmly and smoothly until the engine starts.
5. ఇంజిన్ స్టార్ట్ అయిన తర్వాత, చౌక్ లివర్‌ను క్రమంగా 'RUN' స్థానానికి తరలించండి.

5.2 టిల్లింగ్

The tiller is equipped with 6 premium steel forward rotating tines, offering a 15-inch tilling width and 8-inch tilling depth.

• Ensure the adjustable wheels are in the raised position for tilling.
• రెండు చేతులతో హ్యాండిల్స్‌ను గట్టిగా పట్టుకోండి.
• Engage the throttle to begin tilling.
• Guide the tiller slowly and steadily through the soil. Do not force the machine.
• The tiller is suitable for various terrains including dry ground, hard soil, muddy ground, and weedy ground.

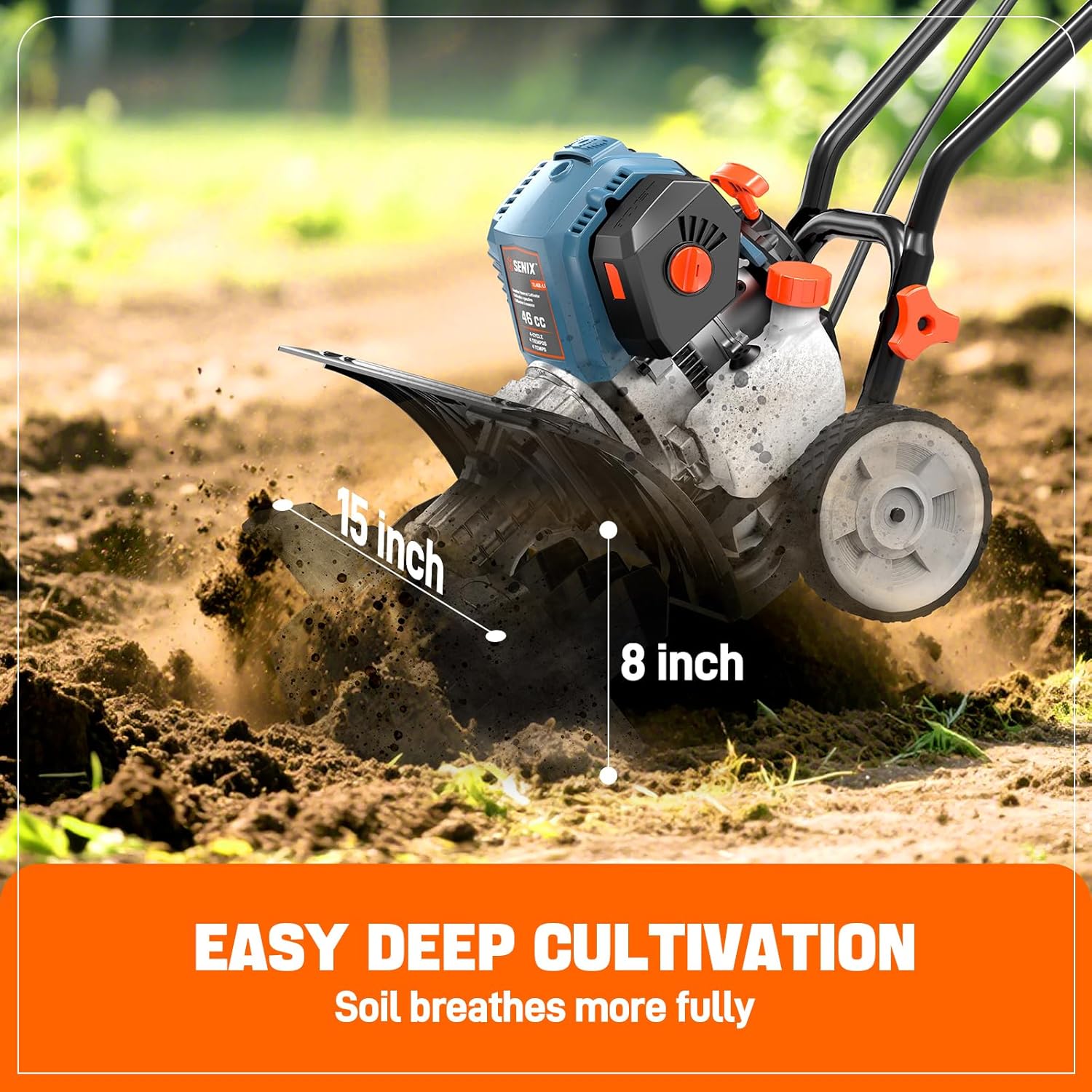

Figure 5.1: Tilling width and depth capabilities.

Figure 5.2: Tiller suitability for various soil types.

5.3 ఇంజిన్‌ను ఆపడం

To stop the engine, release the throttle and move the engine switch to the 'OFF' position.

6. నిర్వహణ

Regular maintenance ensures the longevity and optimal performance of your tiller.

• పరిశుభ్రత: After each use, clean the tiller, especially the tines, to remove soil, debris, and plant matter.
• టైన్ తనిఖీ: Periodically check the tines for wear, damage, or obstructions. Remove any wrapped material like wire or roots.
• తొలగించగల బ్లేడ్: The tiller features a removable blade for convenient cleaning and maintenance. Refer to the manual for instructions on safe removal and reinstallation.
• చమురు మార్పులు: Follow the manufacturer's recommendations for regular engine oil changes.
• ఎయిర్ ఫిల్టర్: Inspect and clean or replace the air filter as needed to ensure proper engine performance.

Figure 6.1: Removable blade for convenient cleaning.

7. ట్రబుల్షూటింగ్

If you encounter issues with your tiller, consult the following common troubleshooting tips:

If problems persist after attempting these solutions, please contact SENIX customer service.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

The SENIX 4QL Gas Powered Tiller Cultivator is backed by a 3-సంవత్సరం పరిమిత వారంటీ. For warranty claims, technical assistance, or to order replacement parts, please contact SENIX customer service.

For further information and support, you may visit the official SENIX webసైట్‌లో లేదా మీ ఉత్పత్తి ప్యాకేజింగ్‌లో అందించిన సంప్రదింపు వివరాలను చూడండి.

10. ఉత్పత్తి ముగిసిందిview వీడియో
