ACOPOWER 90W Portable Foldable Solar Panel User Manual

1. పరిచయం

This manual provides detailed instructions for the safe and efficient use of your ACOPOWER 90W Portable Foldable Solar Panel. Please read this manual thoroughly before operation to ensure proper functionality and longevity of the product. This solar panel is designed to provide portable power for various devices, ideal for camping, RV use, and other outdoor activities.

Image 1.1: The ACOPOWER 90W Portable Foldable Solar Panel in its unfolded state, ready for use.

2. భద్రతా సూచనలు

• నీటి బహిర్గతం: The solar panel is IP65 water-resistant, protecting against splashing water. Do not submerge the panel in water or expose it to heavy rain.
• నిర్వహణ: Handle the solar panel with care. Avoid dropping or subjecting it to strong impacts.
• ఉష్ణోగ్రత: Do not expose the solar panel to extreme temperatures or open flames.
• సవరణలు: Do not attempt to disassemble, modify, or repair the solar panel yourself. Contact customer support for assistance.
• పిల్లలు: Keep the solar panel out of reach of children.
• విద్యుత్ భద్రత: Ensure all connections are secure before use. The panel includes built-in protection against overcharging, overheating, and short circuits.

3. ప్యాకేజీ విషయాలు

మీ ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయని ధృవీకరించండి:

• 1 x ACOPOWER 90W Portable Foldable Solar Panel
• Integrated cables for DC, USB, and Type-C outputs
• Adjustable stands (integrated into the design)

4. ఉత్పత్తి లక్షణాలు

• బహుళ అవుట్‌పుట్ పోర్ట్‌లు: Equipped with DC, USB, and Type-C output ports for broad compatibility with various devices.
• అధిక మార్పిడి సామర్థ్యం: Monocrystalline photovoltaic cells achieve up to 25% solar conversion efficiency.
• మన్నికైన నిర్మాణం: Features advanced laminated technology and long-lasting ETFE material for scratch resistance and improved light transmittance.
• ఇంటిగ్రేటెడ్ భద్రత: Built-in smart IC chip provides protection against overcharging, overheating, and short circuits.
• పోర్టబుల్ డిజైన్: Lightweight (8.1 lb) and foldable, with compact dimensions (21.4 x 13.3 x 0.79 inches folded) for easy transport.
• Adjustable Stands: Two integrated adjustable stands allow for optimal angle positioning towards the sun.

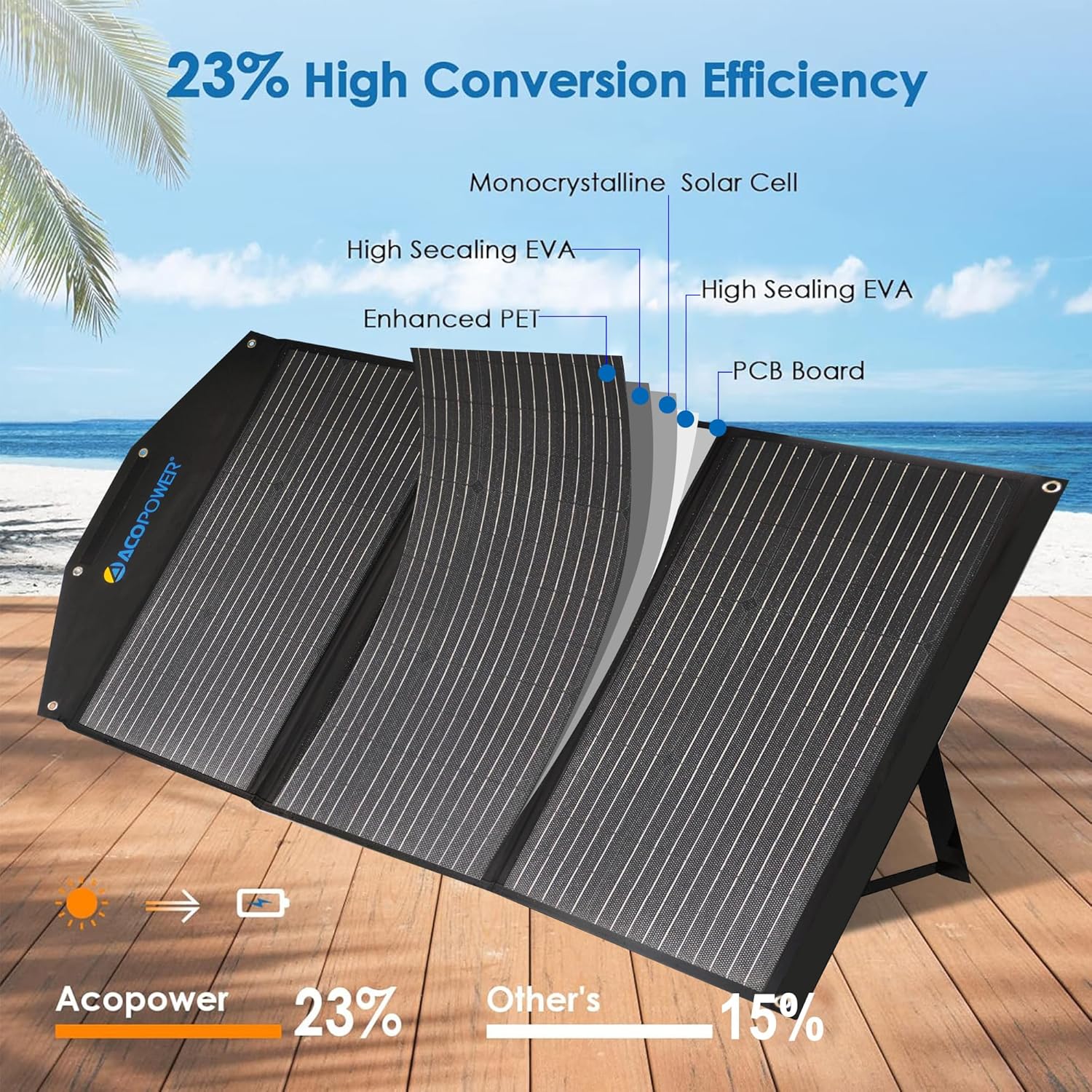

Image 4.1: Cross-section diagram illustrating the high-efficiency monocrystalline solar cell and durable ETFE material layers.

Image 4.2: The solar panel in both folded and unfolded states, highlighting its compact and portable design with dimensions.

5. సెటప్

1. ప్యానెల్‌ను విప్పు: Carefully unfold the ACOPOWER 90W solar panel from its compact, suitcase-like form.
2. Position the Stands: Extend the two adjustable stands located on the back of the panel. Position them to support the panel at an angle that maximizes exposure to direct sunlight. An angle of approximately 45 degrees to the sun is often optimal.
3. ప్లేస్‌మెంట్: Place the unfolded solar panel in an area with unobstructed sunlight. Ensure no shadows fall on the panel, as this can significantly reduce efficiency.
4. ప్యానెల్‌ను భద్రపరచండి: If necessary, use the integrated mounting holes to secure the panel against wind or accidental displacement.

Image 5.1: A person setting up the ACOPOWER solar panel, demonstrating the use of the adjustable kickstand for optimal positioning.

6. ఆపరేటింగ్ సూచనలు

Once the solar panel is set up and exposed to sunlight, you can begin charging your devices.

• కనెక్ట్ చేసే పరికరాలు:
  • DC అవుట్పుట్: Use the DC port to connect to compatible portable power stations or other devices requiring DC input.
  • USB అవుట్‌పుట్: Connect smartphones, tablets, power banks, and other USB-powered devices to the USB-A ports. The smart IC chip will automatically detect your device and optimize charging speed (up to 2.4A max 5V DC per port, 6A max overall).
  • టైప్-సి అవుట్‌పుట్: Connect compatible devices, such as modern smartphones, tablets, or laptops, to the Type-C port.
• ఛార్జింగ్ సూచిక: Some devices may have a charging indicator. Observe this to confirm power flow.
• సరైన పనితీరు: For best charging results, ensure the solar panel is positioned directly facing the sun and free from any obstructions. Adjust the angle periodically as the sun moves.

Image 6.1: The ACOPOWER solar panel connected to various devices including a power station, laptop, camera, smartphone, and tablet, demonstrating its wide compatibility.

Image 6.2: The solar panel highlighting its built-in protection functions, including short circuit, surge, and overload protection, ensuring safe charging.

7. నిర్వహణ

• శుభ్రపరచడం: సోలార్ ప్యానెల్ ఉపరితలాన్ని మృదువైన, డి-క్లాత్‌తో క్రమం తప్పకుండా శుభ్రం చేయండి.amp cloth to remove dust, dirt, or debris. Avoid abrasive cleaners or harsh chemicals.
• తనిఖీ: Periodically inspect the panel and cables for any signs of damage, wear, or loose connections.
• నిల్వ: When not in use, fold the solar panel and store it in a dry, cool place away from direct sunlight and extreme temperatures.

8. ట్రబుల్షూటింగ్

9. స్పెసిఫికేషన్లు

10. వారంటీ మరియు మద్దతు

ACOPOWER products are designed for reliability and performance. For warranty information, technical support, or any questions regarding your 90W Portable Foldable Solar Panel, please contact ACOPOWER customer service directly.

You can find contact information on the official ACOPOWER webసైట్ లేదా మీ కొనుగోలు ప్లాట్‌ఫారమ్ ద్వారా.
