1. పరిచయం
The OLIGHT I5T Plus is a compact and powerful tail-switch flashlight designed for everyday carry. It delivers a maximum output of 550 lumens with a beam throw of up to 87 meters, making it suitable for various lighting needs. Powered by two widely available AA batteries, it offers an extended runtime of up to 54 hours at its lowest setting. Its anti-slip double helix knurling ensures a comfortable and secure grip, while the two-way pocket clip provides versatile carrying options.
The OLIGHT I5T Plus flashlight, showcasing its sleek design and pocket clip.
2. పెట్టెలో ఏముంది
- Battery (AA x 2)
- Pocket Clip x 1
- వినియోగదారు మాన్యువల్ x 1
3. సెటప్
3.1 బ్యాటరీ ఇన్స్టాలేషన్
To install the batteries, unscrew the tail cap of the flashlight. Insert two AA batteries into the battery compartment, ensuring the positive (+) and negative (-) ends align with the polarity indicators inside the flashlight. Once the batteries are correctly inserted, screw the tail cap back on securely.
The flashlight shown with two AA batteries, illustrating the battery compartment and power source.
4. ఆపరేటింగ్ సూచనలు
4.1 Tail Switch Operation
The OLIGHT I5T Plus features a user-friendly tail switch for easy operation:
- మొమెంటరీ ఆన్: Lightly press the tail switch for momentary low output. Release to turn off.
- నిరంతరం ఆన్/ఆఫ్: Fully press the tail switch to turn the flashlight on or off.
- మోడ్లను మార్చండి: When the flashlight is on, quickly press and release the tail switch to cycle between Low (15 lumens) and High (550 lumens) output modes.

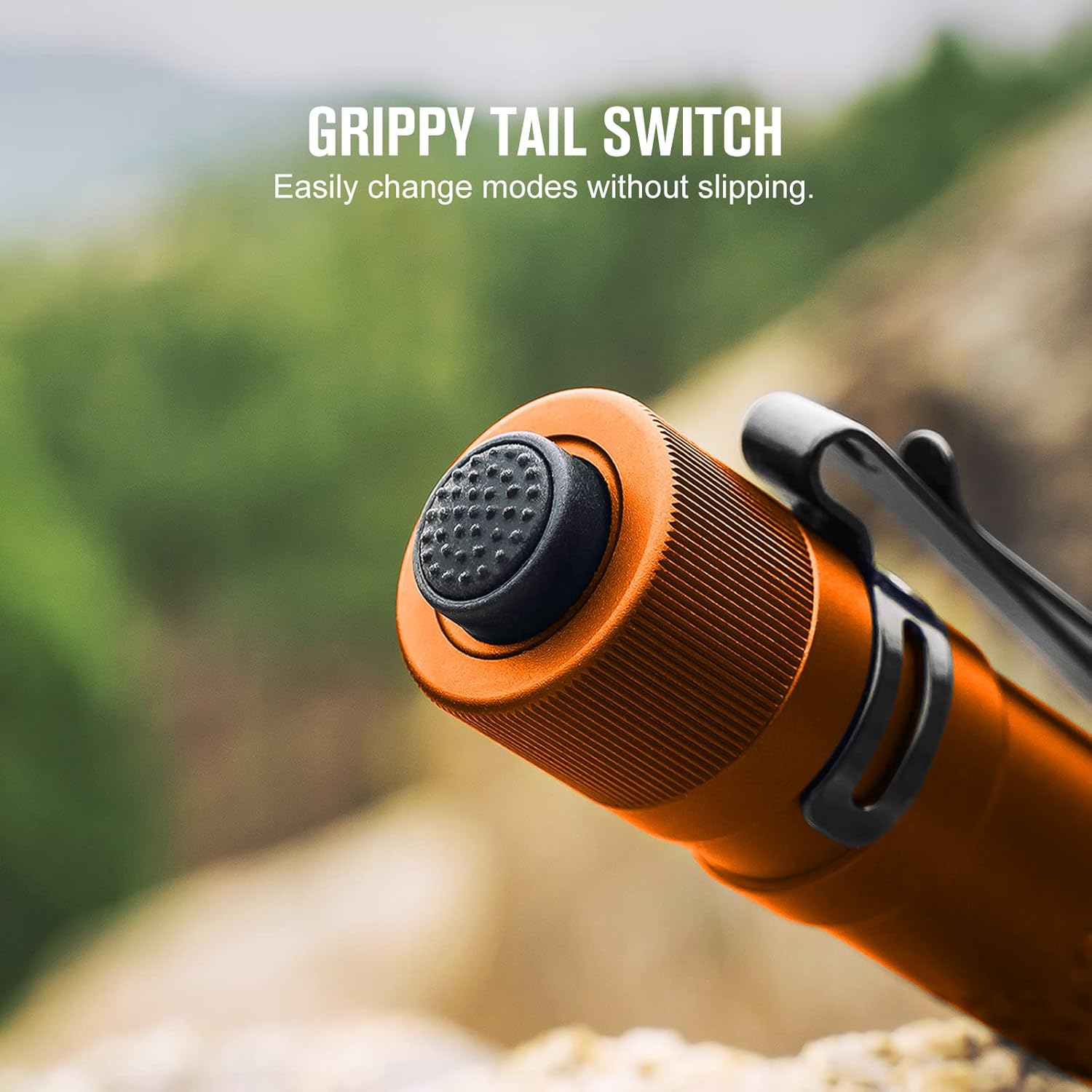

ఒక వివరణాత్మక view of the anti-slip tail switch, designed for easy mode changes.
The flashlight illuminating a surface, demonstrating its light output.
5. నిర్వహణ
5.1 సాధారణ సంరక్షణ
Keep your flashlight clean and dry. Wipe down the exterior with a soft, damp cloth as needed. Avoid exposing the flashlight to extreme temperatures or harsh chemicals. The flashlight is IPX8 waterproof, meaning it is resistant to sweat, water, and rain, and can be submerged up to 2 meters.
The flashlight submerged in water, highlighting its IPX8 waterproof capability.
5.2 బ్యాటరీ సంరక్షణ
For optimal performance and to prevent potential damage, remove the AA batteries from the flashlight if it will not be used for an extended period. This prevents battery leakage, which can corrode internal components. Always use fresh, high-quality alkaline batteries for best results. Do not mix old and new batteries or different types of batteries.
6. ట్రబుల్షూటింగ్
6.1 Light Not Turning On or Dim
- బ్యాటరీలను తనిఖీ చేయండి: Ensure batteries are inserted correctly with proper polarity and are not depleted. Replace with fresh batteries if necessary.
- క్లీన్ పరిచయాలు: Inspect the battery contacts and threads for dirt or corrosion. Clean them with a cotton swab and rubbing alcohol if needed.
- Tighten Tail Cap: Make sure the tail cap is screwed on tightly. A loose tail cap can interrupt the electrical connection.
6.2 Mode Switching Issues
- Proper Press: Ensure you are performing a quick press and release of the tail switch to change modes, not a full press that turns the light off.
7. స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| బ్రాండ్ | ఒలిట్ |
| మోడల్ సంఖ్య | O-i5T PLUS-OG-CW#US-FBA |
| ప్రత్యేక ఫీచర్ | పోర్టబుల్ |
| రంగు | నారింజ రంగు |
| శక్తి మూలం | బ్యాటరీ పవర్డ్ (2 AA బ్యాటరీలు ఉన్నాయి) |
| కాంతి మూలం రకం | LED |
| మెటీరియల్ | అల్యూమినియం |
| ప్రకాశం | 550 ల్యూమెన్స్ (గరిష్టంగా) |
| లైట్ పాత్ దూరం | 87 మీటర్లు |
| రన్టైమ్ | Up to 54 hours (Low mode) |
| నీటి నిరోధక స్థాయి | జలనిరోధిత (IPX8) |
| ఉత్పత్తి కొలతలు | 5.71"డి x 0.7"వా x 0.7"హ |
| వస్తువు బరువు | 3.39 ఔన్సులు |
8. వారంటీ మరియు మద్దతు
OLIGHT stands behind the quality of its products. The OLIGHT I5T Plus Flashlight comes with a జీవితకాల వారంటీ, ensuring long-term reliability and customer satisfaction.
For detailed warranty information, product registration, or further assistance, please visit the official OLIGHT Store on Amazon. You can also refer to the comprehensive వినియోగదారు మాన్యువల్ (PDF) for additional details and diagrams.
