Newgoal 1 Channel Smart WiFi Relay Switching Module User Manual

1. పరిచయం

This manual provides detailed instructions for the installation, operation, and maintenance of your Newgoal 1 Channel Smart WiFi Relay Switching Module. This wireless switch allows you to remotely control connected home appliances or electrical devices via the eWeLink app, Bluetooth, or voice commands through Amazon Alexa and Google Home. It supports various working modes to suit different applications.

2. భద్రతా సమాచారం

Please read and understand all safety warnings and instructions before installing or operating this device. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Ensure power is disconnected at the circuit breaker before performing any wiring.
• All wiring should be performed by a qualified electrician or in accordance with local electrical codes.
• Do not exceed the maximum current and wattage ratings of the device (10A/2000W per channel, 16A/3500W total).
• This device is designed for indoor use only. Avoid exposure to moisture or extreme temperatures.
• The relay is a switch with no output; the power input (AC/DC) is only for the PCBA.

3. ఉత్పత్తి ముగిసిందిview

The Newgoal Smart WiFi Relay Switching Module is a compact device designed for smart home integration. It features a single channel relay for controlling electrical loads.

Figure 3.1: Newgoal 1 Channel Smart WiFi Relay Switching Module. This image shows the compact design of the smart relay module, highlighting its small form factor suitable for various installations.

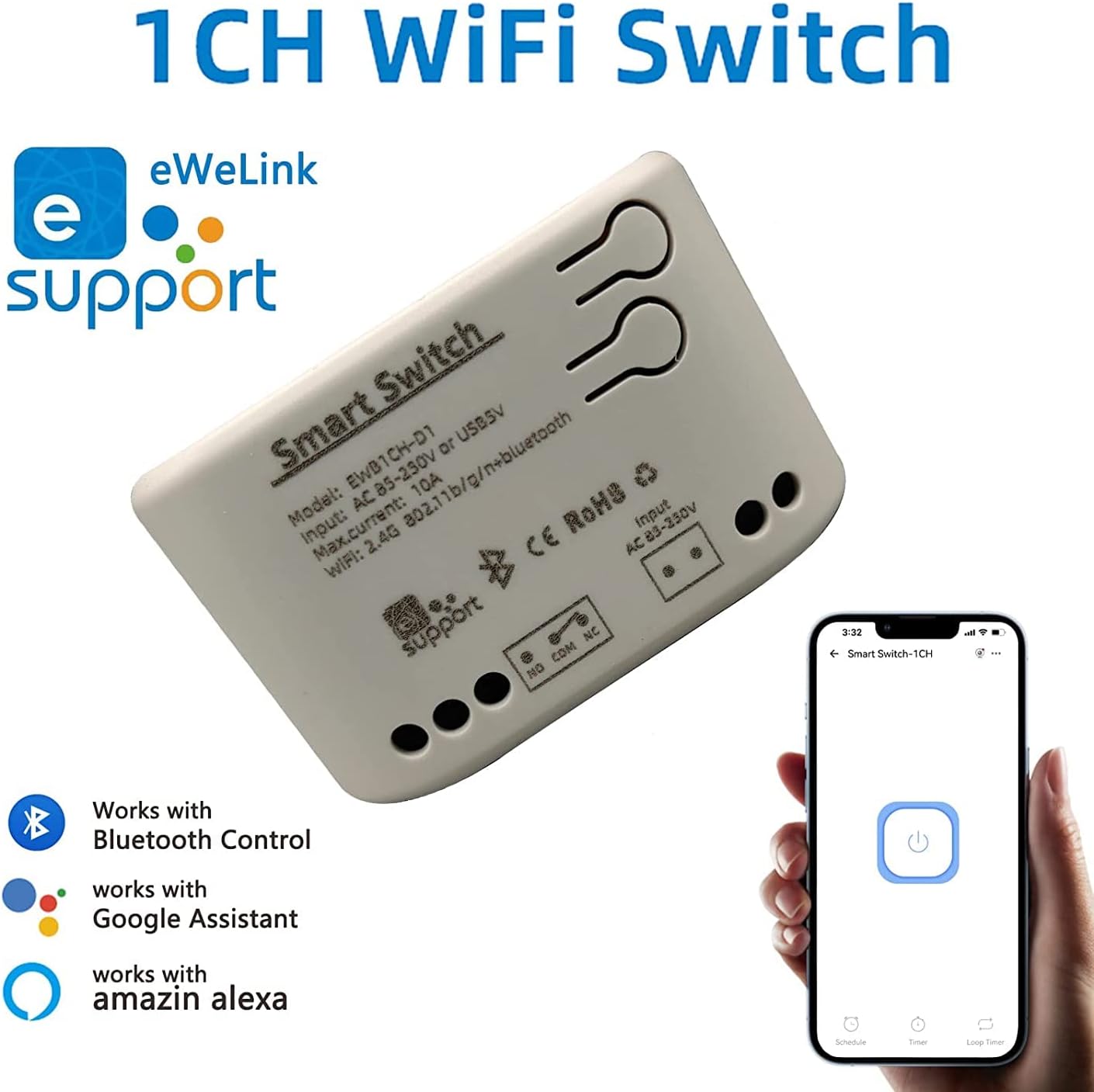

Figure 3.2: Module with eWeLink and Voice Assistant Compatibility. This image illustrates the module's compatibility with eWeLink, Bluetooth, Amazon Alexa, and Google Assistant, emphasizing its versatile control options.

ముఖ్య భాగాలు:

• రిలే: Controls the connected electrical load.
• Input Terminals (AC85V-250V or USB 5V): For powering the module.
• Output Terminals (NO, COM, NC): For connecting to the device to be controlled.
• Reset/Manual Switch Button: For pairing and manual control.
• Network Indicator/Power Indicator LED: స్థితి అభిప్రాయాన్ని అందిస్తుంది.

Figure 3.3: Internal Board and Wiring Diagram. This image displays the internal circuit board of the module, clearly labeling the input terminals (AC 85-250V, USB 5V), output terminals (NO, COM, NC), reset/manual switch, network indicator, and the relay component.

4. స్పెసిఫికేషన్లు

5. సెటప్

5.1 వైరింగ్

Before wiring, ensure the power supply to the circuit is completely disconnected. Connect the module according to your application's requirements. The module can be powered by AC85V-250V or USB 5V. The relay output has Normally Open (NO), Common (COM), and Normally Closed (NC) terminals. Connect your device to be controlled to the COM and NO terminals for typical switching applications.

Refer to Figure 3.3 for a visual representation of the wiring terminals.

5.2 యాప్ ఇన్‌స్టాలేషన్ & జత చేయడం

To control the module via your smartphone, you need to install the eWeLink app and pair the device.

1. eWeLink యాప్‌ను డౌన్‌లోడ్ చేయండి: కోసం వెతకండి "eWeLink" in your mobile device's app store (available for Android and iOS) and install it.
2. నమోదు/లాగిన్: eWeLink యాప్‌ని తెరిచి కొత్త ఖాతాను నమోదు చేసుకోండి లేదా ఇప్పటికే ఉన్న దానితో లాగిన్ అవ్వండి.
3. Power On the Module: Connect the module to a power source (AC85V-250V or USB 5V). The network indicator LED should start blinking.
4. జత చేసే విధానాన్ని నమోదు చేయండి: Press and hold the reset/manual switch button on the module for approximately 5-7 seconds until the network indicator LED blinks rapidly.
5. యాప్‌లో పరికరాన్ని జోడించండి: In the eWeLink app, tap the "+" icon to add a new device. Select "Quick Pairing Mode" or follow the on-screen instructions for Bluetooth pairing.
6. Wi-Fiకి కనెక్ట్ చేయండి: Enter your 2.4GHz Wi-Fi network name and password when prompted. (Note: The device only supports 2.4G WiFi networks, not 5.0G WiFi).
7. పూర్తి జత చేయడం: The app will search for and connect to the module. Once connected, you can rename the device and assign it to a room.

Figure 5.1: eWeLink App Remote Control. This image shows the eWeLink mobile application interface, demonstrating how users can remotely control their devices from anywhere.

6. ఆపరేటింగ్ సూచనలు

6.1 వర్కింగ్ మోడ్‌లు

The 1-channel relay module supports two primary working modes: Self-locking and Jog (Inching) mode. These modes can be configured within the eWeLink app.

• స్వీయ-లాకింగ్ మోడ్: In this mode, the relay acts like a traditional on/off switch. One tap turns the device on, and another tap turns it off. The state remains until manually changed.
• Jog (Inching) Mode: In this mode, the relay will automatically turn off after a set period (0.5 to 3600 seconds) once it's turned on, or automatically turn on after a set period once it's turned off. This is useful for momentary actions like garage door openers or pulse switches. The duration can be customized in the app.

Figure 6.1: Dual Mode Options: Self-locking and Inching. This diagram visually explains the difference between self-locking mode, where channels operate independently, and inching mode, which allows for customizable timed operations.

6.2 Remote Control & Voice Control

Once paired, you can control your device using the following methods:

• eWeLink యాప్: Remotely turn devices on/off, set schedules, and manage groups from anywhere with an internet connection.
• బ్లూటూత్ నియంత్రణ: Control the device at close range even when your Wi-Fi network is disconnected.
• అమెజాన్ అలెక్సా / గూగుల్ హోమ్: Integrate the module with your smart home ecosystem for convenient voice control. Follow the instructions within the Alexa or Google Home app to link your eWeLink account.
• 2.4G వైర్‌లెస్ రిమోట్ కంట్రోల్: (Sold separately) For local control without needing a smartphone or internet connection.

Figure 6.2: Multiple Control Modes. This image illustrates the various ways to control the smart switch, including mobile app control, remote control, and manual control.

6.3 Device Sharing & Group Management

The eWeLink app allows for enhanced control and collaboration:

• పరికర భాగస్వామ్యం: Share control of your smart relay with family members or other authorized users through the eWeLink app. This enables multiple mobile phones to control the same smart device.
• సమూహ నిర్వహణ: Organize multiple eWeLink devices into groups for simultaneous control.
• Schedules/Timers: Set up schedules or countdown timers for automated on/off operations.

Figure 6.3: Sharing Function in eWeLink App. This image demonstrates the device sharing feature within the eWeLink app, allowing multiple users to control smart breakers from their mobile phones.

7. నిర్వహణ

The Newgoal Smart WiFi Relay Switching Module requires minimal maintenance. Follow these guidelines to ensure optimal performance:

• పరికరాన్ని శుభ్రంగా మరియు దుమ్ము లేకుండా ఉంచండి. శుభ్రం చేయడానికి మృదువైన, పొడి వస్త్రాన్ని ఉపయోగించండి.
• లిక్విడ్ క్లీనర్లు లేదా ఏరోసోల్‌లను ఉపయోగించవద్దు.
• Ensure the module is installed in a well-ventilated area to prevent overheating.
• వైరింగ్ కనెక్షన్లు సురక్షితంగా ఉన్నాయని నిర్ధారించుకోవడానికి వాటిని క్రమం తప్పకుండా తనిఖీ చేయండి.

8. ట్రబుల్షూటింగ్

If you encounter issues with your Newgoal Smart WiFi Relay Switching Module, refer to the following common problems and solutions:

9. వారంటీ మరియు మద్దతు

Newgoal products are designed for reliability and performance. For specific warranty information and technical support, please refer to the documentation included with your purchase or contact Newgoal customer service directly. You can typically find contact information on the manufacturer's webసైట్ లేదా మీ కొనుగోలు కేంద్రం ద్వారా.
