ATOTO P8 పోర్టబుల్ కార్ స్టీరియో యూజర్ మాన్యువల్

ఉత్పత్తి ముగిసిందిview

The ATOTO P8 is a portable car stereo designed to integrate wireless Apple CarPlay and Android Auto into your vehicle without requiring a head unit replacement. It features a 7-inch QLED glare-suppressing touchscreen, WDR (Wide Dynamic Range), auto-dimmer functionality, Bluetooth connectivity, a wireless remote control, and multiple audio output options.

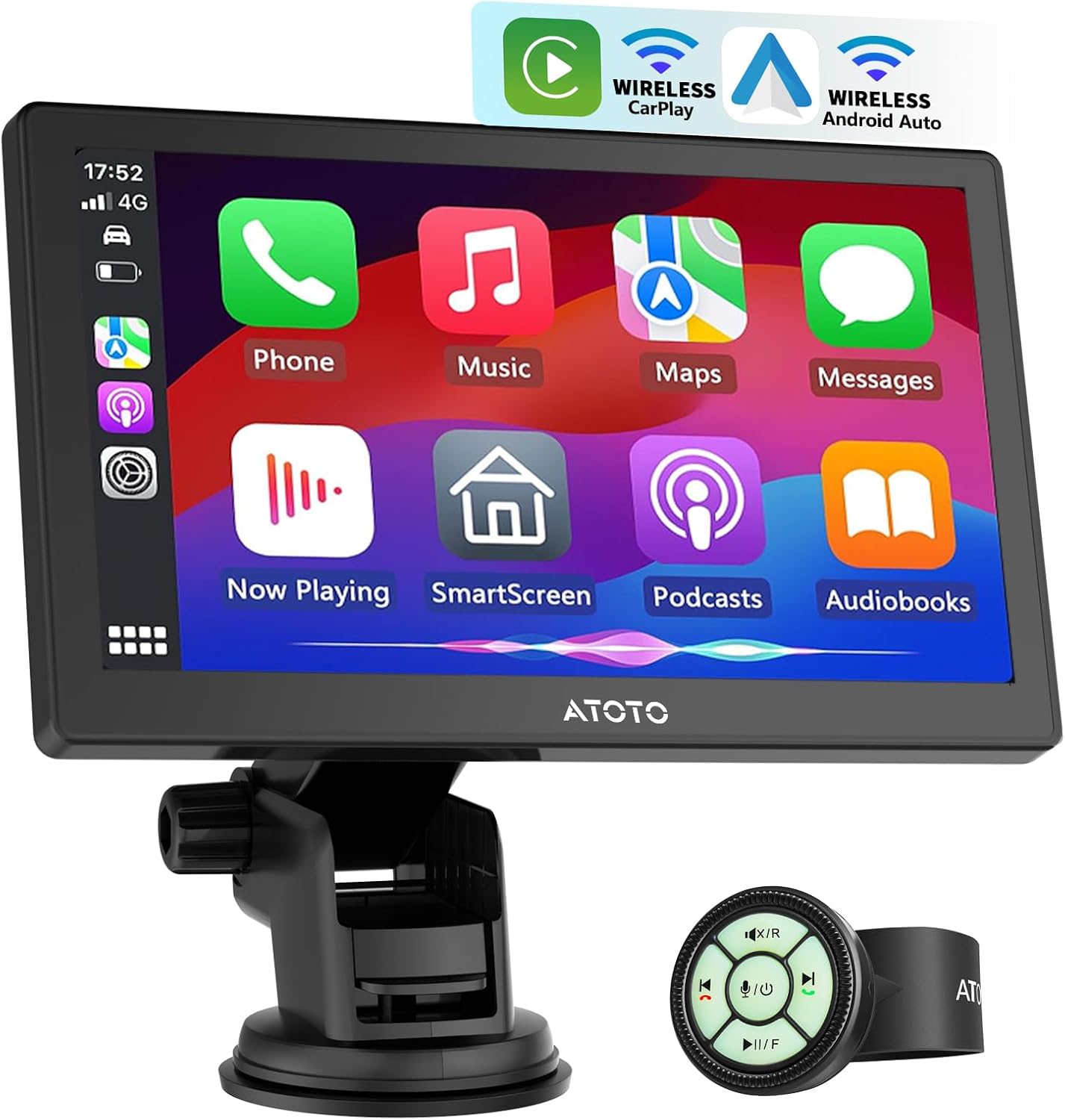

Image: The ATOTO P8 portable car stereo displaying the CarPlay interface, accompanied by icons for Wireless CarPlay and Wireless Android Auto, and the included wireless remote control.

కీ ఫీచర్లు

• వైర్‌లెస్ కార్‌ప్లే & ఆండ్రాయిడ్ ఆటో: నావిగేషన్, సంగీతం మరియు కమ్యూనికేషన్ కోసం సజావుగా స్మార్ట్‌ఫోన్ ఇంటిగ్రేషన్.
• 7-inch QLED Glare-Suppressing Touchscreen: Provides clear visibility even in direct sunlight with a wide viewing కోణం.
• Auto-Dimmer: Automatically adjusts screen brightness based on ambient light conditions for safer driving.
• Wireless Remote Control (AC-44F6): Offers convenient access to functions without reaching the screen.
• Multiple Audio Outputs: Bluetooth (upgrade needed), FM transmitter, AUX (stereo type), and built-in speaker.
• విస్తృత అనుకూలత: Works with any vehicle featuring a 12V/24V power supply.

సెటప్ మరియు ఇన్‌స్టాలేషన్

The ATOTO P8 is designed for intuitive and straightforward installation, eliminating the need for complex car stereo replacement.

పెట్టెలో ఏముంది

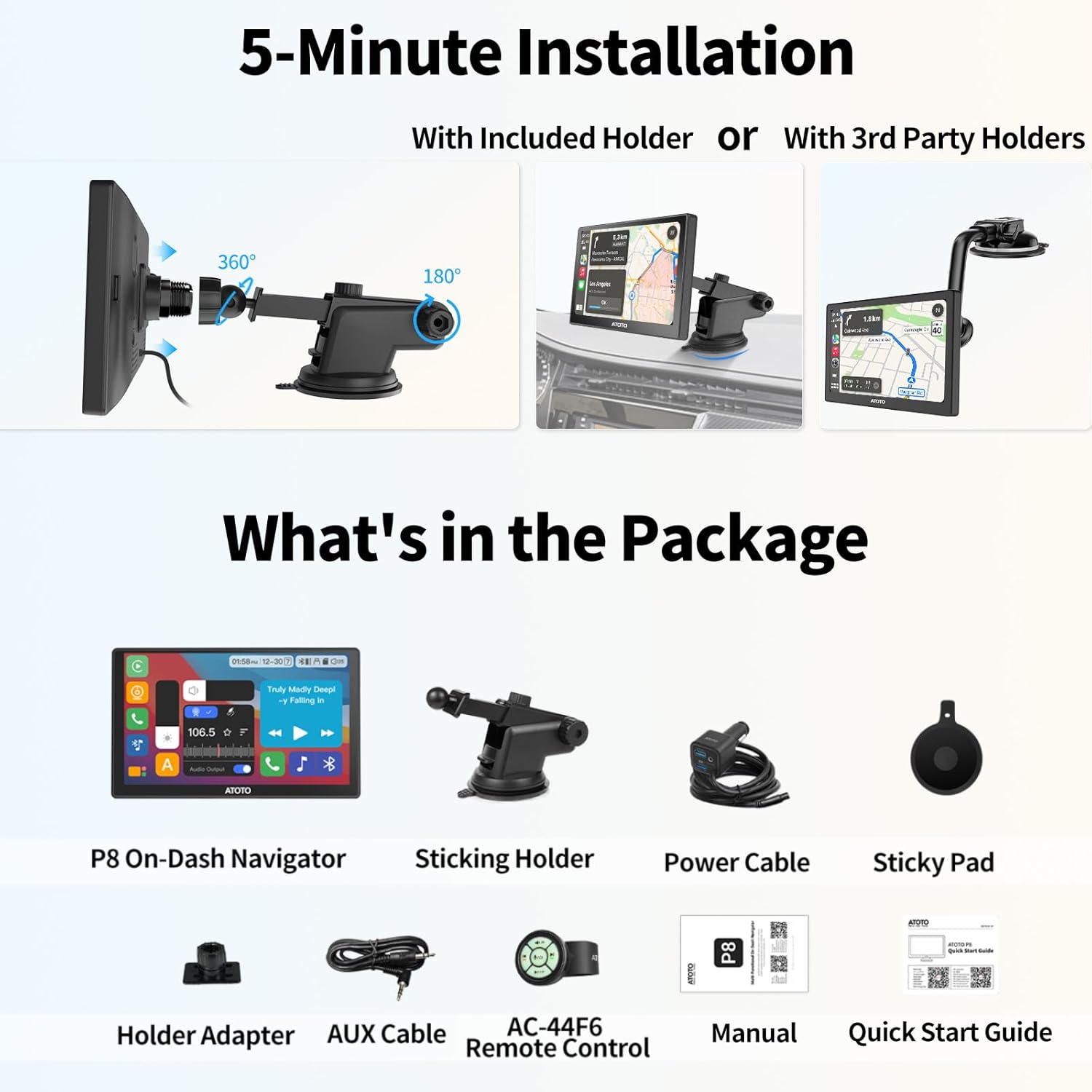

Image: A visual representation of the ATOTO P8 package contents, including the P8 On-Dash Navigator, sticking holder, power cable, sticky pad, holder adapter, AUX cable, AC-44F6 remote control, manual, and quick start guide.

ప్యాకేజీ సాధారణంగా వీటిని కలిగి ఉంటుంది:

• P8 On-Dash Navigator
• AC-44F6 Steering Remote Control
• పవర్ కేబుల్
• అంటుకునే ప్యాడ్
• AUX కేబుల్
• Holder Adapter
• వినియోగదారు మాన్యువల్
• త్వరిత ప్రారంభ గైడ్

సంస్థాపనా దశలు

Image: A four-panel graphic illustrating the installation process: 1. Mounting the P8, 2. Plugging into the cigarette lighter, 3. Outputting audio to the head unit, and 4. Connecting to P8's Bluetooth and Wi-Fi for CarPlay/Android Auto.

1. Mount the P8: Secure the P8 unit to your dashboard or windshield using the provided sticking holder and sticky pad. Ensure a stable position that does not obstruct your view.
2. పవర్ కనెక్షన్: Plug the power cable into the P8 and connect the other end to your vehicle's cigarette lighter socket. The innovative cigarette lighter design requires only one cable for AUX function.
3. ఆడియో అవుట్‌పుట్: Select your preferred audio output method (FM transmitter, AUX, or Bluetooth - upgrade needed) to route sound to your car's stereo system.
4. స్మార్ట్‌ఫోన్‌కి కనెక్ట్ చేయండి: Enable Bluetooth and Wi-Fi on your smartphone and connect to the ATOTO P8 to initiate Wireless CarPlay or Android Auto.

Image: A visual comparison showing the ATOTO P8's clean dashboard setup with a single power cable from the cigarette lighter adapter, contrasted with other brands that may require two tangled cables.

ఆపరేటింగ్ సూచనలు

వైర్‌లెస్ కార్‌ప్లే మరియు ఆండ్రాయిడ్ ఆటో

The P8 provides seamless wireless integration with Apple CarPlay and Android Auto, allowing access to navigation, music, calls, and messages directly from the P8's screen.

• వాయిస్ నియంత్రణ: Utilize Siri or Google Voice Control for hands-free operation, such as making calls or getting directions.
• నావిగేషన్: Access real-time navigation and traffic information through your preferred map applications.
• సంగీతం & మీడియా: Stream music, podcasts, and audiobooks from your smartphone.
• కమ్యూనికేషన్: Make and receive calls, and send messages safely while driving.

Display and Auto-Dimmer

The 7-inch QLED screen offers excellent visibility. The built-in light sensor automatically adjusts screen brightness to match ambient light, enhancing safety and comfort.

Image: A three-panel graphic demonstrating the ATOTO P8's auto-dimming feature, showing the screen brightness adjusting automatically from bright daylight to twilight and dark night conditions.

ఆడియో అవుట్‌పుట్ ఎంపికలు

The P8 offers several ways to output audio to your car's sound system:

• బ్లూటూత్ ఆడియో అవుట్‌పుట్: Connect to your car's stereo via Bluetooth for clear and powerful sound (requires system upgrade).
• FM ట్రాన్స్మిటర్: Transmit audio to your car's FM radio by tuning to a specific frequency.
• AUX ఆడియో అవుట్‌పుట్: మీ కారు AUX ఇన్‌పుట్‌కు కనెక్ట్ చేయడానికి అందించబడిన AUX కేబుల్‌ను ఉపయోగించండి.
• అంతర్నిర్మిత స్పీకర్: The P8 has an integrated speaker for direct audio playback.

Image: A graphic illustrating the four audio output options for the ATOTO P8: Bluetooth Audio Output, FM Transmitter, AUX Audio Output, and the Built-in Speaker.

Wireless Remote Control (AC-44F6)

The included wireless remote control provides convenient access to various functions, allowing you to manage media playback, calls, and voice assistants without touching the screen.

Image: A driver's hand operating the ATOTO AC-44F6 Wireless Steering Remote Control, which is attached to the steering wheel, demonstrating effortless control of the P8 unit mounted on the dashboard.

Screen Mirroring (AutoLink)

For applications not supported by CarPlay or Android Auto, use AutoLink to project your smartphone's screen onto the P8's larger display (requires system upgrade).

Image: A smartphone wirelessly mirroring its display content, showing a racing game, onto the larger screen of the ATOTO P8 portable car stereo.

కెమెరా ఇన్‌పుట్‌లు (ఐచ్ఛికం)

The P8 supports optional front and rear camera inputs for enhanced driving safety and recording. This feature is available on selected P8 models.

• ముందు కెమెరా ఇన్‌పుట్: Supports automatic recording and saving of footage, useful for preserving evidence in case of incidents.
• వెనుక కెమెరా ఇన్‌పుట్: Provides adjustable guidelines for safer reversing and parking.
• G-Sensor & Parking Monitor: The built-in G-sensor detects unusual gravitational changes (e.g., collisions) and automatically locks the video, saving it to an emergency list. The parking monitor function automatically starts recording in the event of severe vibrations while parked (requires connection to ATOTO AC-P8AC12 Fast Boot Connector, sold separately).

Image: The ATOTO P8 screen displaying both front and rear camera views, indicating its capability to connect multiple external cameras for comprehensive vehicle monitoring.

నిర్వహణ

To ensure the longevity and optimal performance of your ATOTO P8, follow these general maintenance guidelines:

• శుభ్రపరచడం: స్క్రీన్ మరియు బాహ్య భాగాన్ని శుభ్రం చేయడానికి మృదువైన, పొడి వస్త్రాన్ని ఉపయోగించండి. ఉపరితలాన్ని దెబ్బతీసే రాపిడి క్లీనర్‌లు లేదా ద్రావకాలను నివారించండి.
• ఉష్ణోగ్రత: యూనిట్‌ను ఎక్కువసేపు వేడి మరియు చలి రెండింటిలోనూ తీవ్రమైన ఉష్ణోగ్రతలకు గురిచేయకుండా ఉండండి.
• కేబుల్ నిర్వహణ: నష్టం లేదా జోక్యాన్ని నివారించడానికి అన్ని కేబుల్‌లు సరిగ్గా రూట్ చేయబడి, భద్రంగా ఉన్నాయని నిర్ధారించుకోండి.
• సాఫ్ట్‌వేర్ అప్‌డేట్‌లు: Regularly check for and install Over-The-Air (OTA) software updates to benefit from new features and performance improvements.

ట్రబుల్షూటింగ్

If you encounter issues with your ATOTO P8, refer to the following common solutions:

ఓవర్-ది-ఎయిర్ (OTA) అప్‌డేట్‌లు

The ATOTO P8 features a dedicated online update system. You can update the P8 over the air without needing a PC or SD card. Regularly checking for updates ensures you have the latest features and bug fixes.

Image: The ATOTO P8 screen showing an Over-The-Air (OTA) update interface with a QR code, indicating the process for updating the device's software.

స్పెసిఫికేషన్లు

వారంటీ మరియు మద్దతు

ATOTO is committed to providing reliable customer support and product care.

వారంటీ సమాచారం

The ATOTO P8 comes with a standard 12-month warranty. Customers can extend their product care by an additional 180 days by contacting ATOTO customer service. This extended care allows for prioritized support by accessing your initial order and serial number.

Image: A graphic illustrating the 18-month product care, combining a standard 365-day warranty with an additional 180 days of extended care.

కస్టమర్ మద్దతు

For quick and responsible customer support, you can reach ATOTO via email at support@myatoto.com. You can also find useful tools and resources, including manuals, by scanning the QR code provided in the quick start guide or on the product packaging.

Image: An illustration of a customer support expert wearing a headset, symbolizing available assistance for product inquiries.

Image: A smartphone scanning a QR code from a manual, indicating access to useful tools and resources for the product.
