Coliao STC-1000 Digital Temperature Controller 12V

1. పరిచయం

Thank you for choosing the Coliao STC-1000 Digital Temperature Controller. This device is designed for precise temperature control, offering both heating and cooling functions. It is suitable for a wide range of applications including aquariums, terrariums, vivariums, chicken incubators, laboratories, and other temperature-controlled systems. This manual provides detailed instructions for installation, operation, and maintenance to ensure optimal performance and longevity of your device.

చిత్రం 1.1: The STC-1000 controller shown in typical applications such as a greenhouse for plants and an incubator for chicks, demonstrating its versatility in temperature management.

2. ఉత్పత్తి ముగిసిందిview మరియు భాగాలు

The STC-1000 is a microcomputer digital LED display temperature controller. It features a flame-retardant shell for durability and safety. The package includes the following components:

• 2 x STC-1000 Digital Temperature Controllers (12V version)
• 2 x NTC 10K Waterproof Sensor Probes (1 meter length)
• 1 x Introduction Manual (this document)

చిత్రం 2.1: A pair of STC-1000 Digital Temperature Controllers, each accompanied by its NTC waterproof sensor probe, as included in the package.

చిత్రం 2.2: ఒక క్లోజప్ view of a single STC-1000 controller, highlighting its compact design and the attached NTC sensor probe.

3. స్పెసిఫికేషన్లు

చిత్రం 3.1: Detailed dimensions of the STC-1000 controller, showing its length, width, and height in millimeters and inches for installation planning.

4. సెటప్ మరియు వైరింగ్

ముఖ్యమైన భద్రతా గమనిక: Wiring should only be performed by individuals familiar with electrical connections. Ensure the power supply is disconnected before attempting any wiring. This device operates on DC 12V. Incorrect wiring can damage the unit or pose a safety hazard.

The STC-1000 features a terminal block for connections. Refer to the diagram below for proper wiring. Strictly distinguish the interface of the relay, sensor, and power. The sensor lead and power wire should be kept at a proper distance to avoid interference.

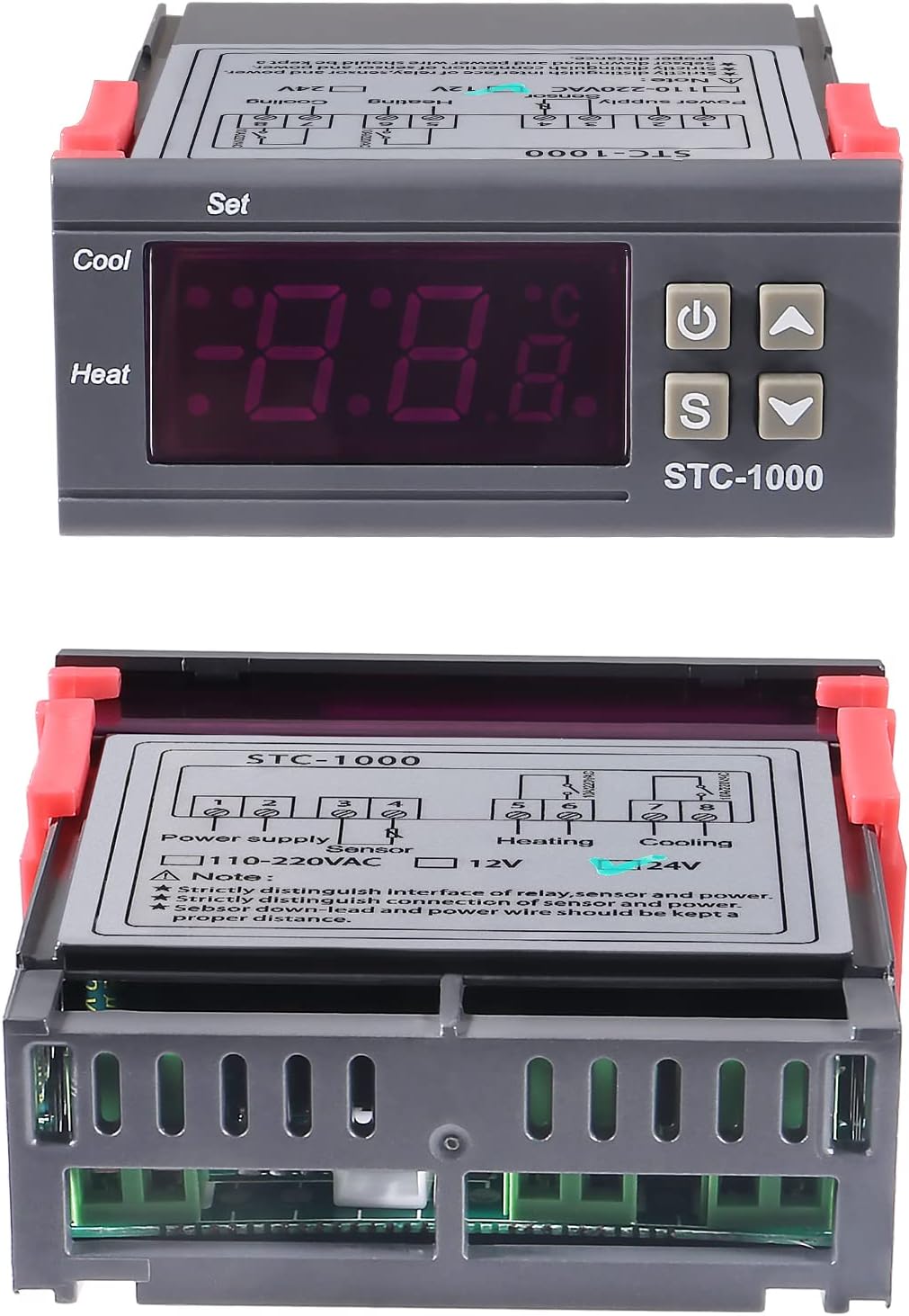

చిత్రం 4.1: ఎగువ మరియు దిగువ views of the STC-1000 controller. The top view shows the display and buttons, while the bottom view reveals the terminal block with a clear wiring diagram for power supply, NTC sensor, heating output, and cooling output connections.

1. Power Supply (12V DC): Connect your 12V DC power source to the designated terminals (often pins 1 and 2).
2. NTC సెన్సార్: Connect the NTC waterproof sensor probe to the sensor terminals (often pins 3 and 4). The sensor is non-polar, so connection order does not matter.
3. తాపన అవుట్‌పుట్: Connect your heating device (e.g., heating pad, lamp) to the heating relay output terminals (often pins 5 and 6).
4. Cooling Output: Connect your cooling device (e.g., fan, chiller) to the cooling relay output terminals (often pins 7 and 8).

షార్ట్ సర్క్యూట్‌లను నివారించడానికి అన్ని కనెక్షన్‌లు సురక్షితంగా ఉన్నాయని మరియు ఇన్సులేట్ చేయబడిందని నిర్ధారించుకోండి.

5. ఆపరేటింగ్ సూచనలు

The STC-1000 features a digital display and four control buttons for easy operation.

చిత్రం 5.1: Front panel of the STC-1000, clearly labeling the Digital Display Window, Power Switch, UP Button, Setting Button (S), and Down Button.

• పవర్ బటన్ (⏻ ⏻ తెలుగు): పరికరాన్ని ఆన్/ఆఫ్ చేయడానికి నొక్కండి.
• 'S' (Set) Button: Used to enter and exit parameter setting mode.
• పైకి (▲ ▲ తెలుగు) బటన్: Increases values or navigates through menu options.
• క్రిందికి (▼) బటన్: Decreases values or navigates through menu options.

5.1 Viewప్రస్తుత ఉష్ణోగ్రతను తనిఖీ చేస్తోంది

Upon powering on, the LED display will show the current temperature measured by the NTC sensor.

5.2. ఉష్ణోగ్రత పారామితులను సెట్ చేయడం

1. సెట్టింగ్ మోడ్‌ని నమోదు చేయండి: Press and hold the 'S' button for 3 seconds. The display will show "F1".
2. Navigate Parameters: అప్ ఉపయోగించండి (▲ ▲ తెలుగు) మరియు డౌన్ (▼) buttons to cycle through parameters (F1, F2, F3, F4).
3. View/Modify Parameter Value: While a parameter (e.g., F1) is displayed, press the 'S' button briefly to view its current value. Use the Up (▲ ▲ తెలుగు) మరియు డౌన్ (▼) buttons to adjust the value.
4. పొందుపరుచు మరియు నిష్క్రమించు: After setting all desired parameters, press and hold the 'S' button for 3 seconds to save the settings and exit. If no button is pressed for 10 seconds, settings will be saved automatically, and the device will return to normal operation.

5.3. Parameter Functions

• F1: Temperature Setting Value (SV)
  • This is the desired temperature you want to maintain.
  • Range: -50℃ to 99℃.
• F2: Hysteresis/Difference Value (D)
  • This value determines the temperature difference between the set point and when the heating/cooling output activates.
  • Example: If SV = 25℃ and D = 2℃:
    • హీటింగ్ మోడ్: Heater turns on at 23℃ (SV - D), turns off at 25℃ (SV).
    • శీతలీకరణ మోడ్: Cooler turns on at 27℃ (SV + D), turns off at 25℃ (SV).
  • Range: 0.3℃ to 10℃.
• F3: Temperature Calibration (C)
  • Used to correct any deviation between the displayed temperature and the actual temperature.
  • Adjust this value if the sensor reading is consistently inaccurate compared to a known reference thermometer.
  • Range: -10℃ to 10℃.
• F4: Delay Start Time (PT)
  • Sets a delay before the heating or cooling output activates after the temperature condition is met. This protects compressors in cooling systems.
  • Range: 0 to 10 minutes. (0 = no delay)

5.4. Heating and Cooling Modes

The STC-1000 automatically determines whether to operate in heating or cooling mode based on the relationship between the Temperature Setting Value (F1) and the Hysteresis Value (F2).

• హీటింగ్ మోడ్: If the Start Temperature (F1 - F2) is less than the Stop Temperature (F1), the device operates in heating mode. The heater will activate when the temperature drops below (F1 - F2) and deactivate when it reaches F1.
• శీతలీకరణ మోడ్: If the Start Temperature (F1 + F2) is greater than the Stop Temperature (F1), the device operates in cooling mode. The cooler will activate when the temperature rises above (F1 + F2) and deactivate when it reaches F1.

6. నిర్వహణ

• శుభ్రపరచడం: Wipe the controller's surface with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure no liquids enter the device.
• సెన్సార్ కేర్: The NTC sensor probe is waterproof. However, avoid bending the cable sharply or subjecting it to excessive force. Periodically check the sensor cable for any signs of damage.
• పర్యావరణ పరిస్థితులు: Ensure the controller is operated within the specified ambient temperature and humidity ranges to prevent damage.
• విద్యుత్ సరఫరా: Always use a stable 12V DC power supply. Fluctuations can affect performance or damage the unit.

7. ట్రబుల్షూటింగ్

8. వారంటీ మరియు మద్దతు

Coliao products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation for specific warranty terms and duration.

For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or the Coliao customer service department through the contact information provided at the point of purchase. Please have your product model number (STC-1000) and purchase date available when contacting support.
