1. పరిచయం మరియు ఓవర్view
The MICRO-AIR EasyTouch Digital RV Thermostat, Model 356 Black, offers a modern and reliable solution for managing your recreational vehicle's climate. This programmable thermostat features a large color touch screen, WiFi and Bluetooth connectivity, and automatic detection of various system sources including furnace, heat strip, and cooling. It is designed to provide effortless temperature adjustments and remote control capabilities for enhanced comfort on the road.

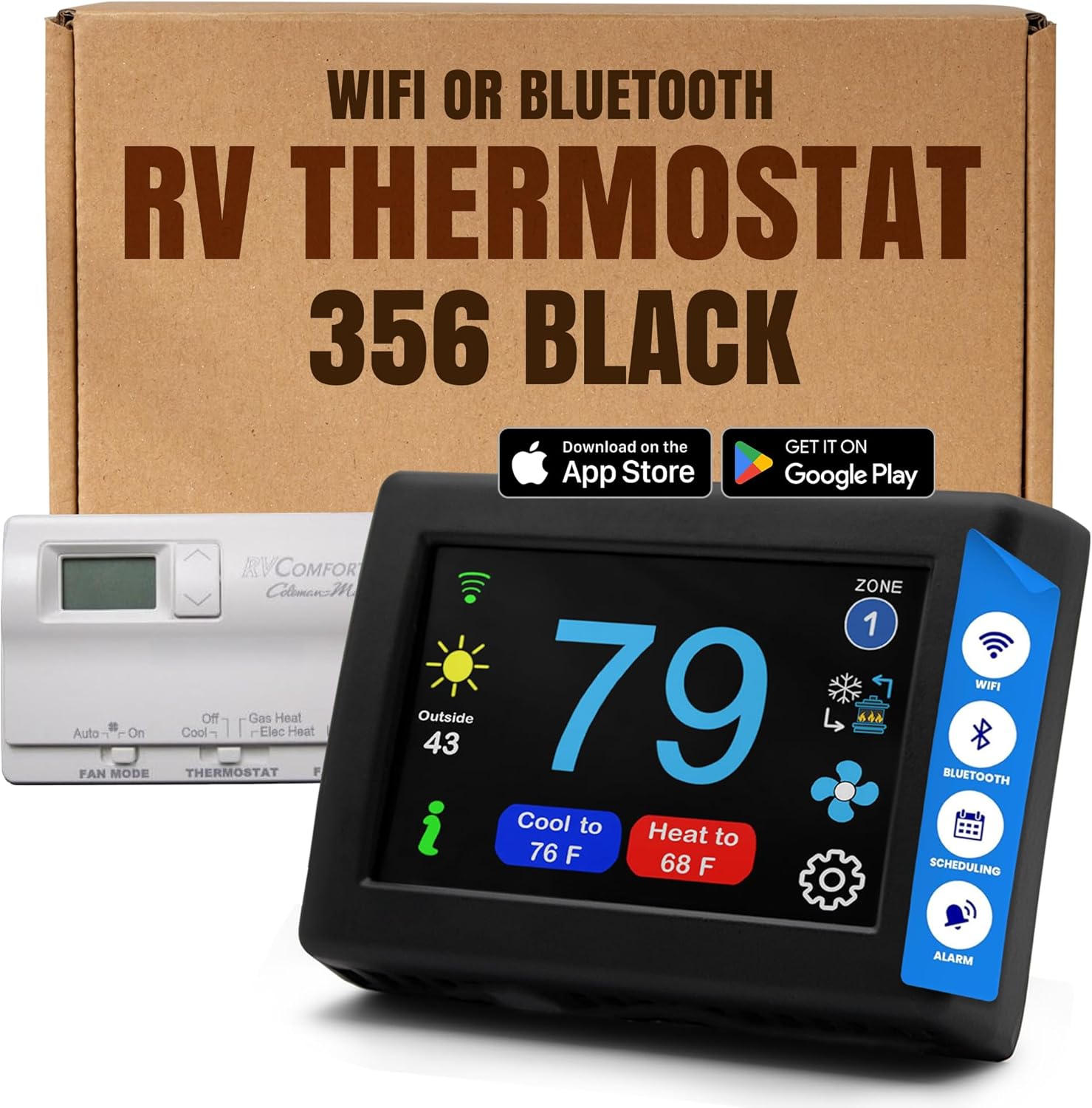

Image 1.1: The MICRO-AIR EasyTouch Digital RV Thermostat, Model 356 Black, shown alongside a traditional RV thermostat for comparison.
2 కీ ఫీచర్లు
- టచ్ స్క్రీన్ ఇంటర్ఫేస్: A large, colored touch screen (approximately 4" x 3.05") provides an intuitive and modern control experience.
- ప్రోగ్రామబుల్ కార్యాచరణ: Set custom schedules for heating and cooling to optimize comfort and energy usage.
- వైర్లెస్ కనెక్టివిటీ: Integrated WiFi and Bluetooth allow for remote monitoring and control via a dedicated smartphone application.
- ఆటోమేటిక్ సిస్టమ్ డిటెక్షన్: The thermostat automatically identifies connected systems such as furnace, heat strip, and cooling units.
- విస్తృత ఉష్ణోగ్రత పరిధి: Capable of controlling temperatures from 40°F to 90°F (4°C to 32°C).
- తక్కువ ప్రోfile డిజైన్: Its sleek, compact design minimizes protrusion from the wall.
- శుభ్రపరచడం సులభం: The sealed surface allows for simple cleaning with a damp గుడ్డ.
Image 2.1: The thermostat's compact dimensions and large colored touch screen are designed for user convenience.
3. అనుకూలత
The MICRO-AIR EasyTouch RV Thermostat Model 356 Black is specifically designed as a replacement for certain Coleman RV COMFORT P.H.P. Multi Zone thermostats. Verify your existing thermostat's model number against the list below to ensure compatibility.
Compatible Coleman RV COMFORT P.H.P. Model Numbers:
- 6330-355
- 6535-335
- 6535-344
- 6535-345
- 6536-335
- 6536-345
- 6536-347
- 6537-335
- 6537-344
- 6636-344
- 6636-345
- 6636-347
- 6759-345
- 6795-365
- 9330-336
- 9530-335
Image 3.1: Refer to this guide to ensure your existing thermostat is compatible with the Micro-Air 356 model.
Video 3.1: This video provides a quick guide on how to choose the correct EasyTouch model based on your existing RV thermostat. It highlights various compatible models and their corresponding EasyTouch replacements.
4. సంస్థాపన
Installation of the EasyTouch thermostat is designed to be straightforward. Always ensure power is disconnected before beginning any electrical work.
4.1. Removing the Old Thermostat
- Locate the rectangular locking tab on the bottom of your existing thermostat.
- Depress this tab using a small screwdriver.
- Gently pull the thermostat away from the wall from the bottom.
- Unplug the connector by depressing its locking tab.
- Remove the back plate mounting screws and detach the back plate.
4.2. Wiring the New Thermostat
The EasyTouch thermostat uses a standard telephone-style modular jack (6-pin Ethernet connector). Simply press the tab on the connector from your old thermostat and insert it into the new EasyTouch thermostat.
4.3. Mounting the EasyTouch Thermostat
- గోడకు వ్యతిరేకంగా చిన్న వ్యాసంతో రంధ్రం అంతటా అడ్డంగా మౌంటు బటన్లను గుర్తించండి.
- ఒక స్క్రూలో స్క్రూ చేసి, బటన్లను సమం చేయండి, తద్వారా ఇన్స్టాల్ చేసినప్పుడు డిస్ప్లే నేరుగా ఉంటుంది.
- రెండవ స్క్రూను స్క్రూ చేయండి, రెండు బటన్లు సమతలంగా ఉండేలా చూసుకోండి.
- Remove the mounting tab before mounting the display on the wall.
- Align and press the display against the wall, then gently slide it down to lock it in place.
Image 4.1: Visual guide for the installation process, from removing the old thermostat to securely mounting the new EasyTouch unit.
5. Setup: App, WiFi, and Bluetooth
The EasyTouch thermostat offers advanced connectivity for convenient control from your smartphone or other devices.
5.1. Downloading the EasyTouch RV App
Download the official EasyTouch RV App from your device's app store (available on Apple App Store and Google Play Store). This app enables remote monitoring and control of your RV's air conditioner, furnace, and heat pump.
5.2. Connecting via WiFi and Bluetooth
Once the app is installed, follow the in-app instructions to connect your thermostat using either WiFi or Bluetooth. This allows you to adjust settings, view temperatures, and manage schedules from anywhere.
- రిమోట్ కంట్రోల్: Control your RV's climate remotely, allowing you to cool or heat your RV before arrival.
- ఉచిత ఫీచర్ నవీకరణలు: The thermostat receives free feature updates via WiFi, ensuring access to the latest functionalities without monthly service fees.
Image 5.1: The EasyTouch RV App provides comprehensive remote control and scheduling options for your thermostat.
6. ఆపరేటింగ్ సూచనలు
The EasyTouch thermostat offers both on-device touch control and remote app control for managing your RV's climate.
6.1. On-Device Control
- ఉష్ణోగ్రత సర్దుబాటు: Use the up and down arrows on the touch screen to set your desired temperature.
- మోడ్ ఎంపిక: Cycle through available modes (Cool, Heat, Fan, Auto) by pressing the 'Mode' button.
- ఫ్యాన్ వేగం: ఫ్యాన్ స్పీడ్ సెట్టింగ్లను అవసరమైన విధంగా సర్దుబాటు చేయండి.
- జోన్ నియంత్రణ: If your RV supports multiple zones, use the 'Zone' button to select and control individual zones.
6.2. యాప్ నియంత్రణ
The EasyTouch RV App mirrors the on-device controls and adds advanced scheduling and monitoring features:
- రిమోట్ ఉష్ణోగ్రత సర్దుబాటు: Change the temperature from anywhere with an internet connection.
- షెడ్యూల్ చేయడం: Create and manage detailed climate schedules for different times of day and days of the week.
- పర్యవేక్షణ: View current indoor and outdoor temperatures, system status, and energy usage.
- హెచ్చరికలు: Receive notifications for high/low temperature warnings or system issues.
Image 6.1: Wireless app access allows for convenient control of your RV's climate from your smartphone.
7. నిర్వహణ
To ensure optimal performance and longevity of your EasyTouch thermostat, follow these simple maintenance guidelines:
- శుభ్రపరచడం: The thermostat's sealed surface can be easily cleaned. Use a soft, damp cloth to wipe the screen and buttons. Avoid abrasive cleaners or harsh chemicals.
- సాఫ్ట్వేర్ అప్డేట్లు: Regularly check for and install available software updates via WiFi to ensure your thermostat has the latest features and performance enhancements.
- బ్యాటరీ తనిఖీ: While the thermostat is primarily powered by your RV's system, it may have internal components that rely on backup power. Refer to the full user manual for specific battery maintenance details if applicable.
8. ట్రబుల్షూటింగ్
If you encounter any issues with your MICRO-AIR EasyTouch Digital RV Thermostat, consider the following general troubleshooting steps:
- పవర్/డిస్ప్లే లేదు: Ensure that the RV's main power supply is active and that the thermostat is correctly connected to its base plate. Check the circuit breaker for your RV's HVAC system.
- తప్పు ఉష్ణోగ్రత రీడింగ్లు: Verify that the thermostat's internal temperature sensor is not obstructed or exposed to direct sunlight or drafts, which can affect accuracy.
- కనెక్టివిటీ సమస్యలు (WiFi/Bluetooth): Confirm your RV's WiFi network is active and within range. For Bluetooth, ensure your smartphone is close to the thermostat. Try restarting both the thermostat and your mobile device.
- సిస్టమ్ స్పందించడం లేదు: Check all wiring connections to ensure they are secure. Confirm that the correct system type (furnace, AC, heat pump) is selected in the thermostat settings or app.
For persistent issues or specific error codes, please refer to the comprehensive digital manual available through the EasyTouch RV App or contact MICRO-AIR customer support.
9. స్పెసిఫికేషన్లు
| ఫీచర్ | స్పెసిఫికేషన్ |
|---|---|
| బ్రాండ్ | మైక్రో-ఎయిర్ |
| మోడల్ పేరు | EasyTouch® RV Touch Screen Thermostat with WiFi and Bluetooth |
| ఉత్పత్తి కొలతలు | 1"డి x 4"వా x 3"హ |
| కంట్రోలర్ రకం | iOS / Android App, Touchpad Control |
| ప్రత్యేక ఫీచర్ | ప్రోగ్రామబుల్, ఉష్ణోగ్రత డిస్ప్లే |
| రంగు | నలుపు |
| ఉష్ణోగ్రత నియంత్రణ రకం | ప్రోగ్రామబుల్ |
| కనెక్టివిటీ టెక్నాలజీ | బ్లూటూత్, వై-ఫై |
| చేర్చబడిన భాగాలు | ఉష్ణోగ్రత సెన్సార్ |
| శక్తి మూలం | RV System (24 Volts) |
| ప్రదర్శన రకం | LED |
| స్క్రీన్ పరిమాణం | 3 అంగుళాలు |
| మౌంటు రకం | వాల్ మౌంట్ |
| అంశం మోడల్ సంఖ్య | ASY-356-X01 |
10. వారంటీ మరియు మద్దతు
MICRO-AIR is committed to reliability and customer satisfaction. The EasyTouch Digital RV Thermostat is designed to offer seamless control of your RV's climate.
If you have any questions, require assistance with installation, setup, or troubleshooting, please do not hesitate to contact MICRO-AIR customer support. Refer to the product packaging or the official MICRO-AIR webఅత్యంత తాజా సంప్రదింపు సమాచారం కోసం సైట్.
