Volt Polska AVR PRO 5000VA Servo Voltagఇ స్టెబిలైజర్ యూజర్ మాన్యువల్

1. పరిచయం

The Volt Polska AVR PRO 5000VA Servo Voltage Stabilizer is designed to automatically regulate input voltage, providing stable and clean power to connected devices. It combines the functions of a voltage regulator and a surge protection device, enhancing the quality of power from the local grid or a generator. This device also suppresses electrical interference.

It is suitable for protecting sensitive electronic equipment such as computer kits, servers, routers, modems, network components, RTV equipment (amplifiers, audio mixers, speakers, musical equipment, televisions, stereo systems, CD-DVD players, receivers), and other similar devices.

2. భద్రతా సూచనలు

• అన్ని సూచనలను చదవండి: Before operating the device, carefully read and understand all safety and operating instructions.
• ఇండోర్ ఉపయోగం మాత్రమే: This device is designed for indoor use in dry environments. Do not expose it to rain, moisture, or excessive humidity.
• Proper grounding: Ensure the device is connected to a properly grounded electrical outlet.
• వెంటిలేషన్: వెంటిలేషన్ ఓపెనింగ్‌లను నిరోధించవద్దు. వేడెక్కకుండా నిరోధించడానికి యూనిట్ చుట్టూ తగినంత గాలి ప్రవాహాన్ని నిర్ధారించుకోండి.
• అర్హత కలిగిన సిబ్బంది: Installation and servicing should only be performed by qualified personnel. High voltage యూనిట్ లోపల ఉంది.
• ఓవర్‌లోడ్ రక్షణ: Do not exceed the maximum load capacity of 5000VA. Overloading can damage the device and connected equipment.
• Liquid contact: Keep liquids away from the device. In case of accidental spillage, immediately disconnect power and contact qualified service personnel.
• ఉష్ణోగ్రత: Operate the device within specified temperature ranges. Avoid extreme heat or cold.
• శుభ్రపరచడం: Disconnect the device from the power source before cleaning. Use a dry cloth; do not use liquid or aerosol cleaners.

3. ఉత్పత్తి ముగిసిందిview

The Volt Polska AVR PRO 5000VA features a robust design with clear indicators for operational status.

3.1 ఫ్రంట్ ప్యానెల్

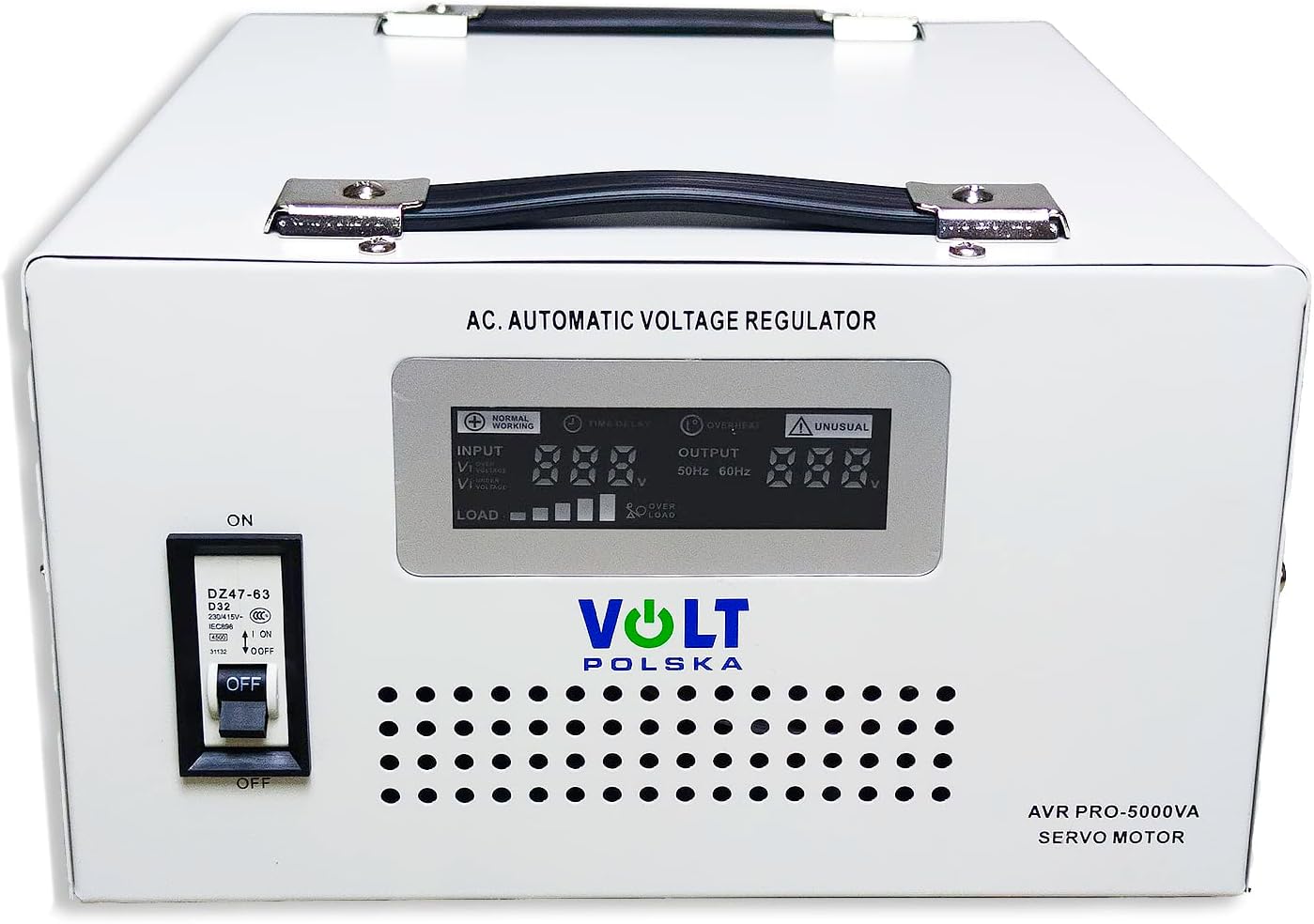

చిత్రం 1: ముందు view of the Volt Polska AVR PRO 5000VA Servo Voltage Stabilizer. This image displays the main digital display panel, the "ON/OFF" circuit breaker switch on the left, and ventilation grilles at the bottom. The display shows "INPUT" voltage, "OUTPUT" voltage, "LOAD" level, and indicators for "NORMAL WORKING" and "UNUSUAL" conditions.

• డిజిటల్ ప్రదర్శన: Shows real-time input voltagఇ, అవుట్పుట్ వాల్యూమ్tage, and load level.
• స్థితి సూచికలు: LEDs for "NORMAL WORKING" and "UNUSUAL" conditions.
• Circuit Breaker (ON/OFF): Main power switch and overload protection.
• వెంటిలేషన్ గ్రిల్స్: వేడి వెదజల్లడం కోసం.

3.2 వెనుక ప్యానెల్

చిత్రం 2: వెనుక view of the Volt Polska AVR PRO 5000VA Servo Voltage Stabilizer. This image highlights the input power socket, two output sockets, a circuit breaker button, and various warning labels and product information, including the model number and specifications.

• ఇన్‌పుట్ సాకెట్: For connecting the stabilizer to the main power supply.
• అవుట్‌పుట్ సాకెట్లు: For connecting devices that require stabilized power.
• Circuit Breaker Button: Additional protection and reset function.
• Ventilation Fan/Grille: For active cooling.
• ఉత్పత్తి లేబుల్: Contains model information, serial number, and basic specifications.

4. సెటప్

1. అన్‌ప్యాకింగ్: Carefully remove the stabilizer from its packaging. Inspect for any signs of damage during transit.
2. ప్లేస్‌మెంట్: Place the stabilizer on a stable, flat surface in a well-ventilated area. Ensure there is sufficient space around the unit for proper airflow. Avoid direct sunlight, heat sources, and areas with high humidity or dust.
3. ప్రారంభ విద్యుత్ కనెక్షన్:
   • Ensure the circuit breaker on the front panel is in the "OFF" position.
   • Connect the power cord from the stabilizer's input socket to a grounded wall outlet.
4. కనెక్ట్ చేసే పరికరాలు:
   • Ensure all devices to be connected are turned off.
   • Plug the power cords of your electronic devices into the output sockets on the rear panel of the stabilizer.
   • Do not exceed the total rated power of 5000VA for all connected devices.

5. ఆపరేటింగ్ సూచనలు

1. పవర్ ఆన్:
   • After connecting all devices, switch the circuit breaker on the front panel to the "ON" position.
   • The digital display will illuminate, showing the input voltagఇ, అవుట్పుట్ వాల్యూమ్tage, and load.
   • The stabilizer will perform a brief self-test and then begin regulating the voltage. There might be a short delay (approximately 6 seconds) before the output stabilizes.
2. పర్యవేక్షణ:
   • Observe the digital display to monitor the input and output voltage levels. The output voltage should remain stable at approximately 230V (±3%).
   • The "NORMAL WORKING" indicator should be lit. If the "UNUSUAL" indicator lights up, refer to the Troubleshooting section.
3. పవర్ ఆఫ్:
   • Before disconnecting devices or turning off the stabilizer, ensure all connected devices are powered off.
   • Switch the circuit breaker on the front panel to the "OFF" position.
   • Disconnect the stabilizer from the wall outlet if it will not be used for an extended period.

6. నిర్వహణ

• శుభ్రపరచడం: Regularly clean the exterior of the stabilizer with a soft, dry cloth. Do not use liquid or abrasive cleaners. Ensure ventilation grilles are free from dust and debris.
• వెంటిలేషన్: Periodically check that the ventilation openings are not obstructed. Blocked vents can lead to overheating and reduced performance.
• కేబుల్ తనిఖీ: Inspect power cords and connections for any signs of wear, damage, or loose connections. Replace damaged cables immediately.
• నిల్వ: యూనిట్‌ను ఎక్కువ కాలం నిల్వ ఉంచినట్లయితే, దానిని పవర్ నుండి డిస్‌కనెక్ట్ చేసి, శుభ్రం చేసి, ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలు లేకుండా చల్లని, పొడి ప్రదేశంలో నిల్వ చేయండి.
• అంతర్గత సర్వీసింగ్: Do not attempt to open the unit or perform internal servicing. This should only be done by qualified service personnel.

7. ట్రబుల్షూటింగ్

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

For warranty information and technical support, please refer to the contact details provided by Volt Polska or your retailer. Keep your purchase receipt as proof of purchase.

దిగుమతిదారు సంప్రదింపు సమాచారం:

• కంపెనీ: Volt Polska Sp. z o.o.
• చిరునామా: ul. Swierkowa 76, 62-771 Sopot, POLAND
• Webసైట్: www.voltpolska.pl
• ఇమెయిల్: sales@voltpolska.pl
• టెలిఫోన్: +4858 341 05 06, +4858 341 38 80

గమనిక: The manufacturer guarantees software updates up to an unknown date. For the latest information, please visit the official Volt Polska webసైట్.
