ECOVACS DEEBOT X1e ఓమ్ని రోబోట్ వాక్యూమ్ మరియు మాప్ క్లీనర్ యూజర్ మాన్యువల్

పైగాview

The ECOVACS DEEBOT X1e Omni is an advanced robot vacuum and mop cleaner designed to automate floor cleaning. It features powerful suction, a dual mop rotating system, and an intelligent OMNI Station for self-emptying and mop cleaning. This manual provides essential information for setting up, operating, and maintaining your device.

సెటప్

1. అన్‌బాక్సింగ్ మరియు కాంపోనెంట్ ఐడెంటిఫికేషన్

Carefully remove all components from the packaging. Ensure all accessories are present as listed in the packing contents. Remove any protective films or packaging materials from the robot and the OMNI Station.

2. OMNI Station Placement and Setup

1. Place the OMNI Station on a hard, level surface against a wall, ensuring adequate space around it for the robot to maneuver.
2. Connect the power cord to the OMNI Station and plug it into a power outlet.
3. Install the dust bag into the designated compartment within the OMNI Station.
4. Fill the clean water tank with clean water and place it into the OMNI Station.

3. Robot Preparation

1. Attach the side brushes to the bottom of the robot by pressing them into place until they click.
2. For mopping, attach the mop pads to the mop plate and then attach the mop plate to the robot. Ensure the water tank is filled if using the mopping function.
3. Place the robot onto the OMNI Station to begin charging.

4. యాప్ డౌన్‌లోడ్ మరియు జత చేయడం

1. Scan the QR code provided in the quick start guide or on the product packaging to download the ECOVACS HOME App.
2. Follow the in-app instructions to pair your DEEBOT with your smartphone via Wi-Fi. This process typically involves scanning a QR code located under the robot's cover.

5. ప్రారంభ మ్యాపింగ్

Once paired, initiate the first cleaning cycle through the app. The DEEBOT will begin to map your home, creating a detailed layout for efficient future cleaning. This initial mapping is crucial for optimal performance and can be up to 10 times faster and 4 times more precise than previous models.

Operating the DEEBOT X1e Omni

1. క్లీనింగ్ మోడ్‌లు

The DEEBOT X1e Omni offers integrated vacuuming and mopping capabilities. It can perform both functions simultaneously or individually, depending on your needs.

• వాక్యూమింగ్: Utilizes 5000Pa suction power to effectively pick up debris from various surfaces including hard floors and carpets.
• మాపింగ్: Features the OZMO Turbo 2.0 dual mop rotating system, which rotates at high speed to dissolve and remove stubborn stains. The robot automatically lifts the mop pads when detecting carpets to prevent wetting.

2. స్మార్ట్ నావిగేషన్ మరియు అడ్డంకి నివారణ

Equipped with AIVI 3.0 Obstacle Avoidance technology, the DEEBOT intelligently identifies and avoids common household objects, preventing collisions and ensuring uninterrupted cleaning. Its advanced mapping capabilities allow it to navigate efficiently across different rooms and floor types.

3. Voice Control (YIKO)

The integrated YIKO Voice Assistant allows for hands-free control of your DEEBOT. Simply use voice commands to start, stop, or direct the robot to specific areas for cleaning.

4. యాప్ నియంత్రణ

The ECOVACS HOME App provides comprehensive control over your DEEBOT. You can:

• Start/stop cleaning cycles.
• శుభ్రం చేయడానికి నిర్దిష్ట గదులు లేదా ప్రాంతాలను ఎంచుకోండి.
• Set virtual boundaries or no-go zones.
• Adjust suction power and water flow for mopping.
• Schedule cleaning tasks.
• Monitor cleaning progress and view the cleaning map.

5. Real-time Surveillance

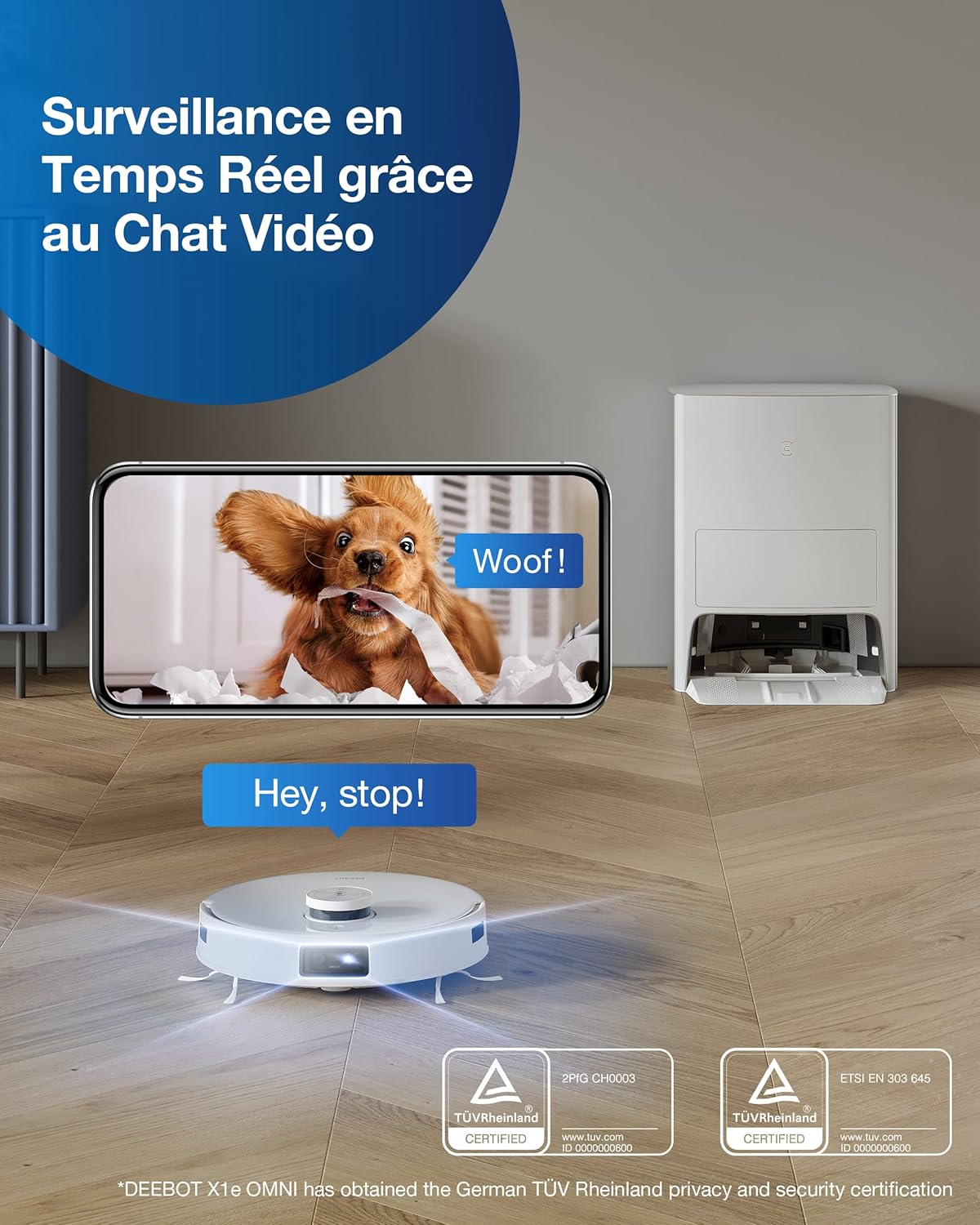

The DEEBOT X1e Omni includes a real-time surveillance feature, allowing you to view your home through the robot's camera via the app. This can be used for monitoring or simply observing your home environment.

నిర్వహణ

1. OMNI స్టేషన్ నిర్వహణ

• డస్ట్ బ్యాగ్ భర్తీ: The OMNI Station automatically empties the robot's dustbin into a disposable dust bag. Replace the dust bag when full.
• నీటి ట్యాంక్ నిర్వహణ: Regularly empty the dirty water tank and refill the clean water tank. The station also cleans and hot-air dries the mop pads.

2. Robot Component Cleaning

• సైడ్ బ్రష్‌లు: Periodically remove and clean the side brushes to ensure optimal sweeping performance.
• ప్రధాన బ్రష్: Remove and clean the main brush regularly, especially if pet hair is present, using the provided cleaning tool.
• మాప్ ప్యాడ్‌లు: The OMNI Station cleans the mop pads, but they should be removed and washed manually as needed.
• సెన్సార్లు: Wipe the robot's sensors with a clean, dry cloth to maintain accurate navigation and obstacle detection.

ట్రబుల్షూటింగ్

If you encounter issues with your DEEBOT X1e Omni, please refer to the following common solutions:

• రోబోట్ ఛార్జింగ్ లేదు: Ensure the robot is correctly docked on the OMNI Station and the power cord is securely plugged in. Clean the charging contacts on both the robot and the station.
• పేలవమైన శుభ్రపరిచే పనితీరు: Check if the dustbin is full, the main brush or side brushes are tangled with hair, or the mop pads are dirty. Clean or replace components as necessary.
• నావిగేషన్ లోపాలు: Clean all sensors on the robot. Ensure there are no new obstacles or changes in the environment that might confuse the robot's mapping.
• యాప్ కనెక్టివిటీ సమస్యలు: మీ Wi-Fi నెట్‌వర్క్ స్థిరంగా ఉందని మరియు రోబోట్ పరిధిలో ఉందని నిర్ధారించుకోండి. అవసరమైతే యాప్ మరియు రోబోట్‌ను పునఃప్రారంభించండి.
• Mop pads not getting wet: Check if the clean water tank is filled and properly installed. Ensure the mop pads are correctly attached.

For more detailed troubleshooting, consult the full user manual or contact ECOVACS customer support.

స్పెసిఫికేషన్లు

వారంటీ & మద్దతు

For warranty information, product registration, or technical support, please visit the official ECOVACS webసైట్‌లో లేదా వారి కస్టమర్ సర్వీస్‌ను సంప్రదించండి. ఏవైనా విచారణల కోసం మీ కొనుగోలు రసీదు మరియు ఉత్పత్తి సీరియల్ నంబర్‌ను అందుబాటులో ఉంచుకోండి.
