పరిచయం
This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your Tecmojo Elite Collection 6U Wall Mount Server Cabinet. Please read these instructions carefully before beginning assembly or use to ensure proper functionality and safety. This server cabinet is designed for housing IT, AV, audio, and data equipment in various environments such as studios, homes, and offices.
ఉత్పత్తి భాగాలు
The Tecmojo Elite Collection 6U Wall Mount Server Cabinet is shipped flat-packed and requires assembly. Please verify that all components listed below are present before beginning assembly.
మూర్తి 1: Included components for the Tecmojo 6U Wall Mount Server Cabinet. This includes the instruction manual, M6 cross screws (10), M6 cage nuts (10), keys (2), and two cooling fans.
- Cabinet Frame Components (Side Frames, Front/Back Brackets, Top/Bottom Panels)
- సైడ్ ప్యానెల్లు (2)
- Front Glass Door (1)
- వాల్ మౌంట్ బ్రాకెట్ (1)
- M6 Cross Screws (10)
- M6 Cage Nuts (10)
- కీలు (2)
- Cooling Fans (2)
- ఇన్స్ట్రక్షన్ మాన్యువల్
అసెంబ్లీ మరియు సంస్థాపన
Follow these steps to assemble and install your Tecmojo 6U Wall Mount Server Cabinet. It is recommended to have assistance for wall mounting due to the cabinet's weight and size.
వీడియో 1: This video demonstrates the step-by-step assembly and wall mounting process for the Tecmojo Elite Wall Mount Server Cabinet. It covers assembling the frame, attaching panels, and securing the cabinet to a wall bracket.
అసెంబ్లీ దశలు:
- Assemble Rack Rails: Symmetrically place the side frames.
- Fix L Bracket: Secure the L brackets using screws and cage nuts.
- Fix Front and Back Brackets: Attach the front and back brackets to complete the main frame structure.
- Assemble Bottom and Top Panels: Install the bottom panel, then the top panel, securing them with screws.
- Fix Back Plate: Attach the back plate to the rear of the cabinet frame.
వాల్ మౌంటు దశలు:
- Install Wall Mount Bracket: Securely install the wall mount bracket on the desired wall location. Ensure it is level and capable of supporting the cabinet's weight (up to 176 lbs / 80 kg) plus equipment.
- Hang and Fix Cabinet: Carefully hang the assembled cabinet onto the installed wall mount bracket. Secure the cabinet to the bracket using the provided screws.
చివరి అసెంబ్లీ:
- సైడ్ ప్యానెల్లను సమీకరించండి: Attach the two side panels to the cabinet. These panels are detachable for convenient access.
- Install Front Glass Door: Install the front glass door. The door is reversible, allowing it to be opened from either the right or left side.
మూర్తి 2: The interior of the cabinet features a 360mm mountable depth and clearly marked square rack holes for easy equipment installation.
మూర్తి 3: The cabinet is designed with 16-inch mounting holes to accommodate standard stud placement, and features removable side panels for easy access.
ఆపరేటింగ్ సూచనలు
Security and Access:
- The server cabinet is equipped with keys to lock the front door and side panels, preventing unauthorized access and protecting your equipment.
- Detachable side panels and a reversible front door allow for convenient inspection and replacement of equipment from various directions.
Cooling and Cable Management:

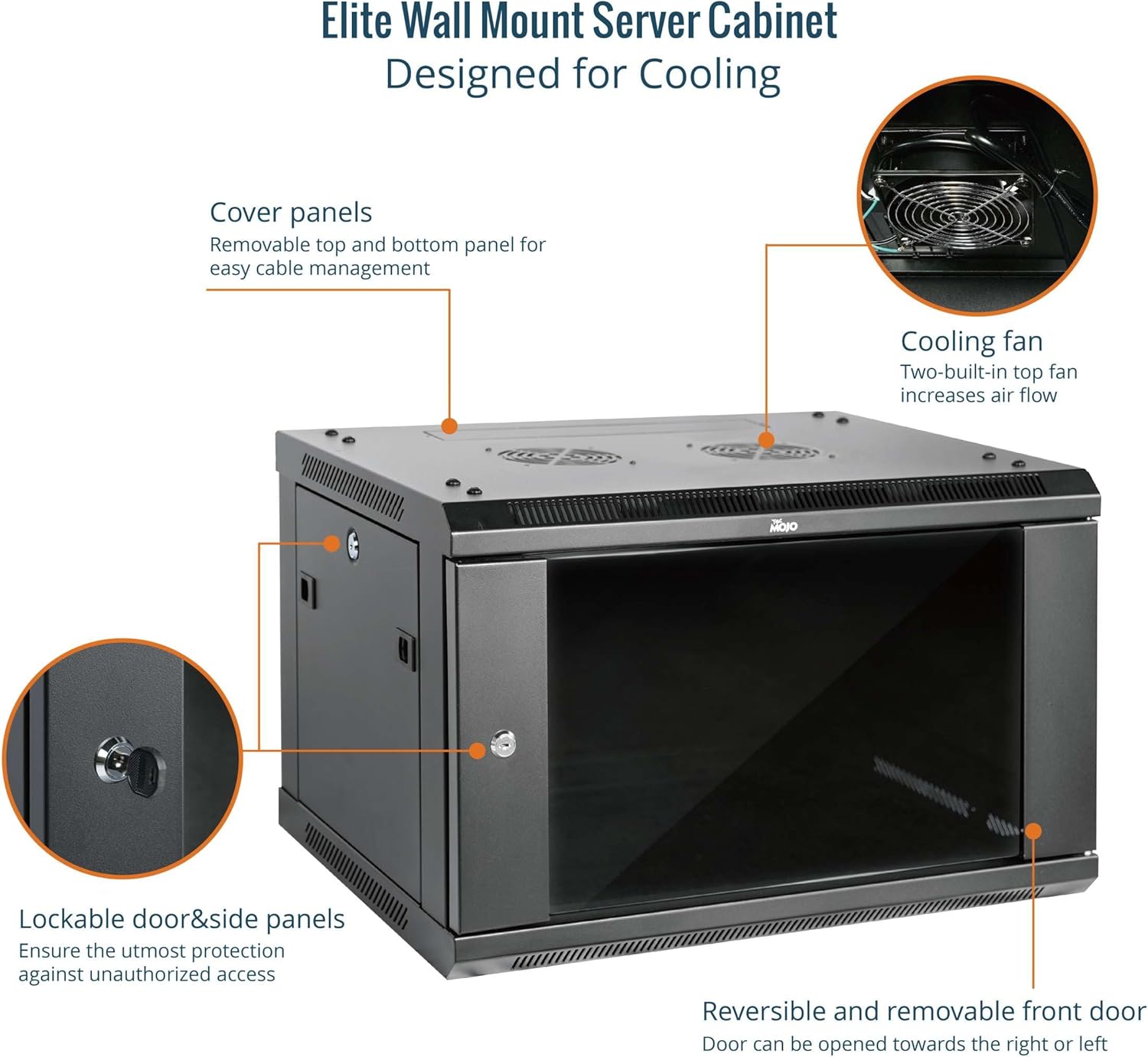

మూర్తి 4: The cabinet features two built-in top fans for enhanced cooling and removable cover panels for efficient cable management.
- Two built-in cooling fans are located on the top panel to ensure dependable heat dissipation and maintain internal temperature equilibrium.
- Removable covers at the top and bottom of the cabinet allow for organized cable routing and management.
నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your server cabinet.
- శుభ్రపరచడం: Periodically wipe down the exterior surfaces with a soft, damp గుడ్డ. రాపిడి క్లీనర్లను నివారించండి.
- ఫ్యాన్ తనిఖీ: Check the cooling fans regularly for dust accumulation. Clean them gently with compressed air or a soft brush to ensure proper airflow.
- హార్డ్వేర్ తనిఖీ: Periodically inspect all screws and fasteners to ensure they remain tight. Retighten as necessary.
- Door and Panel Operation: Ensure the front door and side panels open and close smoothly. Lubricate hinges if needed.
ట్రబుల్షూటింగ్
If you encounter issues with your server cabinet, consider the following common solutions:
- అధిక వేడి పరికరాలు: Ensure the cooling fans are operational and not obstructed. Verify that the cabinet is not placed in an area with poor ventilation.
- Difficulty with Cable Routing: Utilize the removable top and bottom covers for easier cable access. Consider using cable management accessories if needed.
- Door/Panel Not Closing Properly: Check for any obstructions or misalignment. Ensure hinges are properly secured and lubricated.
- క్యాబినెట్ అస్థిరత: Verify that the wall mount bracket is securely fastened to the wall and that all cabinet assembly screws are tightened.
స్పెసిఫికేషన్లు

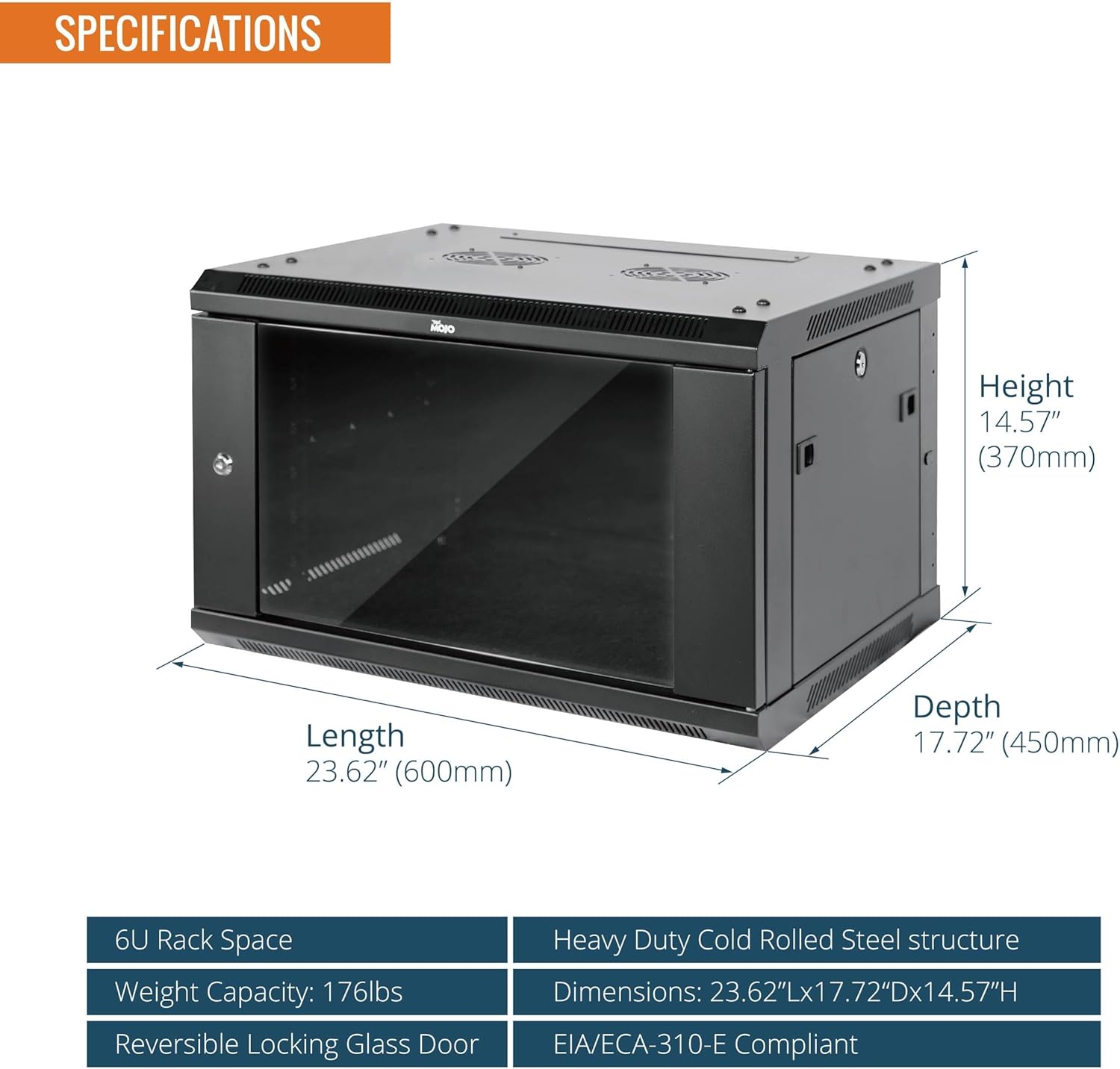

మూర్తి 5: Detailed dimensions and key specifications of the Tecmojo 6U Wall Mount Server Cabinet.
| స్పెసిఫికేషన్ | వివరాలు |
|---|---|
| ఉత్పత్తి కొలతలు | 17.72 x 23.62 x 14.57 inches (450mm D x 600mm W x 370mm H) |
| వస్తువు బరువు | 44.4 పౌండ్లు (20.14 కిలోలు) |
| మెటీరియల్ | Heavy Duty Cold Rolled Steel |
| ర్యాక్ యూనిట్లు | 6U |
| Mountable Depth | 14.2 అంగుళాలు (360 మిమీ) |
| బరువు సామర్థ్యం | 176 పౌండ్లు (80 కిలోలు) |
| తలుపు రకం | Reversible Locking Glass Door |
| అనుకూల పరికరాలు | Server, CPU, IT/AV/Audio/Data Equipment |
| తయారీదారు | టెక్మోజో |
వారంటీ మరియు మద్దతు
For warranty information and technical support, please refer to the contact details provided with your purchase documentation or visit the official Tecmojo webసైట్. ఏవైనా వారంటీ క్లెయిమ్ల కోసం మీ కొనుగోలు రుజువును ఉంచుకోండి.
