పరిచయం
This manual provides essential information for the proper installation, operation, and maintenance of your THINKWARE iVolt Xtra External Dash Cam Battery Pack. Please read this manual thoroughly before using the product to ensure optimal performance and safety. The iVolt Xtra is designed to provide extended parking mode surveillance for your THINKWARE dash cam, safeguarding your vehicle even when the engine is off.
ముందు view of the THINKWARE iVolt Xtra External Dash Cam Battery Pack.
సెటప్ మరియు ఇన్స్టాలేషన్
The THINKWARE iVolt Xtra requires a hardwiring cable for installation, which is sold separately. Ensure you have the correct hardwiring kit compatible with your vehicle and dash cam model before proceeding.
అనుకూలత
- Compatible with all THINKWARE Dash Cams.
- Can be safely hardwired into both electric and gasoline vehicles.
- గమనిక: Hardwiring BAB-95 (iVolt Xtra) may not be possible in some electric vehicles, such as Teslas, due to the absence of a traditional fuse box.
సంస్థాపన ముగిసిందిview
The iVolt Xtra connects to your vehicle's power source via the hardwiring cable and then provides power to your dash cam. This setup eliminates stress on your vehicle's main battery during parking mode operation.
Diagram illustrating the connection of the iVolt Xtra to the vehicle's fuse box and the dash cam.
For detailed, step-by-step installation instructions, please refer to the separate hardwiring kit manual or consult a professional installer.

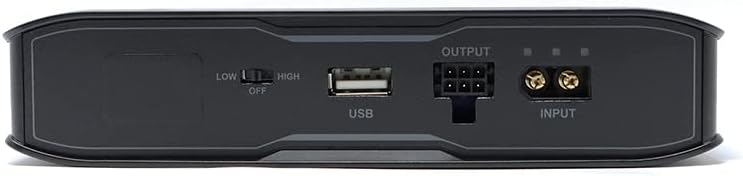

Rear panel of the iVolt Xtra, displaying input, output, and USB ports.
ఆపరేటింగ్ సూచనలు
బ్యాటరీ ప్యాక్ను ఛార్జ్ చేస్తోంది
The iVolt Xtra charges automatically while your vehicle's engine is running. It features a fast-charging capability:
- ఫాస్ట్ ఛార్జింగ్: Fully charges in as little as 50 minutes.
- రెగ్యులర్ ఛార్జింగ్: Fully charges in approximately 90 minutes.
The iVolt Xtra can be fully recharged quickly during driving.
Parking Mode Operation
Once charged, the iVolt Xtra powers your dash cam when your vehicle's ignition is off, enabling extended parking mode surveillance without draining your car's battery.
- Standard Parking Mode: Provides up to 27 hours of continuous power for your dash cam.
- శక్తి పొదుపు మోడ్: Extends operation up to 960 hours (40 days) for prolonged parking surveillance.
The actual running time may vary depending on the dash cam model and environmental conditions.
మానిటరింగ్ బ్యాటరీ స్థితి
The iVolt Xtra includes built-in Bluetooth connectivity, allowing you to monitor its charge level and status via the iVolt Battery App on your smartphone.
నిర్వహణ మరియు సంరక్షణ
The iVolt Xtra is designed for durability and safety with advanced battery technology.
బ్యాటరీ టెక్నాలజీ
The battery is constructed from Lithium Iron Phosphate (LiFePo4), which offers several advantages:
- భద్రత మరియు స్థిరత్వం: LiFePo4 is inherently safer and more stable than traditional lithium-ion batteries.
- పొడిగించిన జీవితకాలం: Provides a lifespan approximately three times longer than lithium-ion and nickel-based batteries.
రక్షణ లక్షణాలు
Equipped with a Protection Circuit Module (PCM), the iVolt Xtra safeguards against potential issues:
- ఓవర్ఛార్జ్ రక్షణ
- ఓవర్-డిచ్ఛార్జ్ రక్షణ
- Protection against sudden input voltagఇ మార్పులు
- తక్కువ వాల్యూమ్tagఇ రక్షణ
సాధారణ సంరక్షణ
- యూనిట్ను ఎక్కువసేపు తీవ్రమైన ఉష్ణోగ్రతలకు లేదా ప్రత్యక్ష సూర్యకాంతికి గురిచేయకుండా ఉండండి.
- Keep the unit dry and away from moisture.
- బ్యాటరీ ప్యాక్ను తెరవడానికి లేదా సవరించడానికి ప్రయత్నించవద్దు.
ట్రబుల్షూటింగ్
If you encounter issues with your iVolt Xtra, please review కింది సాధారణ పరిష్కారాలు:
- No Power to Dash Cam: Ensure all connections (input from vehicle, output to dash cam) are securely fastened. Verify that the hardwiring cable is correctly installed in your vehicle's fuse box.
- బ్యాటరీ ఛార్జింగ్ లేదు: Confirm that your vehicle's ignition is on when attempting to charge. Check the hardwiring connections. If the issue persists, consult a professional for electrical system inspection.
- Short Parking Mode Duration: Ensure the battery is fully charged before entering parking mode. Environmental factors (extreme cold/heat) and dash cam power consumption settings can affect duration.
- యాప్ కనెక్టివిటీ సమస్యలు: Ensure Bluetooth is enabled on your smartphone and the iVolt Xtra. Try restarting both the app and your phone.
If problems persist after attempting these steps, please contact THINKWARE customer support.
స్పెసిఫికేషన్లు
| ఫీచర్ | స్పెసిఫికేషన్ |
|---|---|
| మోడల్ సంఖ్య | TWA-EXBH2 |
| బ్యాటరీ కెపాసిటీ | 7500 mAh / 96 Wh |
| బ్యాటరీ సెల్ కంపోజిషన్ | లిథియం ఐరన్ ఫాస్ఫేట్ (LiFePo4) |
| Charging Time (Fast) | సుమారు 50 నిమిషాలు |
| Charging Time (Regular) | సుమారు 90 నిమిషాలు |
| Parking Mode Duration (Standard) | 27 గంటల వరకు* |
| Parking Mode Duration (Energy Saving) | Up to 960 hours (40 days)* |
| కొలతలు (ప్యాకేజీ) | 11.06 x 7.8 x 4.37 అంగుళాలు |
| వస్తువు బరువు | 5.06 పౌండ్లు |
| తయారీదారు | థింక్వేర్ |
*Based on 2-channel dash cam in Motion & Detection Parking Mode. Charging and run time may vary depending on the dash cam model and the environment.
వారంటీ మరియు మద్దతు
వారంటీ సమాచారం
THINKWARE products are covered by a limited warranty. Please refer to the official THINKWARE website or your product's packaging for specific warranty terms and conditions.
తదుపరి సహాయం
For additional information, detailed diagrams, or technical support, please refer to the official user guide PDF or contact THINKWARE customer service.
- అధికారిక వినియోగదారు గైడ్ (PDF): ఇక్కడ డౌన్లోడ్ చేసుకోండి
- THINKWARE Support: సందర్శించండి THINKWARE Store on Amazon or the official THINKWARE webసంప్రదింపు సమాచారం కోసం సైట్.
