Sejoy Deep Tissue Percussion Massage Gun JMQ-Q3 User Manual

1. పరిచయం

Thank you for choosing the Sejoy Deep Tissue Percussion Massage Gun. This manual provides essential information for the safe and effective use of your device. Please read it thoroughly before operation and retain it for future reference.

1.1 ప్యాకేజీ విషయాలు

అన్ప్యాక్ చేసిన తర్వాత, క్రింద జాబితా చేయబడిన అన్ని వస్తువులు ఉన్నాయని మరియు మంచి స్థితిలో ఉన్నాయని దయచేసి ధృవీకరించండి:

• 1 x Sejoy Deep Tissue Percussion Massage Gun
• 4 x మార్చుకోగలిగిన మసాజ్ హెడ్స్
• 1 x USB టైప్-C ఛార్జింగ్ కేబుల్
• 1 x వినియోగదారు మాన్యువల్

Image 1.1: Contents of the Sejoy Deep Tissue Percussion Massage Gun package, including the massage gun, four massage heads, a USB-C cable, and the user manual.

1.2 ఉత్పత్తి ముగిసిందిview

The Sejoy Deep Tissue Percussion Massage Gun is a portable and lightweight device designed for muscle relaxation and recovery. Its compact size makes it easy to handle and carry.

Image 1.2: The Sejoy massage gun shown next to a smartphone for size comparison, illustrating its small and lightweight design, making it easy to hold in one hand.

2. భద్రతా సమాచారం

To reduce the risk of electric shock, fire, and injury, this product must be used in accordance with the following instructions:

• ఈ పరికరం పెద్దల ఉపయోగం కోసం మాత్రమే ఉద్దేశించబడింది.
• దుస్తులపై పొడి, శుభ్రమైన శరీర ఉపరితలాలపై మాత్రమే ఉపయోగించండి.
• Do not use the device for more than 15 minutes continuously. Allow 30 minutes of rest before re-using.
• Do not use on the head, bony areas, open wounds, or sensitive skin.
• Consult a physician before use if you are pregnant, have a pacemaker, suffer from diabetes, epilepsy, or any other medical condition.
• మసాజ్ హెడ్ చిటికెడును నివారించడానికి వేళ్లు, వెంట్రుకలు లేదా ఏదైనా ఇతర శరీర భాగాన్ని షాఫ్ట్ మరియు వెనుక నుండి దూరంగా ఉంచండి.
• Never operate the device if it has been damaged or submerged in water.
• పరికరాన్ని మీరే సవరించవద్దు లేదా రిపేర్ చేయడానికి ప్రయత్నించవద్దు. సహాయం కోసం కస్టమర్ సపోర్ట్‌ను సంప్రదించండి.

3. సెటప్

3.1 పరికరాన్ని ఛార్జ్ చేస్తోంది

Before first use, fully charge the massage gun. The device is equipped with a 2400mAh rechargeable lithium battery, providing approximately 4 hours of operation on a full charge.

1. Connect the USB Type-C charging cable to the charging port on the massage gun.
2. Plug the other end of the USB cable into a compatible USB power source (e.g., wall adapter, power bank, laptop).
3. The LED display will indicate the charging status. A full charge typically takes 2-3 hours.

Image 3.1: The Sejoy massage gun connected to a USB-C charging cable, illustrating how to charge the device using various USB power sources like a power bank, laptop, or USB charger.

3.2 మసాజ్ హెడ్‌లను అటాచ్ చేయడం

The massage gun comes with 4 interchangeable massage heads designed for different muscle groups and massage types.

• బాల్ హెడ్: చేతులు, వీపు, తుంటి, తొడలు, దూడలు వంటి పెద్ద కండరాల సమూహాలకు అనుకూలం.
• ఫోర్క్ హెడ్: Designed for the neck, spine, and Achilles tendon.
• బుల్లెట్ హెడ్: Ideal for deep tissue massage, trigger points, and small muscle areas.
• ఫ్లాట్ హెడ్: Suitable for full body relaxation and general muscle massage.

To attach a massage head, simply align the head with the opening on the front of the gun and push it firmly into place. To remove, pull the head straight out.

Image 3.2: Diagram illustrating the four interchangeable massage heads: Fork head for neck, Bullet head for deep tissue, Ball head for muscle groups, and Flat head for full body.

4. ఆపరేటింగ్ సూచనలు

4.1 పవర్ ఆన్/ఆఫ్

Press and hold the power button on the LED touch screen to turn the device on or off.

4.2 వేగ స్థాయిలను సర్దుబాటు చేయడం

The Sejoy massage gun features 10 adjustable speed levels, displayed on the LED screen. Tap the power button to cycle through the speed levels. Each tap increases the intensity.

• Levels 1-3 (1800-2000 rpm): Muscle arousal, gentle massage.
• Levels 4-6 (2000-2600 rpm): Fascia relaxation, moderate massage.
• Levels 7-10 (2600-3200 rpm): Lactic acid decomposition, deep tissue massage.

Image 4.1: Close-up of the LED touch screen displaying the current speed level (10) and power button. The image also details the recommended RPM ranges for different speed levels: 1-3 for muscle arousal, 4-6 for fascia relaxation, and 7-10 for lactic acid decomposition.

4.3 Usage Recommendations

Apply the massage gun to the desired muscle area. Move the device slowly over the muscle, applying light to moderate pressure. Avoid prolonged use on a single spot. The device is suitable for use at home, in the gym, or at the office.

Image 4.2: Collage showing various usage scenarios for the Sejoy massage gun, including in a gym, at home, in an office, and during a marathon, highlighting its versatility.

5. నిర్వహణ

5.1 శుభ్రపరచడం

After each use, wipe the device with a slightly damp గుడ్డ. రాపిడి క్లీనర్లను ఉపయోగించవద్దు లేదా పరికరాన్ని నీటిలో ముంచవద్దు.

5.2 నిల్వ

Store the massage gun in a cool, dry place, away from direct sunlight and out of reach of children.

6. ట్రబుల్షూటింగ్

If the problem persists after attempting the suggested solutions, please contact Sejoy customer support.

7. స్పెసిఫికేషన్లు

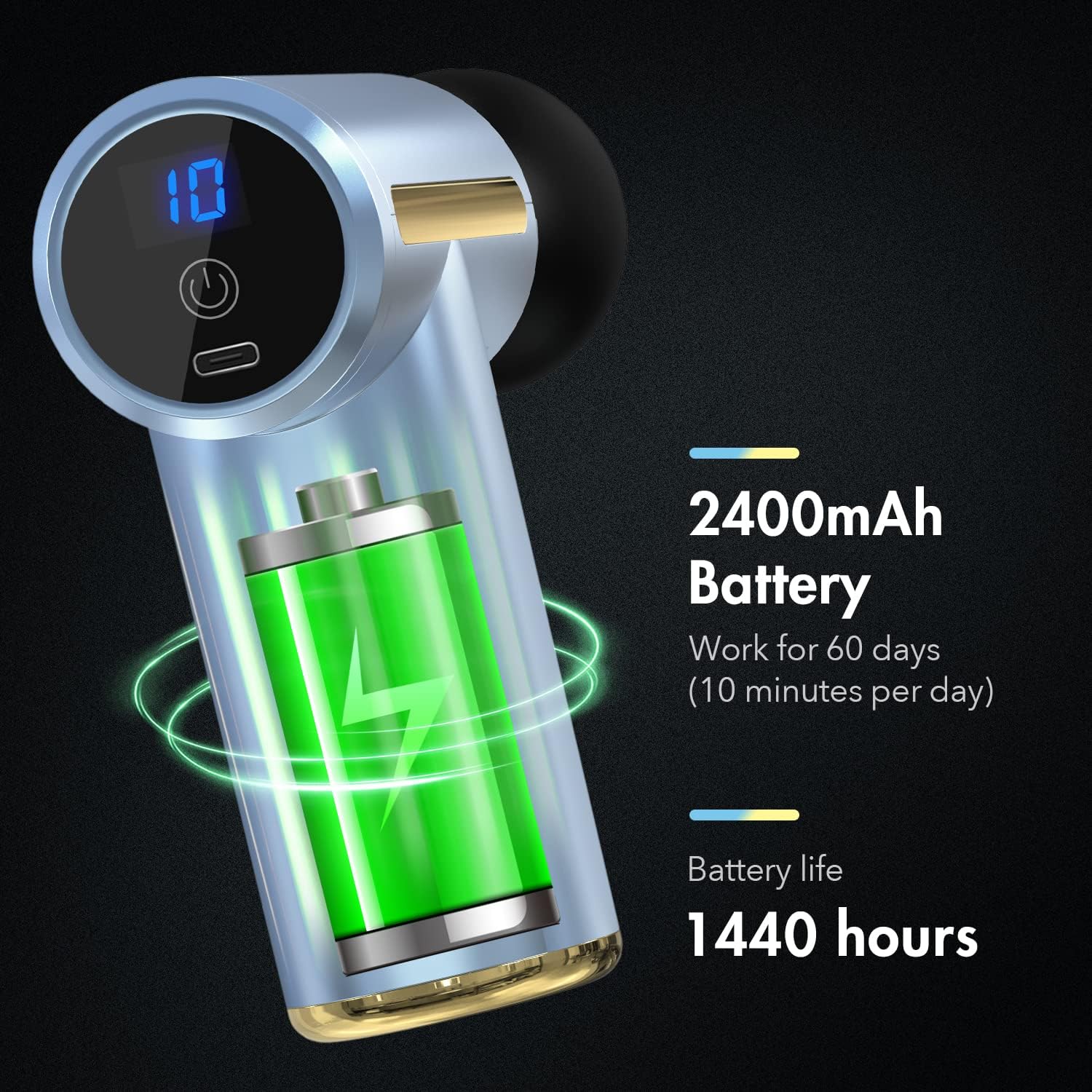

Image 7.1: Illustration of the Sejoy massage gun's internal 2400mAh battery, highlighting its capacity and estimated working time of 60 days (10 minutes per day) or 1440 hours of battery life.

Image 7.2: Depiction of the Sejoy massage gun's ultra-quiet motor, indicating a noise level of less than 45dB, comparable to the sound of leaves rustling.

8. వారంటీ మరియు మద్దతు

Sejoy products are manufactured with quality and precision. For warranty information or technical support, please refer to the contact details provided on the product packaging or visit the official Sejoy webవారంటీ క్లెయిమ్‌ల కోసం దయచేసి మీ కొనుగోలు రుజువును మీ వద్ద ఉంచుకోండి.
