ATOMSTACK F30 Air Assist Pump Instruction Manual

1. పరిచయం

The ATOMSTACK F30 Air Assist Pump is an accessory designed to significantly improve the performance of compatible laser engraving and cutting machines. By providing a focused stream of air, it helps to clear smoke and debris from the laser's path, preventing energy attenuation and ensuring a cleaner, more precise cut or engraving. This system also aids in rapidly cooling the material's surface, minimizing burning and achieving smoother edges on your projects.

Figure 1: The ATOMSTACK F30 Air Assist Pump with its included accessories, showcasing its compact design and components.

2. భద్రతా సమాచారం

Please read and understand all safety instructions before operating the ATOMSTACK F30 Air Assist Pump. Failure to follow these instructions may result in injury or damage to the equipment.

• Always ensure proper ventilation in your workspace when using the air assist pump with a laser engraver.
• Keep the air assist pump and its components away from water or other liquids.
• Do not attempt to disassemble or modify the pump. Refer all servicing to qualified personnel.
• పిల్లలు మరియు పెంపుడు జంతువులకు దూరంగా ఉంచండి.
• ఆపరేషన్‌కు ముందు అన్ని కనెక్షన్‌లు సురక్షితంగా ఉన్నాయని నిర్ధారించుకోండి.

3. ప్యాకేజీ విషయాలు

క్రింద జాబితా చేయబడిన అన్ని వస్తువులు మీ ప్యాకేజీలో చేర్చబడ్డాయని ధృవీకరించండి:

• 1x Air pump (ATOMSTACK F30 Air Assist Pump)
• 1x 2 meters of air pipe
• 4x ఫిక్సింగ్ స్క్రూ
• 4x Fixed cable tie
• 1x Hexagon wrench
• 4x Special dedicated filter glass
• 3x Retrofit air hood

4. సెటప్

Follow these steps to install and set up your ATOMSTACK F30 Air Assist Pump with your compatible laser engraver. The process is designed for ease of use, requiring minimal additional accessories.

1. Prepare the Laser Module: Loosen the screws on your laser module and carefully remove the original protective cover.
2. Remove Original Wind Hood: If present, loosen screws and remove the original wind hood from the laser module.
3. Install New Wind Hood: Install one of the provided suitable modified wind hoods onto the laser module. Secure it with the fixing screws.
4. Insert Filter Glass: Install a dedicated replacement filter glass into the designated slot on the new wind hood.
5. Connect Air Pipe to Laser Module: Connect one end of the 2-meter air pipe to the air inlet on the modified wind hood.
6. Connect Air Pipe to Pump: Connect the other end of the air pipe to the air outlet on the ATOMSTACK F30 Air Assist Pump.
7. పవర్ కనెక్షన్: Plug the power adapter into the air pump's power input, then connect it to a suitable power outlet.

Figure 2: Visual guide illustrating the quick installation process for the air assist pump, using an A10 Pro as an example.

5. ఆపరేటింగ్ సూచనలు

The ATOMSTACK F30 Air Assist Pump is designed for simple operation, providing adjustable airflow to optimize your laser engraving and cutting tasks.

5.1. Power On and Airflow Adjustment

Once connected, turn on the air assist pump using the integrated knob. This knob serves as both the power switch and the airflow adjustment control. Rotate the knob to adjust the airflow from 10 L/min to 30 L/min, depending on your material and desired cutting/engraving effect.

మూర్తి 3: క్లోజ్-అప్ view of the ATOMSTACK F30 Air Assist Pump's control panel, showing the 2-in-1 knob for power and airflow adjustment, and the power input port.

5.2. Benefits During Operation

The adjustable airflow helps to:

• Remove Smoke and Dust: Effectively clears smoke and dust generated during cutting/engraving, preventing energy attenuation and ensuring consistent laser performance.
• Reduce Surface Temperature: Powerful airflow quickly reduces the surface temperature of the material, preventing excessive burning and scorch marks.
• Achieve Cleaner Edges: Contributes to cleaner and smoother cutting edges, enhancing the overall quality of your finished work.

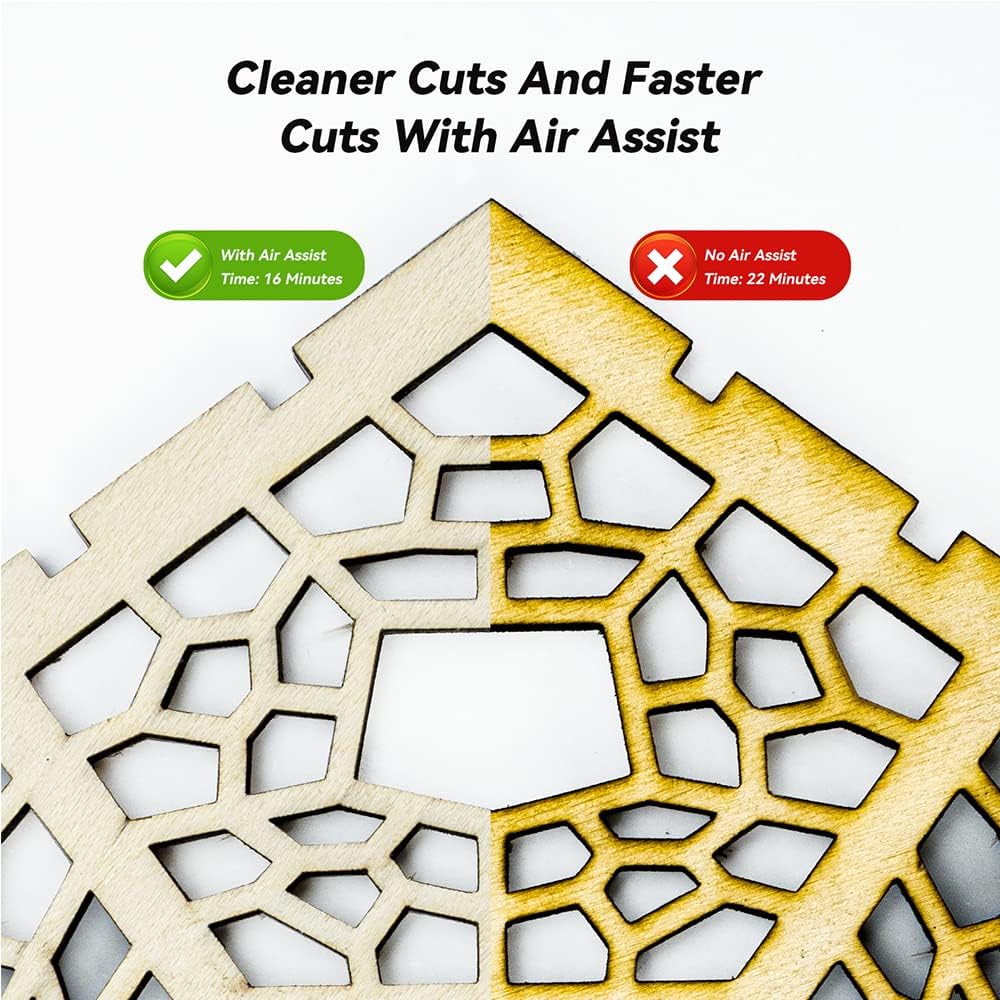

Figure 4: A visual comparison demonstrating the improved cutting effect when using the air assist, resulting in cleaner edges and reduced burning compared to cutting without air assist.

5.3. Low Noise Operation

Even when the airflow is adjusted to its maximum setting, the ATOMSTACK F30 Air Assist Pump operates at a noise level of less than 60dB. This is comparable to the volume of a household electric fan, ensuring a quiet working environment.

Figure 5: The ATOMSTACK F30 Air Assist Pump operating with a sound level meter displaying a low decibel reading, indicating its quiet performance.

6. నిర్వహణ

Regular maintenance ensures the longevity and optimal performance of your ATOMSTACK F30 Air Assist Pump.

• శుభ్రపరచడం: Periodically wipe down the exterior of the pump with a soft, dry cloth. Ensure no dust or debris accumulates around the air intake/outlet.
• ఫిల్టర్ భర్తీ: The package includes dedicated replacement filter glass. Replace the filter glass when it appears dirty or if you notice a decrease in airflow efficiency.
• Air Pipe Inspection: Regularly check the air pipe for any kinks, blockages, or damage. Ensure it is securely connected to both the pump and the laser module.

7. ట్రబుల్షూటింగ్

If you encounter issues with your ATOMSTACK F30 Air Assist Pump, refer to the following common problems and solutions:

ఈ పరిష్కారాలను ప్రయత్నించిన తర్వాత కూడా సమస్య కొనసాగితే, దయచేసి మరింత సహాయం కోసం కస్టమర్ మద్దతును సంప్రదించండి.

8. స్పెసిఫికేషన్లు

9. వారంటీ మరియు మద్దతు

The ATOMSTACK F30 Air Assist Pump comes with a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official ATOMSTACK webసైట్.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact the seller or ATOMSTACK customer service through their official channels. Ensure you have your product model number and purchase details ready when contacting support.
