HUPEJOS LD-001 Type-C Hardwire Kit with Radar Detection User Manual

1. పరిచయం

This manual provides essential information for the proper installation and operation of your HUPEJOS Type-C Hardwire Kit with Radar Detection. This kit is designed to provide continuous power to your compatible dash cam, enabling advanced parking monitoring features and battery protection. Please read this manual thoroughly before installation and use.

2. పెట్టెలో ఏముంది

The HUPEJOS LD-001 Hardwire Kit package includes the following components:

• 1x Hardwire Kit with integrated Radar Detection module
• Various fuse taps for installation

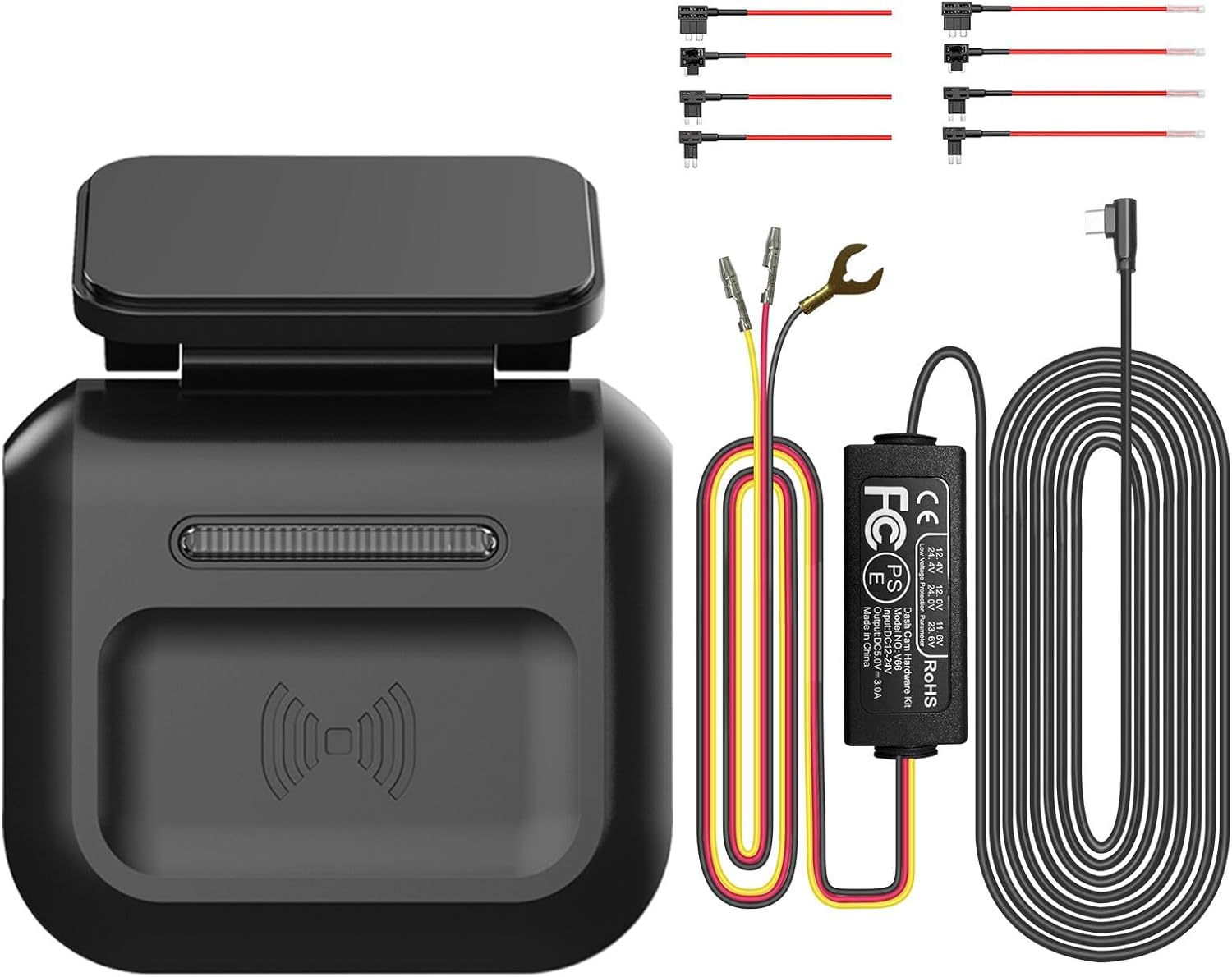

Figure 1: Components of the HUPEJOS Type-C Hardwire Kit.

3. స్పెసిఫికేషన్లు

4. సెటప్ & ఇన్‌స్టాలేషన్

Proper installation of the hardwire kit is crucial for optimal performance and to prevent vehicle battery drain. Follow these steps carefully:

4.1. భద్రతా జాగ్రత్తలు

• Before connecting the hardwire kit, ensure the vehicle engine is OFF.
• Disconnect the negative terminal of the car battery to prevent electrical shorts.
• If you are unsure about any steps, consult a professional auto technician.

4.2. Connecting the Hardwire Kit to the Fuse Box

The hardwire kit connects directly to your vehicle's fuse box, providing a permanent and discreet power source for your dash cam.

1. Identify Fuse Box: Locate your vehicle's fuse box, typically found under the dashboard on the driver's side.
2. Connect ACC Wire (Red): The red wire from the hardwire kit must be connected to an ACC (Accessory) fuse. An ACC fuse provides power only when the vehicle's ignition is on. Use the provided fuse tap to connect the red wire to an appropriate ACC fuse slot.


Figure 2: Connecting the red ACC wire to an accessory fuse slot.

3. Connect BAT+ Wire (Yellow): The yellow wire from the hardwire kit must be connected to a BAT+ (Battery) fuse. A BAT+ fuse provides continuous power even when the vehicle is turned off, which is essential for parking monitoring. Use a fuse tap to connect the yellow wire to a suitable BAT+ fuse slot.

Figure 3: Connecting the yellow BAT+ wire to a constant power fuse slot.
4. Connect GND Wire (Black): The black wire from the hardwire kit is the ground wire. Connect it to a metal part of the vehicle's chassis, such as a screw or bolt, to ensure a proper ground connection.


Figure 4: Connecting the black ground wire to a metal part of the car.

5. General Wiring Diagram: For a visual guide on connecting the hardwire kit to your fuse box, refer to the diagram below.


Figure 5: General wiring diagram for the hardwire kit.

4.3. Cable Routing & Radar Unit Mounting

Once the hardwire kit is connected, route the cables neatly to the dash cam and mount the radar detection unit.

1. రూట్ కేబుల్స్: Carefully tuck the power cable along the vehicle's interior trim, headliner, and A-pillars to conceal it and ensure a clean installation.


చిత్రం 6: ఉదాample of routing cables along the vehicle's interior for a discreet installation.

2. Mount Radar Unit: The radar detection unit should be mounted on the windshield, typically near the dash cam, ensuring it has a clear view forward. Use the provided 3M adhesive tape to secure it. The radar unit should be perpendicular to the ground for optimal detection.

Figure 7: The radar detection module of the hardwire kit.
3. డాష్ క్యామ్‌కి కనెక్ట్ చేయండి: Plug the Type-C connector from the hardwire kit into your compatible HUPEJOS dash cam.

4.4. ఇన్‌స్టాలేషన్ వీడియోలు

For visual guidance on the installation process, please refer to the following seller-provided videos:

• Installation of Hardwire Kit: This video demonstrates the general steps for installing the hardwire kit.

  Video 1: General installation steps for the hardwire kit.
• How to Install Hardwire Kit with Radar: A specific guide on installing the hardwire kit with the radar module.

  Video 2: Detailed installation guide for the hardwire kit with radar.

• Installation of 24H Parking Mode Radar Detection: This video focuses on setting up the radar detection for 24-hour parking mode.

  Video 3: Setup for 24-hour parking mode with radar detection.

5. ఆపరేటింగ్ సూచనలు

5.1. 24-Hour Radar Intelligent Parking Monitoring

The hardwire kit's integrated radar system provides continuous surveillance even when your vehicle is parked and the engine is off. This intelligent system helps conserve power and memory by only recording when necessary.

• గుర్తింపు పరిధి: The radar monitors objects within a 3 to 4-meter range in front of the vehicle.
• స్వయంచాలక రికార్డింగ్: If an object is detected approaching the car while parked, the dash cam will automatically record a 1-minute video.
• నిరంతర రికార్డింగ్: If movement persists after the initial 1-minute recording, the system will continue to record until the object leaves the detection zone.
• Power & Memory Saving: The system automatically stops recording and shuts down when no movement is detected, optimizing power consumption and memory card usage.

Figure 8: Diagram illustrating the radar intelligent monitoring system.

Figure 9: Benefits of radar sensor recording for parking monitoring.

5.2. తక్కువ వాల్యూమ్tagఇ రక్షణ

The hardwire kit is equipped with multiple security protections to safeguard your vehicle's battery and the dash cam:

• ఆటోమేటిక్ పవర్ కట్-ఆఫ్: If the vehicle's voltage drops below 11.8V (±0.2V), the hardwire kit will automatically cut off power to the dash cam after 60 seconds. This prevents the car battery from being completely drained.
• భద్రతా లక్షణాలు: Includes protection against over-current, short-circuit, reverse connection, and overheating.
• అనుకూలత గమనిక: This hardwire kit is not applicable for trucks with voltagఇ 24V పైన.

Figure 10: Illustration of the low-voltage battery drain protection feature.

6. ట్రబుల్షూటింగ్

If you encounter any issues with your HUPEJOS Hardwire Kit, please consider the following general troubleshooting steps:

• డాష్ కామ్‌కి పవర్ లేదు: Check all fuse box connections (ACC, BAT+, GND) to ensure they are secure and correctly wired. Verify that the fuses are not blown.
• బ్యాటరీ డ్రెయిన్: తక్కువ వాల్యూమ్ ఉండేలా చూసుకోండిtage protection is functioning correctly. If the dash cam continues to drain the battery, re-check the BAT+ connection and ensure it's not drawing excessive power.
• పార్కింగ్ మోడ్ సక్రియం కావడం లేదు: Verify that the radar unit is correctly mounted and has a clear view. Check the dash cam settings to ensure parking mode is enabled and configured to work with the hardwire kit.
• అడపాదడపా ఆపరేషన్: Inspect all cable connections for looseness or damage. Ensure the Type-C connector is fully inserted into the dash cam.

7. వారంటీ & సపోర్ట్

The HUPEJOS LD-001 Type-C Hardwire Kit comes with a 1 సంవత్సరాల వారంటీ కొనుగోలు చేసిన తేదీ నుండి. ఈ వారంటీ సాధారణ ఉపయోగంలో తయారీ లోపాలు మరియు లోపాలను కవర్ చేస్తుంది.

For technical support, warranty claims, or any questions regarding your product, please contact HUPEJOS customer service through the retailer where you purchased the product or visit the official HUPEJOS webసైట్.
