FITUEYES Floor TV Stand with Swivel Tilt Mount

1. పరిచయం

Thank you for choosing the FITUEYES Floor TV Stand with Swivel Tilt Mount. This manual provides essential information for the safe and correct assembly, operation, and maintenance of your new TV stand. Please read all instructions carefully before assembly and retain this manual for future reference.

భద్రతా సమాచారం

• బరువు సామర్థ్యం: This TV stand is designed to support TVs up to 88 lbs (40 kg). Do not exceed this weight limit.
• టీవీ పరిమాణం అనుకూలత: Compatible with TVs from 32 to 75 inches.
• VESA అనుకూలత: Ensure your TV's VESA mounting holes fall between 100(w)x100(h) mm to 600(w)x400(h) mm.
• స్థిరత్వం: Always ensure the stand is placed on a stable, level surface. Do not allow children to climb on the stand or TV.
• అసెంబ్లీ: Follow all assembly steps precisely. Incorrect assembly can lead to product failure or injury.

2. ప్యాకేజీ విషయాలు

Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

భాగాల జాబితా:

• ప్రధాన మద్దతు స్తంభం
• Base Plate (Durable Iron)
• TV మౌంటు బ్రాకెట్
• సర్దుబాటు చేయగల మీడియా షెల్ఫ్
• Hardware Kit (screws, washers, spacers, Allen keys)
• కేబుల్ నిర్వహణ క్లిప్‌లు

చిత్రం: VESA Compatibility Diagram. This image illustrates the various VESA mounting patterns supported by the TV stand, ranging from 100x100mm to 600x400mm, ensuring compatibility with a wide range of TV sizes.

3. సెటప్ మరియు అసెంబ్లీ

Assembly is designed to be straightforward. All necessary tools and hardware are included. It is recommended to have a second person assist with mounting the TV to the stand.

అసెంబ్లీ దశలు:

1. ఆధారాన్ని అటాచ్ చేయండి: Secure the main support pole to the durable iron base plate using the provided screws and Allen key.
2. Install the TV Mounting Bracket: Attach the TV mounting bracket to the main support pole at your desired initial height.
3. టీవీని అమర్చండి: Carefully attach the TV to the mounting bracket. Ensure the VESA screws are tightened securely.
4. మీడియా షెల్ఫ్‌ను ఇన్‌స్టాల్ చేయండి: Position the adjustable media shelf on the main support pole at your preferred height and secure it.
5. కేబుల్ నిర్వహణ: Use the included cable management clips to route and organize TV and device cables along the back of the main pole.

చిత్రం: Durable Iron Base. This image highlights the robust construction of the stand's iron base, emphasizing its durability compared to alternative fragile glass bases.

చిత్రం: Sturdy Safety TV Lock. This image shows the safety lock feature, which helps secure the TV to the mount and prevents accidental dislodgement.

4. ఆపరేటింగ్ సూచనలు

ఎత్తు సర్దుబాటు

The TV stand offers height adjustment from 39.1 inches (994mm) to 45 inches (1144mm). To adjust the height, loosen the securing bolts on the main support pole, slide the TV mount to the desired height, and re-tighten the bolts firmly.

చిత్రం: 4 Levels Height Adjustment. This diagram illustrates the adjustable height range of the TV stand, allowing users to set the TV at their most comfortable viewing స్థాయి.

స్వివెల్ ఫంక్షన్

The TV mount allows for a ±30 degree swivel (left/right). Gently push the TV to the desired angle. This feature provides flexible viewing angles from various positions in the room.

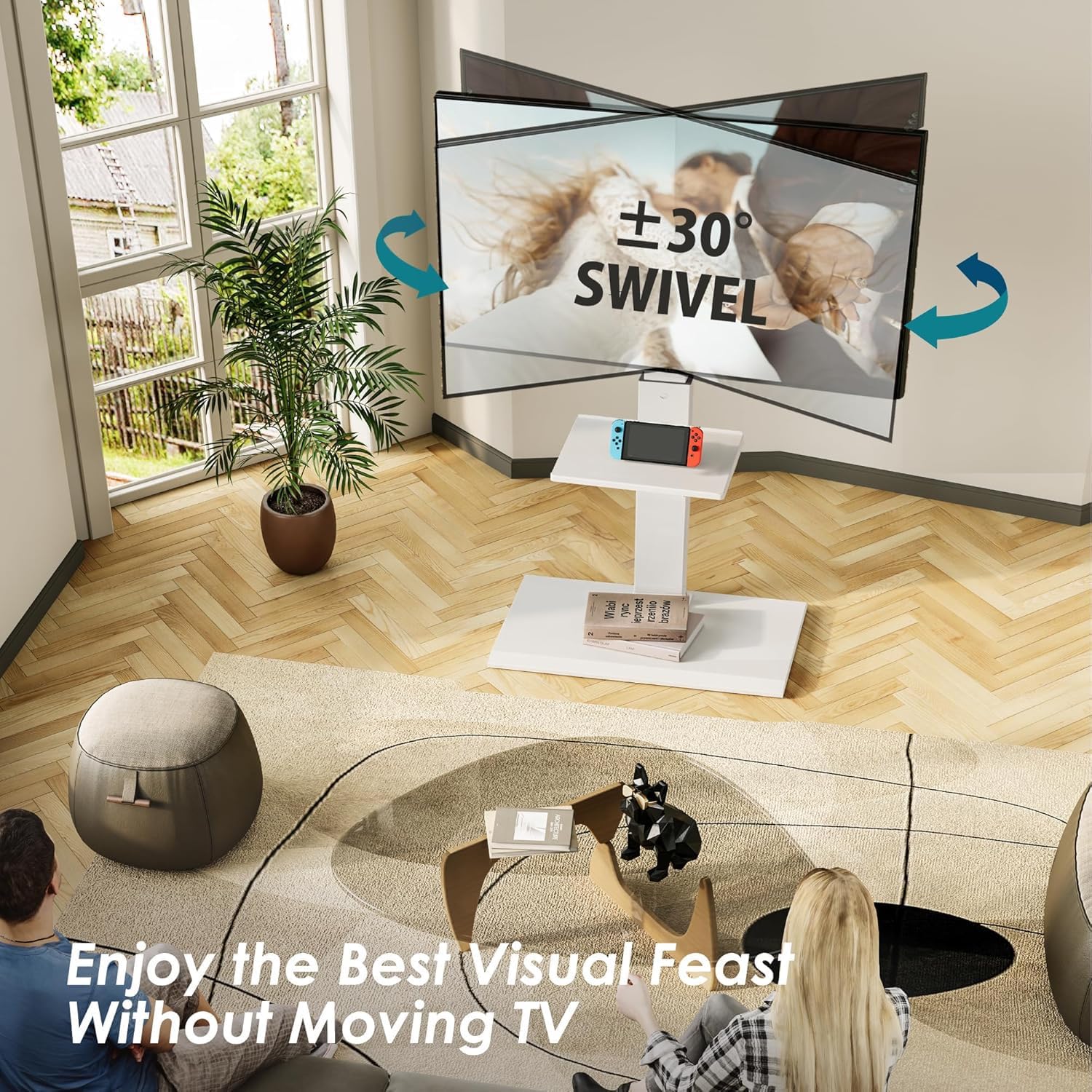

చిత్రం: Swivel Feature. This image demonstrates the TV stand's ability to swivel the television ±30 degrees, offering versatile viewing కోణాలు.

టిల్ట్ ఫంక్షన్

The TV mount can tilt 5 degrees up and -15 degrees down. To adjust the tilt, loosen the tilt knobs on the side of the TV bracket, adjust the TV to the desired angle, and re-tighten the knobs. This helps reduce glare and optimize viewing సౌకర్యం.

చిత్రం: Tilt Function. This image illustrates the tilt capability of the TV mount, allowing for upward and downward angle adjustments for optimal viewing.

సర్దుబాటు చేయగల మీడియా షెల్ఫ్

The media shelf can be adjusted vertically along the main support pole to accommodate various devices such as DVD players, DVRs, gaming systems, or soundbars. Loosen the shelf's securing knobs, move to the desired height, and re-tighten.

కేబుల్ నిర్వహణ

Utilize the integrated cable management clips on the rear of the main pole to keep cables organized and out of sight, contributing to a tidy appearance.

5. నిర్వహణ

• శుభ్రపరచడం: Wipe the stand with a soft, dry cloth. Avoid abrasive cleaners or harsh chemicals that may damage the finish.
• సాధారణ తనిఖీలు: అన్ని స్క్రూలు మరియు బోల్ట్‌లు బిగుతుగా ఉన్నాయని నిర్ధారించుకోవడానికి కాలానుగుణంగా వాటిని తనిఖీ చేయండి. స్థిరత్వాన్ని కొనసాగించడానికి అవసరమైతే మళ్ళీ బిగించండి.
• బరువు పంపిణీ: మీడియా షెల్ఫ్‌లోని బరువు సమానంగా పంపిణీ చేయబడిందని మరియు దాని సామర్థ్యాన్ని మించకుండా చూసుకోండి.

6. ట్రబుల్షూటింగ్

సాధారణ సమస్యలు:

• స్టాండ్ వణుకుతూ ఉంది: Ensure all connections are securely tightened. Check that the stand is on a flat, level surface.
• TV does not fit the mount: Verify your TV's VESA pattern is within the compatible range (100x100 to 600x400 mm) and that the TV weight does not exceed 88 lbs.
• Difficulty adjusting height/swivel/tilt: Ensure all locking mechanisms or knobs are loosened before attempting adjustment, and re-tighten them afterward.

If you encounter any issues not covered here, please contact FITUEYES customer support for assistance.

7. స్పెసిఫికేషన్లు

8. వారంటీ మరియు మద్దతు

వారంటీ సమాచారం

FITUEYES products typically come with a warranty of up to 10 years. Please refer to your purchase documentation or the official FITUEYES website for specific warranty terms and conditions applicable to your product.

రిటర్న్ పాలసీ

This product is subject to a 30-day return policy for refund or replacement, as per the seller's terms at the time of purchase.

కస్టమర్ మద్దతు

For technical assistance, missing parts, or any questions regarding your FITUEYES TV stand, please visit the official FITUEYES store or contact their customer service directly.

అధికారిక స్టోర్: FITUEYES Store on Amazon
