పరిచయం
The DENALI D3 LED Driving Light Pod with DataDim™ Technology is engineered for superior illumination and durability. Featuring the TriOptic Lens System, it includes both spot and hybrid lenses to adapt to various driving conditions. Designed with high-intensity Cree LEDs, the D3 pod delivers 2100 lumens per pod, ensuring excellent visibility. Its robust construction includes DrySeal Submersible Waterproofing and Impact PC Polycarbonate bezels, making it suitable for extreme environments. The integrated DataDim 3-wire smart-dimming technology allows for seamless integration with DENALI dimming controllers.
పెట్టెలో ఏముంది
- DENALI D3 LED Driving Light Pod
- TriOptic Lens System (includes pre-installed spot lens and an additional hybrid lens)
- తక్కువ ప్రోfile mounting bracket with stainless steel hardware
- Wiring harness with DataDim™ technology
Image: Contents of the DENALI D3 LED Driving Light Pod package, showing the light pod, its attached wiring, and an additional clear lens for different beam patterns.
సెటప్ మరియు ఇన్స్టాలేషన్
Proper installation is crucial for optimal performance and safety. It is recommended to have installation performed by a qualified technician if you are not familiar with vehicle electrical systems.
- Mounting the Light Pod: Use the provided low-profile mounting bracket and stainless steel hardware to securely attach the D3 light pod to your desired location on the vehicle. Ensure the mounting surface is stable and can support the light's weight.
- వైరింగ్ కనెక్షన్: Connect the D3 light pod's 3-wire harness to your vehicle's electrical system. The DataDim™ technology allows for smart dimming when connected to a compatible DENALI dimming controller. Refer to your vehicle's wiring diagram and the DENALI controller's instructions for specific connections.
- Lens Selection: The D3 pod comes with a spot lens pre-installed, offering a focused beam for long-distance illumination. An additional hybrid driving lens is included for a broader, more diffused light pattern, suitable for general driving. To change the lens, carefully remove the bezel and swap the lens, ensuring it is seated correctly before reattaching the bezel.
చిత్రం: వివరణాత్మక view of the DENALI D3 LED Driving Light Pod, highlighting its compact design and powerful LED array.

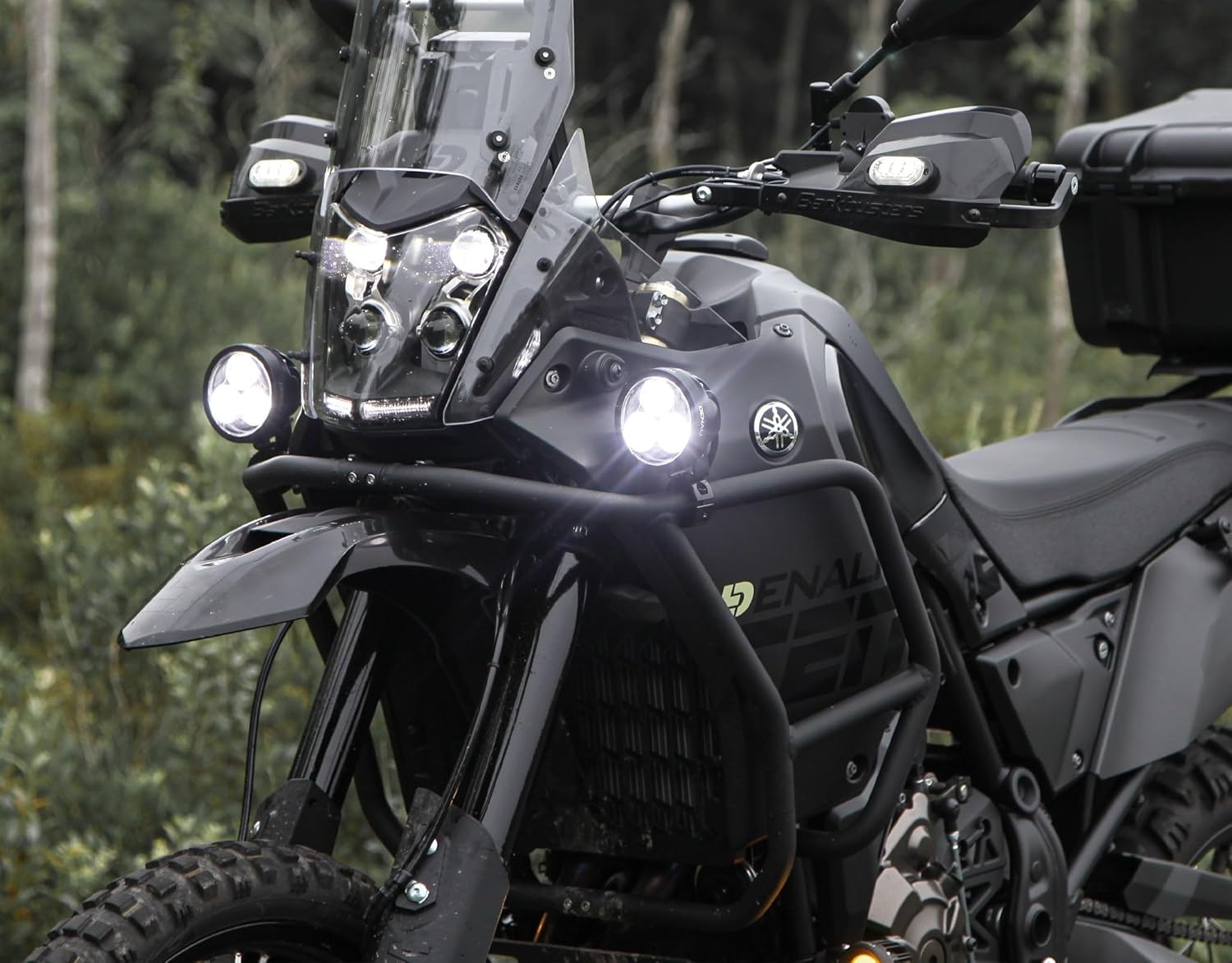

Image: DENALI D3 LED Driving Light Pods mounted on the front of a motorcycle, demonstrating their integrated appearance and illumination.
ఆపరేటింగ్ సూచనలు
Once installed, the DENALI D3 LED Driving Light Pod operates in conjunction with your vehicle's electrical system and any connected DENALI dimming controller.
- పవర్ ఆన్/ఆఫ్: The lights will typically activate with your vehicle's high beam or a dedicated switch, depending on your wiring configuration.
- DataDim™ Functionality: If connected to a DENALI DataDim™ controller, the lights will automatically switch between full and half intensity with your vehicle's high and low beams, respectively. This provides seamless integration and enhanced visibility.
- బీమ్ నమూనాలు: Utilize the spot lens for maximum distance illumination on open roads. Switch to the hybrid lens for a wider beam, ideal for off-road conditions or areas requiring broader peripheral vision.
Image: A DENALI D3 LED Driving Light Pod with an optional yellow lens, mounted on a motorcycle, illustrating alternative lighting options.
నిర్వహణ
The DENALI D3 LED Driving Light Pod is designed for minimal maintenance due to its durable construction.
- శుభ్రపరచడం: Periodically clean the lens and housing with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the polycarbonate lens or finish.
- తనిఖీ: Regularly check the mounting hardware for tightness and inspect the wiring for any signs of wear or damage.
- మన్నిక లక్షణాలు: The DrySeal Submersible Waterproof design ensures the light is protected from water ingress. The Impact PC Polycarbonate bezels are resistant to cracking, fading, and corrosion, maintaining the light's appearance and integrity over time. LiveActive Thermal Management actively cools the LEDs, preventing overheating and ensuring consistent light output.
ట్రబుల్షూటింగ్
If you encounter issues with your DENALI D3 LED Driving Light Pod, consider the following:
- లైట్ ఆన్ కాదు:
- Check all wiring connections for proper contact and ensure they are secure.
- Verify the fuse in the wiring harness (if applicable) is not blown.
- Ensure the vehicle's power source is active.
- Dimming Issues (with DataDim™):
- Confirm the DataDim™ controller is correctly wired and functioning.
- Ensure the vehicle's high/low beam signals are properly connected to the controller.
- తగ్గిన కాంతి అవుట్పుట్:
- ఏదైనా మురికి లేదా శిథిలాలను తొలగించడానికి లెన్స్ ఉపరితలాన్ని శుభ్రం చేయండి.
- Check for any obstructions in front of the light.
If problems persist, contact DENALI customer support for further assistance.
స్పెసిఫికేషన్లు
| తయారీదారు | విజన్ X లైటింగ్ |
| బ్రాండ్ | దేనాలి |
| మోడల్ | DNL.D3.050 |
| వస్తువు బరువు | 1 పౌండ్లు |
| ప్యాకేజీ కొలతలు | 7 x 5 x 2 అంగుళాలు |
| బల్బ్ రకం | LED (High-Intensity Series Cree LEDs) |
| లైట్ అవుట్పుట్ | 2100 lumens per pod |
| ప్రత్యేక లక్షణాలు | Waterproof (DrySeal Submersible), DataDim™ Technology, Impact PC Polycarbonate Bezels, LiveActive Thermal Management |
| ధృవపత్రాలు | SAE/DOT & ECE certified (street-legal spot and hybrid beams) |
వారంటీ మరియు మద్దతు
DENALI products are built to high standards and are backed by a manufacturer's warranty. For specific warranty details, including coverage period and terms, please refer to the warranty information provided with your purchase or visit the official DENALI webసైట్.
For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact DENALI customer service. You can find contact information and additional resources by visiting the DENALI Store on Amazon or the official DENALI webసైట్.
