Fenix HL32R-T Trail Running Headlamp వినియోగదారు మాన్యువల్

1. పరిచయం

This manual provides detailed instructions for the safe and efficient use of your Fenix HL32R-T Trail Running Headlamp. Please read this manual thoroughly before operation and retain it for future reference. The Fenix HL32R-T is a high-performance headlamp designed for trail running, offering dual beam functionality with both spotlight and floodlight modes, USB-C recharging, and a lightweight, durable magnesium alloy casing.

2. ప్యాకేజీ విషయాలు

• Fenix HL32R-T Headlamp
• ARB-LP1900 Rechargeable Battery
• USB-C ఛార్జింగ్ కేబుల్
• హెడ్ ​​బ్యాండ్
• LumenTac Cable Organizer

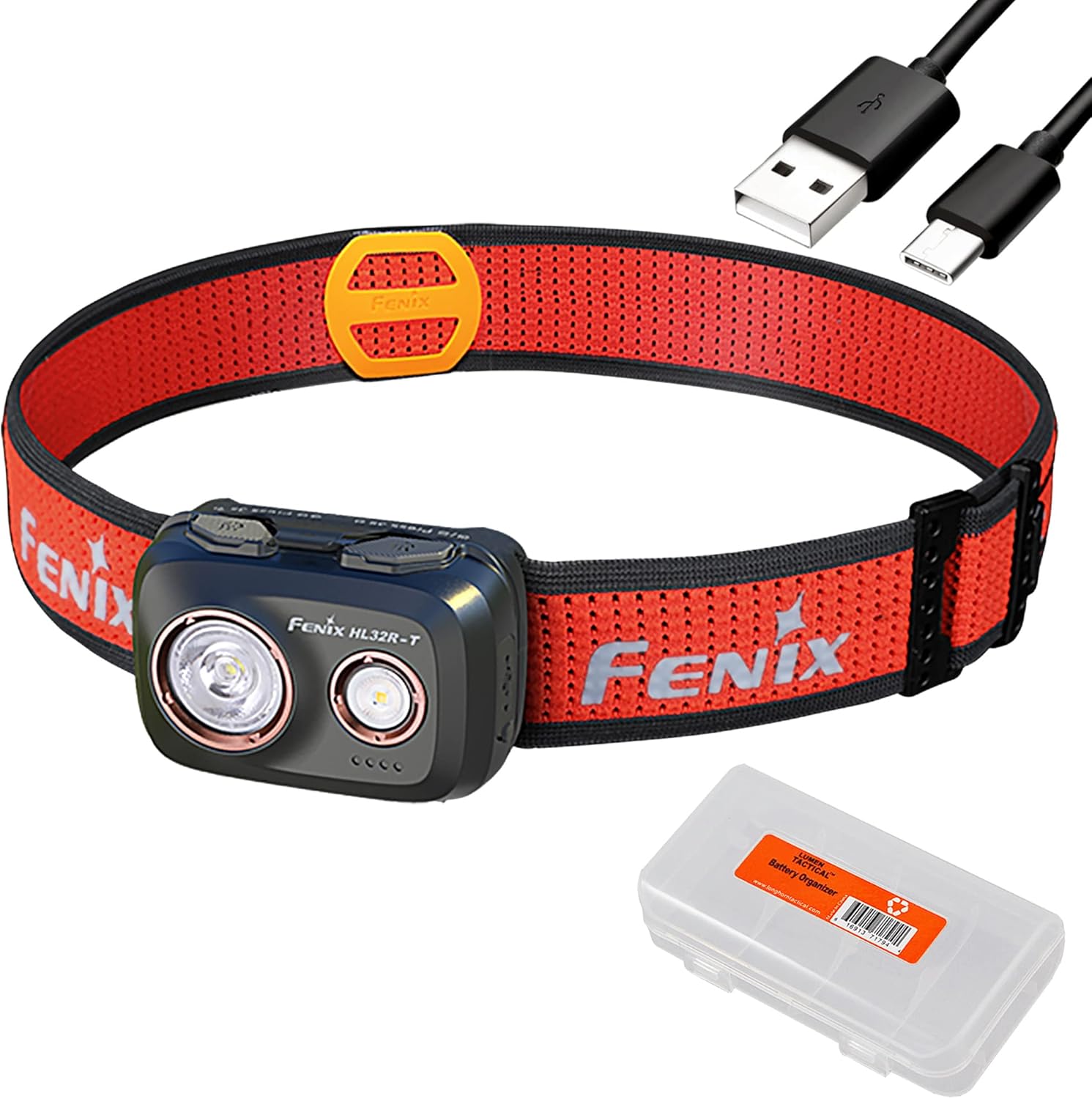

Image: Fenix HL32R-T Headlamp, USB-C cable, and LumenTac cable organizer.

3 కీ ఫీచర్లు

• Bright Dual Beam: Emits up to 800 lumens spotlight for long-range illumination and a wide neutral floodlight for even coverage.
• USB-C పునర్వినియోగపరచదగినది: Fully charges in approximately 3 hours. Offers up to 3 hours runtime on high mode and 20 hours on low mode.
• ద్వంద్వ శక్తి ఎంపికలు: Can operate with the included ARB-LP1900 battery or three AAA batteries (not included).
• సౌకర్యవంతమైన డిజైన్: Features a wide, lightweight, and highly visible headband with single-hand adjustment.
• మన్నికైన నిర్మాణం: Magnesium alloy housing is 32% lighter than aluminum, weighing only 3.77 ounces (107g).
• వాతావరణ నిరోధకత: IP66 water resistance rating and 2-meter impact resistance. Operates reliably from -35°C to 45°C.

Image: The Fenix HL32R-T headlamp in use during trail running, emphasizing its lightweight and durable casing.

4. సెటప్

4.1 బ్యాటరీ ఇన్‌స్టాలేషన్

1. Open the battery compartment cover located at the rear of the headlamp యూనిట్.
2. Insert the included Fenix ARB-LP1900 Li-ion battery with the positive (+) terminal facing inward.
3. Alternatively, for emergency use, three AAA batteries can be inserted. Ensure correct polarity.
4. నీటి నిరోధకతను నిర్వహించడానికి బ్యాటరీ కంపార్ట్‌మెంట్ కవర్‌ను సురక్షితంగా మూసివేయండి.

4.2 ఛార్జింగ్

1. హెడ్‌ల్‌పై USB-C ఛార్జింగ్ పోర్ట్‌ను గుర్తించండి.amp.
2. అందించిన USB-C ఛార్జింగ్ కేబుల్‌ను హెడ్‌ల్‌కు కనెక్ట్ చేయండిamp and a compatible USB power source (e.g., wall adapter, power bank, computer).
3. The battery level indicators will illuminate during charging. A full charge typically takes 3 hours.
4. ఛార్జింగ్ పూర్తయిన తర్వాత కేబుల్‌ను డిస్‌కనెక్ట్ చేయండి.

Image: The Fenix HL32R-T headlamp being charged via USB-C, showing its compatibility with both rechargeable and AAA batteries.

5. ఆపరేటింగ్ సూచనలు

5.1 పవర్ ఆన్/ఆఫ్

Press and hold either of the two switches for 0.5 seconds to turn the headlamp ఆన్ లేదా ఆఫ్.

5.2 మోడ్ ఎంపిక

హెడ్డిల్తోamp on, single-click either switch to cycle through the output modes: Low → Med → High → SOS (for spotlight) or Low → Med → High (for floodlight).

5.3 లాకౌట్ ఫంక్షన్

• లాక్: Press and hold either switch, or simultaneously press both switches for 3 seconds to activate the lockout function. This prevents accidental activation.
• అన్‌లాక్: Simultaneously press both switches for 3 seconds to unlock the headlamp.

5.4 Headband Adjustment

The SPORT Headband Fit System allows for quick, single-hand adjustment of the headband for a secure and comfortable fit during activity. Simply rotate the dial on the back of the headband to tighten or loosen.

చిత్రం: వివరణాత్మకం view of the dual switch controls on the Fenix HL32R-T headlamp.

Image: Demonstrating the single-hand adjustment of the SPORT Headband Fit System for comfort and safety.

6. Light Modes and Performance

6.1 Spotlight Mode

The spotlight mode provides a focused beam for clear vision and impressive beam distance, ideal for identifying obstacles and navigating trails at a distance.

6.2 Floodlight Mode

The floodlight mode offers a broad illumination area with a smooth and balanced light distribution, suitable for near-range viewing and general awareness of your surroundings.

Image: Visual comparison of the dual light sources, spotlight and floodlight, emitted by the headlamp.

Image: Depiction of the headlamp's spotlight mode, providing high output and clear vision over distance.

Image: Depiction of the headlamp's floodlight mode, offering broad illumination for near-range viewing.

7. నిర్వహణ

• తలపాగాను శుభ్రం చేయండిamp క్రమం తప్పకుండా మృదువైన గుడ్డతో తుడవండి.
• హెడ్ల్ ఉంటేamp will not be used for an extended period, remove the battery to prevent leakage.
• హెడ్ల్ను నిల్వ చేయండిamp ప్రత్యక్ష సూర్యకాంతి నుండి దూరంగా చల్లని, పొడి ప్రదేశంలో.
• Ensure the USB-C port cover is properly sealed to maintain water resistance.

8. ట్రబుల్షూటింగ్

• హెడ్ల్amp ఆన్ చేయదు: Check if the battery is correctly installed and charged. Ensure the lockout function is not active.
• కాంతి మసకగా లేదా మినుకుమినుకుమంటుంది: బ్యాటరీ తక్కువగా ఉండవచ్చు. బ్యాటరీని రీఛార్జ్ చేయండి లేదా మార్చండి.
• హెడ్ల్amp ఛార్జ్ చేయదు: Verify the USB-C cable is properly connected and the power source is functional. Try a different cable or power source.
• Headband discomfort: Adjust the SPORT Headband Fit System to find a comfortable and secure fit.

If issues persist, please contact Fenix customer support for assistance.

9. స్పెసిఫికేషన్లు

Image: Technical parameters table detailing performance across different light modes.

10. వారంటీ మరియు మద్దతు

Fenix products are manufactured with high-quality materials and craftsmanship. For information regarding warranty coverage, service, or technical support, please refer to the official Fenix website or contact your authorized Fenix dealer. Keep your purchase receipt as proof of purchase for warranty claims.
