1. పరిచయం
This manual provides essential information for the safe and effective operation of your SCULPFUN S30 Ultra 33000mW Laser Engraving Machine. This high-power laser engraver is designed for precision engraving and cutting of various materials, including wood, metal, and acrylic. Please read this manual thoroughly before initial use to ensure proper setup, operation, and maintenance.
Figure 1.1: SCULPFUN S30 Ultra 33000mW Laser Engraving Machine with example engravings.
2. భద్రతా జాగ్రత్తలు
WARNING: Laser radiation can cause eye and skin damage. Always follow safety guidelines.
- Due to the powerful laser, never operate the engraving machine unsupervised. Pause operation if you must leave the area.
- Always install the laser protective cover before operating the machine. If the cover is not installed, wear appropriate laser safety goggles.
- Do not touch the laser beam with your hands or any body part, as this can cause severe burns.
- Avoid strong impacts to the machine, which could damage components or misalign the laser.
- Children under the age of 14 are prohibited from using this product. Children over 14 require adult supervision during operation.
- Do not direct the laser beam at any specular (mirror-like) reflective objects, as this can cause injury to the operator or damage the laser.
- Ensure adequate ventilation in the work area to dissipate fumes and particles generated during engraving and cutting.

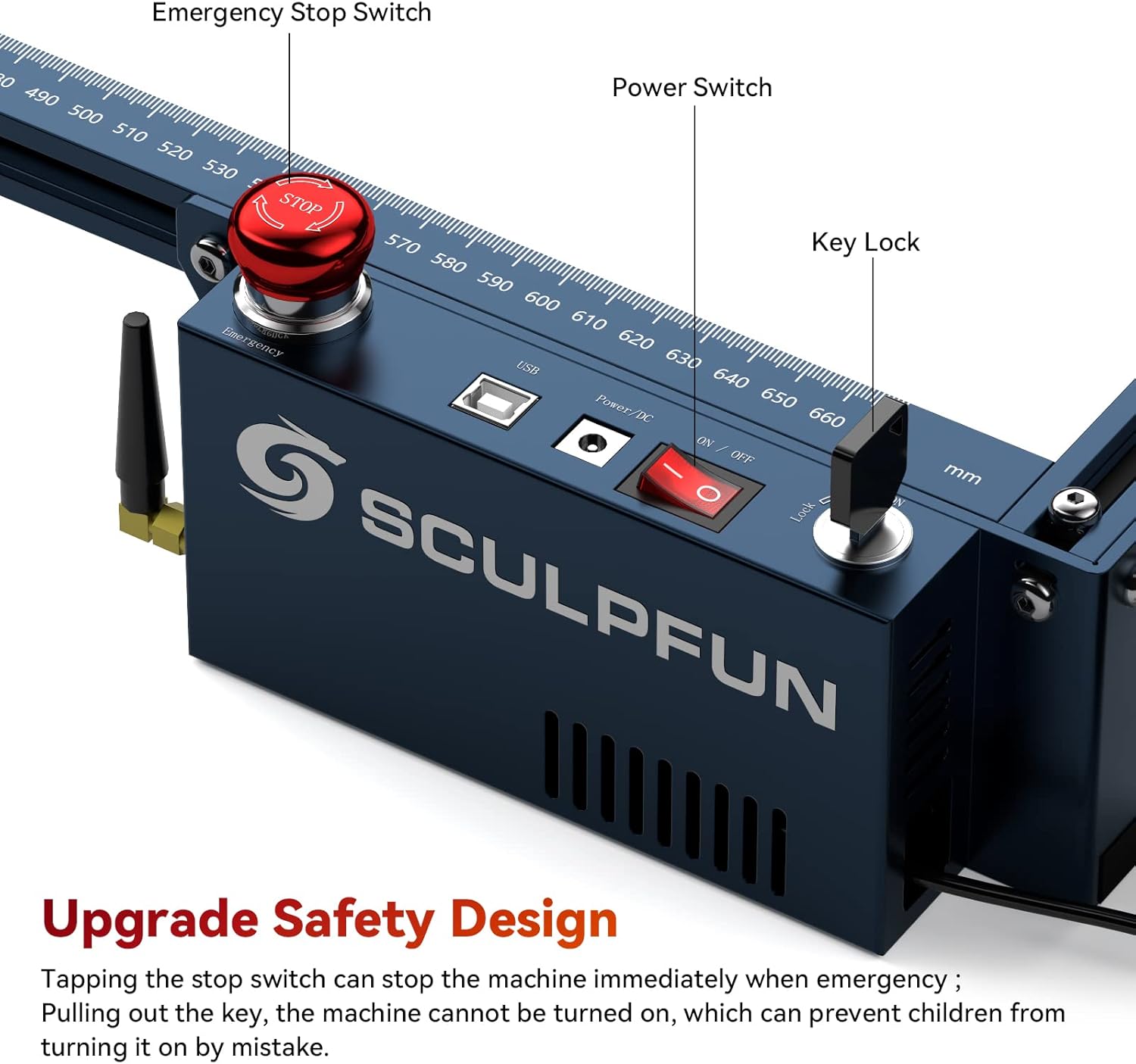

Figure 2.1: Safety features including Emergency Stop Switch and Key Lock for enhanced user protection.
3. ఉత్పత్తి లక్షణాలు
- Powerful 33W Laser Output: Utilizes upgraded 6*6W diodes for superior cutting and engraving capabilities, capable of cutting 20mm lightweight wood, 15mm paulownia wood, or 0.05mm stainless steel in a single pass.
- పెద్ద చెక్కే ప్రాంతం: Features a generous 600x600mm engraving area, accommodating large-scale projects.
- 32-bit Air-Assisted Motherboard: Equipped with an advanced motherboard supporting Bluetooth wireless connection and intelligent control of the air assist function via LightBurn's M8 button.
- Industrial-Grade Cutting Accuracy: Achieves 0.005mm high-precision engraving with an upgraded V2.0 X-axis linear slide rail, minimizing moiré patterns.
- Replaceable Protective Lens: Innovative design allows for easy replacement of the laser lens, significantly extending the laser's lifespan. A free lens is included.
- Enhanced 42-bit Stepping Motor: Provides robust power for high-speed movement, with a torque of 4.2 Kg·cm, ensuring stability even with heavier loads.
- Built-in High-Pressure Air-Assisted Nozzle: Generates powerful airflow to improve cutting efficiency by over 5 times and ensures clean cutting surfaces.
- Solid and Durable Frame: Constructed from high-strength aluminum alloy, capable of withstanding up to 50KG, ensuring long-term precision and durability.
Figure 3.1: Demonstrating the 33W laser power, cutting capabilities, and metal colorization feature.
Figure 3.2: Automatic Controlled Air Assist (M8) in action, improving cutting quality.
4. సెటప్
Unpack all components carefully and verify against the packing list. Assemble the machine according to the detailed instructions provided in the separate assembly guide (not included in this manual). Ensure all connections are secure and the machine is placed on a stable, level surface in a well-ventilated area.
- ఫ్రేమ్ అసెంబ్లీ: Connect the aluminum alloy frame components securely.
- లేజర్ మాడ్యూల్ ఇన్స్టాలేషన్: Mount the laser module onto the X-axis carriage.
- Air Assist Connection: Connect the air hose from the air pump to the laser module's nozzle.
- విద్యుత్ కనెక్షన్లు: Connect the power adapter to the machine and a suitable power outlet (100-240V AC, 50/60Hz).
- సాఫ్ట్వేర్ ఇన్స్టాలేషన్: Install the recommended operating software (LightBurn or LaserGRBL) on your computer.
- Initial Focus Adjustment: Use the fixed-focus column to set the correct laser focus for your material.
Figure 4.1: The S30 Ultra series maintains a consistent structure for easy upgrades, requiring only laser head replacement for power upgrades.
5. ఆపరేటింగ్ సూచనలు
The SCULPFUN S30 Ultra supports various operating software, including LightBurn (with M8 air assist function) and LaserGRBL. It is compatible with both Windows and MAC systems. Supported file formats include NC, BMP, JPG, PNG, DXF, and other picture formats. Data transmission can be done via USB connection or Bluetooth wireless connection.
- సాఫ్ట్వేర్ ప్రారంభం: Open your preferred laser control software (e.g., LightBurn).
- కనెక్ట్ మెషిన్: Establish a connection between your computer and the engraver via USB or Bluetooth.
- Load Design: Import your desired design file (e.g., NC, JPG, PNG).
- మెటీరియల్ ప్లేస్మెంట్: Place the material to be engraved or cut on the working area. Ensure it is flat and secured.
- పారామీటర్ సెట్టింగ్లు: Adjust laser power, speed, and passes according to the material type and desired outcome. Refer to the software's documentation for detailed parameter settings.
- Air Assist Control: If using LightBurn, utilize the M8 button to intelligently control the air assist for optimal cutting and to prevent material yellowing/blackening.
- ఆపరేషన్ ప్రారంభించండి: Initiate the engraving or cutting process from the software. Monitor the machine closely during operation.
- అత్యసవర నిలుపుదల: In case of any emergency, immediately press the red emergency stop switch on the machine.
Figure 5.1: The SCULPFUN S30 Ultra supports popular software like LightBurn and LaserGRBL for versatile operation.
6. నిర్వహణ
Regular maintenance ensures the longevity and optimal performance of your laser engraver.
- Laser Lens Replacement: The S30 Ultra features a replaceable lens. If the lens becomes damaged or its performance degrades after long-term use, replace it with a new one to restore cutting power. One free lens is included with your purchase, and additional lenses can be obtained from SCULPFUN.
- నాజిల్ క్లీనింగ్: Regularly clean the high-pressure air-assisted nozzle to prevent blockages and maintain efficient airflow. A nozzle cleaning tool is provided.
- రైలు శుభ్రపరచడం: Keep the linear slide rails clean and free of dust and debris to ensure smooth and precise movement of the laser module.
- సాధారణ శుభ్రపరచడం: Periodically clean the entire machine, especially the working area, to remove any residue from engraving and cutting.
Figure 6.1: Essential maintenance tools for your SCULPFUN S30 Ultra.
7. ట్రబుల్షూటింగ్
This section provides general guidance for common issues. For detailed troubleshooting, refer to the comprehensive instruction manual or contact SCULPFUN support.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| లేజర్ వెలగడం లేదు లేదా బలహీనమైన అవుట్పుట్ | Incorrect focus, dirty lens, low power setting, loose connection. | Adjust focus, clean or replace lens, increase power setting in software, check all cables. |
| యంత్రం కంప్యూటర్కు కనెక్ట్ కావడం లేదు | USB cable issue, Bluetooth not paired, driver not installed, software not recognizing port. | Try a different USB port/cable, re-pair Bluetooth, reinstall drivers, restart software/computer. |
| Engraving/Cutting quality is poor | Incorrect speed/power, material issues, dirty lens, misaligned laser. | Adjust speed/power settings, ensure material is suitable and clean, clean lens, check for mechanical alignment issues. |
| ఎయిర్ అసిస్ట్ పనిచేయడం లేదు | Air hose kinked/blocked, pump not powered, software setting incorrect. | Check air hose for obstructions, ensure air pump is connected and powered, verify M8 setting in LightBurn. |
8. స్పెసిఫికేషన్లు
- ఉత్పత్తి మోడల్: SCULPFUN S30 Ultra-33W
- లేజర్ అవుట్పుట్ పవర్: 33W (కాంతి శక్తి)
- లేజర్ ఫోకస్: 0.08x0.08mm
- లేజర్ తరంగదైర్ఘ్యం: 455 ± 5nm
- దృష్టి కేంద్రీకరించే విధానం: స్థిర ఫోకస్ కాలమ్ + స్లైడింగ్ పరికరం
- చెక్కే ఖచ్చితత్వం: 0.005మి.మీ
- Engraving Area Size: 600x600mm
- మెషిన్ ఎలక్ట్రిక్ పవర్: సుమారు 156W
- ఎయిర్ పంప్ రకం: Main board controlled, 24V, 30L/min flow rate
- గాలి గొట్టం లోపలి వ్యాసం: 7.5మి.మీ
- మదర్బోర్డ్: 32-bit air-assisted, supports Bluetooth wireless connection
- ఆపరేటింగ్ సాఫ్ట్వేర్: LightBurn (with M8 air assist), LaserGRBL, Benbox, GrblController, LiteFire
- మద్దతు ఇచ్చారు File ఫార్మాట్లు: NC, BMP, JPG, PNG, DXF, and other picture formats
- డేటా ట్రాన్స్మిషన్: USB కనెక్షన్ లేదా బ్లూటూత్ వైర్లెస్ కనెక్షన్
- పవర్ ఇన్పుట్: 100-240V AC, 50/60Hz
- పవర్ అవుట్పుట్: 24V 7A
- ఉత్పత్తి కొలతలు: 34.06 x 9.72 x 9.25 అంగుళాలు
- ప్యాకేజీ బరువు: 9.9 కిలోలు
- ధృవపత్రాలు: CE, FCC, RoHS, FDA, ICE
Figure 8.1: High-precision linear slide rail for superior engraving detail.
Figure 8.2: Expanded working area of the S30 Ultra compared to standard models.
9. వారంటీ మరియు మద్దతు
For warranty information, please refer to the documentation included with your product or contact SCULPFUN customer service directly. SCULPFUN provides support for product inquiries, technical assistance, and replacement parts such as laser lenses.
For further assistance, please visit the official SCULPFUN webసైట్ లేదా వారి కస్టమర్ సపోర్ట్ ఛానెల్లను సంప్రదించండి.
10. అధికారిక ఉత్పత్తి వీడియోలు
No official product videos from the seller were found that met the criteria for inclusion in this manual.
