1. పరిచయం
This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your INSPIRE LED Panel ANVIK Ceiling Light. Please read this manual thoroughly before installation and keep it for future reference.

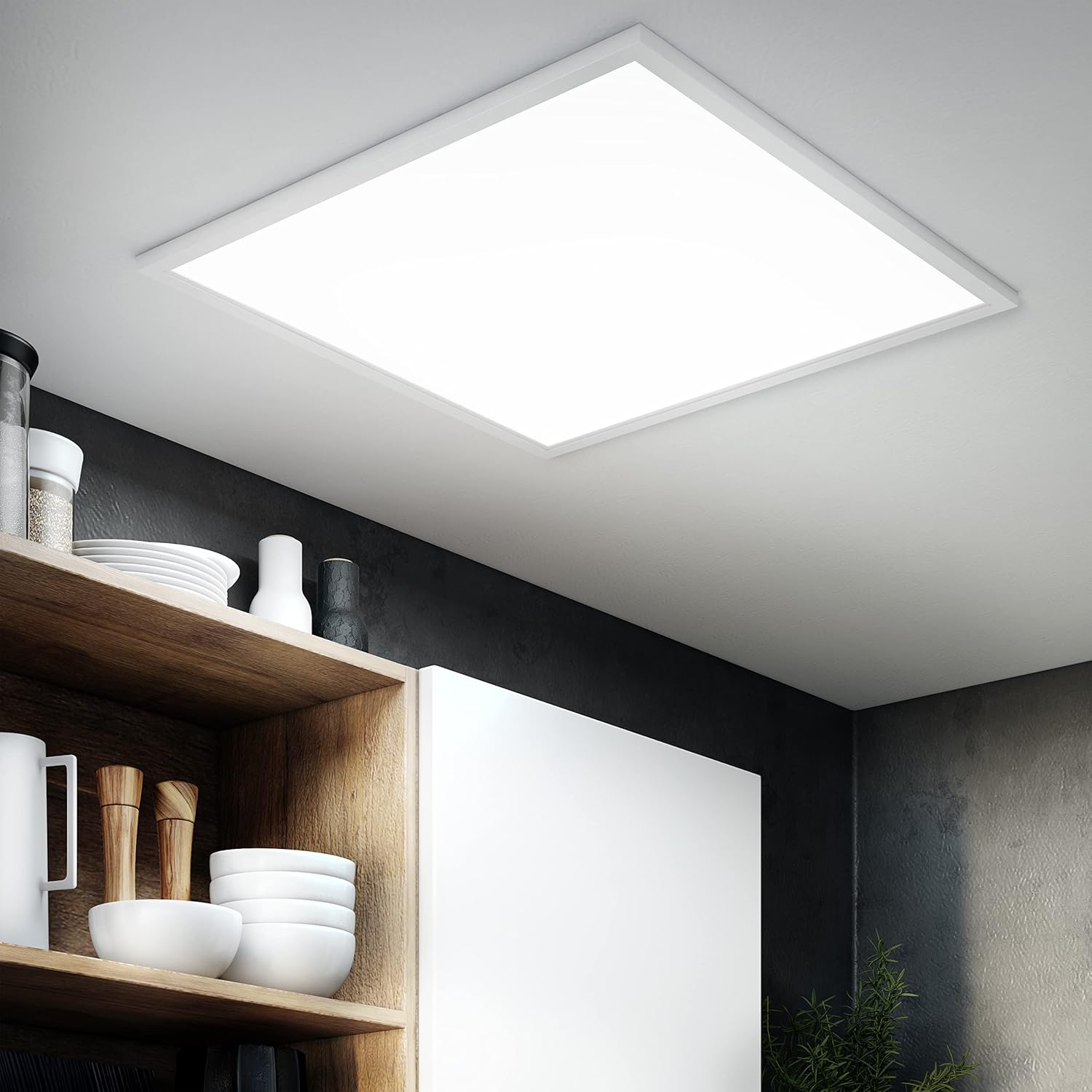

మూర్తి 1: The INSPIRE LED Panel ANVIK Ceiling Light seamlessly integrated into a modern kitchen ceiling, providing bright, uniform illumination.
2. భద్రతా సమాచారం
హెచ్చరిక: To reduce the risk of electric shock, fire, or injury to persons, read and follow all warnings and instructions carefully.
- Always disconnect power at the fuse or circuit breaker before installation or servicing.
- అన్ని స్థానిక విద్యుత్ కోడ్లకు అనుగుణంగా అర్హత కలిగిన ఎలక్ట్రీషియన్ ద్వారా ఇన్స్టాలేషన్ నిర్వహించాలి.
- Do not install this fixture in wet locations. It is designed for indoor use only (IP20 rating).
- మౌంటు ఉపరితలం ఫిక్చర్ బరువుకు మద్దతు ఇవ్వగలదని నిర్ధారించుకోండి.
- Do not attempt to modify the fixture. Any modifications may void the warranty and pose safety risks.
- ఫిక్చర్ ఆన్లో ఉన్నప్పుడు కాంతి మూలానికి నేరుగా కంటికి గురికాకుండా ఉండండి.
3. ప్యాకేజీ విషయాలు
Carefully unpack the product and ensure all components are present and undamaged. If any parts are missing or damaged, do not attempt to assemble or install the product. Contact customer support immediately.
- INSPIRE LED Panel ANVIK Ceiling Light
- Mounting accessories (screws, anchors, etc.)
- వినియోగదారు మాన్యువల్ (ఈ పత్రం)
4. సెటప్ మరియు ఇన్స్టాలేషన్
The INSPIRE LED Panel ANVIK can be installed either by surface mounting directly to the ceiling or by recessed installation into a false ceiling. Refer to the diagrams below for guidance.
4.1 కొలతలు
మూర్తి 2: Product dimensions. The panel measures 59.5 cm x 59.5 cm with a slim profile యొక్క 1.35 సెం.మీ.
Before installation, ensure the chosen location has sufficient space for the fixture's dimensions (59.5 cm x 59.5 cm x 1.35 cm).
4.2 ఇన్స్టాలేషన్ పద్ధతులు
మూర్తి 3: Installation options for the LED panel. Method A shows surface mounting, while Method B illustrates recessed installation into a false ceiling.
- Surface Mounting (Method A):
- Mark the drilling points on the ceiling according to the fixture's mounting holes.
- Drill holes and insert appropriate wall anchors if necessary.
- Secure the mounting bracket (if applicable) or the fixture directly to the ceiling using the provided screws.
- Connect the electrical wiring (Live, Neutral, Earth) to the fixture's terminal block, ensuring correct polarity.
- Attach the LED panel to the secured mounting points.
- Recessed Installation (Method B):
- Prepare an opening in the false ceiling that matches the fixture's dimensions (59.5 cm x 59.5 cm).
- Connect the electrical wiring (Live, Neutral, Earth) to the fixture's terminal block.
- Carefully insert the LED panel into the prepared opening, ensuring the retaining clips (if present) secure it firmly.
After installation, restore power and test the light fixture.
5. ఆపరేటింగ్ సూచనలు
The INSPIRE LED Panel ANVIK is designed for simple operation. Once correctly installed and connected to the main power supply, it can be controlled via a standard wall switch.
- ఆన్/ఆఫ్ చేయడం: లైట్ను ఆన్ లేదా ఆఫ్ చేయడానికి ఫిక్చర్కి కనెక్ట్ చేయబడిన వాల్ స్విచ్ని ఉపయోగించండి.
- లైట్ అవుట్పుట్: The panel provides a bright 3900 lumens of light, suitable for illuminating areas up to 10 m².
- రంగు ఉష్ణోగ్రత: The light emits a cool white light at 6000K, ideal for functional lighting in offices, kitchens, or hallways.
మూర్తి 4: The 6000K cool white light from the INSPIRE LED Panel ANVIK provides clear and functional illumination, as shown in a kitchen setting.
6. నిర్వహణ
Regular maintenance will help ensure the longevity and optimal performance of your LED panel.
- శుభ్రపరచడం: Before cleaning, ensure the power supply to the fixture is disconnected. Use a soft, dry, or slightly damp cloth to wipe the surface of the panel. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
- Reparability: This LED panel features an integrated LED that is designed to be reparable. In the event of a malfunction or technical issue, individual components may be replaced, extending the product's lifespan and reducing waste. For repairs, it is recommended to contact a qualified technician or the manufacturer's support.
7. ట్రబుల్షూటింగ్
If you encounter issues with your INSPIRE LED Panel ANVIK, refer to the following common problems and solutions:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| లైట్ ఆన్ చేయదు. | No power supply; loose wiring; faulty switch; damaged LED driver. | Check circuit breaker/fuse. Ensure all wiring connections are secure. Test the wall switch. If the issue persists, contact a qualified electrician or customer support. |
| లైట్ ఫ్లికర్స్ లేదా డిమ్స్. | Unstable power supply; loose connection; incompatible dimmer (if applicable); faulty LED driver. | Verify stable power. Check wiring. Ensure no dimmer is used unless specified as compatible. Contact support if flickering continues. |
| వెలుతురు ఆశించినంత ప్రకాశవంతంగా లేదు. | Dust accumulation on the panel; incorrect installation. | Clean the panel surface. Review installation steps to ensure proper setup. |
For problems not listed above, or if solutions do not resolve the issue, please contact customer support.
8. స్పెసిఫికేషన్లు
Detailed technical specifications for the INSPIRE LED Panel ANVIK Ceiling Light:
| గుణం | విలువ |
|---|---|
| బ్రాండ్ | ప్రేరేపించు |
| మోడల్ పేరు | ANVIK LED Panel |
| తయారీదారు | ADEO |
| ఉత్పత్తి కొలతలు | 59.5 x 59.5 x 1.35 సెం.మీ |
| బరువు | 2.15 కిలోలు |
| విద్యుత్ వినియోగం | 27.2 W |
| Light Output (Lumen) | 3900 lm |
| రంగు ఉష్ణోగ్రత | 6000K (కూల్ వైట్) |
| మెటీరియల్ | అల్యూమినియం |
| ప్రవేశ రక్షణ (IP) రేటింగ్ | IP20 (ఇండోర్ ఉపయోగం మాత్రమే) |
| సంస్థాపన రకం | Ceiling Mount, Recessed |
| శక్తి మూలం | కార్డెడ్ ఎలక్ట్రిక్ |
| ప్రత్యేక లక్షణాలు | Energy-efficient, Durable, Reparable LED panel |

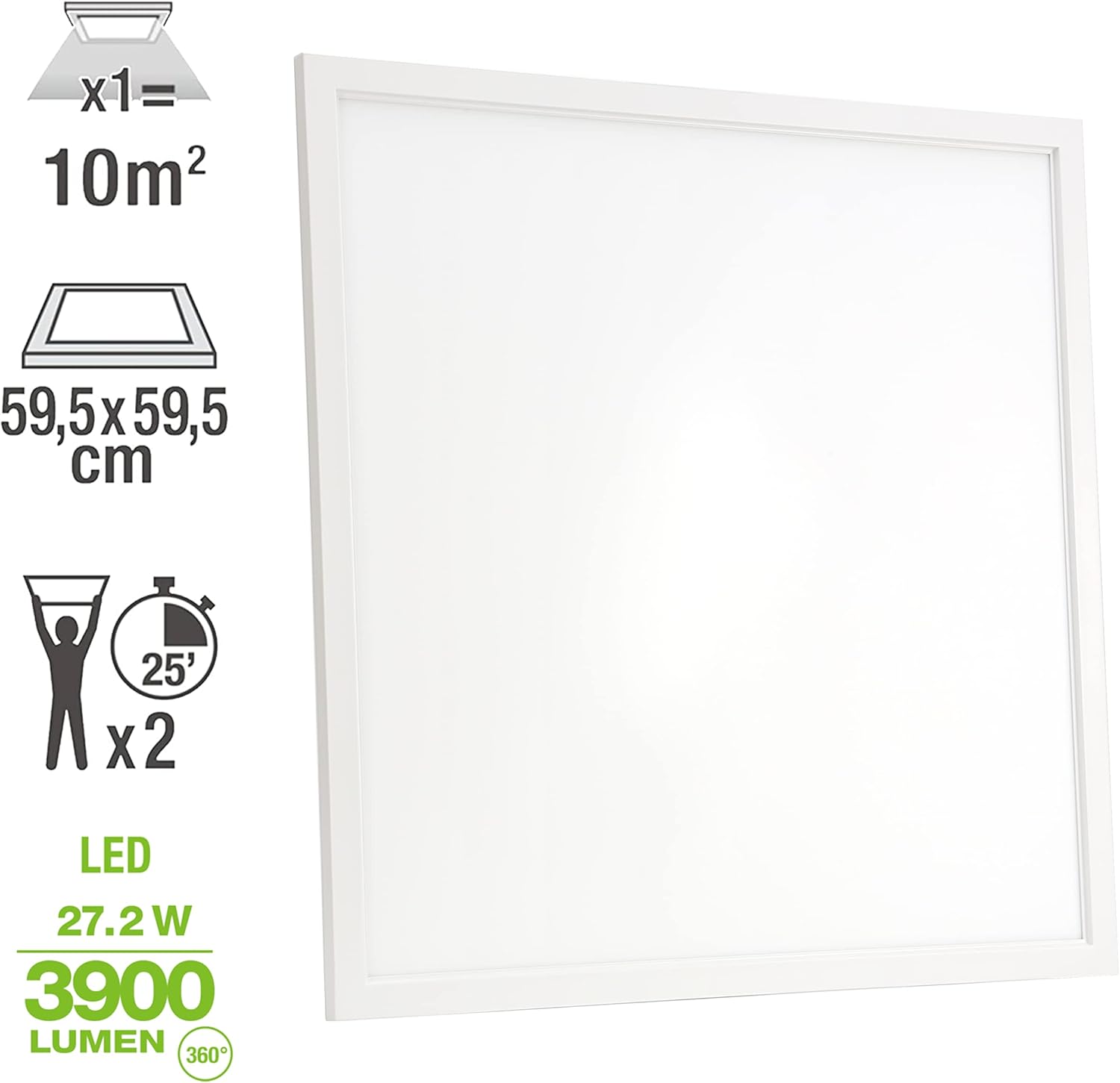

మూర్తి 5: Visual summary of key product specifications, including coverage area, dimensions, power, and light output.
9. వారంటీ మరియు మద్దతు
The INSPIRE LED Panel ANVIK is designed for durability and reparability, indicating a commitment to product longevity. For specific warranty terms and conditions, please refer to the product packaging or contact your retailer.
For technical assistance, troubleshooting beyond this manual, or to inquire about replacement parts for reparable components, please contact INSPIRE customer support. Keep your purchase receipt and product model information (ANVIK, Model Number: 3276007230307) ready when contacting support.
You can find more information about INSPIRE products and support on the official INSPIRE store page: INSPIRE Store.
