పరిచయం
The ESAB SWARM A20 Auto-Darkening Welding Helmet is designed to provide superior protection and performance for various welding applications. Its advanced auto-darkening filter (ADF) and adjustable settings ensure optimal visibility and safety for welders.
భద్రతా సమాచారం
Always read and understand all safety warnings and instructions before using this product. Failure to follow warnings and instructions may result in electric shock, fire, and/or serious injury.
- This welding helmet is designed to protect eyes and face from sparks, spatter, and harmful radiation under normal welding conditions.
- Do not use this helmet for laser welding or overhead welding applications.
- Ensure the helmet is properly fitted and adjusted before each use.
- దెబ్బతిన్న భాగాలను వెంటనే మార్చండి.
- Do not modify the helmet or its components.
ప్యాకేజీ విషయాలు
ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయని నిర్ధారించుకోండి:
- ESAB SWARM A20 Auto-Darkening Welding Helmet
- CR2032 Batteries (1 included)
- వినియోగదారు మాన్యువల్ (ఈ పత్రం)
ఉత్పత్తి ముగిసిందిview
Familiarize yourself with the key components of your ESAB SWARM A20 welding helmet.
చిత్రం: ముందు భాగం view of the ESAB SWARM A20 Auto-Darkening Welding Helmet, showing the auto-darkening filter and the ESAB logo.

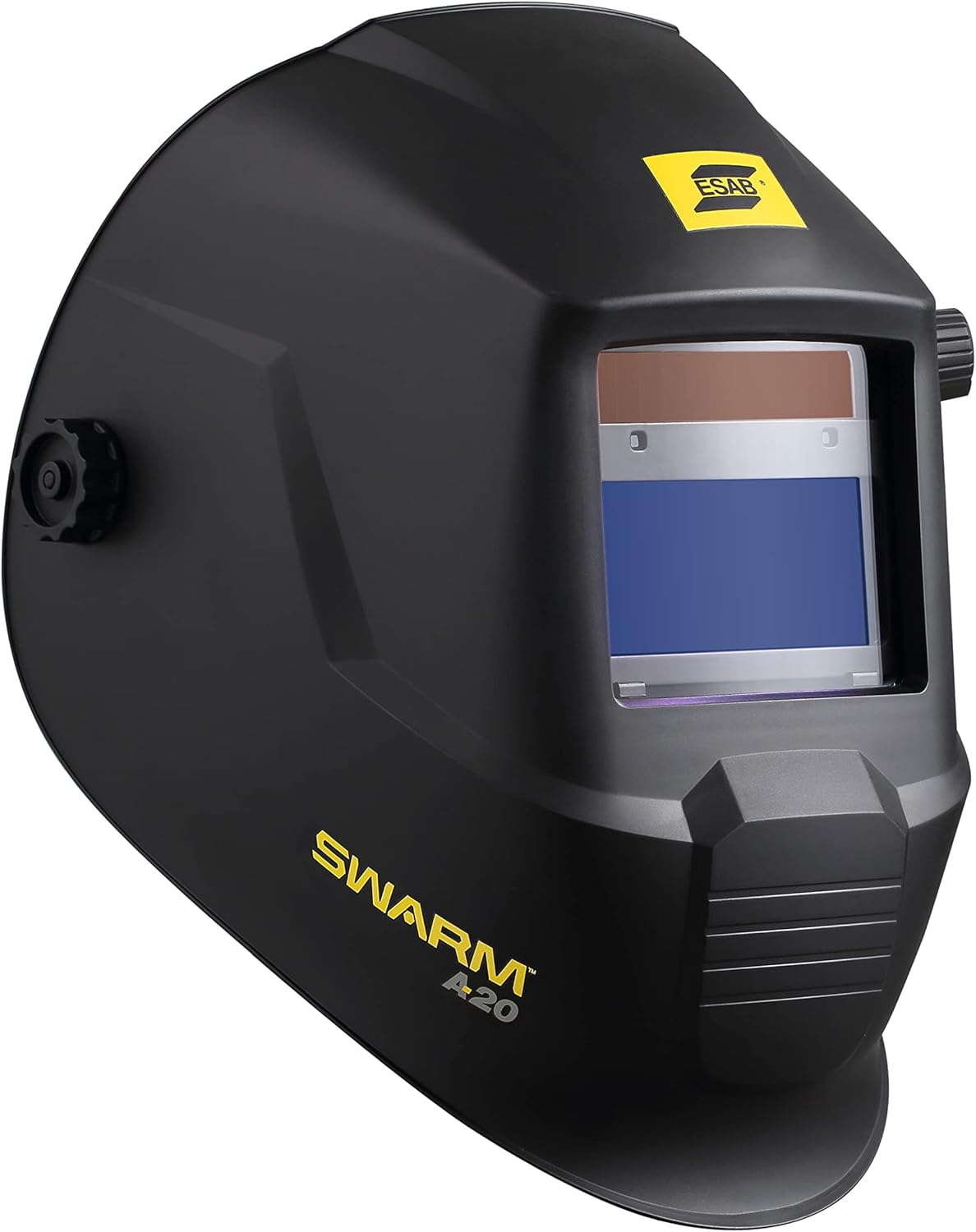

చిత్రం: వైపు view of the ESAB SWARM A20 Auto-Darkening Welding Helmet, highlighting its ergonomic design and the SWARM A20 branding.
చిత్రం: వైపు view of the ESAB SWARM A20 Auto-Darkening Welding Helmet, displaying the external shade adjustment knob (DIN 9-13) and grind mode setting.
చిత్రం: కోణీయ ముందు భాగం view of the ESAB SWARM A20 Auto-Darkening Welding Helmet, providing a comprehensive look at the helmet's shape and features.
సెటప్
బ్యాటరీ సంస్థాపన
The ESAB SWARM A20 helmet uses one CR2032 battery, which is included.
- Locate the battery compartment on the inside of the helmet's auto-darkening filter (ADF).
- కంపార్ట్మెంట్ కవర్ తెరవండి.
- CR2032 బ్యాటరీని పాజిటివ్ (+) వైపు పైకి ఎదురుగా ఉండేలా చొప్పించండి.
- బ్యాటరీ కంపార్ట్మెంట్ కవర్ను సురక్షితంగా మూసివేయండి.
- Press the ADF test button to ensure the filter darkens correctly.
తలపాగా సర్దుబాటు
Adjust the headgear for a comfortable and secure fit.
- Adjust the top strap to position the helmet correctly on your head.
- Use the ratchet knob at the back of the headgear to tighten or loosen the fit around your head.
- Adjust the distance between your face and the filter by moving the pins on the side of the headgear.
- Ensure the helmet is stable and does not wobble during use.
ఆపరేటింగ్ సూచనలు
Auto-Darkening Filter (ADF) Controls
The SWARM A20 features external and internal controls for optimal welding performance.
External Shade Adjustment
The shade level can be adjusted externally using the knob on the side of the helmet.
- Rotate the knob to select a shade level between DIN 9 and DIN 13, suitable for most welding processes.
- For grinding operations, select the "Grind" mode on the external knob. In grind mode, the ADF remains light, providing clear vision without darkening.
Internal Sensitivity and Delay Settings
Inside the helmet, there are dials for adjusting sensitivity and delay.
- సున్నితత్వం: Adjusts how sensitive the ADF is to the welding arc. Increase sensitivity for low-amp TIG welding or when the arc is partially obstructed.
- ఆలస్యం: Controls the time it takes for the filter to return to its light state after the arc stops. A longer delay is useful for high-amperage welding or when there are pulsating arcs to prevent eye fatigue.
వెల్డింగ్ ఆపరేషన్
- Select the appropriate shade level for your welding process using the external knob.
- Adjust sensitivity and delay settings as needed for your specific application.
- మీ తలపై హెల్మెట్ను సౌకర్యవంతంగా ఉంచండి.
- Begin welding. The ADF will automatically darken when the arc is struck and return to its light state after the arc stops, based on your delay setting.
నిర్వహణ
క్లీనింగ్
Regularly clean your welding helmet to ensure optimal performance and longevity.
- Clean the outer and inner protective lenses with a soft, clean cloth and a mild soap solution. Do not use abrasive cleaners or solvents.
- Wipe the helmet shell with a damp గుడ్డ.
- హెల్మెట్ని నీళ్లలో ముంచకూడదు.
బ్యాటరీ భర్తీ
The helmet features a low battery indicator LED. When the LED illuminates, replace the CR2032 battery as described in the "Battery Installation" section.
నిల్వ
Store the helmet in a dry, clean place away from direct sunlight and extreme temperatures.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| ADF does not darken when arc is struck. | Low battery; Sensors obstructed; Sensitivity too low; Helmet in Grind mode. | Replace battery; Clean sensors; Increase sensitivity; Switch out of Grind mode. |
| ADF flickers or flashes. | Sensitivity too high; Ambient light interference; Arc too far from sensors. | Decrease sensitivity; Ensure proper lighting; Position closer to arc. |
| Poor visibility through ADF. | Protective lenses dirty or scratched; Incorrect shade setting. | Clean or replace lenses; Adjust shade to appropriate level. |
స్పెసిఫికేషన్లు
- ADF Viewప్రాంతం: 93 x 43 mm (3.6 x 1.7 in.)
- షేడ్ రేంజ్: DIN 9–13 (adjustable)
- CE Optical Class: 1/1/1/2
- ఆర్క్ సెన్సార్లు: 2
- మారే సమయం: 0.1 millisecond
- Delay/Sensitivity: Fully adjustable
- బ్యాటరీ రకం: CR2032 (1)
- తక్కువ బ్యాటరీ సూచిక: అవును
- బరువు: సుమారు 1.98 పౌండ్లు (0.9 కిలోలు)
- మోడల్ సంఖ్య: 0700102043
వారంటీ మరియు మద్దతు
For warranty information and technical support, please refer to the official ESAB website or contact ESAB customer service. Keep your purchase receipt for warranty claims.
ESAB Official Webసైట్: www.esab.com
