OTOFIX IM2 కీ ప్రోగ్రామింగ్ టూల్ యూజర్ మాన్యువల్

1. ఉత్పత్తి ముగిసిందిview

The OTOFIX IM2 is an advanced key programming and diagnostic tool designed for professional locksmiths and automotive technicians. It combines comprehensive immobilizer functions, all-system diagnostics, and advanced ECU coding capabilities into a single, powerful device. Equipped with the XP1 Pro key programmer, it offers extensive coverage for various vehicle makes and models.

ముఖ్య లక్షణాలు ఉన్నాయి:

• Locksmith-Level IMMO Services: Provides a wide range of immobilizer functions such as IMMO ECU reset/adaptation, data backup/restore, universal key generation, and key learning.
• All-in-one XP1 Pro Key Programmer: An enhanced key programmer supporting extensive MCU, EEPROM, and ECU component types, including key writing by dump, key unlocking, and frequency detection.
• Active Programming, ECU Coding, and Testing: Facilitates ECU recoding, relearning, recombination, customization, and offers bi-directional active tests to verify component functionality.
• OE-Level All System Diagnostics: Capable of accessing all vehicle systems (e.g., PCM, ECM, ABS, SRS) to retrieve ECU information, monitor live data, and perform comprehensive scans.
• 40+ సేవా విధులు: Includes commonly used maintenance services such as oil reset, SAS, ABS, EPB, TPMS, battery reset, and throttle services.
• Premium Hardware: Features an 8-core processor, 4+128GB memory, Android 10.0 OS, a 10.1-inch 1920x1200 touchscreen, and a 15,000 mAh battery for extended operation.

Figure 1.1: The OTOFIX IM2 Key Programming Tool, including the main tablet, XP1 Pro programmer, and various adapters, all housed within a durable carrying case.

Figure 1.2: A visual summary of the OTOFIX IM2's core functionalities, highlighting its capabilities in key programming, comprehensive diagnostics, and specialized immobilizer services.

2. సెటప్ మరియు ప్రారంభ ఉపయోగం

This section outlines the steps for setting up your OTOFIX IM2 device for the first time.

2.1 అన్‌బాక్సింగ్ మరియు కాంపోనెంట్ గుర్తింపు

Upon opening the carrying case, verify that all components are present and undamaged. The full kit typically includes:

• OTOFIX IM2 Main Unit (Tablet)
• XP1 ప్రో కీ ప్రోగ్రామర్
• ప్రధాన కేబుల్
• USB కేబుల్ (2M)
• మినీ USB కేబుల్
• AC/DC Adapter (12V)
• Spare Fuses (6x30 mm, 2PCS)
• సహాయక పవర్ అవుట్‌లెట్ అడాప్టర్
• USB నుండి ఈథర్నెట్ అడాప్టర్
• APB101 (USB Cable)
• APB104 (MCU_FQFP64)
• APB105 (MCU_FQFP80)
• APB106 (MCU_FQFP112)
• APB107 (MCU_FQFP144)
• APB108 (MCU_FQFP176)
• APB129 (EEPROM Adapter)
• APB125 (Mercedes-Benz Infrared Collector)
• APA002 (EEPROM Socket)
• APA101 (Signal Cable)
• APA103 (EEPROM Clamp)
• APA107 (ECU Cable)
• APA108 (MCU Cable)
• APA109 (MC9S12 Cable)
• కేబుల్ కనెక్ట్ చేయండి
• త్వరిత సూచన గైడ్
• ప్యాకింగ్ జాబితా
• క్యారీయింగ్ కేసు

చిత్రం 2.1: వివరణాత్మక view of all components included in the OTOFIX IM2 professional kit, essential for various key programming and diagnostic tasks.

2.2 పవర్ ఆన్ మరియు ప్రారంభ కాన్ఫిగరేషన్

1. Connect the AC/DC Adapter to the OTOFIX IM2 main unit and a power outlet to charge the device. Ensure the device is fully charged before extensive use.
2. పరికరాన్ని ఆన్ చేయడానికి పవర్ బటన్‌ను నొక్కి పట్టుకోండి.
3. Follow the on-screen prompts to complete the initial setup, including selecting your language (English), connecting to a Wi-Fi network, and registering your device.
4. Perform a software update to ensure you have the latest features and vehicle coverage. This is crucial for optimal performance and compatibility.

3. Operating the OTOFIX IM2

The OTOFIX IM2 offers a user-friendly interface for various automotive tasks. This section provides an overview of its main operational modes.

3.1 IMMO Services

The IMMO function is designed for key programming and immobilizer system maintenance. It supports a wide range of functions for different vehicle brands.

• IMMO ECU Reset/Adaption: Used to reset or adapt the immobilizer control unit when replacing components.
• IMMO Data Backup/Restore: Allows for backing up and restoring immobilizer data, including EEPROM data.
• Key Learning/Remote Learning: Guides through the process of adding new keys or remotes to the vehicle's immobilizer system.
• Universal Key Generation: Enables the creation of universal keys for specific applications.
• Smart & Expert Mode: Provides guided procedures for common tasks and advanced options for experienced users.

Figure 3.1: An in-depth look at the locksmith-level IMMO services provided by the OTOFIX IM2, detailing its capabilities for key programming and immobilizer system management.

3.2 XP1 Pro Key & Chip Programmer

The XP1 Pro is an integral part of the IM2 system, extending its capabilities for advanced key and chip programming.

• MCU Component Types: Supports programming for over 2342 types of Microcontroller Units.
• EEPROM Component Types: Compatible with over 953 types of EEPROM components.
• Immobilizer ECU Component Types: Works with over 257 types of immobilizer ECUs.
• Engine ECU Component Types: Supports over 94 types of engine ECUs.
• Key Unlocking: Features for unlocking various key types.
• ఫ్రీక్వెన్సీ డిటెక్షన్: Ability to detect remote key frequencies.

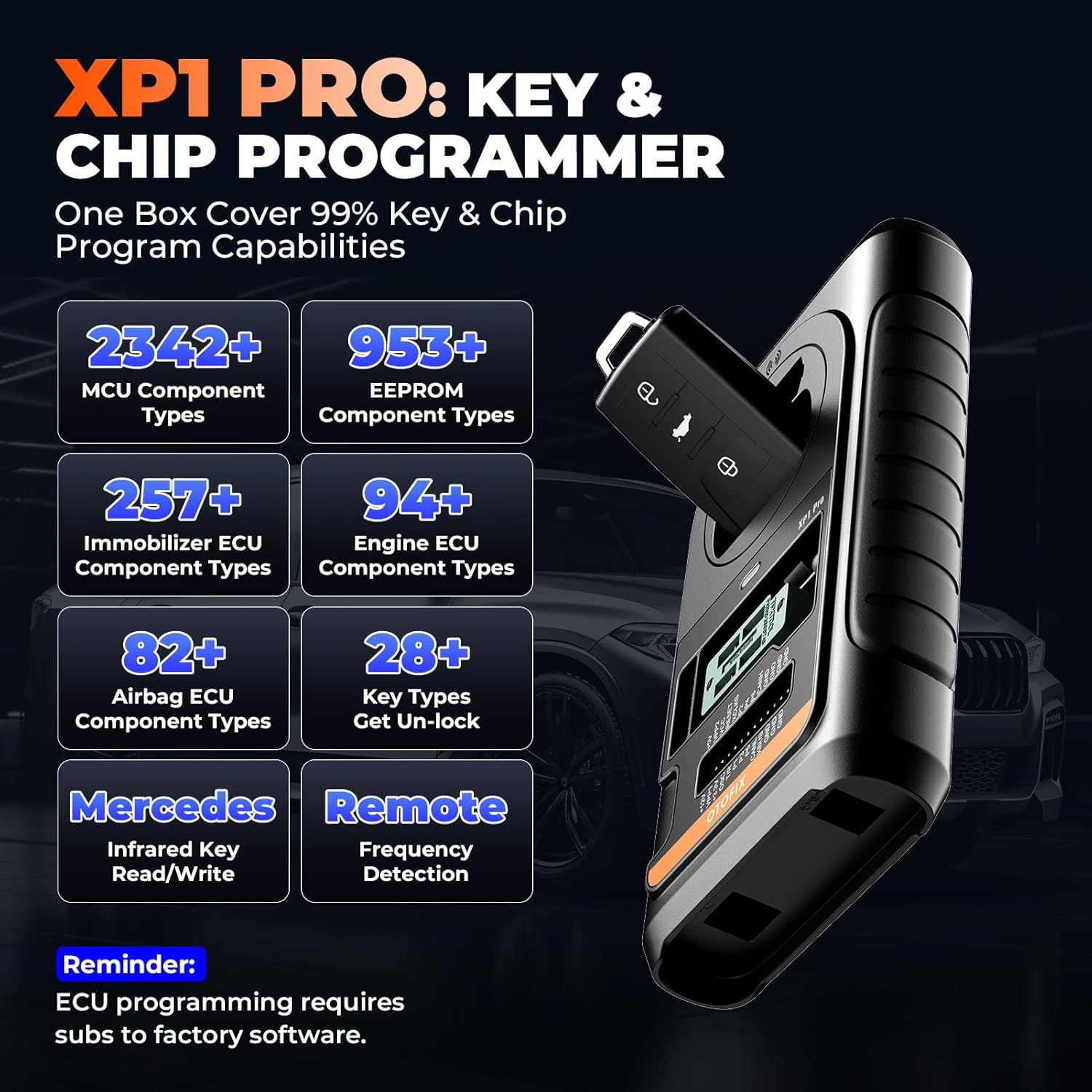

Figure 3.2: A closer look at the XP1 Pro Key & Chip Programmer, illustrating its extensive compatibility with various MCU, EEPROM, and ECU component types for comprehensive key programming.

3.3 ECU Coding and Service Functions

The IM2 provides advanced ECU coding capabilities and a wide array of service functions for vehicle maintenance.

• Refresh Hidden Functions: Activates hidden features in the vehicle's ECU.
• Recode Replaced Components: Programs new or replaced ECU components to match the vehicle.
• Customize OE-Settings: Allows modification of original equipment settings.
• Open/Close Comfort Functions: Controls various comfort features of the vehicle.
• Fix Complex ECU Issues: Addresses software-related problems within the ECU.
• 40+ సేవా విధులు: Includes essential services like Oil Reset, EPB Reset, TPMS Reset, BMS Reset, Brake Bleed, SAS Reset, DPF Regen, and Headlamp సర్దుబాటు.

Figure 3.3: An illustration of the advanced ECU coding capabilities and the diverse range of over 40 service functions available on the OTOFIX IM2, designed to streamline vehicle maintenance.

3.4 OE All System Diagnostics and Active Tests

The diagnostic capabilities of the IM2 allow for comprehensive vehicle health checks and component testing.

• One Touch Scan All Systems: Quickly scans all accessible vehicle systems for diagnostic trouble codes (DTCs).
• One Touch Clear All DTCs: Clears all detected DTCs from the vehicle's systems.
• AutoVIN & Scan: Automatically identifies the vehicle and initiates a system scan.
• Graphic Live Data: Displays real-time sensor data in graphical format for easy analysis.
• Bi-directional Active Tests: Allows control of vehicle components (e.g., radiator fan, fuel pump, brakes) to verify their operational status.

Figure 3.4: Visual representation of the OTOFIX IM2's OE all-system diagnostic capabilities and bi-directional active tests, showcasing its ability to interact with and test various vehicle components.

3.5 వాహన కవరేజ్

The OTOFIX IM2 provides extensive vehicle coverage, supporting a wide range of models up to the latest years.

• 90% Key Programming via OBD: Most key programming tasks can be performed directly through the OBD port.
• 15,000+ Models Compatible: Broad compatibility with a vast number of vehicle models.
• ప్రోటోకాల్ మద్దతు: Supports D-PDU/J2534/RP1210, CAN-FD (e.g., 2020+ GM & Chrysler models), DoIP (e.g., Volvo, Land Rover/Jaguar, BMW F/G Chassis), FCA SGW (requires registered AutoAuth), and Renault SGW (requires unlocking software & device).

చిత్రం 3.5: ఒక ఓవర్view of the OTOFIX IM2's extensive vehicle coverage, detailing its compatibility with various automotive communication protocols and a wide range of car models.

4. నిర్వహణ

Proper maintenance ensures the longevity and optimal performance of your OTOFIX IM2 device.

• సాఫ్ట్‌వేర్ అప్‌డేట్‌లు: Regularly check for and install software updates. The device includes 2 years of free updates, which are crucial for expanding vehicle coverage, adding new functions, and fixing bugs. Connect the device to a stable internet connection and navigate to the 'Update' section on the main menu.
• శుభ్రపరచడం: Keep the device and its accessories clean. Use a soft, damp cloth to wipe the screen and exterior. Avoid using abrasive cleaners or solvents.
• నిల్వ: Store the device in its original carrying case when not in use to protect it from dust, moisture, and physical damage. Store in a cool, dry place.
• బ్యాటరీ సంరక్షణ: To prolong battery life, avoid fully discharging the battery frequently. If storing for an extended period, ensure the battery is charged to about 50-70%.
• కేబుల్ తనిఖీ: Periodically inspect all cables and connectors for signs of wear or damage. Replace any damaged cables immediately to prevent electrical issues or data transmission problems.

5. ట్రబుల్షూటింగ్

This section provides basic troubleshooting steps for common issues. For more complex problems, refer to the support section.

• పరికరం ఆన్ చేయడం లేదు: Ensure the battery is charged. Connect the AC/DC adapter and try again. If the issue persists, contact technical support.
• వాహనంతో కమ్యూనికేషన్ లేదు:
  • Verify that the OBDII cable is securely connected to both the vehicle's DLC (Data Link Connector) and the IM2 main unit.
  • Check the vehicle's ignition status; it should be ON or in ACC mode as required by the procedure.
  • Ensure the vehicle's battery has sufficient voltage.
  • Confirm that the vehicle model and year selected on the IM2 match the actual vehicle.
• Software Freezes or Slow Performance:
  • పరికరాన్ని పునఃప్రారంభించండి.
  • Ensure there is sufficient storage space. Clear unnecessary fileఅవసరమైతే లు.
  • Perform a software update to resolve potential bugs.
• Key Programming Failure:
  • Ensure the XP1 Pro programmer is correctly connected and powered.
  • Verify that the correct key type and chip are being used.
  • Follow all on-screen instructions precisely.
  • Check for any vehicle-specific requirements or security gateway limitations.

6. స్పెసిఫికేషన్లు

7. వారంటీ మరియు మద్దతు

OTOFIX is committed to providing excellent customer service and support for the IM2 Key Programming Tool.

7.1 సాఫ్ట్‌వేర్ నవీకరణలు

The OTOFIX IM2 includes 2 సంవత్సరాల ఉచిత సాఫ్ట్‌వేర్ నవీకరణలు from the date of purchase. These updates provide access to the latest vehicle coverage, new functions, and performance enhancements. After the initial 2 years, subscription renewal may be required to continue receiving updates.

7.2 సాంకేతిక మద్దతు

OTOFIX offers 24/7 timely response and lifetime technical support for the IM2 device. If you encounter any issues or have questions regarding the operation, features, or compatibility of your device, please do not hesitate to contact the OTOFIX support team. Contact information can typically be found on the OTOFIX official website or within the device's 'About' section.
