Raybee Heavy Duty Clothes Rack Instruction Manual (Model 6pw)

1. పరిచయం

Thank you for choosing the Raybee Heavy Duty Clothes Rack. This manual provides detailed instructions for the safe assembly, operation, and maintenance of your new clothing storage solution. Please read this manual thoroughly before assembly and retain it for future reference.

Figure 1: Fully assembled Raybee Heavy Duty Clothes Rack, showcasing its capacity for hanging and folded garments.

2. భద్రతా సమాచారం

• అన్ని సూచనలను చదవండి: అసెంబ్లీ మరియు ఉపయోగం ముందు, ఈ మాన్యువల్‌లో అందించిన అన్ని సూచనలను జాగ్రత్తగా చదివి అర్థం చేసుకోండి.
• బరువు సామర్థ్యం: Do not exceed the maximum load capacity of 176 pounds (80 kg). Overloading can cause instability and damage.
• అసెంబ్లీ: Assemble the unit on a soft, clean surface to prevent scratches. Ensure all connections are secure before use.
• స్థిరత్వం: For optimal stability, distribute weight evenly across the shelves and hanging rods.
• ఉద్యమం: When moving the rack, especially when loaded, ensure the wheels are unlocked. Exercise caution to prevent tipping. Lock wheels once the rack is in its desired position.
• పిల్లలు మరియు పెంపుడు జంతువులు: Keep children and pets away from the assembly area. Do not allow them to climb on or play with the rack.
• నిర్వహణ: Regularly inspect the rack for loose parts or damage. Tighten connections as needed.

3. ప్యాకేజీ విషయాలు

అసెంబ్లీని ప్రారంభించే ముందు అన్ని భాగాలు ఉన్నాయని ధృవీకరించండి. ఏవైనా భాగాలు తప్పిపోయినా లేదా దెబ్బతిన్నా, దయచేసి కస్టమర్ సపోర్ట్‌ను సంప్రదించండి.

4. సెటప్ మరియు అసెంబ్లీ

The Raybee Heavy Duty Clothes Rack is designed for easy assembly without the need for nuts or bolts. Follow these steps carefully.

4.1 అన్ప్యాకింగ్ మరియు తయారీ

1. ప్యాకేజింగ్ తెరిచి, అన్ని భాగాలను జాగ్రత్తగా తొలగించండి.
2. Lay out all parts on a clean, soft surface (e.g., a carpet or blanket) to prevent scratches.
3. Verify all components against the "Package Contents" list.

4.2 Assembling the Base

1. Attach the wheels or adjustable leveling feet to the bottom of the vertical poles. Ensure lockable wheels are positioned for easy access.
2. Connect the bottom wire shelves to the vertical poles, ensuring they are securely locked into place.

Figure 2: Illustration of the 360° rotating lockable wheels and adjustable leveling feet options for the rack base.

4.3 Installing Shelves and Hanging Rods

1. Slide the plastic sleeves onto the vertical poles at your desired height for each shelf. Ensure the sleeves are securely snapped into the grooves on the poles.
2. Place the wire shelves onto the plastic sleeves, pressing down firmly until they are level and stable.
3. Attach the hanging rods to the designated points on the vertical poles or under the shelves. The rods can be adjusted to accommodate different clothing lengths.

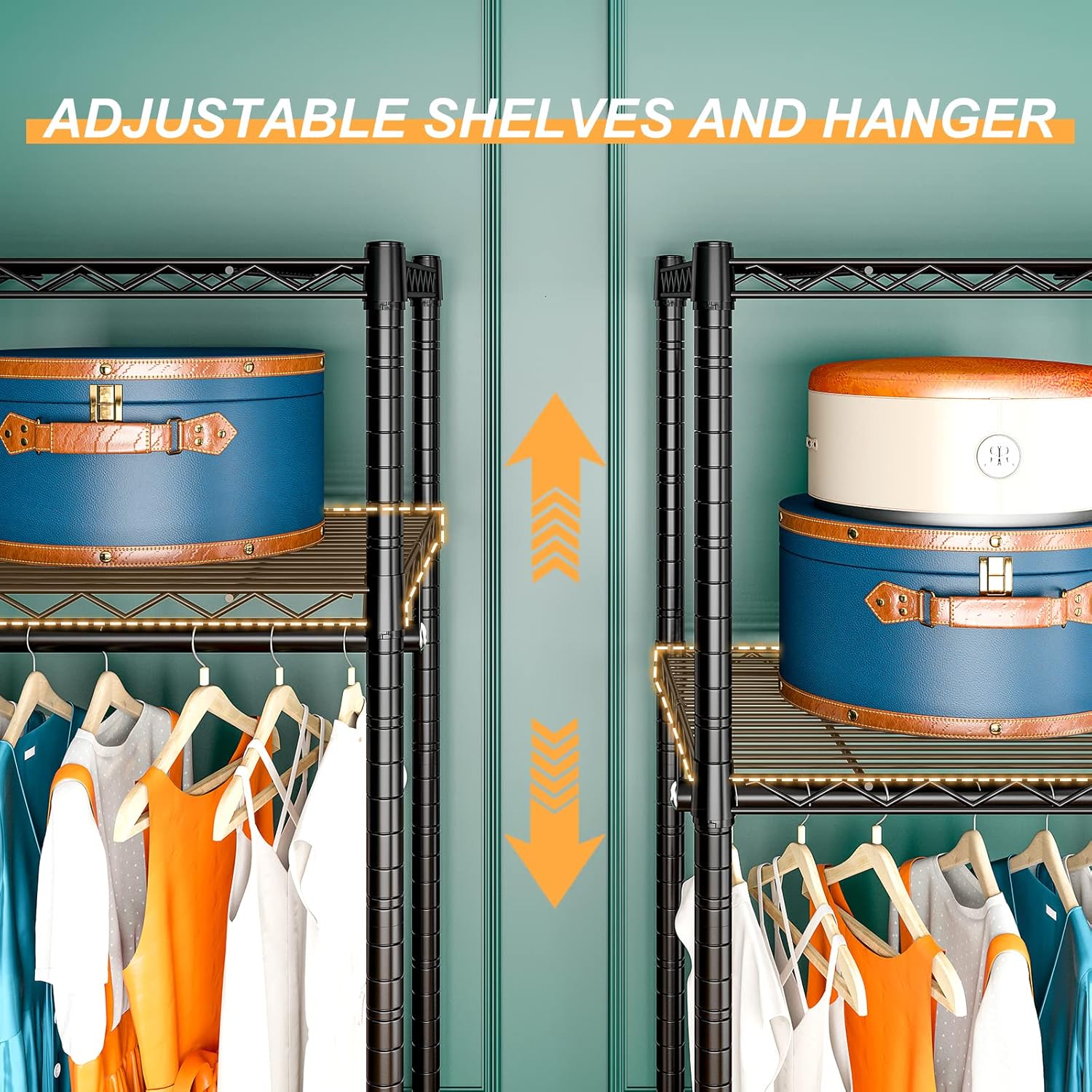

Figure 3: Visual guide demonstrating the adjustable nature of the shelves and hanging rods, allowing for customized storage configurations.

మూర్తి 4: వివరంగా view of the adjustable solid wire shelves and detachable metal hanging rods, highlighting their design for versatile storage.

4.4 Finalizing Assembly

1. Once all shelves and rods are in place, gently shake the rack to ensure all connections are secure and the unit is stable.
2. If using wheels, unlock them to move the rack to its desired location, then lock them to secure it. If using leveling feet, adjust them to ensure the rack is level on the floor.

5. ఆపరేటింగ్ సూచనలు

5.1 నిల్వ స్థలాన్ని ఉపయోగించడం

• వేలాడే బట్టలు: Use the hanging rods for shirts, jackets, dresses, and other garments. The rods can be positioned at different heights to accommodate varying clothing lengths.
• Folded Items: The wire shelves are suitable for folded clothing, linens, bags, and storage boxes.
• సర్దుబాటు కాన్ఫిగరేషన్: The shelves and hanging rods can be adjusted to create custom storage layouts. For example, place shelves higher for hats and bags, or lower for shoes.

Figure 5: The rack's dimensions, illustrating its 79-inch height and capacity for hanging long garments like dresses.

5.2 Moving the Rack

• If your rack is equipped with wheels, unlock the two lockable wheels before attempting to move the unit.
• Push the rack gently to its new location. Avoid pulling or sudden movements, especially when heavily loaded.
• Once in position, lock the wheels to prevent unintended movement.

చిత్రం 6: ఉదాample of the clothes rack configured in an L-shape, demonstrating its adaptability for corner spaces.

6. నిర్వహణ

• శుభ్రపరచడం: మెటల్ ఉపరితలాలను మృదువైన, d వస్త్రంతో తుడవండి.amp వస్త్రం. ముగింపును దెబ్బతీసే రాపిడి క్లీనర్లు లేదా కఠినమైన రసాయనాలను నివారించండి.
• తనిఖీ: Periodically check all connections to ensure they remain tight and secure. Retighten if necessary.
• రస్ట్ నివారణ: The rack is rust-proof, but avoid prolonged exposure to excessive moisture to maintain its condition.

7. ట్రబుల్షూటింగ్

8. స్పెసిఫికేషన్లు

• బ్రాండ్: రేబీ
• మోడల్: 6pw
• రంగు: నలుపు
• మెటీరియల్: మెటల్
• ఉత్పత్తి కొలతలు (సమావేశం): 16.7"డి x 45.3"వా x 79"హ
• లోడ్ సామర్థ్యం: 176 Pounds (when stationary)
• అరల సంఖ్య: 4 (సర్దుబాటు)
• వేలాడే రాడ్లు: 3 (Detachable)
• చలనశీలత: 6 x 360° Rotating Wheels (2 lockable) or Adjustable Leveling Feet
• అసెంబ్లీ అవసరం: Yes (Tool-free assembly)
• ప్రత్యేక లక్షణాలు: Heavy Duty, Adjustable Shelves, Detachable Hanging Rods, Portable with Lockable Wheels, Rust-Proof, Scratch Resistant.

9. వారంటీ మరియు మద్దతు

Raybee products are manufactured with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Raybee webసైట్.

If you encounter any issues or have questions regarding your Raybee Heavy Duty Clothes Rack, please contact our customer support team for assistance. Provide your model number (6pw) and purchase details when contacting support.

కస్టమర్ మద్దతు: Please refer to your purchase documentation or the Raybee official webసంప్రదింపు సమాచారం కోసం సైట్.
