EVERCROSS EK6 Electric Bike User Manual

పరిచయం

Welcome to the world of electric biking with your new EVERCROSS EK6 Electric Bike. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your e-bike. Please read it thoroughly before your first ride to ensure a safe and enjoyable experience.

కీ ఫీచర్లు

• Powerful Motor & Long Range: Equipped with a 750W brushless geared motor and a 48V 15Ah removable battery, offering a top speed of 20mph and a range of 28-62 miles on a single charge.
• ఆల్-టెర్రైన్ ఫ్యాట్ టైర్లు: Features 20" x 4.0" puncture-resistant fat tires for excellent performance on various terrains, including city roads, snow, beaches, and rugged mountain roads.
• Dual Shock Absorption: Front fork and seatpost suspension systems ensure a smooth and comfortable ride, reducing the feeling of bumps.
• Foldable & User-Friendly Design: Step-thru frame design allows for easy folding in two simple steps, making it compact for storage and transport in car trunks or SUVs. Adjustable stem and seat accommodate riders of various sizes.
• మెరుగైన భద్రత: Dual disc brakes provide reliable stopping power. Bright LED headlight and taillight improve visibility for safer night riding.
• బహుముఖ రైడింగ్ మోడ్‌లు: Three customizable riding modes (Bike Mode, Pedal-Assist Mode, Throttle Mode) and 7-speed Shimano gears offer a personalized riding experience.
• సౌకర్యవంతమైన ఉపకరణాలు: Pre-installed bottle mounts, front basket, and rear rack allow for easy customization and accessory attachment.

సెటప్ & అసెంబ్లీ

Your EVERCROSS EK6 Electric Bike comes extensively pre-assembled. The following steps outline the final assembly process:

1. అన్‌ప్యాకింగ్: Carefully remove the bike and all components from the packaging. Inspect for any damage during transit.
2. హ్యాండిల్‌బార్ ఇన్‌స్టాలేషన్: Attach the handlebars to the stem. Ensure all bolts are securely tightened.
3. ఫ్రంట్ వీల్ అటాచ్‌మెంట్: Install the front wheel, making sure the disc brake aligns correctly with the caliper.
4. Fenders and Lights: Attach the front and rear fenders. Secure the LED headlight and taillight.
5. సీట్ల సర్దుబాటు: Insert the seat post and adjust the seat height to your comfort. The seat features a suspension for added comfort.
6. పెడల్స్: Attach the pedals. Note that pedals are typically marked 'L' for left and 'R' for right.
7. బ్యాటరీ ఇన్‌స్టాలేషన్: Ensure the battery is securely locked into its compartment.

All necessary tools for assembly are included with your bike. Refer to the included user manual for detailed diagrams and instructions.

భాగాలు ముగిశాయిview

మొత్తంమీద view of the EVERCROSS EK6 Electric Bike in white with a saddlebag.

A rider demonstrating the bike, with callouts for 48V 15Ah Battery Capacity, 28-62 Miles Maximal Range, 6-7 Hours Full Charge, and 265 LBS Max Load.

వివరంగా view of the 750W brushless motor and 7-speed Shimano gears, indicating 20MPH Max Speed and 25° Gradient capability.

The LCD Display Dashboard showing battery level, speed switch, riding distance, and malfunction indicators, along with disc brake and power on/off controls.

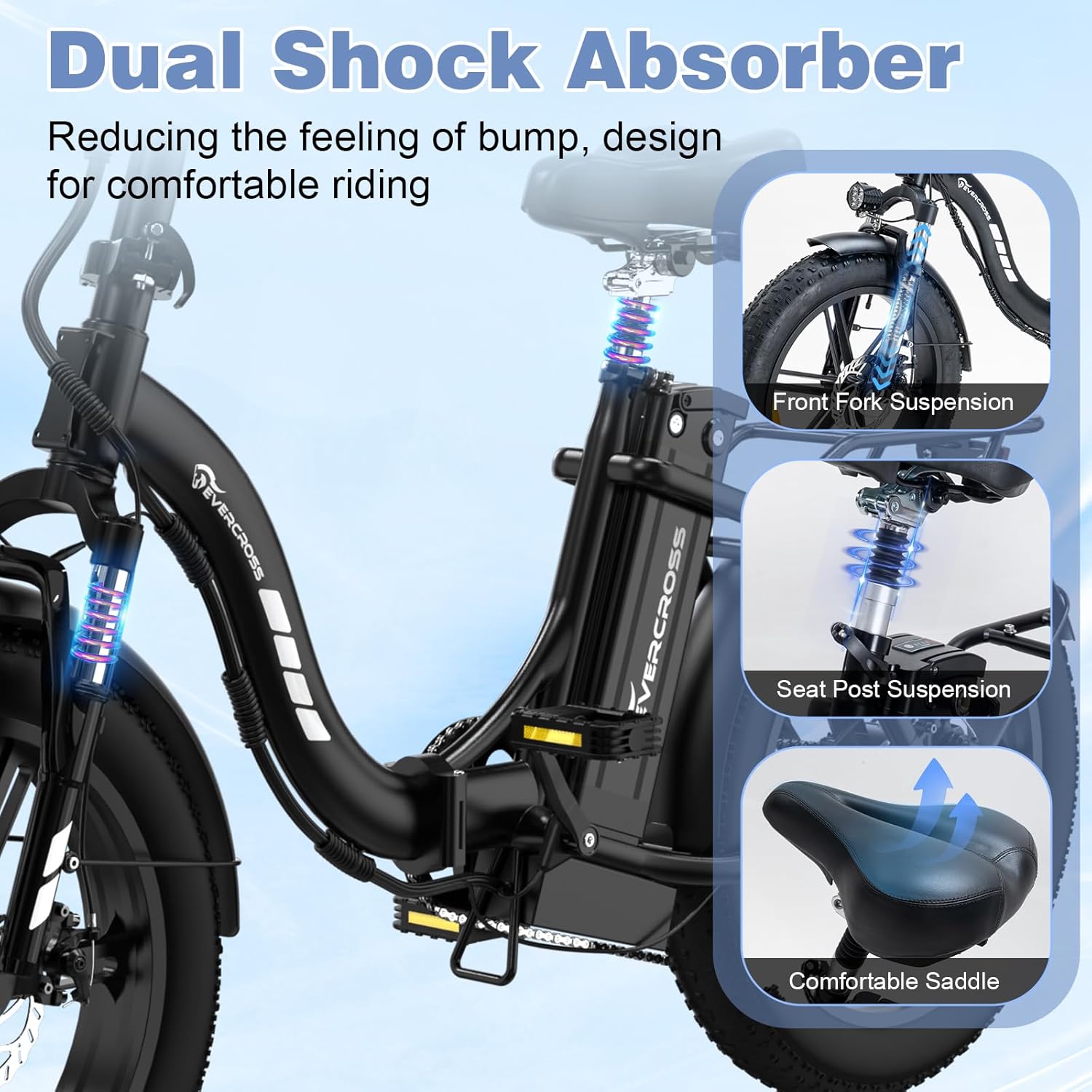

Illustration of the Dual Shock Absorber system, featuring front fork suspension, seat post suspension, and a comfortable saddle for a smooth ride.

Close-up of the 20" x 4.0" Fat Tires, highlighting their suitability for various terrains including City Road, Sand Road, Mountain Road, and Snow Road.

ఆపరేటింగ్ సూచనలు

రైడింగ్ మోడ్‌లు

The EVERCROSS EK6 offers three distinct riding modes:

Visual representation of the three driving modes: Bike Mode (power off & normal bike), Pedal-Assist Mode (power on & just pedaling), and Throttle Mode (power on & just throttle).

• బైక్ మోడ్: Power is off. Ride as a traditional bicycle using pedal power only.
• పెడల్-అసిస్ట్ మోడ్: Power is on. The motor provides assistance as you pedal. Adjust the assist level (low, medium, high) via the LCD display controls.
• థొరెటల్ మోడ్: Power is on. Engage the throttle (twist grip) for motor-only propulsion without pedaling.

LCD డిస్ప్లే వాడకం

The integrated LCD display provides crucial information and control:

• పవర్ ఆన్/ఆఫ్: డిస్‌ప్లేను ఆన్ లేదా ఆఫ్ చేయడానికి పవర్ బటన్‌ను 3 సెకన్ల పాటు నొక్కి పట్టుకోండి.
• కాంతి నియంత్రణ: Hold the '+' button to turn the LED headlight on/off.
• సహాయక స్థాయి సర్దుబాటు: Use the '+' and '-' buttons to cycle through low, medium, and high pedal-assist levels.
• క్రూయిజ్ కంట్రోల్: Hold the '-' button to activate cruise control.
• సమాచార ప్రదర్శన: The screen shows current speed, battery level, trip distance, total mileage (odometer), and voltage.

నిర్వహణ

క్రమం తప్పకుండా నిర్వహణ మీ ఇ-బైక్ యొక్క దీర్ఘాయువు మరియు సురక్షితమైన ఆపరేషన్‌ను నిర్ధారిస్తుంది.

• బ్యాటరీ ఛార్జింగ్: The 48V 15Ah battery can be charged while installed on the bike or removed. Connect the provided charger to the battery port and a power outlet. The charger indicator light will show charging status.
• టైర్ ఒత్తిడి: Regularly check and maintain the recommended tire pressure for optimal performance and safety. An air pump is included for convenience.
• బ్రేక్‌లు: Periodically inspect the dual disc brakes for wear and proper function. Adjust or replace brake pads as needed.
• చైన్ లూబ్రికేషన్: సజావుగా గేర్ మార్పులు జరిగేలా మరియు దుస్తులు ధరించకుండా ఉండటానికి గొలుసును శుభ్రంగా మరియు లూబ్రికేట్‌తో ఉంచండి.
• సాధారణ శుభ్రపరచడం: ప్రకటనతో మీ ఇ-బైక్‌ను క్రమం తప్పకుండా శుభ్రం చేయండిamp వస్త్రం. విద్యుత్ భాగాలపై నేరుగా అధిక పీడనంతో ఉతకడం మానుకోండి.
• ఫాస్టెనర్లు: Check all bolts and fasteners periodically to ensure they are tight and secure.

ట్రబుల్షూటింగ్

If you encounter any issues with your EVERCROSS EK6 Electric Bike, please refer to the following common troubleshooting tips:

• బైక్ ఆన్ చేయడం లేదు: Ensure the battery is fully charged and properly seated. Check that the key is turned to the 'ON' position.
• మోటారు సహాయం చేయకపోవడం: Verify that you are in Pedal-Assist or Throttle mode. Check the battery level on the LCD display.
• బ్రేకులు చప్పుడు: This can often be resolved by cleaning the brake rotors and pads. If the issue persists, professional adjustment may be required.
• అసాధారణ శబ్దాలు: Inspect the chain, gears, and wheels for any obstructions or loose components.

For more complex issues or if troubleshooting steps do not resolve the problem, please contact EVERCROSS customer support.

స్పెసిఫికేషన్లు

వారంటీ & మద్దతు

EVERCROSS is committed to providing high-quality products and excellent customer service.

వారంటీ సమాచారం

Your EVERCROSS EK6 Electric Bike comes with a manufacturer's warranty. Please refer to the warranty description provided with your purchase for specific terms and conditions. It is recommended to retain your original packaging in case a return or service is required.

కస్టమర్ మద్దతు

If you experience any problems with your electric bike or have questions not covered in this manual, please contact the EVERCROSS after-sales service team. They are always available to assist you.
