పరిచయం
This manual provides essential information for the installation, operation, and maintenance of your new HATARI Refrigerator Ice Maker. This aftermarket replacement part is designed for compatibility with various refrigerator brands including Kenmore, Whirlpool, KitchenAid, Maytag, and Amana, specifically replacing models #S 106 626661 and W106 626661. Please read this manual thoroughly before installation and use to ensure proper function and safety.
భద్రతా సమాచారం
Always prioritize safety when working with electrical appliances. Failure to follow these safety instructions could result in electric shock, fire, or personal injury.
- పవర్ డిస్కనెక్ట్ చేయండి: Always unplug the refrigerator from the power outlet before attempting any installation, maintenance, or repair.
- అర్హత కలిగిన సిబ్బంది: If you are unsure about any step, it is recommended to seek assistance from a qualified appliance technician.
- రక్షణ గేర్ ధరించండి: Use gloves and eye protection when handling tools and components.
- నీటి సరఫరా: Ensure the water supply to the refrigerator is turned off before disconnecting or connecting any water lines.
- భాగాలను తనిఖీ చేయండి: Before installation, carefully inspect all components for any damage. Do not install damaged parts.
ప్యాకేజీ విషయాలు
ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయని నిర్ధారించుకోండి:
- 1x Refrigerator Ice Maker Assembly
- Note: Additional components such as wiring harnesses may or may not be included depending on the specific product variant. Please refer to the product images and description at the time of purchase.
Image 1: The complete HATARI Refrigerator Ice Maker Assembly, showing the main body, ice mold, and wire bail arm.
సెటప్ మరియు ఇన్స్టాలేషన్
This section provides general guidance for installing the ice maker. Specific steps may vary depending on your refrigerator model. Always consult your refrigerator's service manual for detailed instructions.
- రిఫ్రిజిరేటర్ సిద్ధం చేయండి:
- ఎలక్ట్రికల్ అవుట్లెట్ నుండి రిఫ్రిజిరేటర్ను అన్ప్లగ్ చేయండి.
- రిఫ్రిజిరేటర్కు నీటి సరఫరా వాల్వ్ను ఆపివేయండి.
- Remove the ice bucket and any shelves or covers that obstruct access to the ice maker compartment.
- పాత ఐస్ మేకర్ను తొలగించండి:
- Locate the mounting screws or clips holding the old ice maker in place. Remove them.
- Carefully disconnect the electrical wiring harness from the old ice maker. Note the orientation of the connector.
- Disconnect any water lines if they are directly attached to the ice maker.
- Remove the old ice maker from the freezer compartment.
చిత్రం 2: వైపు view of the ice maker, illustrating the internal ice mold and the wire bail arm in the down position.
- కొత్త ఐస్ మేకర్ను ఇన్స్టాల్ చేయండి:
- Align the new HATARI ice maker with the mounting points in the freezer compartment.
- Secure the ice maker using the appropriate screws or clips. Ensure it is firmly in place.
- Connect the electrical wiring harness to the new ice maker. Ensure the connection is secure and correctly oriented.
- If applicable, reconnect any water lines.

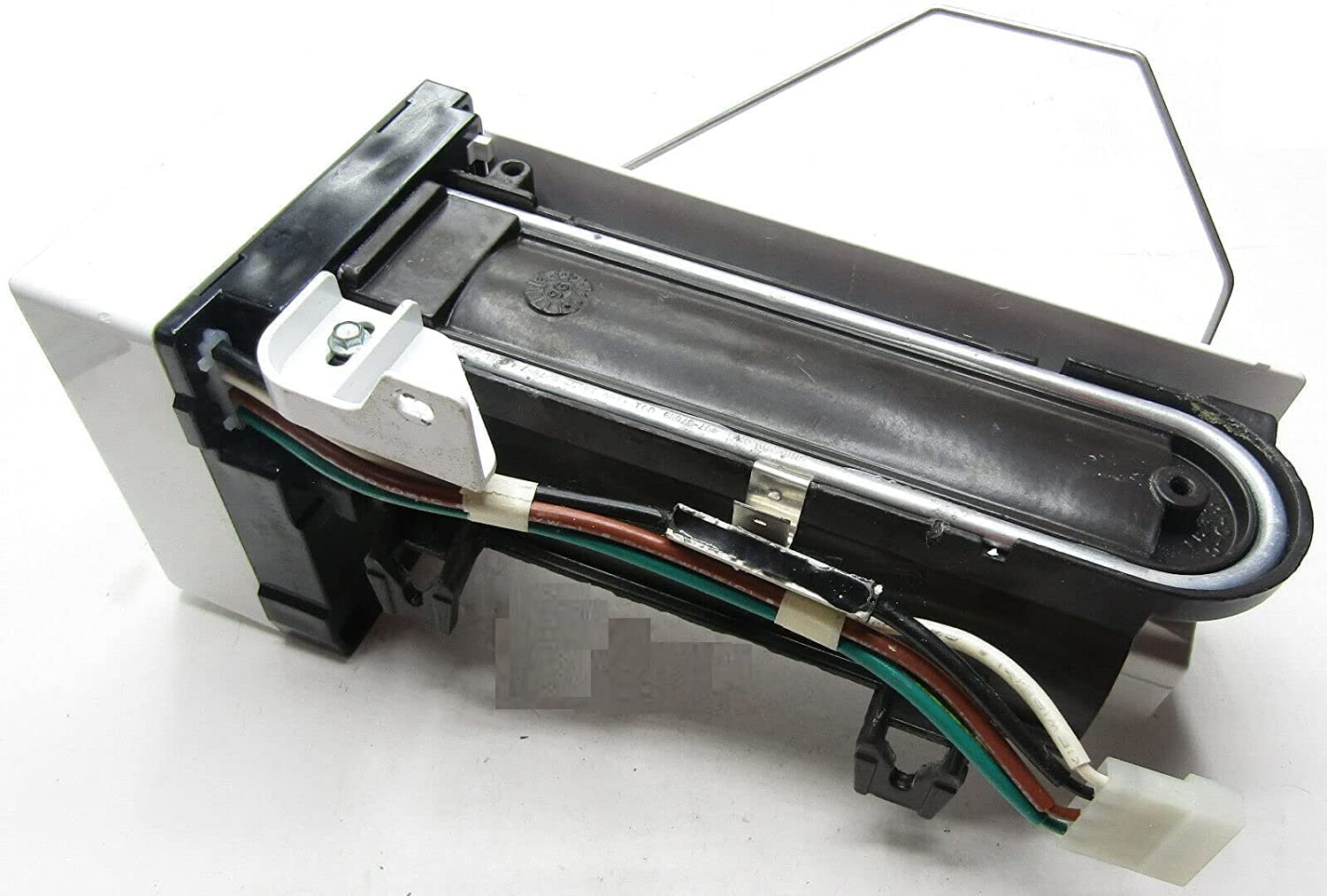

చిత్రం 3: పైభాగం view of the ice maker, highlighting the electrical wiring harness connection point.
- చివరి దశలు:
- Replace any removed shelves or covers.
- Turn on the water supply valve to the refrigerator.
- రిఫ్రిజిరేటర్ను తిరిగి ఎలక్ట్రికల్ అవుట్లెట్లోకి ప్లగ్ చేయండి.
- Allow several hours for the ice maker to begin producing ice. The first few batches of ice may be smaller or irregular.
ఆపరేటింగ్ సూచనలు
Once installed and powered, the ice maker operates automatically. It will fill with water, freeze the water into cubes, and then eject the cubes into the ice bucket.
- మంచు ఉత్పత్తి: The ice maker will cycle automatically as ice is used or melts.
- Wire Bail Arm: The metal wire bail arm controls ice production.
- When the arm is in the డౌన్ స్థానం, the ice maker will produce ice.
- When the arm is in the అప్ స్థానం (resting against the top of the ice maker), ice production will stop. This is typically used when the ice bucket is full or if you wish to temporarily stop ice production.
- Initial Ice: Discard the first few batches of ice to ensure any manufacturing residues are flushed out.
నిర్వహణ
క్రమం తప్పకుండా నిర్వహణ మీ ఐస్ మేకర్ యొక్క ఉత్తమ పనితీరు మరియు దీర్ఘాయువును నిర్ధారించడంలో సహాయపడుతుంది.
- Cleaning the Ice Bucket: Periodically remove and wash the ice bucket with mild soap and warm water. Rinse thoroughly and dry completely before returning it to the freezer.
- Cleaning the Ice Maker: If mineral deposits or debris accumulate on the ice maker components, you can gently wipe them with a damp cloth. Do not use abrasive cleaners or harsh chemicals. Ensure the refrigerator is unplugged before cleaning.
- వాటర్ ఫిల్టర్: If your refrigerator has a water filter, ensure it is replaced regularly according to the refrigerator manufacturer's recommendations to maintain water quality and prevent mineral buildup in the ice maker.
ట్రబుల్షూటింగ్
If your ice maker is not functioning as expected, refer to the following common issues and solutions:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| ఐస్ మేకర్ ఐస్ ఉత్పత్తి చేయడం లేదు. |
|
|
| Small or hollow ice cubes. |
|
|
| Ice cubes stuck in mold. |
|
|
ఈ పరిష్కారాలను ప్రయత్నించిన తర్వాత కూడా సమస్య కొనసాగితే, దయచేసి కస్టమర్ సపోర్ట్ లేదా అర్హత కలిగిన సాంకేతిక నిపుణుడిని సంప్రదించండి.
స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| బ్రాండ్ | HATARI |
| మోడల్ సంఖ్య | W106 |
| మోడల్ పేరు | రిఫ్రిజిరేటర్ ఐస్ మేకర్ |
| ఉత్పత్తి కొలతలు | 12.6 x 6.73 x 6.26 అంగుళాలు |
| అనుకూల నమూనాలు | #S 106 626661, W106 626661 (Aftermarket replacement for Kenmore, Whirlpool, KitchenAid, Maytag, Amana) |
| UPC | 734665738670 |
వారంటీ సమాచారం
Specific warranty details for this HATARI Refrigerator Ice Maker are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please refer to the product packaging, the seller's webసైట్, లేదా తయారీదారుని నేరుగా సంప్రదించండి.
కస్టమర్ మద్దతు
If you encounter any issues or have questions that are not addressed in this manual, please contact the seller or manufacturer for assistance. When contacting support, please have your product model number (W106) and purchase details ready.
Note: If you are not sure about the compatibility of this part with your specific refrigerator model, please contact the seller for advice. They aim to resolve your problem within 24 hours.
