1. పరిచయం
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Amerec K3 Steam Controller. The K3 is a modern, surface-mounted glass touchscreen designed to enhance your steam bath experience by allowing precise control over time and temperature settings.
Please read this manual thoroughly before installation and operation to ensure proper function and longevity of your product.
2. Important Compatibility Notes
- అనుకూలత: The K3 Steam Controller is అనుకూలంగా లేదు with Amerec AK Series steam generators manufactured prior to August 18, 2021. Please verify the manufacturing date of your AK unit before attempting installation.
- స్టీమ్ హెడ్: This K3 Steam Controller unit does not include a steam head. A separate steam head is required for a complete steam bath system.
3. సెటప్ మరియు ఇన్స్టాలేషన్
The Amerec K3 Steam Controller is designed for surface mounting. It can be installed either inside or outside the steam room, depending on your preference and installation requirements.
3.1. ప్యాకేజీ విషయాలు
- K3 Steam Controller Unit
- కనెక్షన్ కేబుల్
3.2. ఇన్స్టాలేషన్ దశలు (సాధారణ మార్గదర్శకాలు)
- స్థానం ఎంపిక: Choose a suitable location for surface mounting the controller. Ensure it is easily accessible and within reach of the provided connection cable to the steam generator.
- మౌంటు: Securely mount the K3 controller to the wall surface according to the detailed instructions provided in the full installation guide (not included in this manual, refer to Amerec's official documentation for specific wiring and mounting details).
- కేబుల్ కనెక్షన్: Connect the provided cable from the K3 controller to the designated port on your compatible Amerec AK Series steam generator. Ensure all connections are secure and follow local electrical codes.
- పవర్ ఆన్: Once all connections are made and verified, power on your steam generator system. The K3 controller display should illuminate.

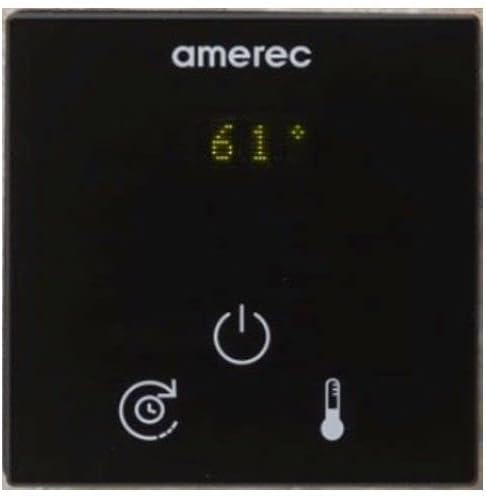

Figure 1: Amerec K3 Steam Controller. The image displays the Amerec K3 Steam Controller. It features a black glass touchscreen with the 'amerec' logo at the top. A digital display shows '61°'. Below the display are three touch-sensitive icons: a power symbol (circle with a vertical line), a timer symbol (clock with an arrow), and a thermometer symbol.
4. ఆపరేటింగ్ సూచనలు
The K3 Steam Controller features a user-friendly glass touchscreen interface for managing your steam bath settings.
4.1. ప్రాథమిక విధులు
- పవర్ ఆన్/ఆఫ్: తాకండి ⏻ ⏻ తెలుగు (power) icon to turn the steam generator on or off. When powered on, the display will show the current temperature or set temperature.
- సెట్ ఉష్ణోగ్రత: తాకండి 🌡 (thermometer) icon to adjust the desired temperature. Use the on-screen controls (usually up/down arrows or a slider, depending on the interface) to set your preferred temperature.
- సమయాన్ని సెట్ చేయండి: తాకండి ⏱ ⏱ తెలుగు (timer) icon to set the duration of your steam bath session. Adjust the time using the on-screen controls.
4.2. అధునాతన ఫీచర్లు
Refer to the full Amerec K3 product guide for detailed instructions on any advanced features or customization options available through the touchscreen interface.
5. నిర్వహణ మరియు సంరక్షణ
To ensure the longevity and optimal performance of your K3 Steam Controller, follow these simple maintenance guidelines:
- శుభ్రపరచడం: Gently wipe the glass touchscreen with a soft, damp cloth. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the surface and electronic components.
- తనిఖీ: Periodically inspect the controller and its connections for any signs of wear or damage. If any issues are observed, contact qualified service personnel.
- పర్యావరణ పరిస్థితులు: Ensure the controller is not exposed to extreme temperatures or excessive moisture beyond its operational specifications.
6. ట్రబుల్షూటింగ్
If you encounter issues with your Amerec K3 Steam Controller, please review కింది సాధారణ సమస్యలు మరియు పరిష్కారాలు:
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| Controller display is blank. | No power to the steam generator or controller. Loose cable connection. | Check power supply to the steam generator. Verify the connection cable between the controller and generator is securely attached. |
| Steam generator not activating. | Controller not powered on. Incorrect settings. Incompatible steam generator. | Ensure the controller is powered on. Check temperature and time settings. Confirm your AK Series generator was manufactured after August 18, 2021. |
| Temperature or time settings cannot be adjusted. | Controller may be in a locked mode or experiencing a temporary software issue. | Try powering the controller off and on again. Consult the full product manual for specific lockout features. |
If the problem persists after attempting these solutions, please contact Amerec customer support or a qualified service technician.
7. స్పెసిఫికేషన్లు
- మోడల్: K3 Steam Controller
- బ్రాండ్: అమెరెక్
- రంగు: మాట్ బ్లాక్
- కొలతలు: 0.6 x 2.6 x 2.6 అంగుళాలు
- మౌంటు: ఉపరితల మౌంట్
- ఇంటర్ఫేస్: Black Glass Touchscreen
- నియంత్రణలు: Time, Temperature
- చేర్చబడిన భాగాలు: Unit and Cable
- అనుకూలత: Amerec AK Series steam generators (manufactured after August 18, 2021)
8. వారంటీ సమాచారం
Specific warranty details for the Amerec K3 Steam Controller are typically provided with the product packaging or can be found on the official Amerec website. Generally, Amerec products come with a limited warranty covering manufacturing defects.
Please retain your proof of purchase for warranty claims. For full terms and conditions, visit the Amerec Support Page or contact Amerec customer service directly.
9. కస్టమర్ మద్దతు
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Amerec customer support:
- Webసైట్: www.amerec.com
- మద్దతు పేజీ: www.amerec.com/support
- ఫోన్: Refer to the Amerec webఅత్యంత తాజా కాంటాక్ట్ నంబర్ల కోసం సైట్.
When contacting support, please have your product model (K3 Steam Controller) and purchase information readily available.
