పరిచయం
This manual provides essential information for the safe operation, setup, maintenance, and troubleshooting of your Victory 60" Motorized ATV Flail Mower (Model: MATV-60). Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.
భద్రతా సమాచారం
Always prioritize safety when operating the flail mower. Failure to follow safety instructions can result in serious injury or death.
- Read and understand all instructions in this manual before operation.
- Wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, sturdy footwear, and long pants.
- Keep bystanders, especially children and pets, at a safe distance from the operating area.
- Ensure the work area is clear of debris that could be thrown by the mower.
- Never operate the mower under the influence of alcohol or drugs.
- Always turn off the engine and disconnect the spark plug wire before performing any maintenance, adjustments, or clearing clogs.
- The mower is equipped with a centrifugal clutch for overload suppression and quick start/stop. Do not bypass or modify this safety feature.
- Observe all safety decals on the machine.
చిత్రం: క్లోజప్ view of the side panel of the flail mower, showing various safety decals and warnings. These decals provide crucial information regarding safe operation and potential hazards.
సెటప్ మరియు అసెంబ్లీ
అన్ప్యాకింగ్ మరియు ప్రారంభ తనిఖీ
Carefully remove all components from the packaging. Inspect for any shipping damage. Report any damage to your dealer immediately.
Wheel Setup and Adjustment
The MATV-60 offers versatile wheel mounting options to adapt to various mowing conditions. You can mount the wheels in three configurations:
- Inside the mower frame border on the rear side: For a narrower overall width.
- Outside the mower frame side border on the rear side: For increased stability.
- Outside the mower frame in line with the rotor shaft: For specific cutting requirements.
Refer to the assembly diagrams for detailed instructions on securing the wheels in your desired position.
చిత్రం: క్లోజప్ view of one of the wheels attached to the flail mower, showing the robust tire and axle assembly. This illustrates the wheel mounting point.

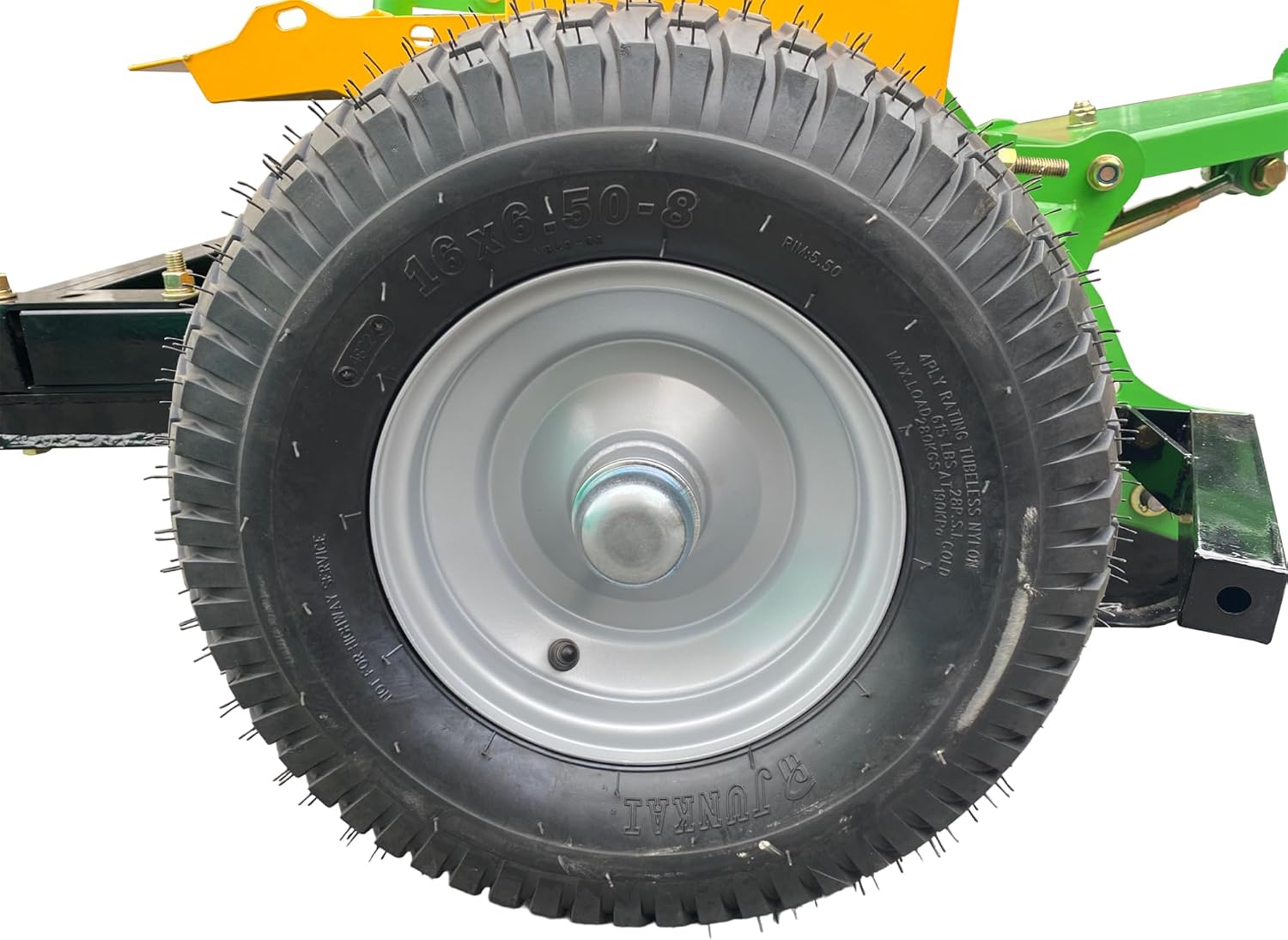

Image: Detailed close-up of a single wheel, highlighting the tire tread and rim. This provides a clear view of the wheel's construction.
Drawbar with Adjustable Offset Angles
The drawbar can be adjusted to different offset angles (200 mm and 400 mm) to achieve optimal alignment with your towing vehicle (ATV). This allows for mowing alongside obstacles or in specific patterns.
- Attach the drawbar to the mower body using the provided hardware.
- Select the desired offset position and secure the drawbar firmly.
- Ensure the sole plate weldment provides a secure and stable connection.

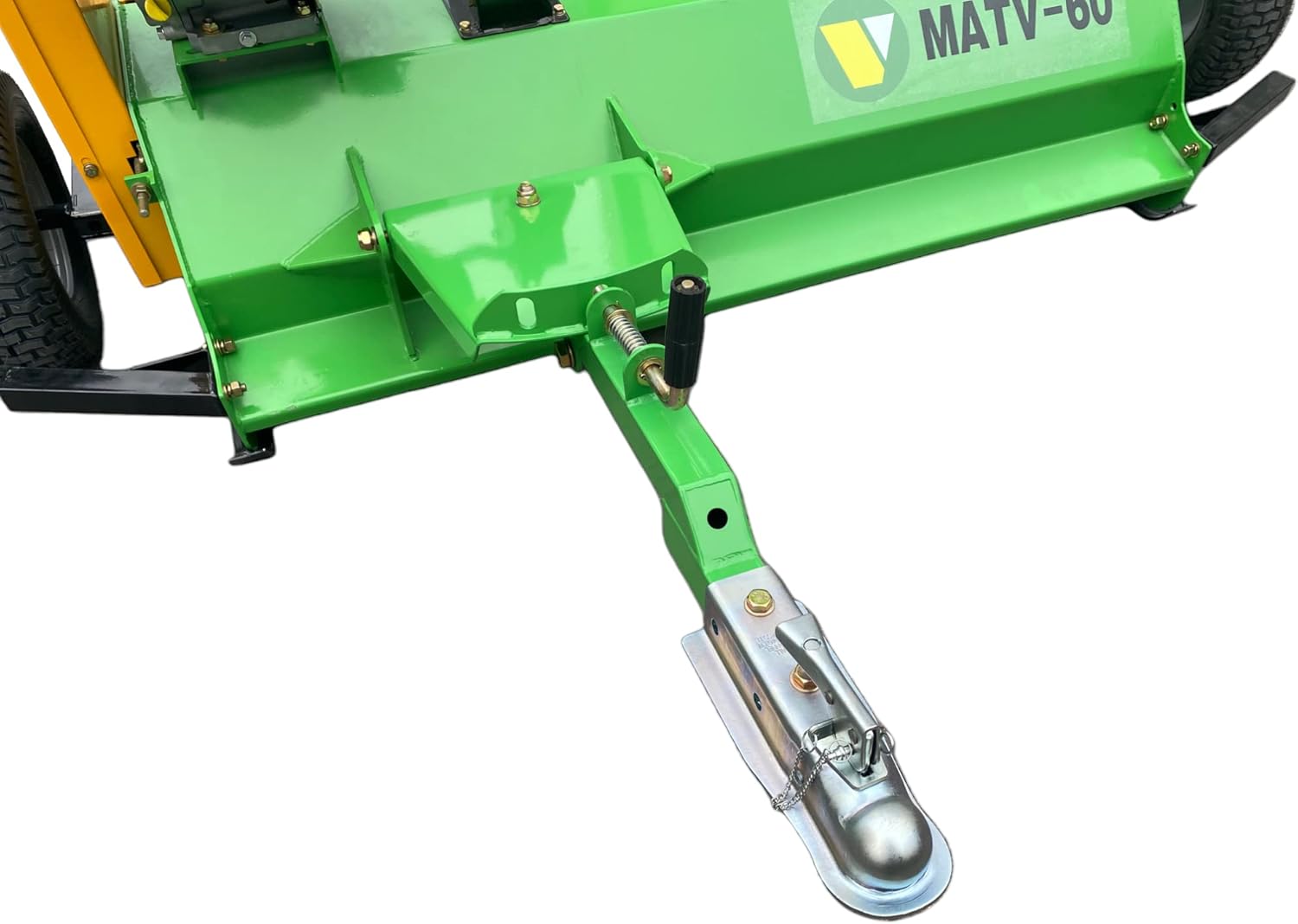

చిత్రం: వివరణాత్మక view of the tow hitch mechanism, showing the ball hitch receiver and connecting components. This is where the mower attaches to an ATV.
Image: Close-up of the adjustable drawbar mechanism, illustrating the pin and hole system for changing the offset angle. This allows for flexible towing positions.
ఆపరేటింగ్ సూచనలు
Engine Operation (B&S 25T2 OHV XR2100 EPA)
The MATV-60 is powered by a 420 cc, 13.5 hp B&S 25T2 OHV XR2100 EPA engine. Follow the engine manufacturer's instructions for starting, stopping, and general operation. Ensure the fuel tank is filled with fresh, clean gasoline and the oil level is correct before each use.

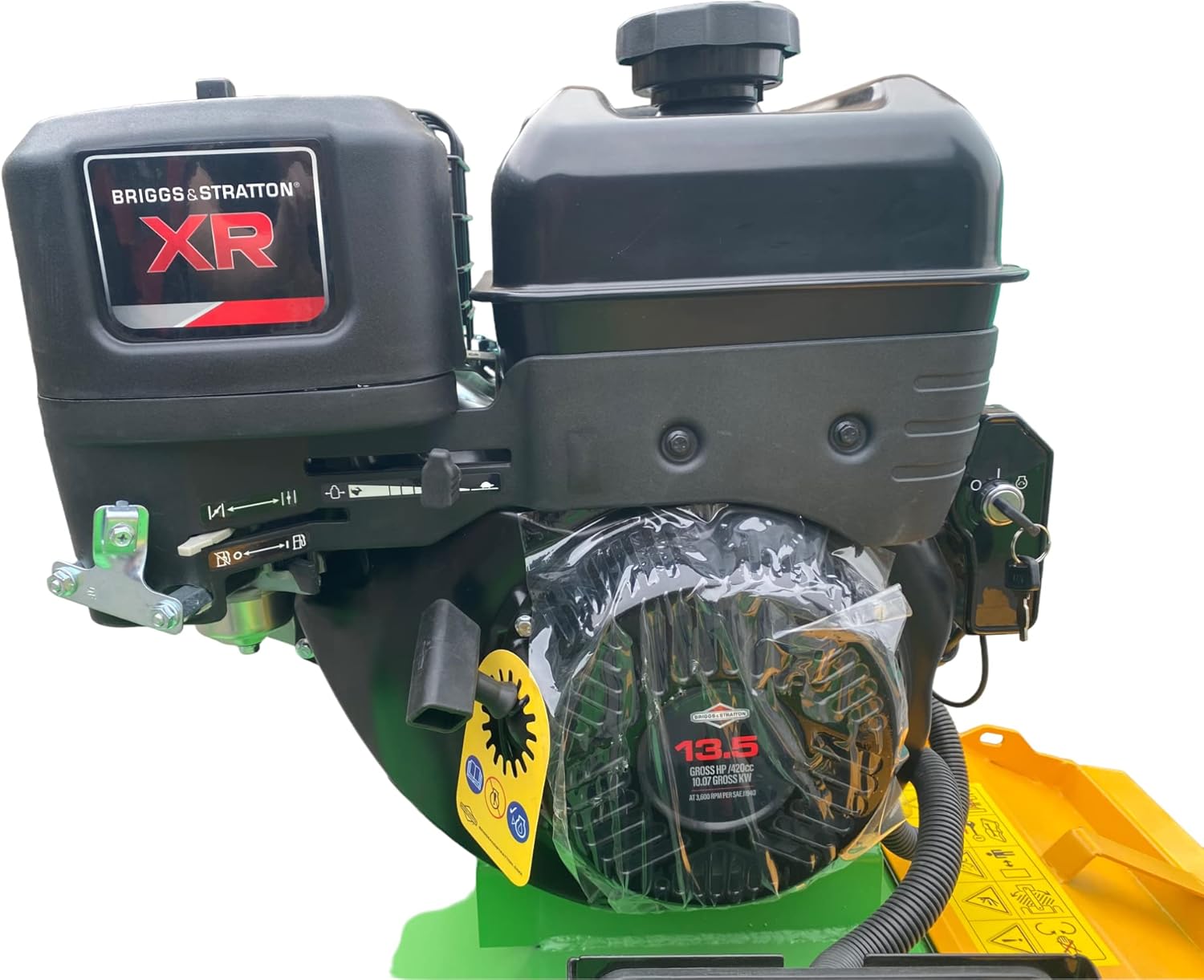

చిత్రం: వివరణాత్మక view of the Briggs & Stratton XR2100 engine, highlighting its components and branding. This is the power unit for the flail mower.
కోత ఎత్తు సర్దుబాటు
The mowing height can be adjusted from 20 mm to 70 mm to suit different terrains and grass types. This adjustment is typically done via a lever or crank mechanism located on the mower.
- Ensure the engine is off and the mower is on a level surface before adjusting the height.
- ఎత్తు సర్దుబాటు యంత్రాంగాన్ని గుర్తించండి.
- Adjust to the desired height setting.
- Confirm both sides are set to the same height for an even cut.
చిత్రం: వెనుక view of the flail mower, showing the roller and the handle used for adjusting the cutting height. This mechanism allows for precise control over the mowing level.
సాధారణ మొవింగ్ చిట్కాలు
- Always operate the mower at a safe and controlled speed.
- Avoid mowing on excessively steep slopes.
- మీ పరిసరాలు మరియు సంభావ్య ప్రమాదాల గురించి తెలుసుకోండి.
- Clear the area of large rocks, branches, or other debris before mowing.
నిర్వహణ
Regular maintenance is crucial for the longevity and optimal performance of your MATV-60 flail mower.
- ప్రతి ఉపయోగం తర్వాత: Clean the mower deck and flails. Remove any accumulated grass or debris. Inspect flails for damage or wear.
- ఇంజిన్ నిర్వహణ: Refer to the B&S engine manual for specific maintenance schedules, including oil changes, air filter cleaning/replacement, and spark plug inspection.
- Blade/Flail Inspection: Regularly check the flails for sharpness, damage, or excessive wear. Replace worn or damaged flails promptly.
- సరళత: Lubricate all grease points as recommended in the maintenance schedule.
- నిల్వ: When storing the mower for extended periods, ensure it is clean and dry. Follow engine manufacturer's instructions for long-term storage (e.g., fuel stabilizer, battery care).
Image: Close-up of the adjustable side guard on the flail mower, which can be opened for maintenance or cleaning access to the flail rotor.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| ఇంజిన్ ప్రారంభం కాదు | No fuel; Stale fuel; Spark plug issue; Choke not set | ఇంధన స్థాయిని తనిఖీ చేయండి; నీటిని తీసివేసి, కొత్త ఇంధనంతో నింపండి; స్పార్క్ ప్లగ్ను తనిఖీ చేయండి/మార్చండి; చౌక్ను సర్దుబాటు చేయండి. |
| పేలవమైన కట్టింగ్ పనితీరు | Dull or damaged flails; Incorrect mowing height; Engine RPM too low | Inspect/replace flails; Adjust mowing height; Check engine speed. |
| విపరీతమైన కంపనం | Bent flail; Unbalanced rotor; Loose components | Inspect flails for damage; Check rotor balance; Tighten all fasteners. |
| Mower not tracking straight | Uneven tire pressure; Drawbar not properly aligned | Check and adjust tire pressure; Realign drawbar offset. |
స్పెసిఫికేషన్లు
- మోడల్: MATV-60 ద్వారా MATV-48
- ఇంజిన్: B&S 25T2 OHV XR2100 EPA, 4-Stroke Gasoline
- ఇంజిన్ కెపాసిటీ: 420 సిసి
- ఇంజిన్ పవర్: 13.5 hp
- Fixed Speed: 3150 rpm
- Mowing Width: 60 అంగుళాలు (1450 మిమీ)
- Adjustable Mowing Height: 20 - 70 మి.మీ.
- ఉత్పత్తి కొలతలు (LxWxH): 83 x 43 x 59 అంగుళాలు
- వస్తువు బరువు: 617 పౌండ్లు
- Drawbar Offset Dimensions: 200 మి.మీ., 400 మి.మీ
- భద్రతా ఫీచర్: సెంట్రిఫ్యూగల్ క్లచ్
- మెటీరియల్: మెటల్
- శక్తి మూలం: Gasoline-Powered
చిత్రం: మొత్తం మీద view of the Victory 60" Motorized ATV Flail Mower (MATV-60), showcasing its green and yellow design, engine, and tow hitch.
వారంటీ మరియు మద్దతు
For warranty information, technical support, or to order replacement parts, please contact Victory Tractor Implements customer service. Keep your purchase receipt and model number (MATV-60) readily available when contacting support.
Note: Specific warranty terms and conditions may vary. Refer to the documentation provided at the time of purchase or contact the manufacturer directly for the most current information.
