1. ఉత్పత్తి ముగిసిందిview
The AFERIY Portable Power Station AF-P010 is a versatile and reliable power source designed for various applications, including home backup, outdoor activities, and emergency situations. It features a 512Wh LiFePO4 battery, an 800W AC output (1600W surge), and multiple charging and output ports to power a wide range of devices.

చిత్రం 1.1: ముందు view of the AFERIY Portable Power Station AF-P010, showcasing its compact design and display panel.
ముఖ్య లక్షణాలు:
- అధిక సామర్థ్యం & అవుట్పుట్: 512Wh battery capacity with 800W continuous AC output (1600W peak).
- ఫాస్ట్ ఛార్జింగ్: Fully recharges in approximately 1.5 hours via 400W AC input.
- మన్నికైన బ్యాటరీ: Equipped with LiFePO4 battery technology, offering over 3500 charge cycles to 80% capacity.
- బహుళ పోర్ట్లు: Includes AC, USB-A QC3.0, USB-C (PD 100W/20W), DC6530, and car charging outlets.
- నిరంతర విద్యుత్ సరఫరా (UPS): Automatic switchover in 0.1 seconds during power outages.
- సమాచార ప్రదర్శన: LCD panel shows real-time input/output wattage, battery level, and remaining usage time.
- ఇంటిగ్రేటెడ్ లైటింగ్: LED light with multiple modes (Lighting, SOS, Flashing) for various needs.
2. భద్రతా సూచనలు
Read all safety warnings and instructions carefully before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- యూనిట్ను విడదీయడం, మరమ్మత్తు చేయడం లేదా సవరించడం చేయవద్దు.
- యూనిట్ను ఉష్ణ వనరుల దగ్గర లేదా ప్రత్యక్ష సూర్యకాంతిలో ఉంచవద్దు.
- వర్షం లేదా తేమకు గురికాకుండా ఉండండి.
- పిల్లలు మరియు పెంపుడు జంతువుల నుండి యూనిట్ను దూరంగా ఉంచండి.
- ఒరిజినల్ లేదా సర్టిఫైడ్ యాక్సెసరీలను మాత్రమే ఉపయోగించండి.
- ఉపయోగం మరియు ఛార్జింగ్ సమయంలో సరైన వెంటిలేషన్ ఉండేలా చూసుకోండి.
- అగ్ని ప్రమాదం జరిగితే, పొడి పొడి అగ్నిమాపక యంత్రాన్ని ఉపయోగించండి. నీరు విద్యుత్ షాక్కు కారణం కావచ్చు.
- Do not operate the unit if it has been damaged or dropped.

Image 2.1: Diagram illustrating the Battery Management System (BMS) and its protective features, including short circuit, overload, and temperature protection.
3. ఉత్పత్తి భాగాలు
Familiarize yourself with the components included in your package and the various ports on the power station.
ప్యాకేజీ విషయాలు:

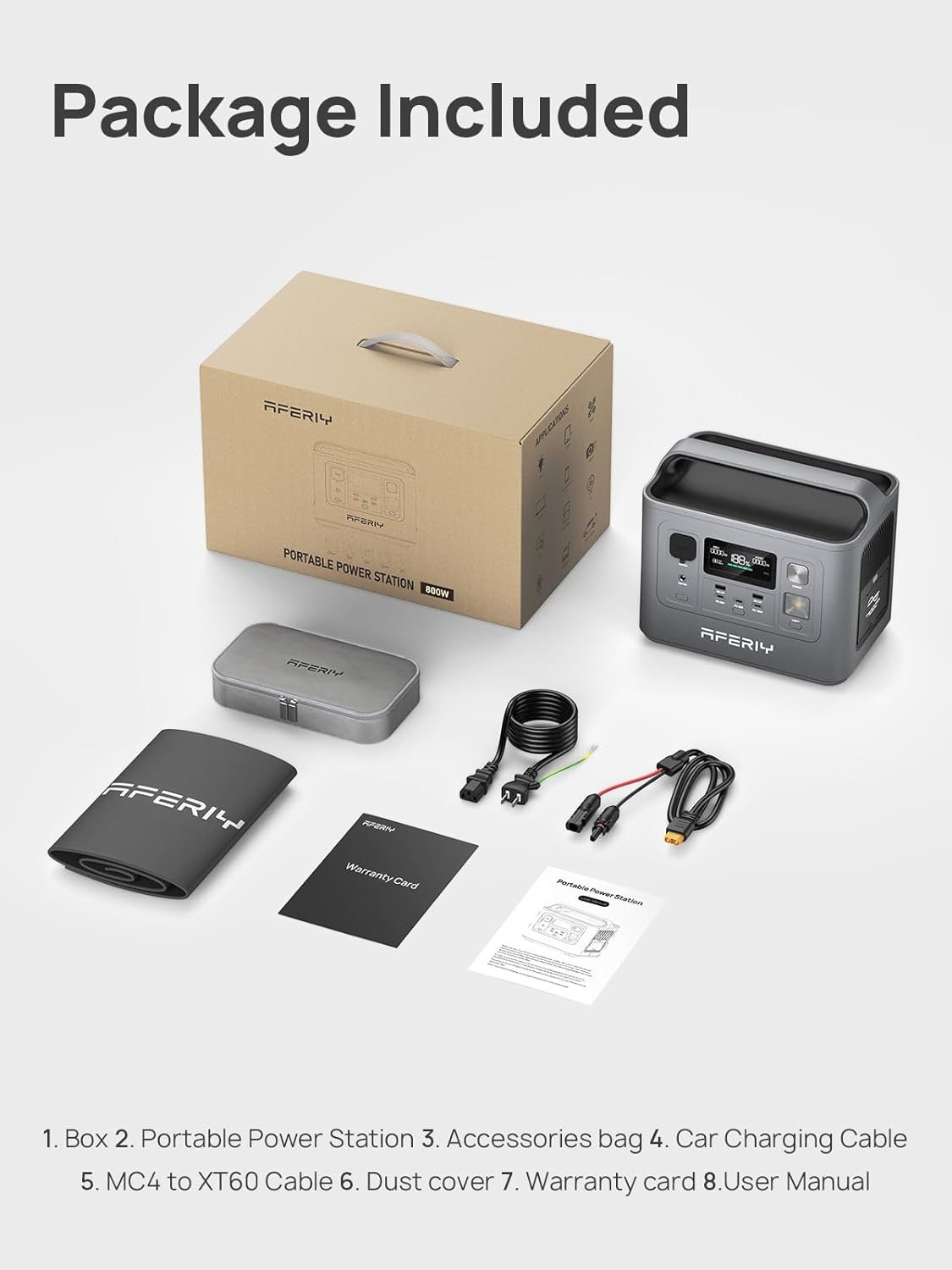

Image 3.1: Contents of the AFERIY Portable Power Station package, including the power station, accessories bag, car charging cable, MC4 to XT60 cable, dust cover, warranty card, and user manual.
- AFERIY Portable Power Station AF-P010
- ఎసి ఛార్జింగ్ కేబుల్
- కార్ ఛార్జింగ్ కేబుల్
- MC4 to XT60 Cable (for solar charging)
- వినియోగదారు మాన్యువల్
- వారంటీ కార్డ్
- ఉపకరణాలు బాగ్
- డస్ట్ కవర్
పోర్ట్ లేఅవుట్:

చిత్రం 3.2: వివరణాత్మకమైనది view of the power station's front panel, labeling the car charger input, DC output port, DC control, main power button, USB ports (QC3.0, Type-C), and light control.
- AC Output (800W): ప్రామాణిక గృహోపకరణాల కోసం.
- USB-A QC3.0 (x2): For quick charging compatible USB devices.
- USB-C (PD 100W x1, PD 20W x2): For fast charging laptops, tablets, and smartphones.
- DC6530 అవుట్పుట్: DC-ఆధారిత పరికరాల కోసం.
- Car Charging Outlet: For 12V car appliances.
- DC ఇన్పుట్: For charging via solar panel or car charger.
- AC ఇన్పుట్: వాల్ అవుట్లెట్ ద్వారా ఛార్జింగ్ కోసం.
- LCD డిస్ప్లే: కార్యాచరణ స్థితిని చూపుతుంది.
- పవర్ బటన్: యూనిట్ను ఆన్/ఆఫ్ చేయడానికి.
- LED లైట్: ప్రకాశాన్ని అందిస్తుంది.
4. సెటప్
Before first use, ensure the power station is fully charged.
ప్రారంభ ఛార్జింగ్:
- Unpack the power station and all accessories.
- Connect the AC charging cable to the AC input port on the power station.
- Plug the other end of the AC charging cable into a standard wall outlet (110V).
- The LCD display will show the charging status. The unit will be fully charged in approximately 1.5 hours.
- పూర్తిగా ఛార్జ్ అయిన తర్వాత, ఛార్జింగ్ కేబుల్ను డిస్కనెక్ట్ చేయండి.
5. ఆపరేటింగ్ సూచనలు
ఆన్/ఆఫ్ చేయడం:
- To turn on the power station, press and hold the main power button for a few seconds until the LCD screen illuminates.
- To turn off the power station, press and hold the main power button again until the LCD screen turns off.
Using Output Ports:
- AC అవుట్పుట్: Press the AC button to activate the AC outlets. Plug your devices into the AC ports. Press the AC button again to turn off.
- USB అవుట్పుట్: The USB-A and USB-C ports are typically active when the unit is on. Simply plug in your USB devices.
- DC అవుట్పుట్: Press the DC button to activate the DC6530 and car charging outlets. Plug in your 12V DC devices. Press the DC button again to turn off.
Ensure the total power consumption of connected devices does not exceed the power station's rated output (800W continuous, 1600W surge).

Image 5.1: The AFERIY Power Station connected to and powering various electronic devices, demonstrating its versatility for different power needs.
పవర్ స్టేషన్ ఛార్జింగ్:

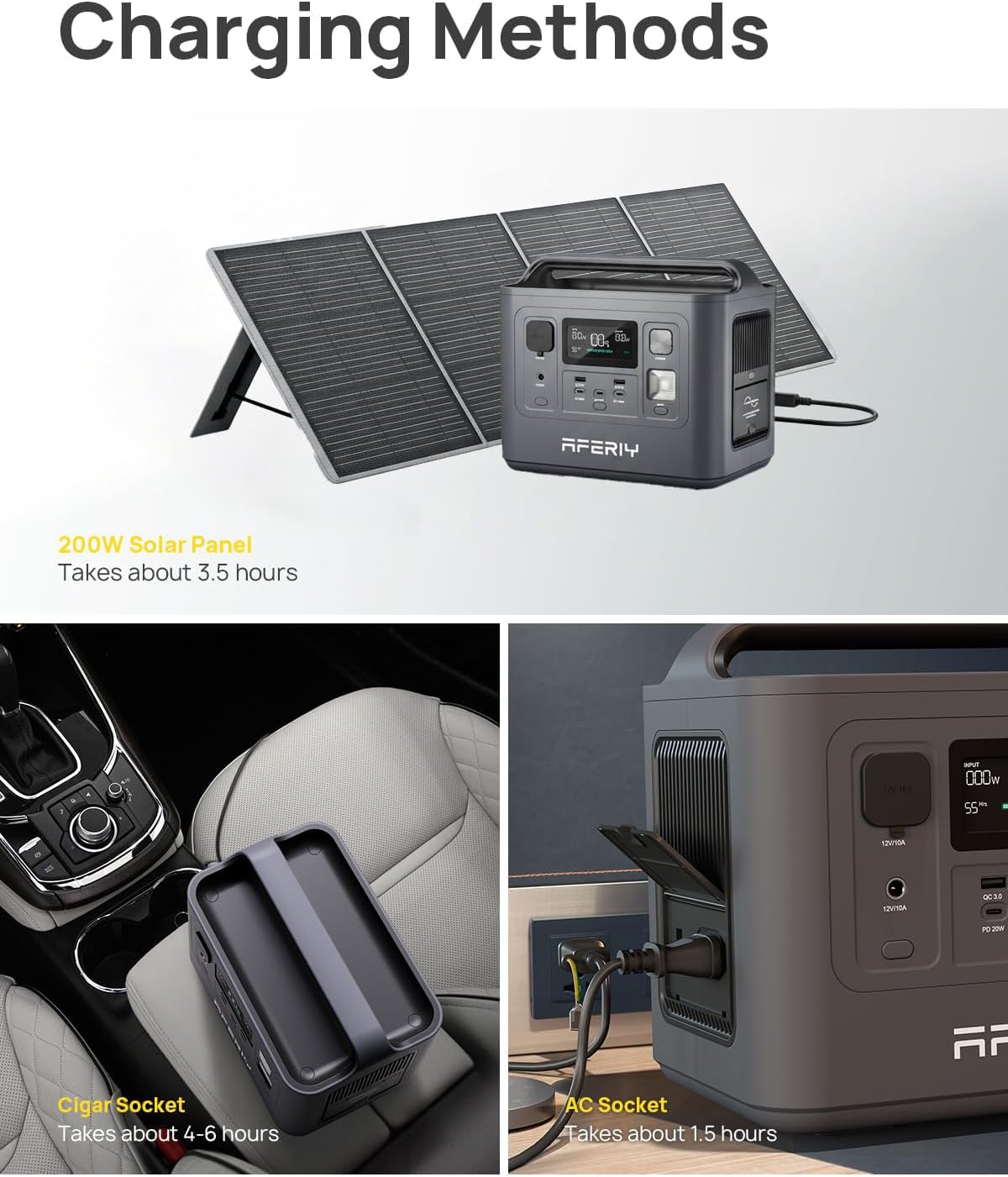

Image 5.2: Illustrations of the three primary charging methods: solar panel (top), car cigar socket (bottom left), and AC wall outlet (bottom right).
- AC వాల్ ఛార్జింగ్: Connect the AC charging cable to the AC input port and a wall outlet. Full charge in approximately 1.5 hours.
- సోలార్ ప్యానెల్ ఛార్జింగ్: Connect a compatible solar panel (max 200W) to the DC input port using the MC4 to XT60 cable. Charging time varies based on sunlight intensity and panel wattage (approx. 3.5 hours with 200W panel).
- కారు ఛార్జింగ్: Connect the car charging cable to the DC input port and your vehicle's 12V car charging outlet. Full charge in approximately 4-6 hours.
UPS ఫంక్షన్:
When the power station is connected to an AC wall outlet and has devices plugged into its AC output, it can function as an Uninterruptible Power Supply (UPS). In the event of a power outage, the unit will automatically switch to battery power within 0.1 seconds to continue powering connected devices.
LED లైట్ ఆపరేషన్:
- Press the light button once for standard illumination.
- Press again for SOS mode (flashing pattern).
- Press a third time for flashing mode.
- లైట్ ఆఫ్ చేయడానికి నాల్గవసారి నొక్కండి.
LCD డిస్ప్లే సమాచారం:

చిత్రం 5.3: క్లోజప్ view of the power station's LCD display, showing input/output wattagఇ, బ్యాటరీ శాతంtage, and estimated remaining usage time.
The LCD display provides real-time information about the power station's status:
- బ్యాటరీ స్థాయి సూచిక: ప్రస్తుత బ్యాటరీ శాతాన్ని చూపుతుందిtage.
- ఇన్పుట్ పవర్: వాట్ను ప్రదర్శిస్తుందిtage being drawn for charging.
- అవుట్పుట్ పవర్: వాట్ను ప్రదర్శిస్తుందిtagకనెక్ట్ చేయబడిన పరికరాల ద్వారా వినియోగించబడుతోంది.
- మిగిలిన సమయం: Estimates the remaining operating time or charging time based on current power usage.
- లోపం సూచికలు: Alerts for various issues such as overload or temperature warnings.
6. నిర్వహణ
సరైన నిర్వహణ మీ పవర్ స్టేషన్ యొక్క దీర్ఘాయువు మరియు సరైన పనితీరును నిర్ధారిస్తుంది.
నిల్వ:
- పవర్ స్టేషన్ను చల్లని, పొడి ప్రదేశంలో, ప్రత్యక్ష సూర్యకాంతి మరియు తీవ్రమైన ఉష్ణోగ్రతలకు దూరంగా నిల్వ చేయండి.
- దీర్ఘకాలిక నిల్వ కోసం, బ్యాటరీ ఆరోగ్యాన్ని కాపాడుకోవడానికి ప్రతి 3-6 నెలలకు యూనిట్ను సుమారు 50-80% వరకు ఛార్జ్ చేయండి.
- Avoid storing in environments with high humidity or corrosive substances.
శుభ్రపరచడం:
- Ensure the unit is turned off and disconnected from all power sources before cleaning.
- Use a soft, dry cloth to wipe the exterior. Do not use abrasive cleaners or solvents.
- వెంటిలేషన్ ఓపెనింగ్లను దుమ్ము మరియు చెత్త లేకుండా శుభ్రంగా ఉంచండి.
బ్యాటరీ సంరక్షణ:

చిత్రం 6.1: అంతర్గత view highlighting the LiFePO4 battery cells and the Battery Management System (BMS), which contributes to the battery's extended lifespan of over 3500 cycles.
- The LiFePO4 battery is designed for a long lifespan (over 3500 cycles).
- బ్యాటరీని తరచుగా పూర్తిగా డిశ్చార్జ్ చేయడాన్ని నివారించండి, ఎందుకంటే ఇది దాని మొత్తం జీవితకాలం తగ్గిస్తుంది.
- If the unit will not be used for an extended period, charge it to 50-80% before storage.
7. ట్రబుల్షూటింగ్
If you encounter issues with your AFERIY Portable Power Station, refer to the following common problems and solutions.
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| యూనిట్ ఆన్ చేయబడలేదు | బ్యాటరీ పూర్తిగా డిశ్చార్జ్ అయింది; పవర్ బటన్ను ఎక్కువసేపు నొక్కి ఉంచలేదు. | Charge the unit using the AC adapter; Press and hold the power button for 3-5 seconds. |
| AC అవుట్పుట్ పని చేయడం లేదు | AC output not activated; Device power consumption too high; Overload protection triggered. | Press the AC button to activate; Check device wattage; Disconnect device, restart unit. |
| యూనిట్ ఛార్జింగ్ లేదు | Charging cable not properly connected; Charger fault; Extreme temperature. | Ensure all connections are secure; Try a different charging method; Move unit to a suitable temperature range (0-40°C). |
| LCD display shows error code | Internal fault; Overload; Over-temperature. | Refer to the specific error code in the full manual (if available) or contact customer support. Disconnect devices and allow unit to cool if temperature related. |
If the problem persists after attempting these solutions, please contact AFERIY customer support.
8. స్పెసిఫికేషన్లు
Detailed technical specifications for the AFERIY Portable Power Station AF-P010.
| ఫీచర్ | స్పెసిఫికేషన్ |
|---|---|
| మోడల్ | AF-P010 |
| బ్యాటరీ రకం | LiFePO4 |
| కెపాసిటీ | 512Wh |
| AC అవుట్పుట్ | 800W (Continuous), 1600W (Peak) |
| AC వాల్యూమ్tage | 110V |
| USB-A అవుట్పుట్ | 2 x QC3.0 |
| USB-C అవుట్పుట్ | 1 x PD 100W, 2 x PD 20W |
| DC అవుట్పుట్ | 1 x DC6530, 1 x Car Charging Outlet |
| AC Input Charging Time | సుమారు 1.5 గంటలు (400W) |
| సౌర ఇన్పుట్ (గరిష్టంగా) | 200W |
| కొలతలు (L x W x H) | 10.6" x 6.6" x 8.2" (26.9సెం.మీ x 16.8సెం.మీ x 20.8సెం.మీ) |
| బరువు | 12.3 పౌండ్లు (5.6 కిలోలు) |
| ఆపరేటింగ్ ఉష్ణోగ్రత | 0°C నుండి 40°C (32°F నుండి 104°F) |
| ధృవపత్రాలు | UL, CE, FCC, PSE, RoHS, TELEC |

Image 8.1: Graphic illustrating the pure sine wave output of the power station, ensuring compatibility with sensitive electronics.

Image 8.2: A person carrying the AFERIY Portable Power Station, demonstrating its lightweight and portable design for easy transport.
9. వారంటీ మరియు మద్దతు
వారంటీ సమాచారం:
The AFERIY Portable Power Station AF-P010 comes with an industry-leading 5-year warranty, with an additional 2 years available upon product registration, totaling up to 7 years of coverage. This warranty covers defects in materials and workmanship under normal use.
Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or natural disasters.
కస్టమర్ మద్దతు:
For any questions, technical assistance, or warranty claims, please contact AFERIY customer support through the following channels:
- ఇమెయిల్: Refer to your warranty card or the official AFERIY webసంప్రదింపు వివరాల కోసం సైట్.
- Webసైట్: Visit the official AFERIY webతరచుగా అడిగే ప్రశ్నలు, మద్దతు వనరులు మరియు సంప్రదింపు ఫారమ్ల కోసం సైట్.
When contacting support, please provide your product model (AF-P010) and purchase date to expedite assistance.
