ఆర్డుకామ్ రాస్ప్బెర్రీ పై కెమెరా మాడ్యూల్ 3 (B0312) యూజర్ మాన్యువల్

1. పరిచయం

This manual provides detailed instructions for the Arducam Raspberry Pi Camera Module 3 (Model B0312). This camera module features a 12-megapixel IMX708 sensor with High Dynamic Range (HDR) and autofocus capabilities, designed for use with various Raspberry Pi models including Pi 5, 4B, 3B, Zero W, and 2 W. It offers high-resolution still images (4608 x 2592) and supports both libcamera and Picamera2 for seamless integration and control.

Figure 1: Arducam Raspberry Pi Camera Module 3 with attached ribbon cable.

2. ప్యాకేజీ విషయాలు

మీ ప్యాకేజీలో అన్ని అంశాలు ఉన్నాయని ధృవీకరించండి:

• 1 x Arducam 12MP IMX708 Camera Module 3
• 1 x 66° HFOV Autofocus Lens (integrated)
• Raspberry Pi compatible FFC cables (various lengths/types for different Pi models)

3. సెటప్

3.1 హార్డ్‌వేర్ కనెక్షన్

Carefully connect the camera module to your Raspberry Pi board using the appropriate Flexible Flat Cable (FFC). Ensure correct orientation to prevent damage.

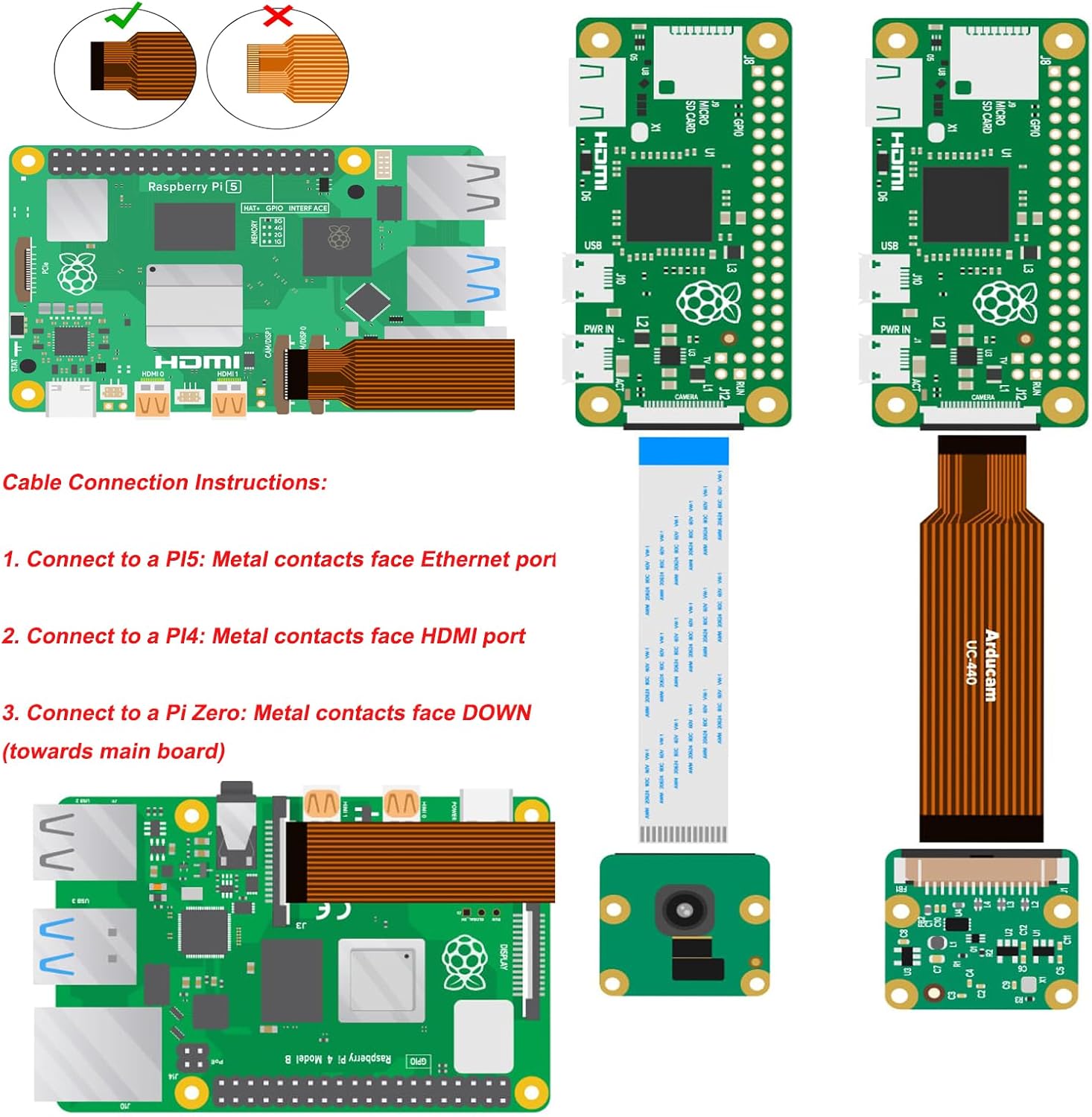

Figure 2: FFC cable connection instructions for various Raspberry Pi models.

• రాస్ప్బెర్రీ పై 5 కోసం: The metal contacts of the FFC cable should face the Ethernet port.
• For Raspberry Pi 4B/3B: The metal contacts of the FFC cable should face the HDMI port.
• For Raspberry Pi Zero W/2 W: The metal contacts of the FFC cable should face DOWN (towards the main board). Note that a thinner FFC cable is required for Pi Zero models.

Figure 3: Connection to Raspberry Pi Zero.

Figure 4: Connection to Raspberry Pi 4B.

Figure 5: Connection to Raspberry Pi 5.

3.2 సాఫ్ట్‌వేర్ కాన్ఫిగరేషన్

The Arducam Camera Module 3 requires specific software configuration on your Raspberry Pi. This camera module is designed for the new camera stack (libcamera/Picamera2) and is not compatible with the legacy camera stack (raspistill/raspivid).

1. Install Raspberry Pi OS: Ensure your Raspberry Pi is running a recent version of Raspberry Pi OS (e.g., Bullseye OS or newer) that supports the new camera stack.
2. నవీకరణ వ్యవస్థ: Open a terminal and run the following commands to update your system:

   sudo apt update && sudo apt upgrade

3. Install libcamera-apps: Install the necessary camera applications:

   sudo apt install libcamera-apps

   For headless setups, consider `sudo apt install rpicam-apps-lite`.
4. Configure `config.txt`: Edit the boot configuration file:

   sudo nano /boot/firmware/config.txt

   Locate or add the following lines:

   camera_auto_detect=0
   dtoverlay=imx708

   Save and exit the editor.
5. Enable I2C: If not already enabled, enable I2C via `raspi-config`:

   sudo raspi-config

   నావిగేట్ చేయండి ఇంటర్ఫేస్ ఎంపికలు > I2C మరియు దానిని ప్రారంభించండి.
6. రీబూట్: Reboot your Raspberry Pi for changes to take effect:

   sudo reboot

4. ఆపరేటింగ్ సూచనలు

After successful setup, you can operate the camera using `libcamera` commands or the Picamera2 library.

4.1 Basic Commands (libcamera)

• List Cameras: Verify the camera is detected:

  rpicam-hello --list-cameras

  You should see output similar to: `0 : imx708 [4608x2592 10-bit RGGB]`.
• Capture Still Image: Capture a JPEG image:

  rpicam-jpeg -o test.jpg

• వీడియో రికార్డ్ చేయండి: Record an H.264 video:

  rpicam-vid -t 10000 -o video.h264

  (Records for 10 seconds)

4.2 Autofocus and HDR

The IMX708 sensor supports autofocus (PDAF and CDAF) and HDR. These features are typically managed automatically by the libcamera stack. For advanced control, refer to the official libcamera and Picamera2 documentation for specific parameters and settings.

5. నిర్వహణ

The Arducam Camera Module 3 is a delicate electronic component. Follow these guidelines for proper maintenance:

• నిర్వహణ: Always handle the camera module by its edges to avoid touching the lens or sensor.
• శుభ్రపరచడం: Use a soft, lint-free cloth or a specialized lens cleaning pen to gently clean the lens if necessary. Avoid abrasive materials or harsh chemicals.
• నిల్వ: ఉపయోగంలో లేనప్పుడు కెమెరాను పొడి, దుమ్ము లేని వాతావరణంలో నిల్వ చేయండి.
• కేబుల్ కేర్: Ensure FFC cables are not bent sharply or stressed, as this can damage the conductors.

6. ట్రబుల్షూటింగ్

If you encounter issues with your Arducam Camera Module 3, consider the following:

• "No Cameras Available" Error:
  • Verify the FFC cable is correctly inserted at both the camera module and the Raspberry Pi. The metal contacts must be fully engaged and facing the correct direction as described in Section 3.1. Try flipping the cable at each end, one at a time, and rebooting.
  • Ensure `camera_auto_detect=0` and `dtoverlay=imx708` are correctly set in `/boot/firmware/config.txt`.
  • Confirm I2C is enabled via `raspi-config`.
  • Ensure your Raspberry Pi OS is updated and `libcamera-apps` are installed.
• `dmaHeap allocation failure` Error: This error, often seen on older Pi models (e.g., Pi 4 running Bookworm), indicates insufficient memory for camera buffers. While increasing CMA (Contiguous Memory Allocator) might help, it's not always a guaranteed fix. Consider reducing resolution or frame rate, or using a newer Raspberry Pi model if possible.
• Poor Image Quality/Focus Issues:
  • Remove any protective film from the lens.
  • మీ వాతావరణంలో తగినంత వెలుతురు ఉండేలా చూసుకోండి.
  • For specific autofocus control, consult the libcamera/Picamera2 documentation for manual focus options.
• Compatibility with Pi Zero: While compatible, ensure you are using the correct, thinner FFC cable designed for the Pi Zero's smaller camera connector.

7. స్పెసిఫికేషన్లు

8. వారంటీ సమాచారం

For detailed warranty information regarding your Arducam Raspberry Pi Camera Module 3, please refer to the official Arducam webసైట్ లేదా వారి కస్టమర్ సపోర్ట్‌ను నేరుగా సంప్రదించండి. వారంటీ నిబంధనలు మరియు షరతులు మారవచ్చు.

9. మద్దతు

If you require further assistance or have technical questions not covered in this manual, please visit the official Arducam support resources or contact their customer service department. Online forums and community resources for Raspberry Pi camera users may also provide helpful information.
