పరిచయం
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your DEERC 1:14 Fast Brushless RC Car. Please read this manual thoroughly before operating the vehicle to ensure optimal performance and longevity.
పెట్టెలో ఏముంది
- 1 x Brushless Truck
- 2 x 3S Li-po Batteries
- 1 x రిమోట్ కంట్రోల్
- 1 x ఛార్జింగ్ కేబుల్
- 1 x స్క్రూడ్రైవర్
- Additional accessories including extra paddle tires and a wheelie bar.
Figure 1: Contents of the DEERC 14210 package, including the brushless truck, remote control, two LiPo batteries, charging cable, screwdriver, and additional tires.
సెటప్
- బ్యాటరీ ఛార్జింగ్: Connect the provided charging cable to the 3S Li-po batteries. Ensure proper polarity. Use a compatible USB power source. The charging indicator will show the charging status.
Figure 2: The 3S 11.1V, 2000mAh LiPo batteries offer extended playtime of up to 40 minutes with dual batteries.
- బ్యాటరీ ఇన్స్టాలేషన్: Carefully open the battery compartment on the underside of the RC truck. Insert the charged Li-po battery, ensuring it is securely seated. Close the compartment.
- రిమోట్ కంట్రోల్ సెటప్: Install 4x AA batteries (not included) into the remote control. Power on the remote control.
Video 1: This video demonstrates the remote control features, including the steering wheel, throttle/brake trigger, and speed settings (70% and 100%). It also shows how to turn on the RC car by pressing a red button under the chassis.
- ట్రక్కుపై పవర్: Locate the power button on the RC truck (usually under the chassis, accessible by lifting the body). Press the button to turn on the truck. The truck and remote should automatically pair.
ఆపరేటింగ్ సూచనలు
The DEERC 14210 RC truck is designed for high-speed, all-terrain performance. Familiarize yourself with the remote control functions before operating in challenging environments.
- స్పీడ్ మోడ్లు: The Electronic Speed Controller (ESC) allows for adjustable speed settings. Press the ESC button 5 times to unlock the maximum speed of 50+ MPH (80 KMH). Lower speed settings (e.g., 70%) are available for better control, especially for beginners or in confined spaces.
Video 2: This video showcases the RC car's speed and agility, highlighting its brushless motor and 3S LiPo battery power. It demonstrates the vehicle's ability to accelerate rapidly and handle various terrains.
- స్టీరింగ్ మరియు థ్రాటిల్: Use the steering wheel on the remote for directional control (left/right). The trigger controls forward motion and braking/reverse. Pull the trigger towards you for acceleration, push away for braking, and push further for reverse.
- ఆల్-టెర్రైన్ సామర్థ్యం: The 4x4 drivetrain, adjustable oil-filled shocks, and durable tires allow the truck to operate on various surfaces including snow, sand, mud, and grass.
Figure 3: The RC car is capable of reaching speeds over 50 MPH, powered by a laser-etched 6061 aluminum chassis for enhanced durability.

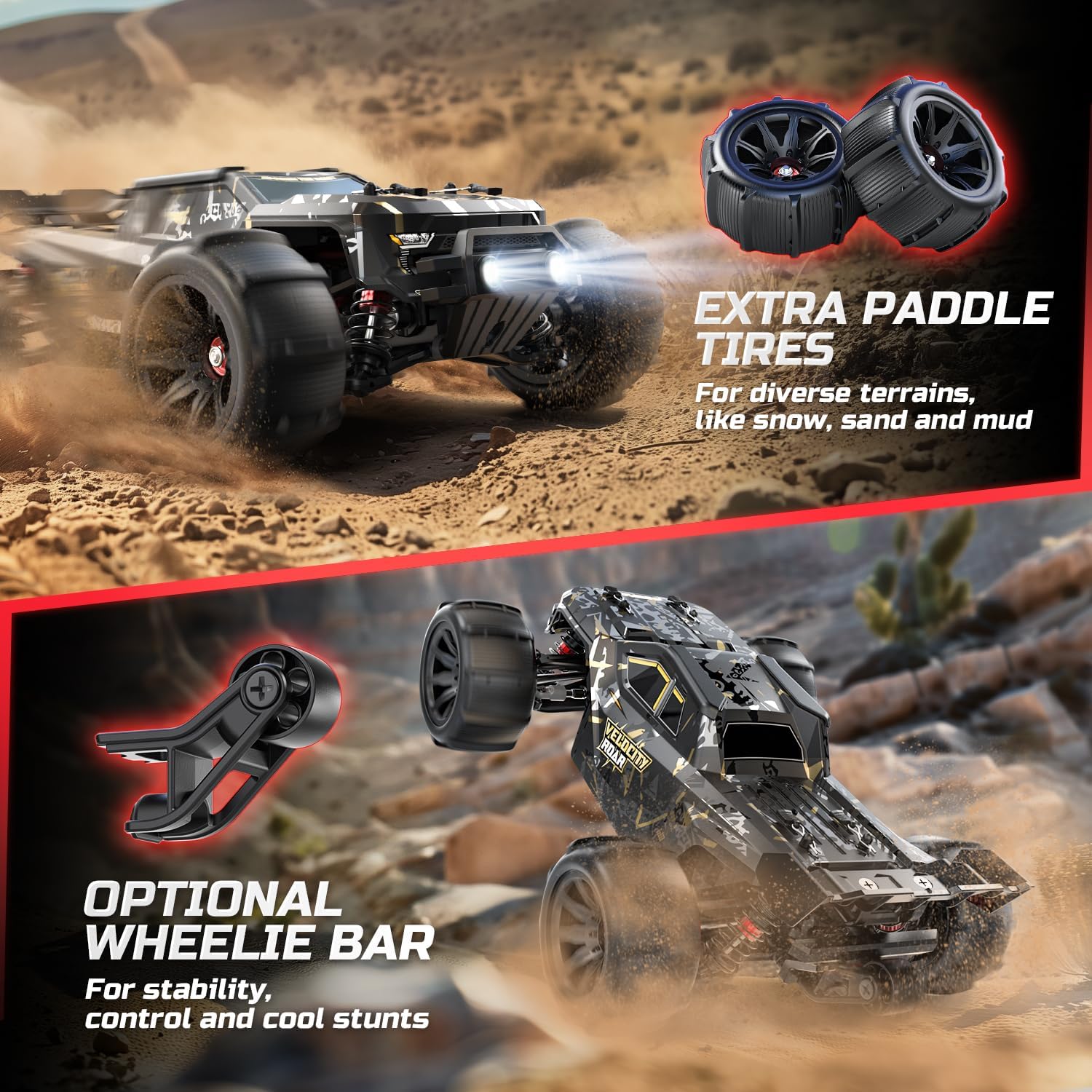

Figure 4: The truck comes with extra paddle tires for diverse terrains like snow, sand, and mud, and an optional wheelie bar for stability and stunts.
Video 3: This video highlights the RC car's robust construction and performance across various challenging environments, including water and rough terrain, showcasing its durability and power.
నిర్వహణ
- శుభ్రపరచడం: After each use, especially in dirty or wet conditions, clean the truck to prevent dirt and debris buildup. Use a soft brush and compressed air. Avoid using water directly on electronic components.
- తనిఖీ: Regularly inspect all parts for wear and tear, including tires, shocks, drivetrain components (dog bones, differential gearbox, gears), and the chassis. Tighten any loose screws.
Figure 5: The heavy-duty drivetrain features full aluminum oil-filled shocks, steel CVDs, M4 nuts, metal gear differential, and metal spur & main pinion for enhanced durability.

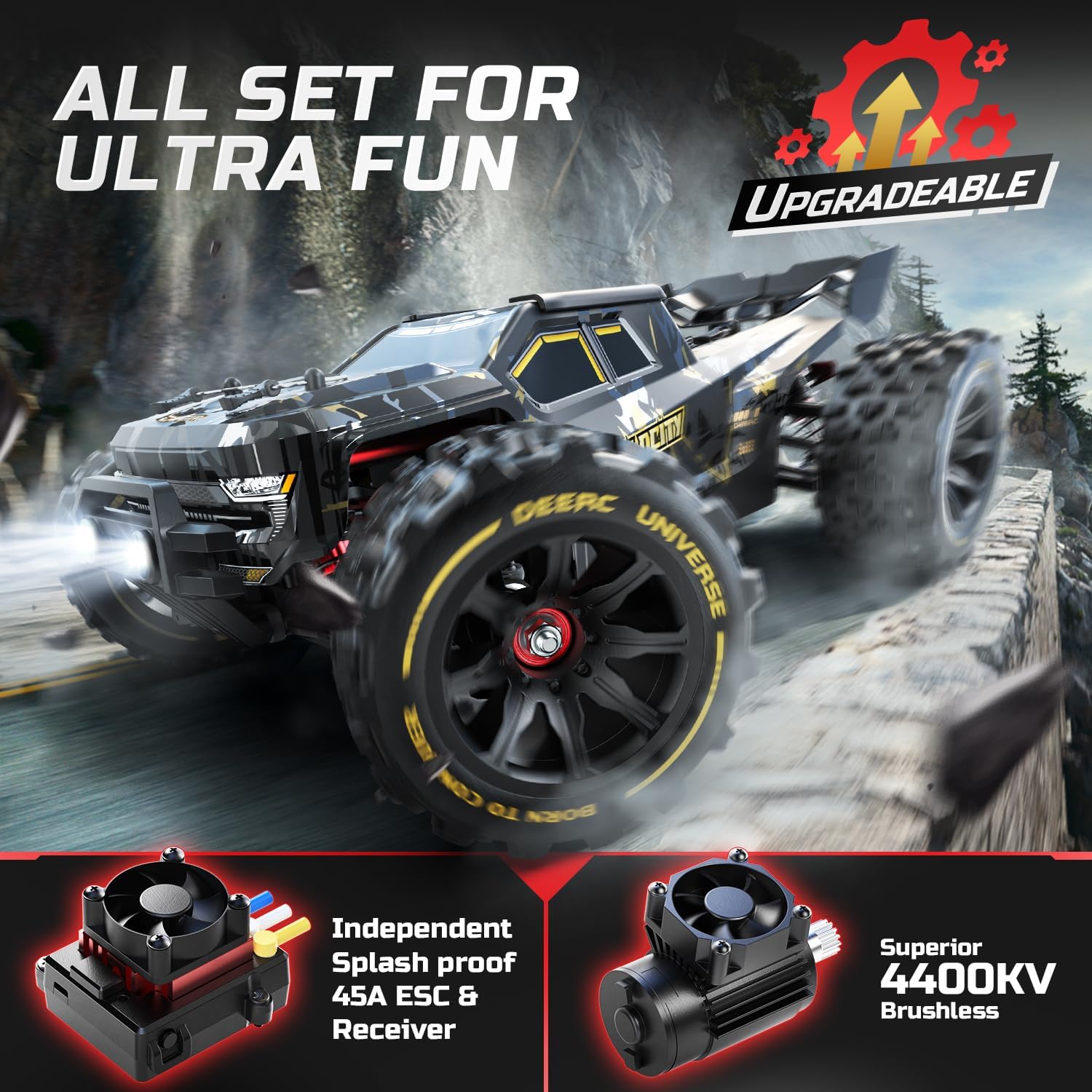

Figure 6: The RC car is equipped with an independent splash-proof 45A ESC and a superior 4400KV brushless motor, ensuring high performance and protection.
- భాగం భర్తీ: The truck is designed for easy maintenance and part replacement. Refer to the included parts diagram for specific component identification. Replacement parts can be sourced from authorized dealers.
ట్రబుల్షూటింగ్
| సమస్య | సాధ్యమైన కారణం | పరిష్కారం |
|---|---|---|
| ట్రక్కు రిమోట్ కు స్పందించదు. | Low battery in truck or remote; not paired. | Charge truck battery, replace remote batteries, re-pair truck and remote. |
| తగ్గిన వేగం లేదా శక్తి. | తక్కువ బ్యాటరీ; మోటారు వేడెక్కడం; డ్రైవ్ట్రెయిన్లో శిథిలాలు. | Recharge battery; allow motor to cool; clean drivetrain. |
| Steering issues (pulls to one side). | Steering trim incorrect; damaged steering components. | Adjust steering trim on remote; inspect and replace damaged parts. |
స్పెసిఫికేషన్లు
| ఫీచర్ | వివరాలు |
|---|---|
| ఉత్పత్తి కొలతలు | 12.6 x 9.06 x 4.88 అంగుళాలు |
| వస్తువు బరువు | 5.51 పౌండ్లు |
| అంశం మోడల్ సంఖ్య | 14210-US |
| తయారీదారు సిఫార్సు చేసిన వయస్సు | 14 సంవత్సరాలు మరియు అంతకంటే ఎక్కువ |
| బ్యాటరీలు | 2 లిథియం పాలిమర్ బ్యాటరీలు (చేర్చబడినవి) |
| మోటార్ రకం | 4-pole, 2852 high-torque brushless motor (4400KV) |
| ESC | 45A ESC with IPX5 waterproof receiver |
| చట్రం | 2.5mm thick laser-etched 6061 aluminum |
Figure 7: Key dimensions of the DEERC 14210 RC Car, including length (12.6 in), width (9.06 in), and height (4.88 in).
భద్రతా సమాచారం
హెచ్చరిక:
- Keep away from naked flame or direct heat source.
- వ్యక్తులు, పెంపుడు జంతువులు లేదా అడ్డంకుల దగ్గర పనిచేయవద్దు.
- Ensure batteries are charged and handled according to safety guidelines to prevent fire or injury.
- Recommended for ages 14 and up due to high speed and power.
వారంటీ & మద్దతు
For warranty claims, technical support, or replacement parts, please contact DEERC customer service directly. Refer to the product packaging or the official DEERC webసంప్రదింపు సమాచారం కోసం సైట్.
