VEDINDUST KVM స్విచ్ డ్యూయల్ మానిటర్ 4K60HZ యూజర్ మాన్యువల్

1. పరిచయం

The VEDINDUST Dual Monitor KVM Switch is designed to enhance your workspace efficiency by allowing you to control two computers using a single keyboard and mouse. This device also enables the sharing of two monitors and four USB peripherals between the two connected computers. It supports high-resolution video output up to 4K at 60Hz, providing a clear and realistic visual experience.

This manual provides detailed instructions for setting up, operating, and troubleshooting your KVM switch to ensure optimal performance.

ముఖ్యమైన గమనికలు:

• The dual monitor functionality of this KVM switch requires that your computer natively supports two displays.
• To utilize extended or duplicate display modes, your computer must support multiple monitors.
• For full functionality, including USB peripheral sharing and dual monitor output, ensure that the USB port and both HDMI ports from each computer are connected simultaneously to the corresponding USB-C and HDMI ports on the KVM switch. A USB 3.0 to USB-C cable is included for this purpose.
• If the USB-C input port on the KVM is not connected or is improperly connected, the output USB peripherals will not be recognized.
• Achieving 4K resolution requires that both your computer and monitors support 4K, and you must use 4K-compatible HDMI cables.
• The KVM switch can connect to two computers simultaneously, but only one computer can be actively selected as the source at any given time. Switching between sources is done via the selection button.

2. ఉత్పత్తి ముగిసిందిview మరియు ఫీచర్లు

The VEDINDUST KVM Switch is a compact device designed for seamless integration into various environments, including offices, conference rooms, and multimedia setups. It offers robust features for efficient multi-computer management.

ముఖ్య లక్షణాలు:

• ద్వంద్వ మానిటర్ మద్దతు: Control two computers and share two monitors with a single keyboard and mouse.
• అధిక రిజల్యూషన్: Supports resolutions up to 4K@60Hz, backward compatible with 4K@30Hz, 1440P@60Hz, and 1080P@60Hz.
• USB Peripheral Sharing: Share up to four USB devices (2x USB 2.0, 2x USB 3.0) between connected computers.
• ప్రదర్శన మోడ్‌లు: Supports both Extended Mode (different content on each monitor) and Duplicate Mode (same content on both monitors).
• సులభంగా మారడం: Switch between computers with a single press of the device's selection button or via the included wired desktop controller. Hotkey switching is not supported.
• డేటా బదిలీ: USB-C ports are for data transfer only; HDMI ports handle video signals.

మూర్తి 1: ముందు మరియు వెనుక view of the VEDINDUST KVM Switch. The front panel features USB 2.0 and USB 3.0 ports, a PC selection button, and an LED indicator. The rear panel includes power input, PC input ports (HDMI and USB-C), and monitor output ports (HDMI).

3. సెటప్ సూచనలు

Follow these steps to correctly set up your VEDINDUST KVM Switch:

1. పవర్ ఆఫ్ పరికరాలు: Ensure all computers and monitors are powered off before beginning the connection process.
2. మానిటర్లను కనెక్ట్ చేయండి: Connect your two monitors to the KVM switch's అవుట్ 1 మరియు అవుట్ 2 HDMI ports using HDMI cables.
3. Connect PC1:
   • Connect PC1's first HDMI output to the KVM's PC1 IN HDMI1 ఓడరేవు
   • Connect PC1's second HDMI output to the KVM's PC1 IN HDMI2 ఓడరేవు
   • Connect PC1's USB port to the KVM's PC1 IN USB-C port using the provided USB 3.0 to USB-C cable. This connection is crucial for keyboard, mouse, and other USB peripheral functionality.
4. Connect PC2:
   • Connect PC2's first HDMI output to the KVM's PC2 IN HDMI1 ఓడరేవు
   • Connect PC2's second HDMI output to the KVM's PC2 IN HDMI2 ఓడరేవు
   • Connect PC2's USB port to the KVM's PC2 IN USB-C port using the provided USB 3.0 to USB-C cable.
5. USB పెరిఫెరల్స్ కనెక్ట్ చేయండి: Connect your keyboard and mouse to the KVM's USB 2.0 పోర్ట్‌లు (labeled 1 and 2). Connect other USB peripherals (e.g., hard disk, flash drive) to the KVM's USB 3.0 పోర్ట్‌లు (labeled 3 and 4).
6. డెస్క్‌టాప్ కంట్రోలర్‌ను కనెక్ట్ చేయండి (ఐచ్ఛికం): If desired, plug the wired desktop controller into the నియంత్రణ jack on the KVM.
7. పవర్ కనెక్ట్ చేయండి: Plug the DC12V power adapter into the KVM's power input and then into a power outlet. Turn on the KVM using the ON/OFF switch.
8. పవర్ ఆన్ పరికరాల: Power on your monitors and then your computers.
9. డిస్ప్లే సెట్టింగ్‌లను కాన్ఫిగర్ చేయండి: Once your computers boot up, configure your display settings (Extend or Duplicate) within your operating system.

మూర్తి 2: Detailed connection diagram for the KVM switch, illustrating how to connect two computers (PC1, PC2) to the KVM using HDMI and USB-C cables, and how to connect two monitors (OUT1, OUT2) and USB peripherals (mouse, keyboard, hard disk, flash disk) to the KVM.

4. ఆపరేటింగ్ సూచనలు

The VEDINDUST KVM Switch offers simple methods for switching between connected computers.

కంప్యూటర్ల మధ్య మారడం:

• Using the Device Button: నొక్కండి ఎంచుకోండి button located on the front panel of the KVM switch. Each press will cycle between PC1 and PC2. The LED indicator next to the button will illuminate to show which PC is currently active.
• Using the Wired Desktop Controller: If connected, press the button on the wired desktop controller to switch between PC1 and PC2. This allows for convenient switching if the KVM unit is not easily accessible.

Note: Hotkey switching via keyboard commands is not supported by this KVM model.

మూర్తి 3: Illustration of the two switching methods: using the 'Select' button on the KVM device and using the external wired desktop controller for convenient remote switching.

5. Display Working Modes

The KVM switch supports two primary display modes, which are configured on your computer's operating system:

• పొడిగింపు మోడ్: In this mode, your two monitors display different content, effectively extending your desktop across both screens. This is ideal for multitasking and increasing screen real estate.
• Duplicate Mode (Mirror Mode): In this mode, both monitors display the exact same content. This is useful for presentations or when you need to show the same information on multiple screens.

Note: Your computer must support multiple monitors to utilize either Extend or Duplicate mode. These settings are managed within your computer's display settings (e.g., Windows Display Settings, macOS System Preferences).

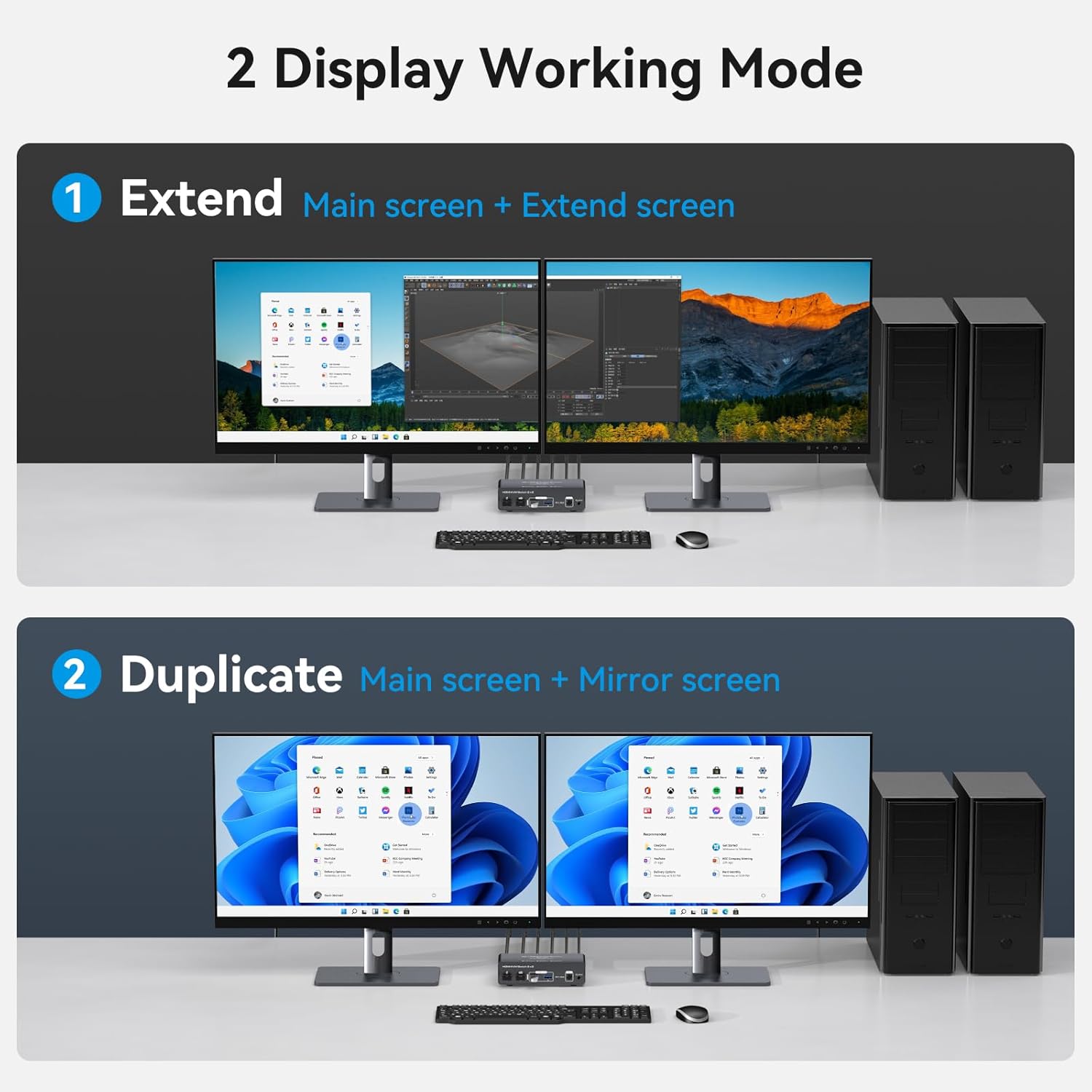

మూర్తి 4: Visual representation of the two display working modes. The top image shows 'Extend Mode' with different content on each monitor. The bottom image shows 'Duplicate Mode' with identical content on both monitors.

మూర్తి 5: ఒక మాజీample of the 4K60Hz Ultra High Definition display capability, showing clear and vibrant images across two monitors, supporting resolutions up to 4K at 60Hz with backward compatibility.

6. ట్రబుల్షూటింగ్

మీ KVM స్విచ్‌తో మీకు సమస్యలు ఎదురైతే, ఈ క్రింది సాధారణ సమస్యలు మరియు పరిష్కారాలను చూడండి:

• No Display or Incorrect Resolution:
  • Ensure all HDMI cables are securely connected between your computers, the KVM, and your monitors.
  • Verify that your computers, monitors, and HDMI cables all support 4K resolution if you are aiming for 4K@60Hz output.
  • Check your computer's display settings to ensure the correct resolution and display mode (Extend/Duplicate) are selected.
  • Try restarting the KVM switch and then your computers and monitors.
• USB Peripherals (Keyboard, Mouse, etc.) Not Working:
  • Confirm that the USB-C input cable from each computer is correctly and securely connected to the corresponding PC IN USB-C port on the KVM switch. This connection is essential for USB peripheral recognition.
  • Ensure the KVM switch is powered on.
  • Try connecting the USB peripherals directly to the computer to confirm they are functional.
  • Reconnect the USB peripherals to the KVM's USB 2.0 or USB 3.0 ports.
• Cannot Switch Between Computers:
  • Verify that the KVM switch is powered on and the power adapter is securely connected.
  • Ensure all necessary cables (HDMI and USB-C) are connected from both computers to the KVM.
  • Check if the LED indicator on the KVM changes when you press the Select button or the wired desktop controller button.
• అడపాదడపా కనెక్షన్:
  • Ensure all cables are of good quality and securely connected. Loose connections can cause intermittent issues.
  • Avoid using excessively long cables, especially for HDMI, as this can degrade signal quality.

7. స్పెసిఫికేషన్లు

మూర్తి 6: పైగాview of the package contents and the physical dimensions of the KVM switch, including the desktop control, USB 3.0 to USB-C cables, DC12V adapter, and user manual.

8. నిర్వహణ

To ensure the longevity and optimal performance of your VEDINDUST KVM Switch, follow these simple maintenance guidelines:

• శుభ్రపరచడం: Use a soft, dry cloth to gently wipe the exterior of the KVM switch. Avoid using liquid cleaners or abrasive materials, as they may damage the surface or internal components.
• నిల్వ: Store the KVM switch in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
• కేబుల్ నిర్వహణ: Keep cables organized and untangled to prevent strain on the ports and accidental disconnections.
• వెంటిలేషన్: Ensure the KVM switch has adequate ventilation to prevent overheating. Do not block any ventilation openings.

9. వారంటీ మరియు మద్దతు

VEDINDUST is committed to providing reliable products and excellent customer service. If you encounter any problems or have questions regarding the use, setup, or functionality of your KVM switch, please do not hesitate to contact our professional after-sales support team.

Our support team is ready to provide you with professional solutions and assistance to ensure your satisfaction.

Please refer to your product packaging or the VEDINDUST official webనిర్దిష్ట వారంటీ వివరాలు మరియు సంప్రదింపు సమాచారం కోసం సైట్.
