పరిచయం
This manual provides essential information for the Mabe Sirius Refrigerator Control Board, identified by part numbers 238C4974G001 and WR01F04364. This component is a critical part of your refrigerator's electrical system, responsible for managing various functions. This guide covers general aspects of its installation, operation, maintenance, and troubleshooting.
ముఖ్యమైన భద్రతా నోటీసు:
Installation and replacement of this control board should only be performed by qualified technicians. Disconnecting power and following proper safety procedures are crucial to prevent electrical shock or damage to the appliance.
సెటప్ మరియు ఇన్స్టాలేషన్
The Mabe Refrigerator Control Board is a replacement part designed for specific Mabe and GE refrigerator models. Proper installation is vital for the correct functioning of your appliance.
సంస్థాపనకు ముందు:
- పవర్ డిస్కనెక్ట్ చేయండి: Always unplug the refrigerator from the power outlet before attempting any installation or repair.
- అనుకూలతను ధృవీకరించండి: Ensure the new control board (238C4974G001 or WR01F04364) is compatible with your specific refrigerator model. Refer to the list of compatible models provided in the product description or your refrigerator's service manual.
- సాధనాలను సేకరించండి: You may need screwdrivers, pliers, and a multimeter for testing.
- Static Discharge Prevention: Wear an anti-static wrist strap or frequently touch a grounded metal object to discharge static electricity, which can damage electronic components.
సంస్థాపనా దశలు (సాధారణ మార్గదర్శకత్వం):
- Locate the Existing Board: The control board is typically located in the back of the refrigerator, behind a service panel, or within the control console.
- డాక్యుమెంట్ కనెక్షన్లు: Before disconnecting any wires, take clear photos or draw a diagram of all wire connections to the old board. This will aid in reconnecting them correctly to the new board.
- వైర్లను డిస్కనెక్ట్ చేయండి: Carefully disconnect all wire harnesses and connectors from the old board. Note any specific locking mechanisms.
- పాత బోర్డును తొలగించండి: పాత కంట్రోల్ బోర్డ్ను దాని మౌంటు బ్రాకెట్ల నుండి విప్పు లేదా విప్పు.
- కొత్త బోర్డును ఇన్స్టాల్ చేయండి: Secure the new control board (238C4974G001 / WR01F04364) in the same position as the old one.
- వైర్లను తిరిగి కనెక్ట్ చేయండి: Using your photos or diagram, carefully reconnect all wire harnesses and connectors to the new board. Ensure all connections are secure and correctly seated.
- సురక్షిత ప్యానెల్లు: Reattach any service panels or covers removed during the process.
- శక్తిని పునరుద్ధరించండి: రిఫ్రిజిరేటర్ను తిరిగి పవర్ అవుట్లెట్లోకి ప్లగ్ చేయండి.
- పరీక్ష కార్యాచరణ: Verify that the refrigerator powers on and functions correctly. Check for proper cooling, light operation, and any error codes.
For detailed, model-specific installation instructions, consult your refrigerator's service manual or a qualified appliance technician.
మూర్తి 1: ముందు view of the Mabe Refrigerator Control Board. This image displays the main components including the white multi-pin connector, a black potentiometer, and various circuit traces. The board is green with white markings indicating part numbers (238C4974G001), a QR code (content: 2248|5557|02846), and other technical specifications like "POT SIRIUS R600" and "EBX1549P001R000 21/03/2013".
మూర్తి 2: వెనుకకు view of the Mabe Refrigerator Control Board. This image shows the solder points and circuit traces on the reverse side of the green board. The text "EBX1549P001R000 21/03/2013" is visible, along with a "TOTALHOGAR" watermark.

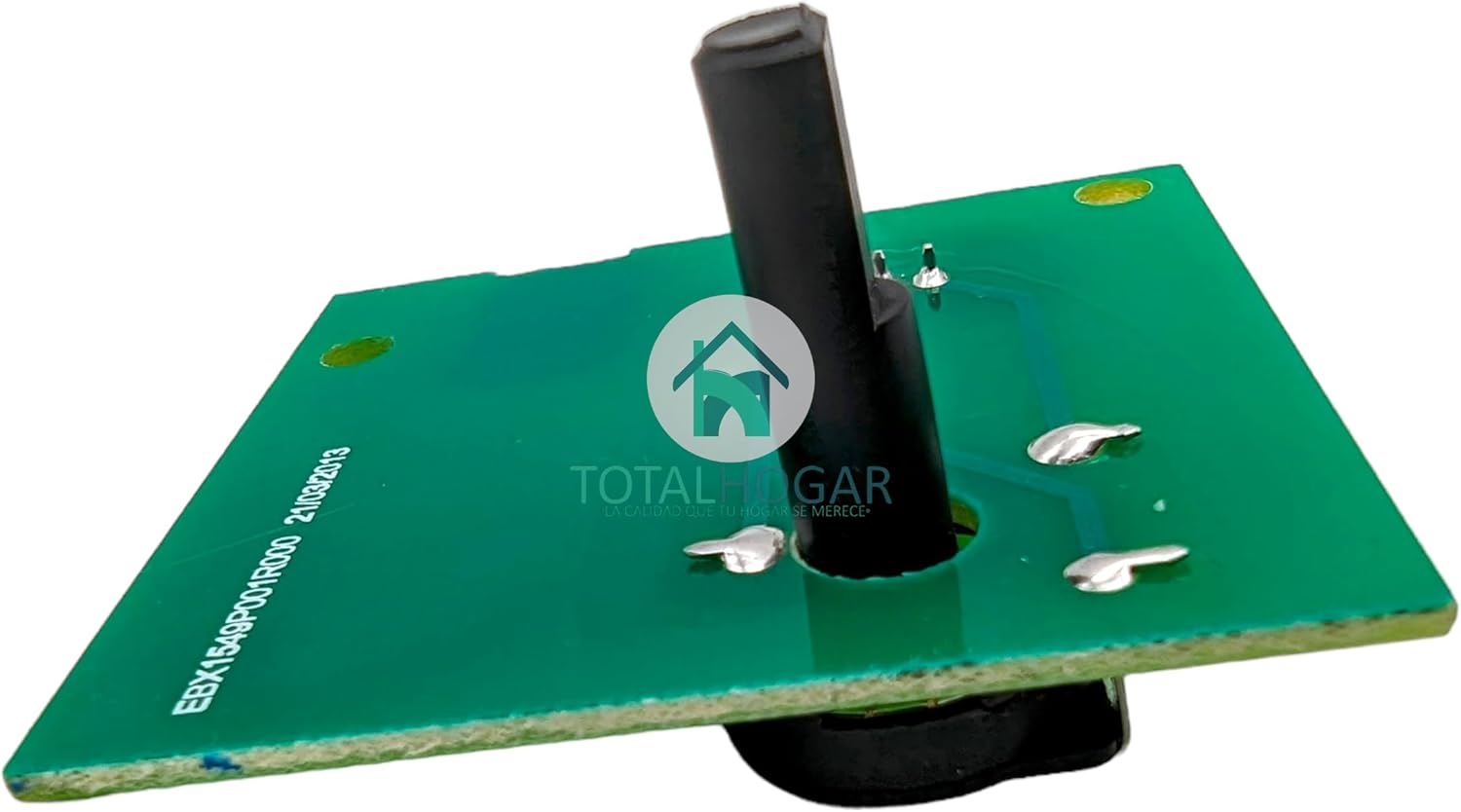

మూర్తి 3: కోణీయ view of the Mabe Refrigerator Control Board. This perspective highlights the black potentiometer shaft extending from the board, which is used for adjustments or mode selection. The "EBX1549P001R000 21/03/2013" text and "TOTALHOGAR" watermark are also visible.
ఆపరేషన్
The Mabe Refrigerator Control Board (238C4974G001 / WR01F04364) is the central electronic component that governs various operational aspects of your refrigerator. Once correctly installed, it manages functions such as:
- ఉష్ణోగ్రత నియంత్రణ: Controls the cooling cycles of the compressor and fan motors to maintain desired temperatures in the fresh food and freezer compartments.
- డీఫ్రాస్ట్ సైకిల్స్: బాష్పీభవన కాయిల్స్పై మంచు పేరుకుపోకుండా నిరోధించడానికి ఆటోమేటిక్ డీఫ్రాస్ట్ సైకిల్స్ను ప్రారంభిస్తుంది మరియు నిర్వహిస్తుంది.
- లైటింగ్: రిఫ్రిజిరేటర్ యొక్క అంతర్గత లైటింగ్ను నియంత్రిస్తుంది.
- వినియోగదారు ఇంటర్ఫేస్: Processes inputs from temperature controls, mode selectors, and other user-facing components.
- దోష గుర్తింపు: Monitors the system for malfunctions and may trigger error codes or warning indicators if issues are detected.
Users interact with the refrigerator's functions through the appliance's external controls (e.g., temperature dials, digital displays), which send signals to this control board for execution.
నిర్వహణ
While the control board itself requires minimal direct maintenance, ensuring its longevity involves proper care of the refrigerator and its environment.
- పొడిగా ఉంచండి: Ensure the area where the control board is located remains dry and free from moisture or condensation. Moisture can cause short circuits and damage electronic components.
- Clean Surrounding Area: Periodically clean the area around the control board to prevent dust and debris buildup, which can impede airflow and lead to overheating. Always disconnect power before cleaning.
- స్థిరమైన విద్యుత్ సరఫరా: Connect the refrigerator to a stable power supply. Voltage fluctuations or power surges can potentially damage electronic components. Consider using a surge protector if your area experiences frequent power issues.
- భౌతిక ప్రభావాన్ని నివారించండి: Protect the refrigerator from physical impacts that could dislodge or damage internal components, including the control board.
ట్రబుల్షూటింగ్
If your refrigerator experiences issues after replacing the control board, or if you suspect the control board is malfunctioning, consider the following general troubleshooting steps. Always ensure the refrigerator is unplugged before inspecting internal components.
సాధారణ లక్షణాలు మరియు సంభావ్య కారణాలు:
- రిఫ్రిజిరేటర్ చల్లబడటం లేదు:
- పవర్ కార్డ్ సురక్షితంగా ప్లగిన్ చేయబడిందో లేదో తనిఖీ చేయండి.
- సర్క్యూట్ బ్రేకర్ ట్రిప్ కాలేదని ధృవీకరించండి.
- ఉష్ణోగ్రత సెట్టింగ్లు సరిగ్గా ఉన్నాయని నిర్ధారించుకోండి.
- Inspect for proper airflow around the condenser coils.
- If these basic checks fail, the control board or other major components (compressor, fan) may be faulty.
- లైట్లు పనిచేయడం లేదు:
- Check if the light bulb is loose or burnt out.
- Ensure the door switch is functioning correctly.
- If bulbs and switches are fine, the control board might not be sending power to the lights.
- Refrigerator Running Constantly or Not At All:
- Check door seals for proper closure.
- Ensure condenser coils are clean.
- Persistent issues may indicate a faulty thermostat, temperature sensor, or the control board itself.
- అసాధారణ శబ్దాలు:
- Identify the source of the noise (e.g., fan motor, compressor).
- While the control board doesn't directly cause mechanical noises, it controls components that do. A faulty board could lead to erratic operation of these components.
When to Seek Professional Help:
If basic troubleshooting does not resolve the issue, or if you are uncomfortable performing electrical diagnostics, it is highly recommended to contact a certified appliance technician. Attempting complex repairs without proper knowledge and tools can lead to further damage or personal injury.
స్పెసిఫికేషన్లు
The following specifications are for the Mabe Refrigerator Control Board, part numbers 238C4974G001 and WR01F04364.
| గుణం | వివరాలు |
|---|---|
| బ్రాండ్ | మాబ్ |
| పార్ట్ నంబర్లు | 238C4974G001, WR01F04364 |
| ఉత్పత్తి రకం | Refrigerator Control Board / Selector Board |
| Compatible Models (Partial List) | RMS400IABREA, RMA250PHEL1_AA, RME360FJMRBA, RMT510RXTRBA, RME360FYMRSA, RMP400FLCT_AA, RME360FJMRSA, RMA305FYCC_AA, RMP365FYCT_AA, RMT510RYMRED, RME360FXMREA, RMP400FHUG1_AA, RMP360FJPC1_AA, RMS400IXMREC, RMA250FJCG1_AA, IBGP360TJCG1_AA, RMS400IAMREC, RMA235FJCT_AA, RGT400RYMRXA, RME360PVMREA, RME360FXMRBA, RMT510RYMRPA, ROS510IANRXA, RMA430FYEU1_AA, RMP400FLCG1_AA, IBGP420TJCG1_AA, RMS510IVMREC, RMA255FYCU_AA, RMA250FVPG1_AA, RME360FXMRSA, RMT510RXMRXC, RMA230FVEL1_AA, RMT510RYMREC, RMT400RYMREC, RME360FDMRPA, RMA250FHEL1_AA, RME360FDMRDA, RMS510IXMRXD, RMT510RXMRBC, IOM400MYMRNA, RMS510IXMRXA, IBGA230TJCG1_AA, RMA520FVPG1_AA, RGP400FGMU_AA, RETFA51XEUEA, RMP942FJLEL1_AA, RMS400IAMRPC, RMP405FYCU_AA, RMP360FLCL_AA, RMS510IAMRXA, RMA300FWUT_AA, RMS510IVMRED, RMT510RYMRPD, RMT510RXMRCA, RMS510IAMREA, RMS400IAMRXC, RMP425FYCU_AA, RMP840FYEU1_AA, RCT510RYMREC, RMS510IAMRPA, RMS510IXMRXC, RMA230FVPL1_AA, IOM400MYMRVA, RMP420FLPG1_AA, RMS400IXMREA, RMS400IVMREA, RGS510IXTRXA, RGT510RYMRXA, RMS400IAMREA, RMP420FLCG1_AA, RMT510RXMREA, RME360FDMREA, RMP942FLPG1_AA, RMA250FVPL1_AA, RMA250PHUG1_AA, RMP840FLEL1_AA, RMS510IABREA, RMT510RYMRPC, ROS400IANRXA, RMA305FYCT_AA, RTE360FXCRBA, RMA250PJEL1_AA, RME360FGMREA, RMT510RYMRCA, RMA250FJCL1_AA, RMP736FHEL1_AA, RCT510RYMREA, RTE360FXCREA, RGA300FBML_AA, RME360FDMRSA, RMP736FYEU1_AA, RMA430FBEG1_AA, RMT400RYMRCA, RMS400IAMRPA, ROS510IANRXC, RMT510RYMREA, RME360FYMREA, RMT510RXMRCC, RGS510IXTRBA, RMT510RXMRXA, RMS400IAMRXA, RMS510IVMREA, RMS400IVMREC, RME360FGMRSA, RMA230FJCG1_AA, RMT510RXMRBA, RMA250FYM7L_AA, RMA300FJCG_AA, RMA300FBPG1_AA, RMT400RYMREA, RME360FDMRXA |
| ASIN | B0CDYZNLSJ |
| మొదట అందుబాటులో ఉన్న తేదీ | ఆగస్టు 7, 2023 |
వారంటీ మరియు మద్దతు
For information regarding the warranty of your Mabe Refrigerator Control Board (238C4974G001 / WR01F04364), please refer to the original purchase documentation or contact the seller directly. Warranty terms and conditions may vary depending on the retailer and region.
For technical support, service inquiries, or to find authorized service centers, please visit the official Mabe webసైట్ లేదా వారి కస్టమర్ సర్వీస్ విభాగాన్ని సంప్రదించండి. మీరు కూడా సందర్శించవచ్చు Mabe Brand Store on Amazon మరిన్ని ఉత్పత్తి సమాచారం మరియు వనరుల కోసం.
