BUVAYE TS03 Portable Car Jump Starter with Air Compressor Instruction Manual

1. పరిచయం

This manual provides detailed instructions for the safe and effective operation, maintenance, and troubleshooting of your BUVAYE TS03 Portable Car Jump Starter with Air Compressor. This multi-functional device is designed to provide emergency jump-starting for vehicles, inflate tires, and serve as a portable power bank and emergency light source. Please read this manual thoroughly before first use and retain it for future reference.

Image 1.1: The BUVAYE TS03 Portable Car Jump Starter with Air Compressor, showcasing దాని కాంపాక్ట్ డిజైన్ మరియు ఇంటిగ్రేటెడ్ లక్షణాలు.

2. ఉత్పత్తి లక్షణాలు

The BUVAYE TS03 combines several essential automotive tools into one compact and powerful unit:

• శక్తివంతమైన జంప్ స్టార్టర్: Delivers a 2000A peak current, capable of starting 12V vehicles with up to 7.0L gas or 5.0L diesel engines. Provides up to 20 jump starts on a single charge.
• Smart Tire Inflator: Integrated digital air compressor with a unique Turbocharged Movement. Offers a maximum pressure of 150 PSI and an airflow of 35L/Min. Features tire-pressure detection, preset value stopping, and unit switching (PSI, KPA, BAR, KG/CM²). Suitable for various inflatables including car tires, bike tires, and sports balls.
• మెరుగైన థర్మల్ డిజైన్: Features a honeycomb heat dissipation design for improved safety and extended product lifespan.
• అత్యవసర LED లైట్: Equipped with a 5W LED camping light providing significant brightness. Includes three modes: Stable, Strobe, and SOS for various emergency situations.
• LCD స్క్రీన్: Clear LCD display shows internal battery status and real-time tire pressure readings.
• పోర్టబుల్ పవర్ బ్యాంక్: Functions as a power bank to charge electronic devices via its USB-C port.

Image 2.1: Illustration of the upgraded battery capacity, indicating its ability to provide multiple uses on a single charge.

3. భద్రతా సమాచారం

సురక్షితమైన ఆపరేషన్‌ను నిర్ధారించడానికి మరియు పరికరానికి నష్టం లేదా గాయాన్ని నివారించడానికి, దయచేసి ఈ క్రింది భద్రతా జాగ్రత్తలను గమనించండి:

• ఉత్పత్తిని ఉపయోగించే ముందు అన్ని సూచనలను చదవండి.
• పరికరాన్ని పిల్లలకు దూరంగా ఉంచండి.
• జంప్ స్టార్టర్ cl ని షార్ట్ సర్క్యూట్ చేయవద్దుamps.
• యూనిట్‌ను విడదీయవద్దు. అన్ని సర్వీసింగ్‌లను అర్హత కలిగిన సిబ్బందికి సూచించండి.
• Use the jump starter only for 12V lead-acid batteries. Do not use it for other types of batteries.
• Ensure proper ventilation during use, especially when operating the air compressor.
• Air Compressor Usage: Do not use the air pump function continuously for extended periods. If the tire compressor becomes seriously hot, allow it to cool down for several minutes before resuming inflation.
• The jump starter is designed to instantly start your 12V vehicle; it does not support charging the car battery.
• Avoid exposing the device to rain or extreme temperatures.

4. సెటప్ మరియు ప్రారంభ ఛార్జింగ్

Before first use, fully charge the BUVAYE TS03 unit. It comes with 4 Lithium Ion batteries included.

1. Connect the provided charging cable to the unit's charging port.
2. Connect the other end of the charging cable to a suitable USB power adapter (not included) or a powered USB port.
3. The LCD screen will indicate the charging status. Charge until the battery indicator shows a full charge.
4. It is recommended to fully charge the unit every 3-6 months to maintain battery health, even if not in use.

Image 4.1: The LCD screen provides accurate readings for internal battery status and tire pressure.

5. ఆపరేటింగ్ సూచనలు

5.1. వాహనాన్ని ప్రారంభించడం

Use this function to start a dead 12V vehicle battery.

1. Ensure the jump starter is sufficiently charged (at least 25% power is typically enough).
2. Turn off your vehicle's ignition and all accessories.
3. ఎరుపు (పాజిటివ్, +) cl ని కనెక్ట్ చేయండిamp to the positive terminal of your vehicle's battery.
4. నలుపు (నెగటివ్, -) cl ని కనెక్ట్ చేయండిamp to the negative terminal of your vehicle's battery.
5. cl నిర్ధారించుకోండిamps are securely attached and there is good contact.
6. Turn on the BUVAYE TS03 jump starter. The LCD screen may indicate readiness.
7. Start your vehicle's engine. If it doesn't start immediately, wait 30 seconds and try again. Do not crank for more than 3 seconds per attempt.
8. వాహనం స్టార్ట్ అయిన తర్వాత, వెంటనే నలుపు (నెగటివ్) cl ని డిస్‌కనెక్ట్ చేయండి.amp మొదట, తరువాత ఎరుపు (ధనాత్మక) clamp.
9. Store the jump starter safely.

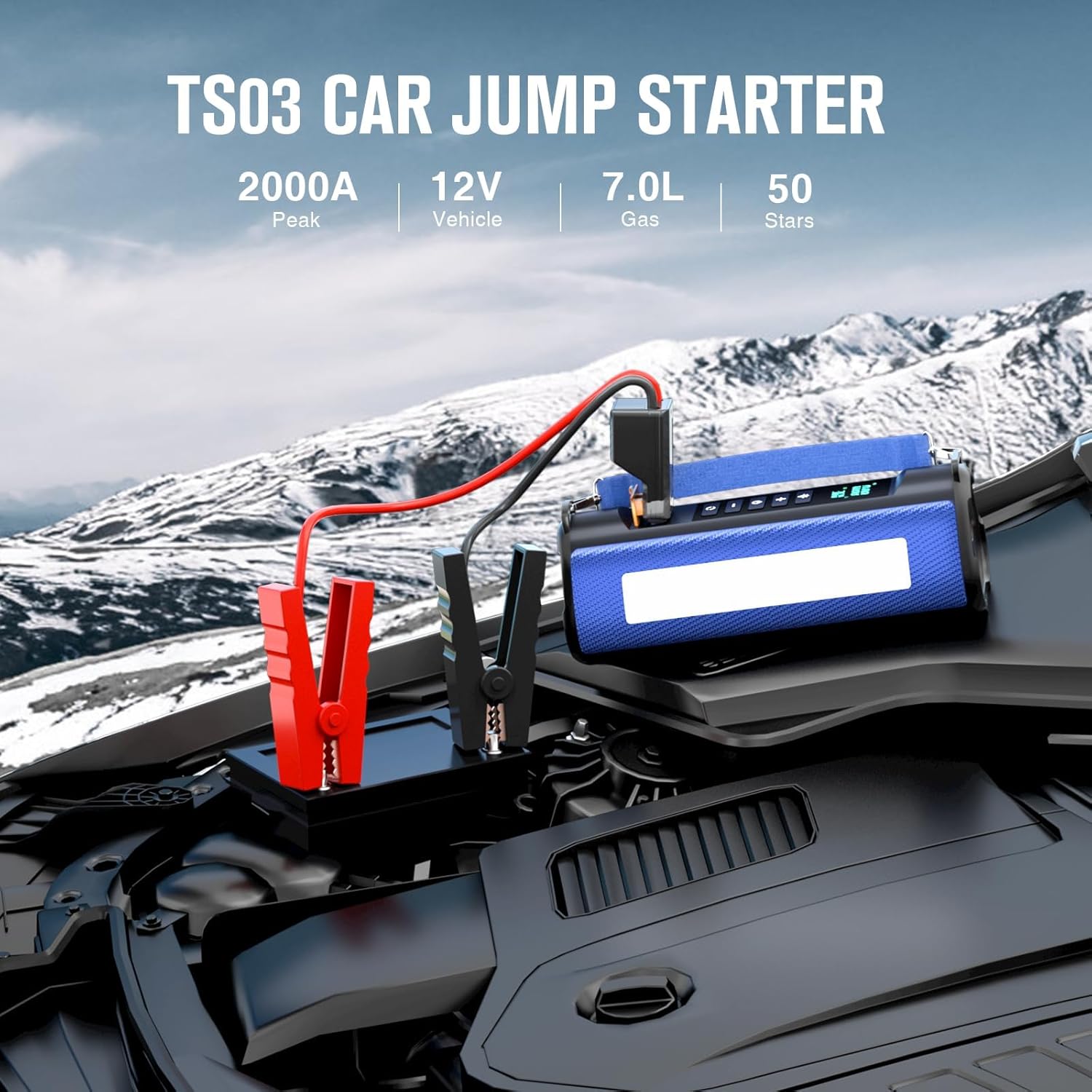

Image 5.1: The BUVAYE TS03 jump starter connected to a car battery, ready to provide a boost.

5.2. ఎయిర్ కంప్రెసర్ను ఉపయోగించడం

Inflate tires or other inflatables using the integrated air compressor.

1. Connect the air hose to the inflation port on the BUVAYE TS03.
2. Attach the other end of the air hose to the valve stem of the tire or inflatable item.
3. Turn on the unit. The LCD screen will display the current pressure.
4. Use the control buttons to set the desired pressure (PSI, KPA, BAR, KG/CM²). Refer to your vehicle's manual or tire sidewall for recommended pressure.
5. ద్రవ్యోల్బణాన్ని ప్రారంభించడానికి స్టార్ట్ బటన్‌ను నొక్కండి. ముందుగా నిర్ణయించిన పీడనం చేరుకున్న తర్వాత కంప్రెసర్ స్వయంచాలకంగా ఆగిపోతుంది.
6. Disconnect the air hose and store it properly.
7. ముఖ్యమైన: If the unit becomes hot during prolonged use, allow it to cool down for several minutes before continuing.

Image 5.2: The BUVAYE TS03 air compressor in use, inflating a car tire. Its triangular horizontal design provides stability during operation.

5.3. LED అత్యవసర లైట్ ఉపయోగించడం

The integrated LED light provides illumination and emergency signaling.

1. Press the light button to cycle through the different modes: Stable (constant on), Strobe (flashing), and SOS (Morse code for distress).
2. లైట్ ఆఫ్ చేయడానికి మళ్లీ నొక్కండి.

చిత్రం 5.3: ఉదాamples of the BUVAYE TS03's LED light in use, demonstrating its versatility for roadside emergencies, camping, and general illumination.

5.4. పోర్టబుల్ పవర్ బ్యాంక్‌గా ఉపయోగించడం

Charge your electronic devices on the go.

1. Connect your device's charging cable to the USB-C output port on the BUVAYE TS03.
2. యూనిట్ మీ పరికరాన్ని స్వయంచాలకంగా ఛార్జ్ చేయడం ప్రారంభిస్తుంది.
3. మీ పరికరం ఛార్జింగ్ స్థితిని పర్యవేక్షించండి.

6. నిర్వహణ

Proper maintenance ensures the longevity and optimal performance of your BUVAYE TS03.

• రీఛార్జ్ చేయడం: Recharge the unit after each use, especially after jump-starting a vehicle or using the air compressor extensively.
• నిల్వ: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. Ensure it is fully charged before long-term storage.
• శుభ్రపరచడం: ఒక మృదువైన, d తో బాహ్య తుడవడంamp cloth. Do not use harsh chemicals or abrasive cleaners. Ensure all ports are free of dust and debris.
• బ్యాటరీ ఆరోగ్యం: For optimal battery life, recharge the unit at least once every 3-6 months, even if it has not been used.

7. ట్రబుల్షూటింగ్

If you encounter issues with your BUVAYE TS03, refer to the following common problems and solutions:

If troubleshooting steps do not resolve the issue, please contact BUVAYE customer support for further assistance.

8. స్పెసిఫికేషన్లు

Detailed technical specifications for the BUVAYE TS03:

9. వారంటీ మరియు మద్దతు

For warranty information, technical support, or any inquiries regarding your BUVAYE TS03, please contact BUVAYE customer service. Details on warranty coverage and how to reach support are typically provided with your purchase documentation or on the official BUVAYE webసైట్.
